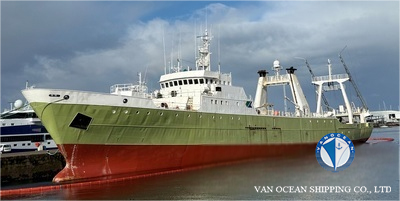

VESSEL NAME

TRA328

TYPE

TRAWLER

CONVERSION(S)

-

HULL MATERIAL

STEEL

FLAG

FALKLAND ISLANDS

PORT OF REGISTRY

STANLEY

BUILT YEAR

1977

BUILT PLACE

SPAIN

CLASSIFICATION

BV

CLASS NOTATION

I✠Hull✠Mach, Fishing vessel. Unrestricted navigation, Ice III

SS

2026-12

DD

2025-01

LOA (M)

95.43

LOA BETWEEN MASTS (M)

-

LBP (M)

86.86

BEAM (M)

13

DEPTH (M)

8.4

SUMMER DRAFT (M)

5.986

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

2511

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

735

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

3693

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

-

M/E(S)

2 x BARRERAS DEUTZ, RBV6M358, 4400BHP, 375RPM

M/E POWER (KW)

3238

A/E(S)

1 x Barreras-Deutz R/SBA 6M-528, 750HP, 750 rpm 1 x Mitsubishi S6R MPTAW-5, 545KW, 1500 rpm 1 x Barreras-Deutz BA 8M-816, 559HP, 1500 rpm 1 x Volvo-Penta TMD-102A 165, 215KW, 1500rpm

GENERATOR(S)

-

SHAFT GENERATOR(S)

2 x 800 kVA

PROPELLER(S)

CPP, KAMEWA Hub 94 52/4 O.D.box 150 FS-2 , 4 blades, running into fixed nozzle type HR. Diameter 3,25 m

SPEED /CONSUMPTIONS

14.0 KTS

FUEL TYPE

IFO 180

BUNKER CAPACITY (CBM)

1282.26

TANKS CAPACITY (CBM)

LO: 24.5 FW: 35.6

COMPARTMENT(S)

6

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

90926

CARGO CAPACITY (CBM)

2575.8

NUMBER OF FREEZING HOLDS

-

FREEZING HOLD CAPACITY (CBFT)

-

FREEZING HOLD CAPACITY (CBM)

-

COOLING SYSTEM

FREON R507 1 x 293.6 Kw/h Mycom 200 VLD 3 x 149 Kw/h Grassö RC-6311

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

2 x Split main trawling winches CARRAL SMP/3 electrical driven by 2 x 425 HP Indar 450 NA C.C. motors at 900 rpm , with a wire capacity of 3200 m /30 mm. Pulling Capacity: 13,500 kg 2 x 75 HP Hydraulic maneuvering winches Santodomingo . Wire capacity 385 m x 28 mm 2 x Hydraulic trawling doors maneuvering winches Nuñez for 1000 kgs 1 x Anchor windlasses CARRAL S/38-2 for 38mm chain Q-2 1 x Traction Control Equipment MARELEC SII-D (P1)

FACTORY

-

WATER MAKER

-

SEPARATORS

-

BOILER(S)

-

SAFTY EQUIPMENTS

-

ELECTRONICS

-

INSURANCE

-

CREW

-

ACCOMMODATION

59 CREW

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

-
