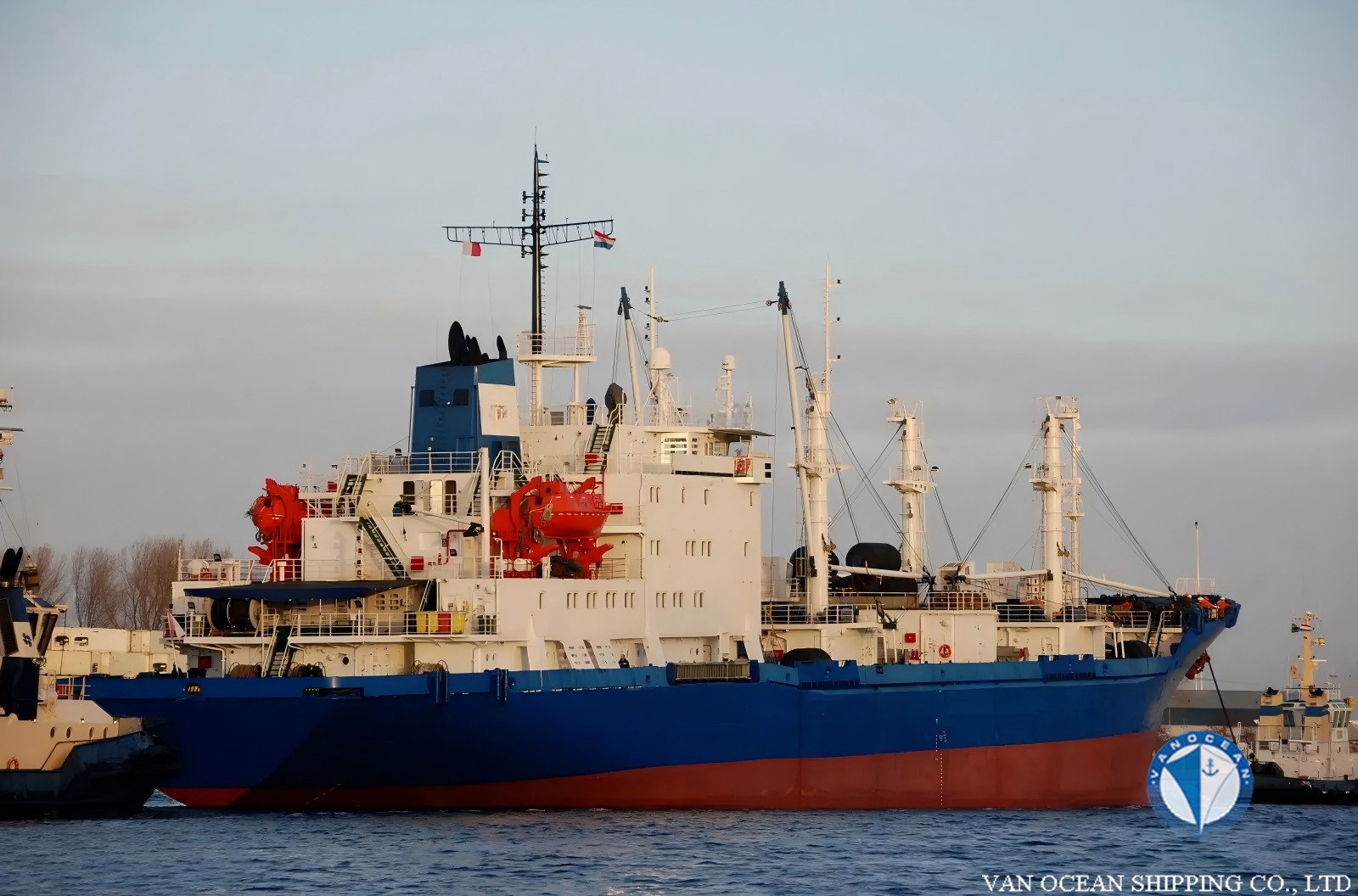

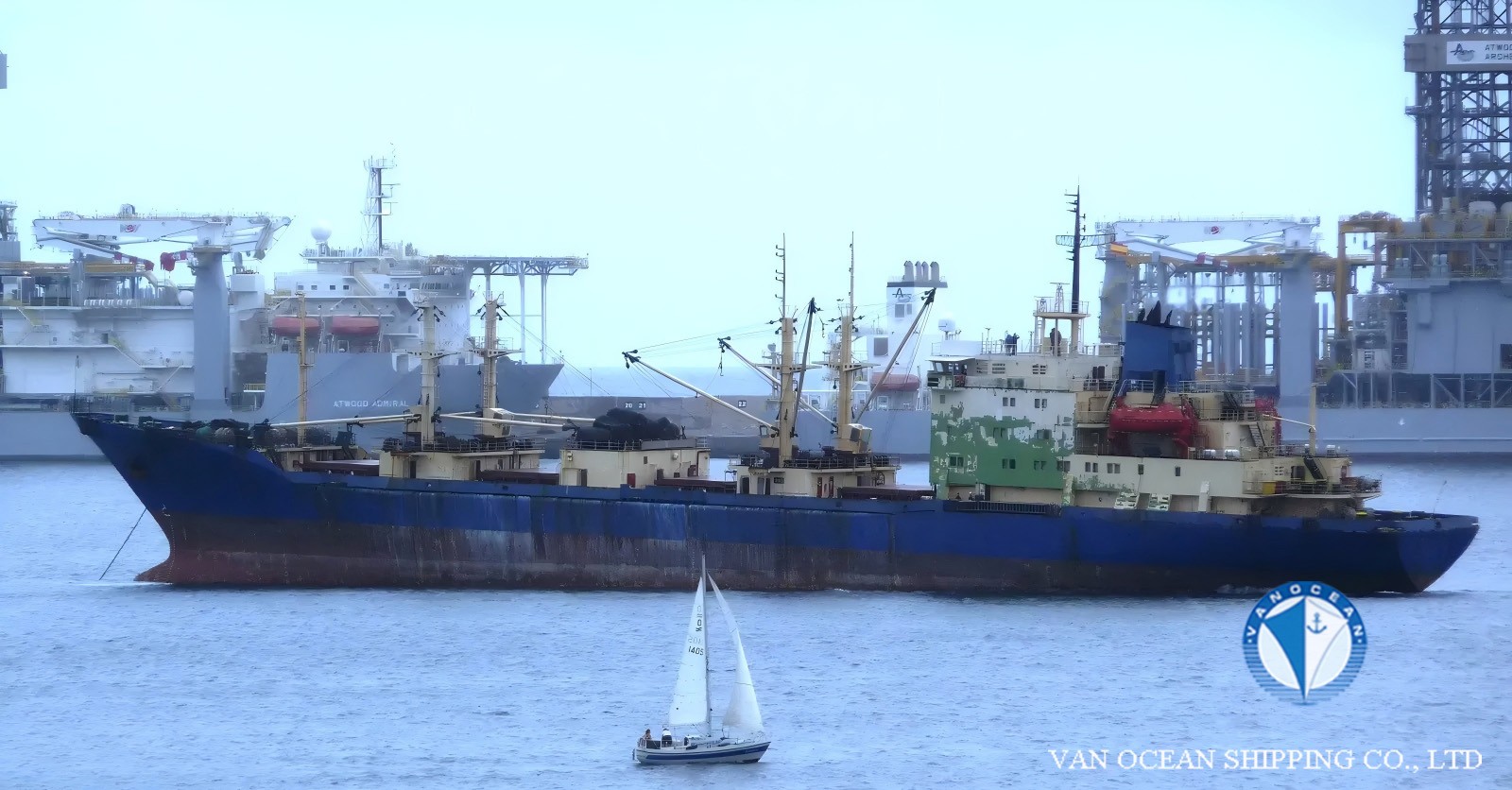

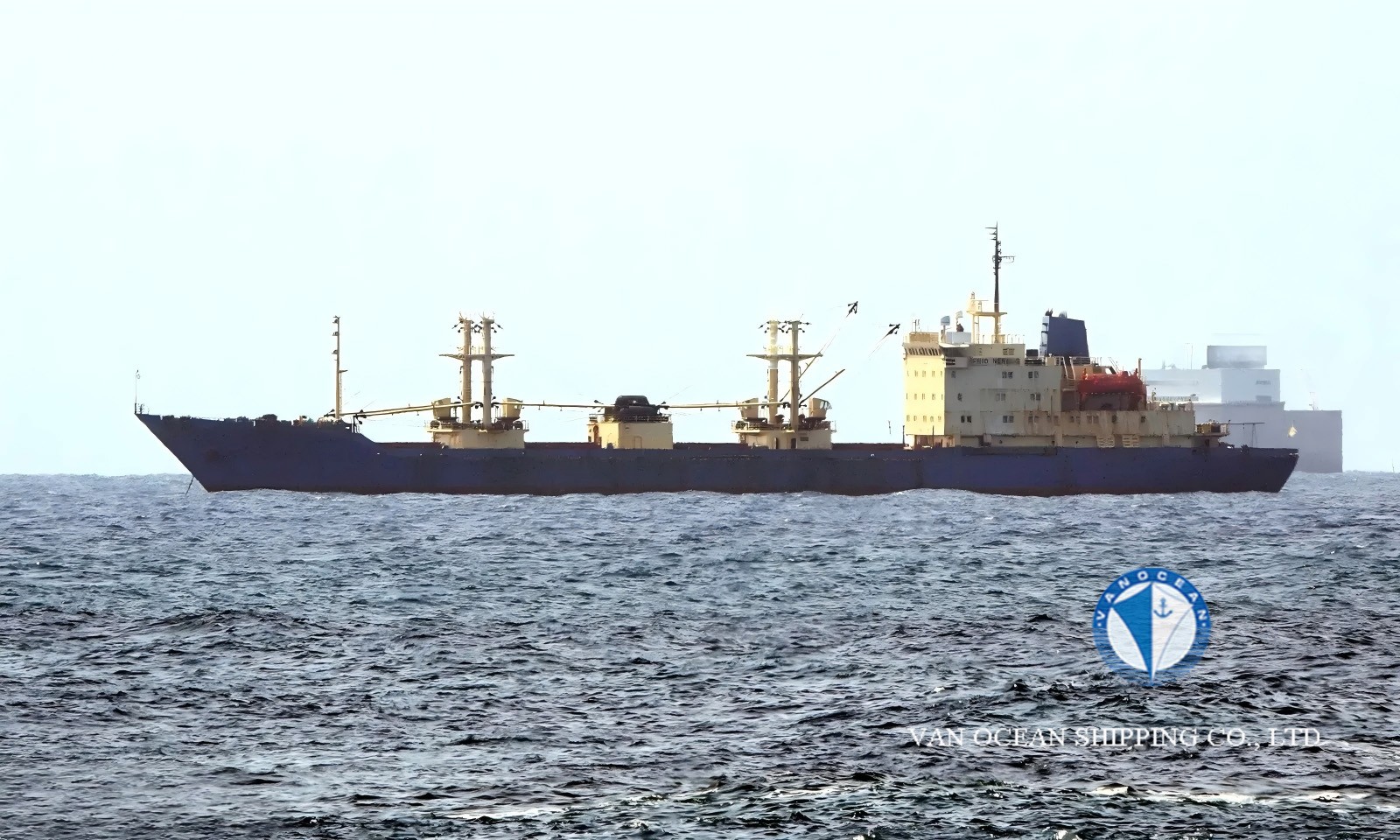

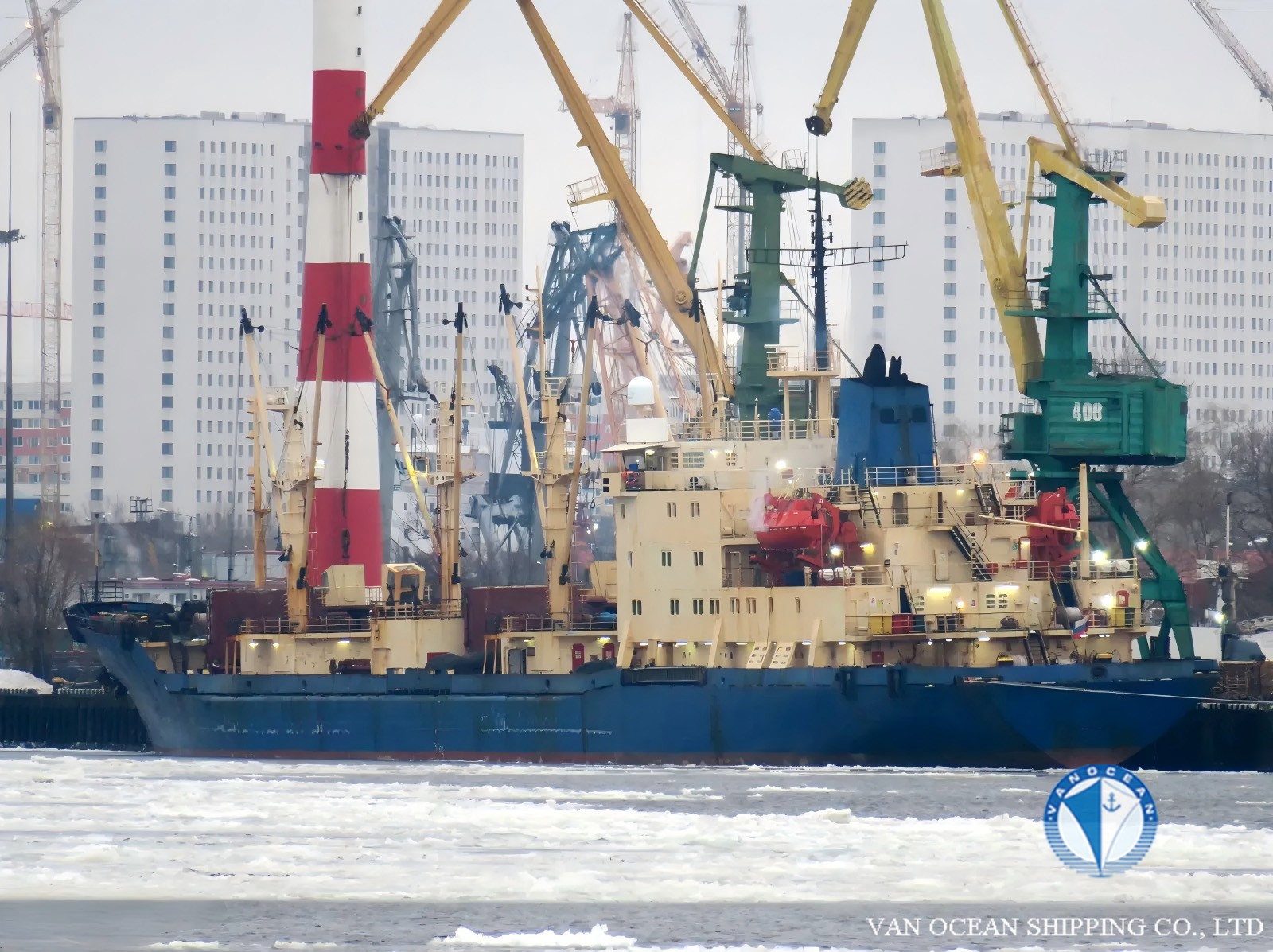

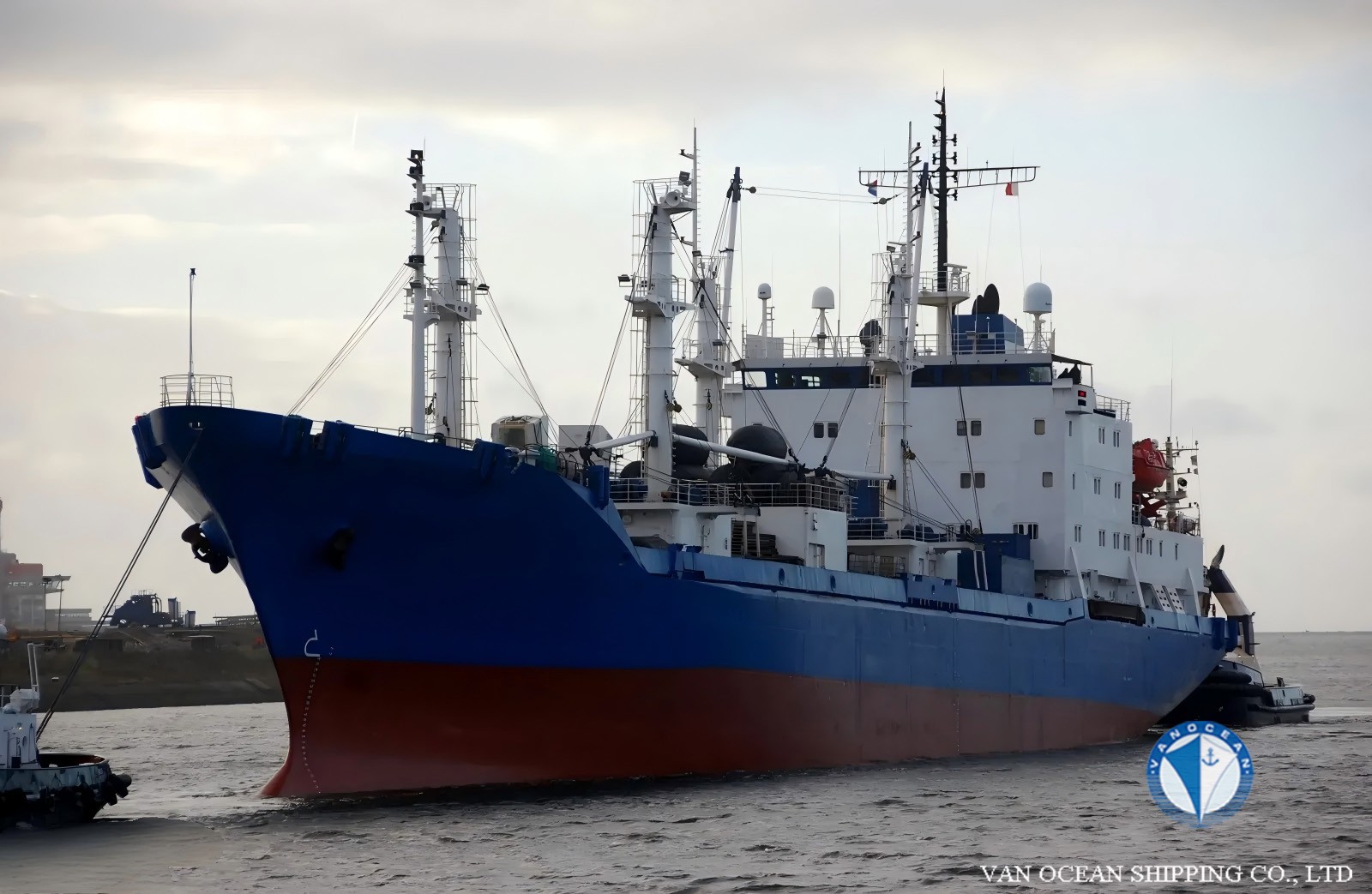

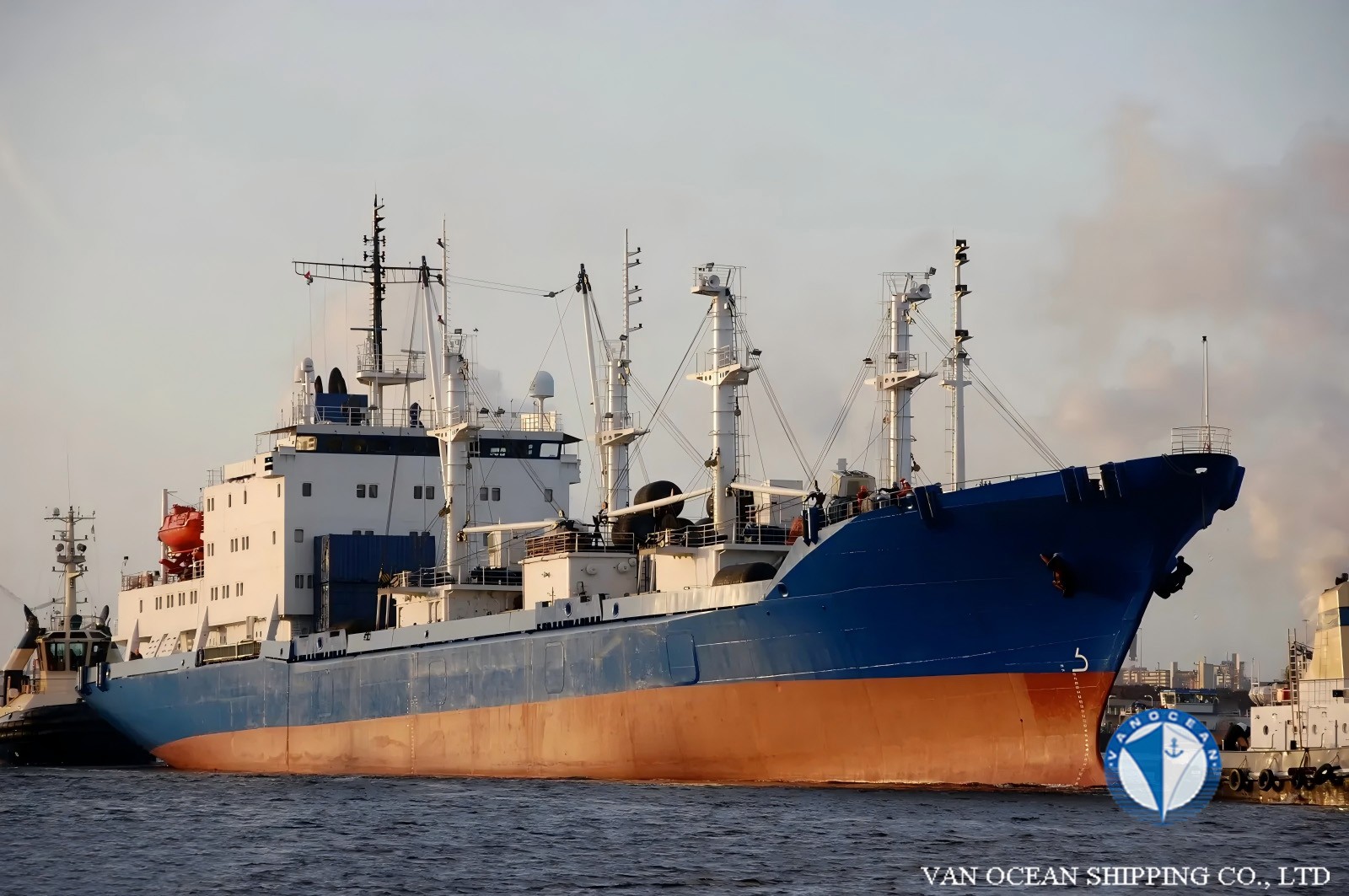

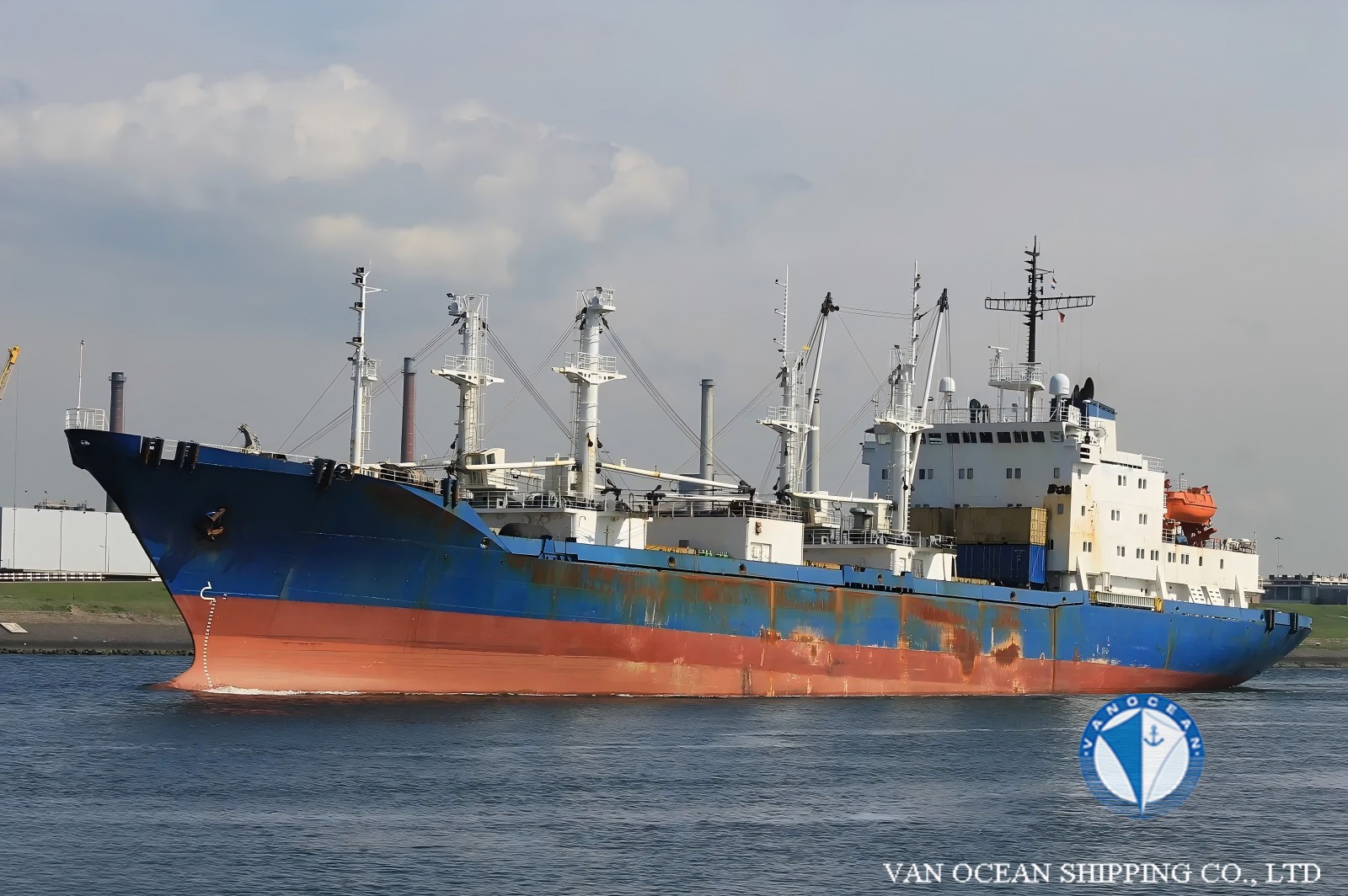

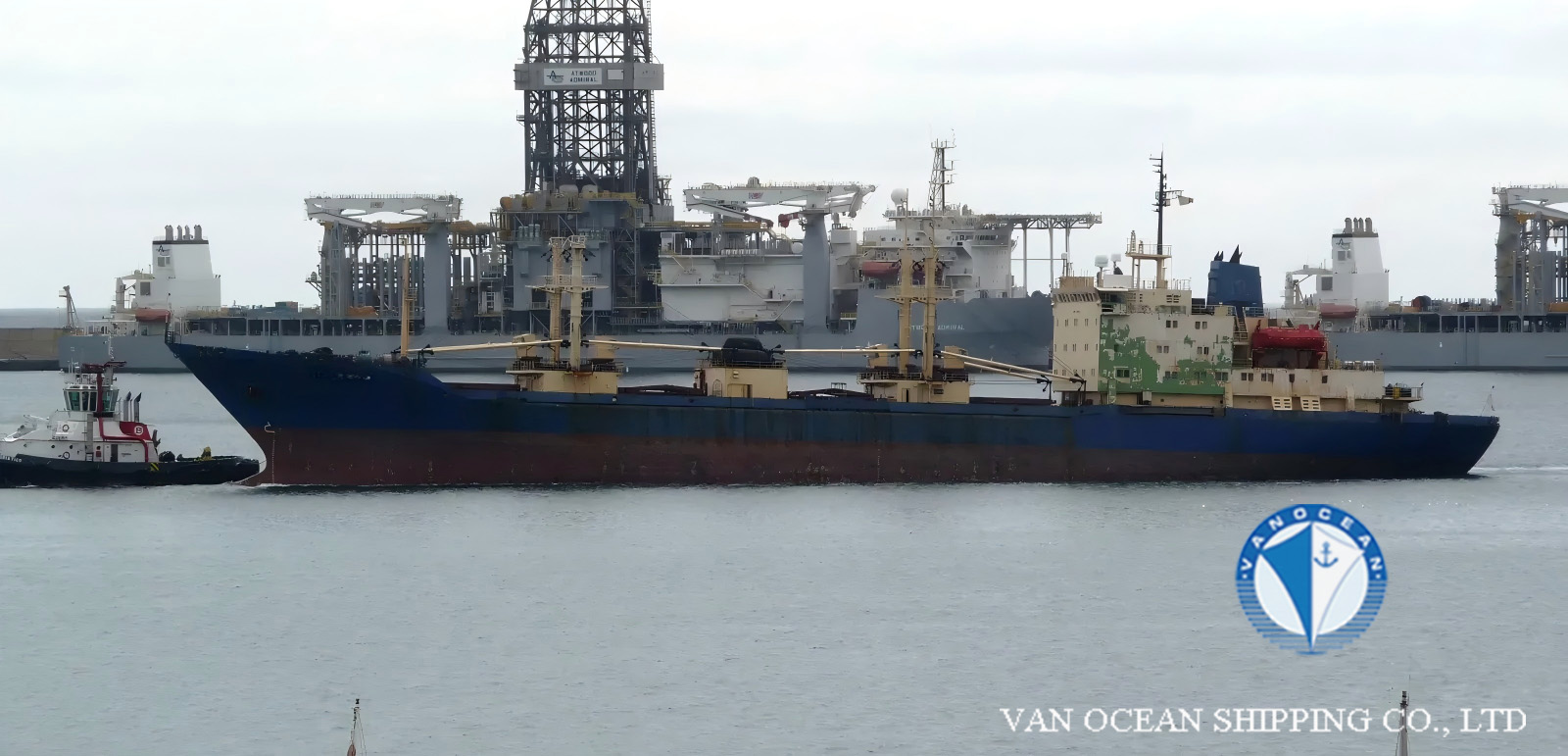

VESSEL NAME
REF449
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
RU
PORT OF REGISTRY
BOLSHOY PORT OF ST. PETERSBURG
BUILT YEAR
1994
BUILT PLACE
NIKOLAEV UKRAINE
CLASSIFICATION
RMRS
CLASS NOTATION
KM(*) L1 (at d<=6.75 m) [1] REF
SS
2029-12
DD
2028-02
LOA (M)
133.95
LBP (M)
120
BEAM (M)
18
DEPTH (M)
10.7
SUMMER DRAFT (M)
7.88
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
6964
PANAMA GT (MT)
7576
SUEZ GT (MT)
7176
NT (MT)
2657
PANAMA NT (MT)
4753
SUEZ NT (MT)
4728
SUMMER DWT (MT)
6750
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 8 x 5MT, UP 4 x 3.2MT, OUTREACH 4M
M/E(S)
BRYANSK MAN 6DKNR 42/136-10 6960
M/E POWER (KW)
5100
A/E(S)
YANMAR 3 x 550KW, 380V/ 50HZ
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
3 x SABROE SCREW COMPRESSORS,
FREON 407F COOLING AIR BLAST.
SPEED/CONSUMPTIONS
BANANA LADEN: ABT 15.5KTS ON 23MT IFO(180)+1.5-3.5MT MDO
BALLAST: 16KTS ON 21MT
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
1305
TANKS CAPACITY (CBM)
MDO: 195
BW: 550
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
6.5 x 7.8
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
12
DECK(S)
3
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
269310
CARGO CAPACITY (CBM)
7627
FLOOR SPACE CAPACITY (SQM)
2960
GRATING/DECK STRENGTH
ALUMINIUM, 5MT/SQM
TEMPERATURE ZONE(S)
8
1A/BC, 2A/BC, 3A/BC, 4A/BC
TEMPERATURE (℃)
-28C / +5C
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
40
PALLET(S)
-
CONTAINER CAPACITY
48 TEU INSIDE HOLDS
41 LOADED TEU ON UPPER DECK AND HATCH COVERS
ALTERNATIVELY: 22 LOADED FEU UP TO MAX 500MT DECK (PROVIDING ADDITIONAL BUNKERS FOR STABILITY REASONS)
EMPTY FEU PLUS 7 LOADED TEU
REEFER PLUG(S)
41
SIDE DOOR(S)
4STBD SIDE, A-DECK LEVEL
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
FITTED
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
4 x BANANA HATCH: 2.5 x 2.5M
