REEFER S&P

HOME - REEFER S&P - REF825

PARTICULAR

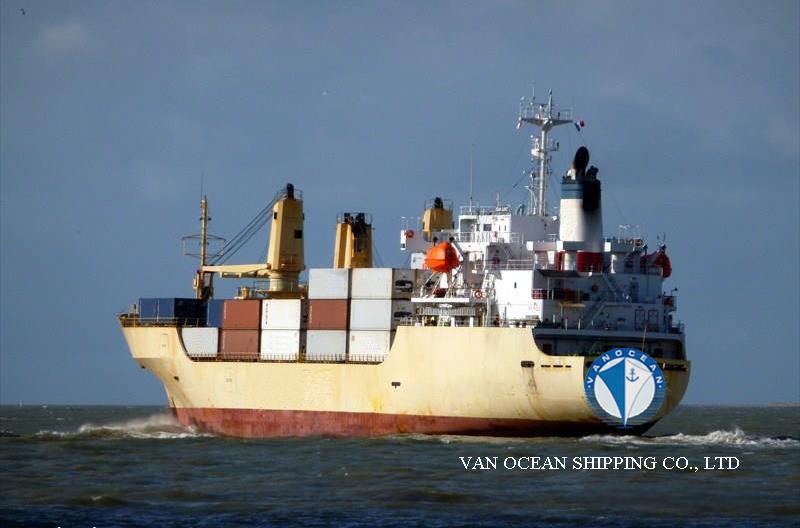

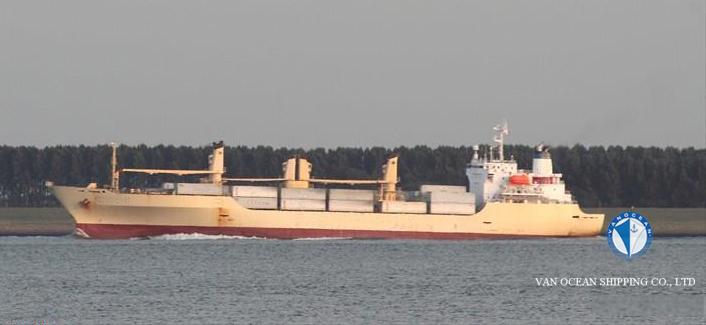

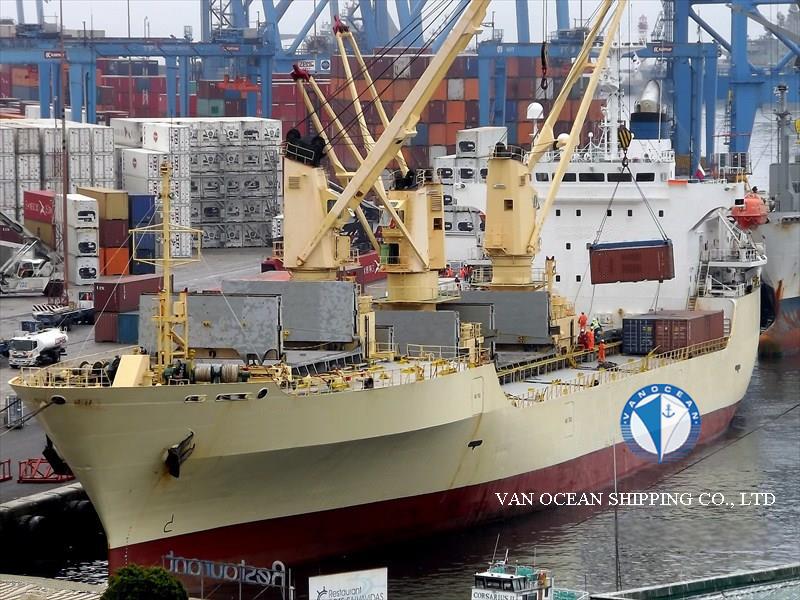

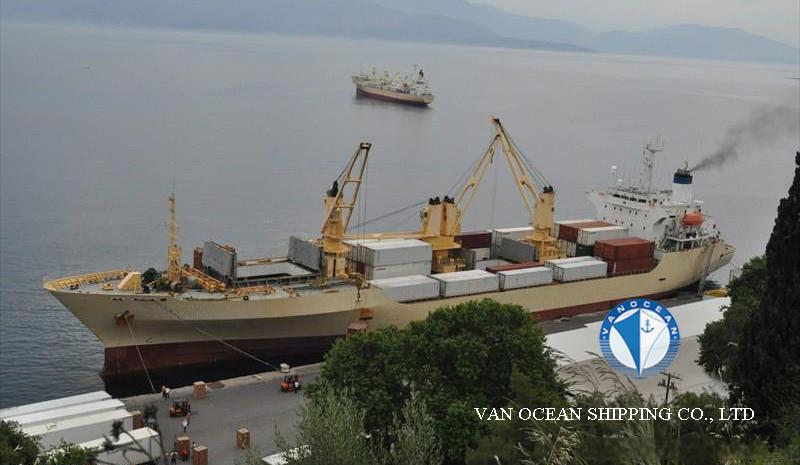

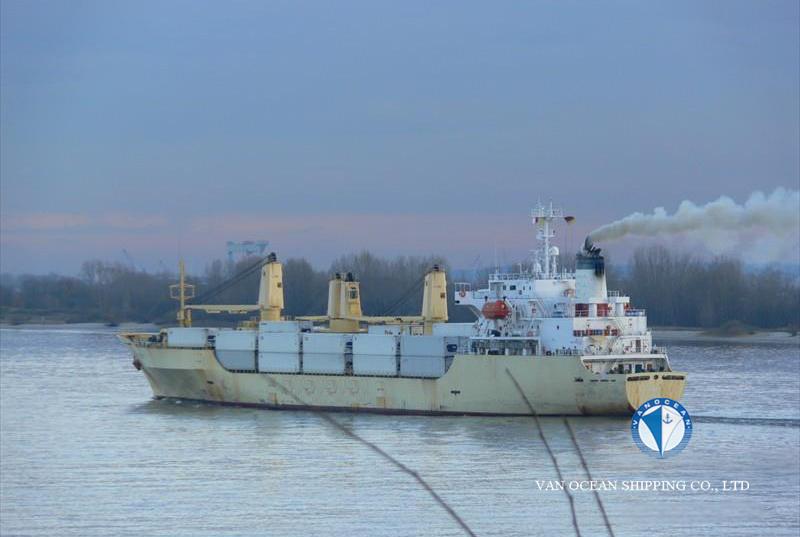

  • VESSEL NAME
  • REF825
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • PANAMA
  • PORT OF REGISTRY
  • PANAMA
  • BUILT YEAR
  • 1996
  • BUILT PLACE
  • IWAGI ZOSEN, JAPAN
  • CLASSIFICATION
  • NK
  • CLASS NOTATION
  • UNRESTRICTED, NAVIGATION, C✠, ICE CLASS IC✠, REF-CARGO
  • SS
  • 2026-11
  • DD
  • 2026-11
  • LOA (M)
  • 152
  • LBP (M)
  • 141.15
  • BEAM (M)
  • 23
  • DEPTH (M)
  • 13
  • SUMMER DRAFT (M)
  • 8.7
  • WINTER DRAFT (M)
  • -
  • TROPICAL DRAFT (M)
  • -
  • GT (MT)
  • 10519
  • PANAMA GT (MT)
  • 10519
  • SUEZ GT (MT)
  • 11433.74
  • NT (MT)
  • 5406
  • PANAMA NT (MT)
  • 8862
  • SUEZ NT (MT)
  • 9350.25
  • SUMMER DWT (MT)
  • 10334
  • WINTER DWT (MT)
  • -
  • TROPICAL DWT (MT)
  • -
  • LDT (MT)
  • -
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • CRANE: 2 x 35MT
  • M/E(S)
  • Mitsubishi 6UEC60LSII MCR 16,200PS x 105rpm NOR 13770ps x 99.5rpm
  • M/E POWER (KW)
  • 12089
  • A/E(S)
  • -
  • GENERATOR(S)
  • 2 x 1000kw + 2 x 500kw
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • FPP
  • COOLING SYSTEM (COMPRESSOR)
  • R22, BRINE
  • SPEED/CONSUMPTIONS
  • 21KTS, 38MT/DAY
  • FUEL TYPE
  • IFO380, MDO
  • BUNKER CAPACITY (CBM)
  • IFO380-1701.3 CBM, MDO-103.81 CBM
  • TANKS CAPACITY (CBM)
  • -
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • ELECTRORIC HYDRAULIC
  • HATCH SIZE (M)
  • 13.00 x 7.85 M
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • 16
  • DECK(S)
  • 4
  • DECK HEIGHT (M)
  • ≥2.2M
  • CARGO CAPACITY (CBFT)
  • 547557
  • CARGO CAPACITY (CBM)
  • 15512
  • FLOOR SPACE CAPACITY (SQM)
  • 6226.56
  • GRATING/DECK STRENGTH
  • 6 MT FORKLIFT WITH CARGO
  • TEMPERATURE ZONE(S)
  • 8
  • TEMPERATURE (℃)
  • -30/+15 C
  • TYPE OF VENT SYSTEM
  • -
  • VENT (TIMES/HOUR)
  • 90
  • AIR CHANGE (TIMES/HOUR)
  • 4
  • PALLET(S)
  • -
  • CONTAINER CAPACITY
  • TEU: 192/ FEU: 100
  • REEFER PLUG(S)
  • 64
  • SIDE DOOR(S)
  • 4 PORT SIDE (2.0M x 2.0M)
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • Fitted (Valid until 1st March 1999)
  • INSURANCE
  • GARD
  • CREW
  • 25
  • ACCOMMODATION
  • -
  • INSPECTION
  • PERU
  • DELIVERY
  • PERU
  • PRICE
  • 8.5 MILLION USD
  • REMARK(S)
  • -
