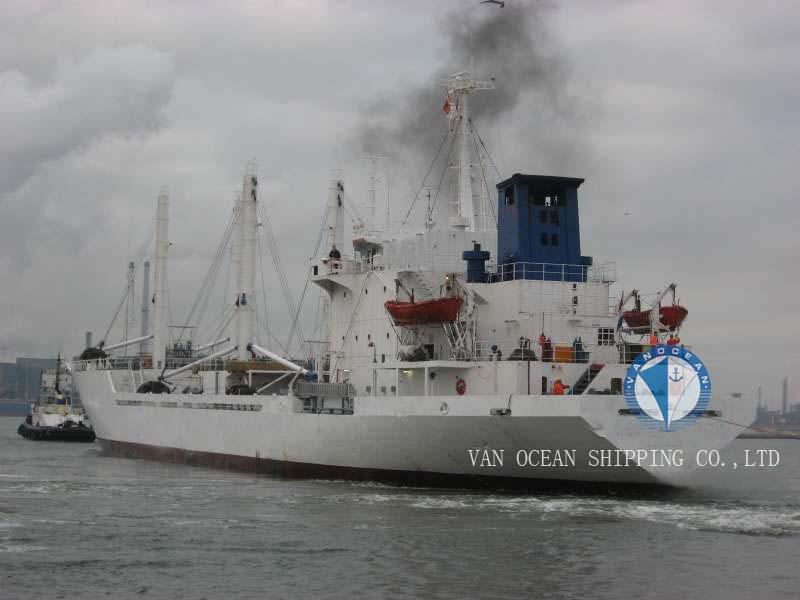

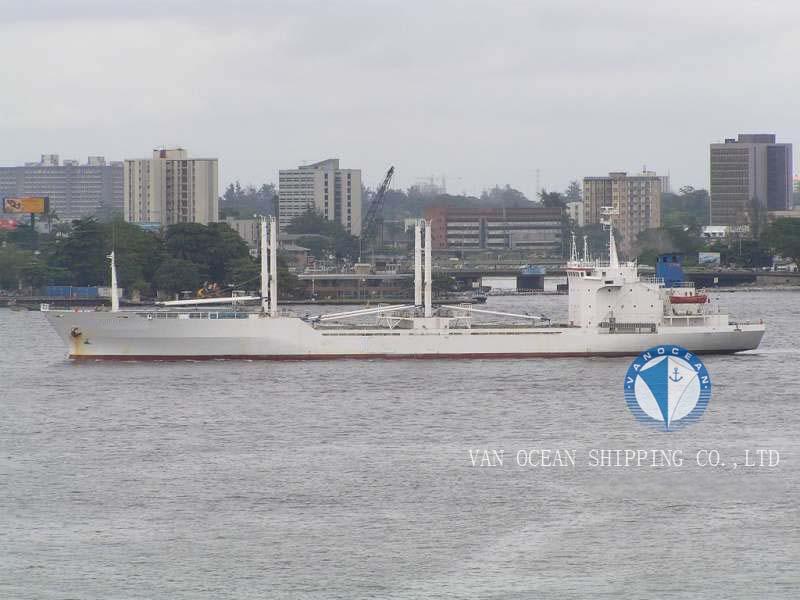

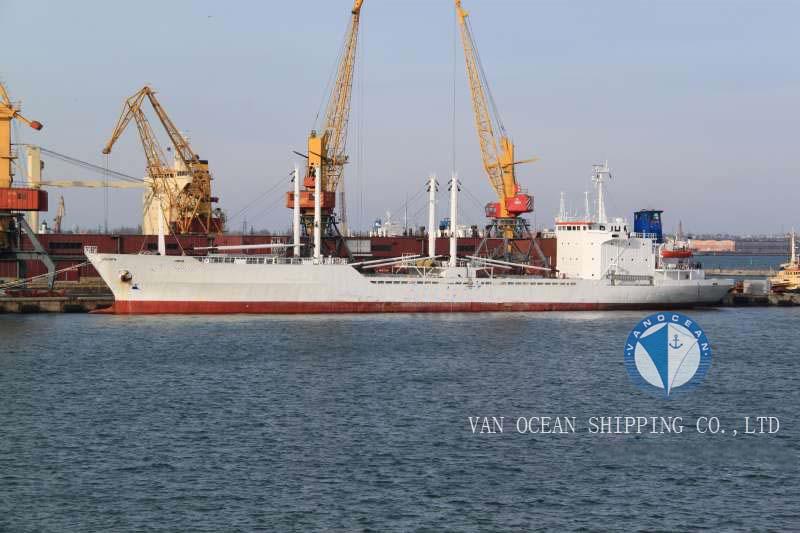

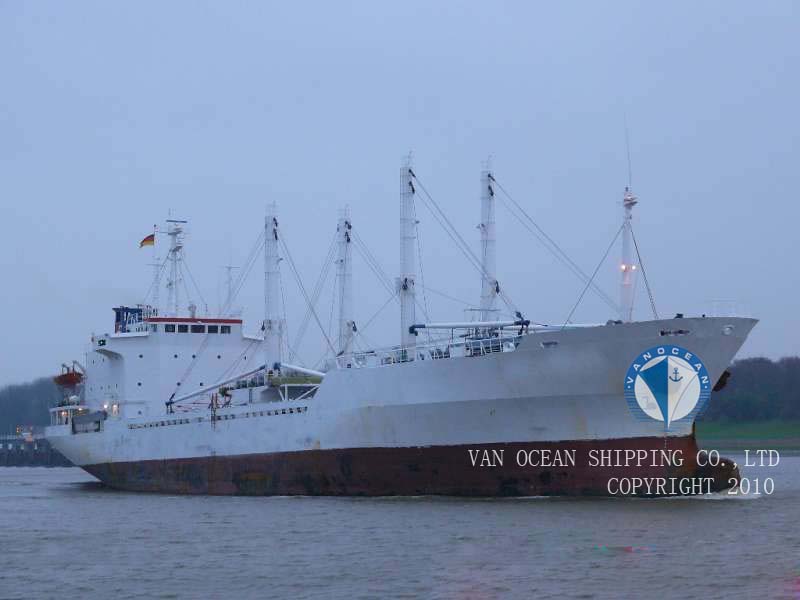

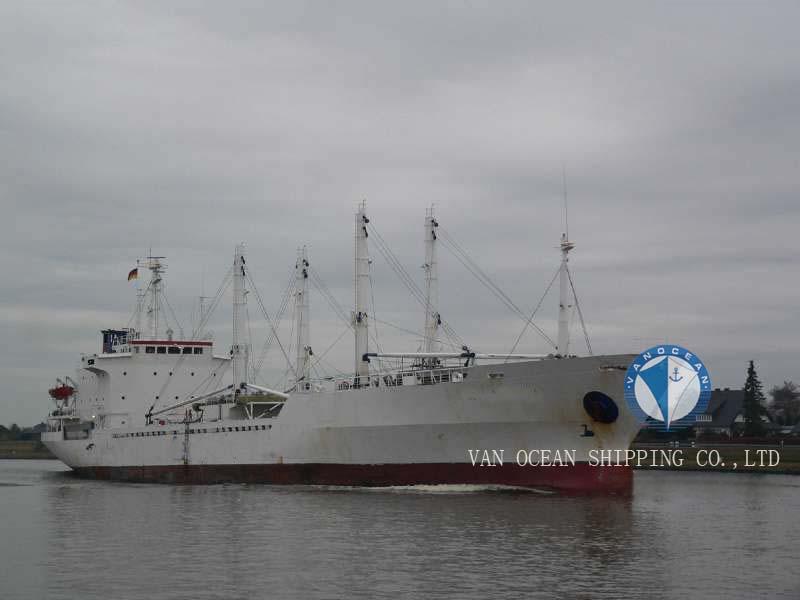

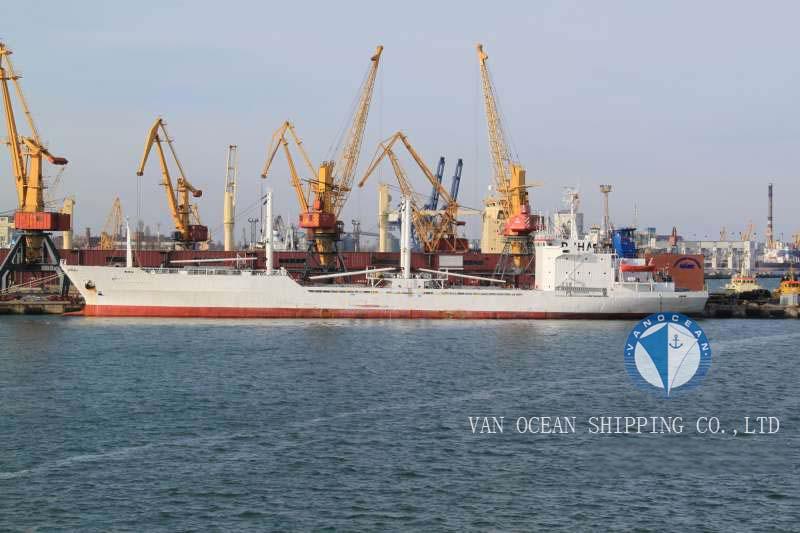

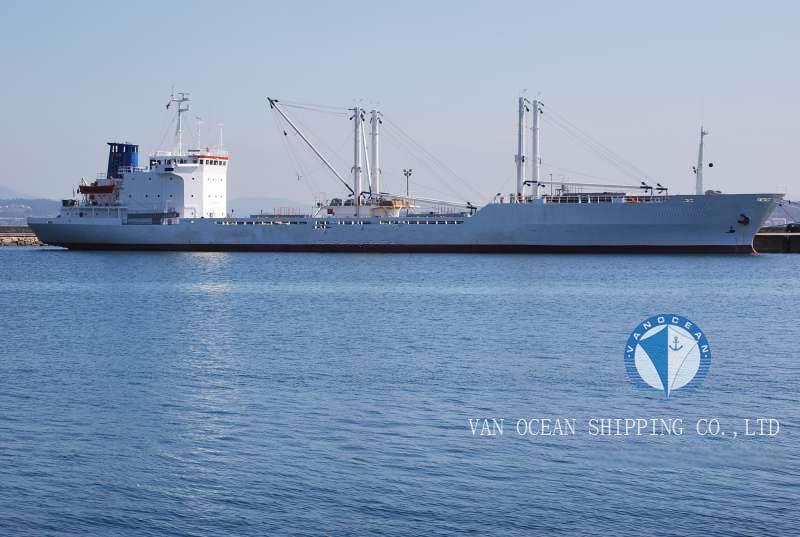

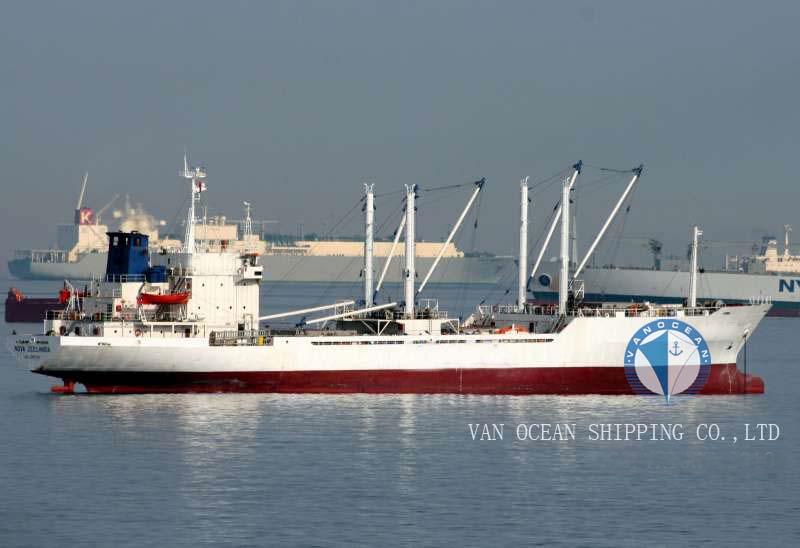

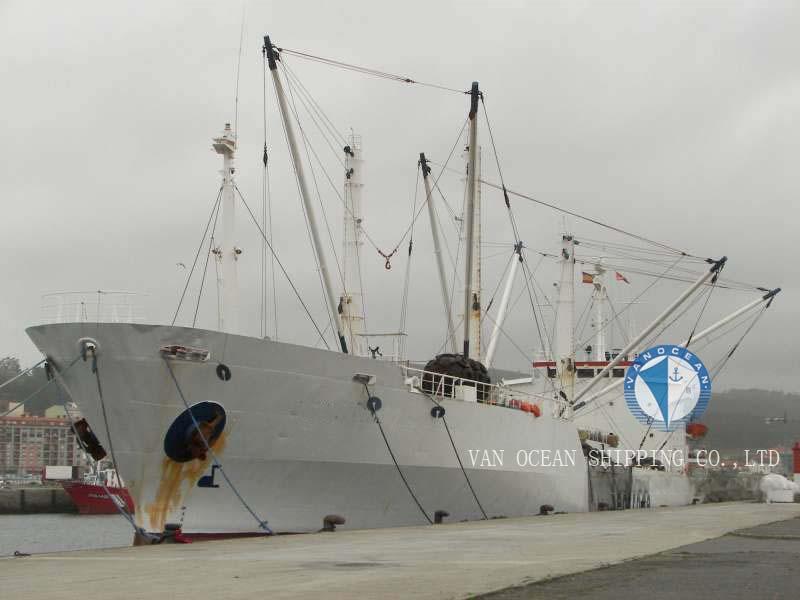

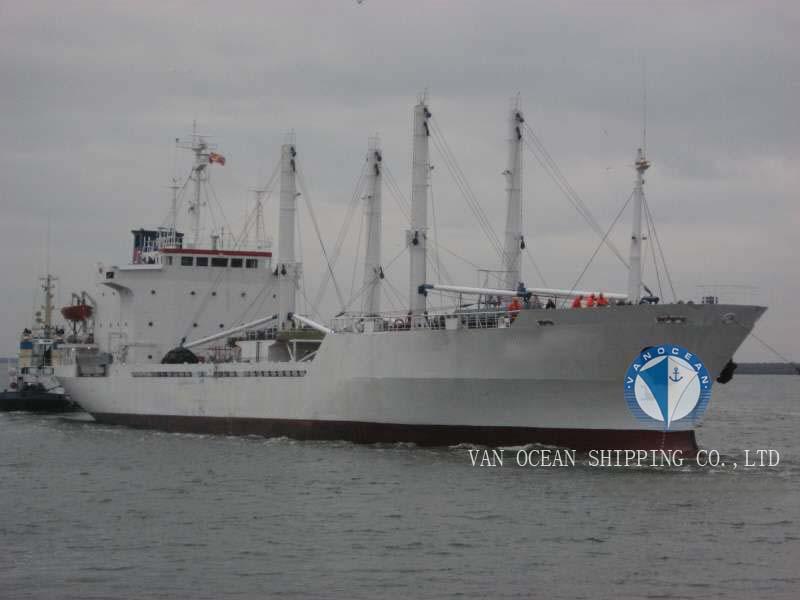

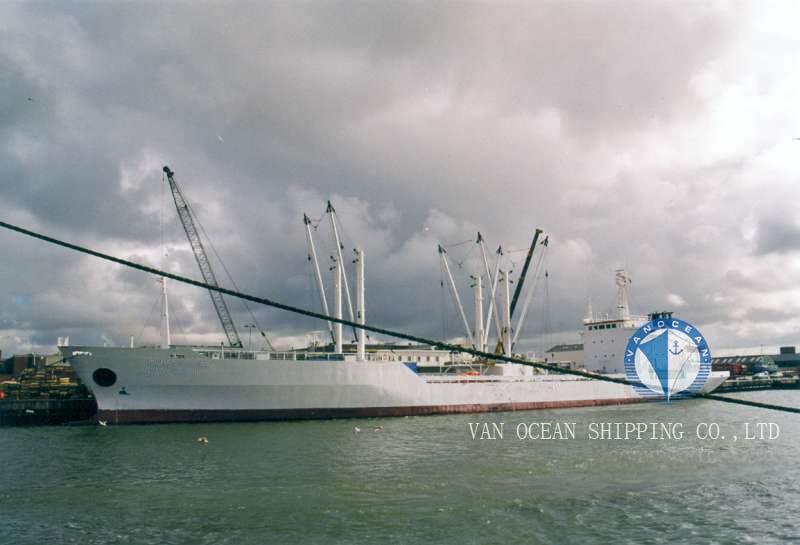

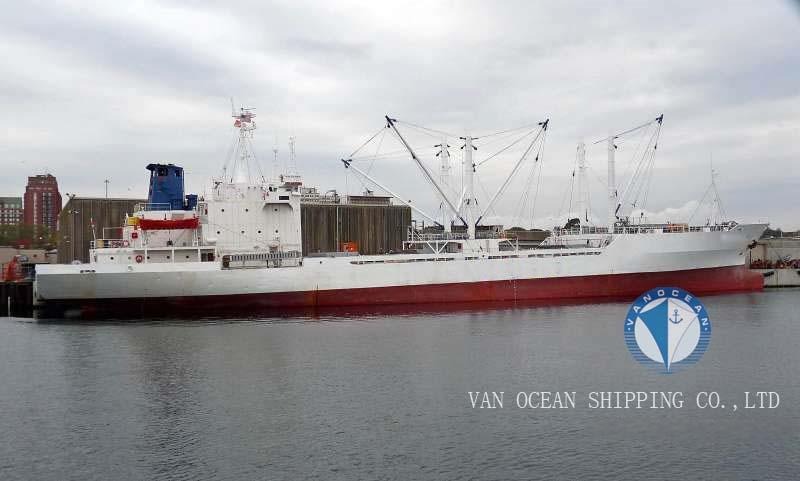

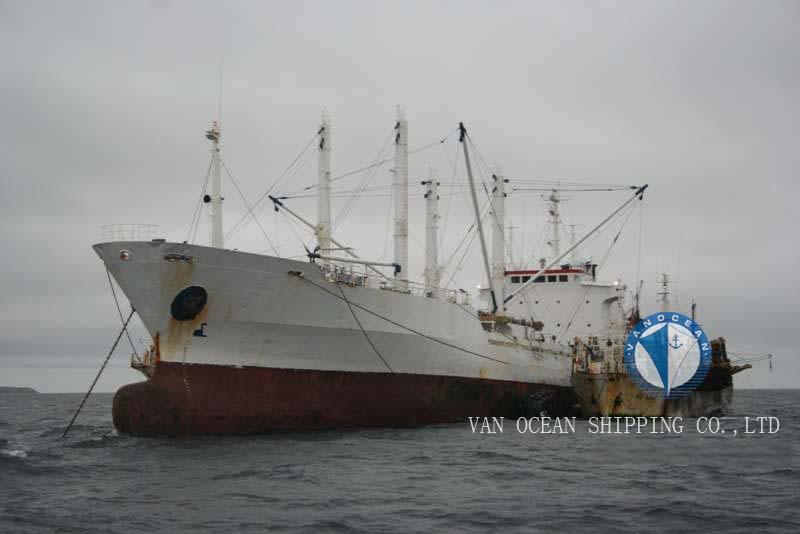

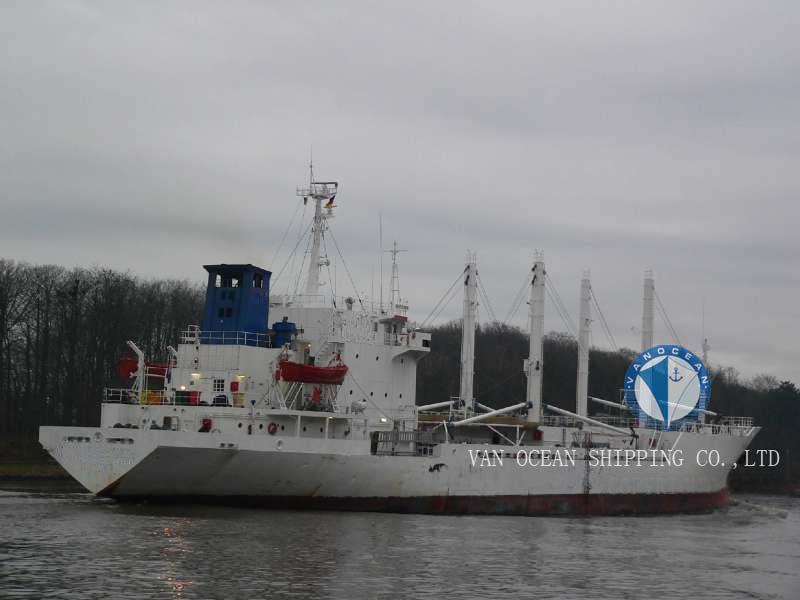

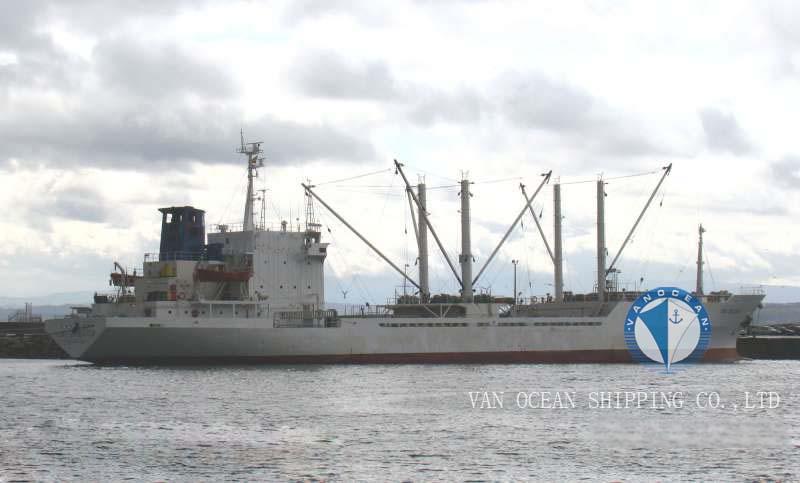

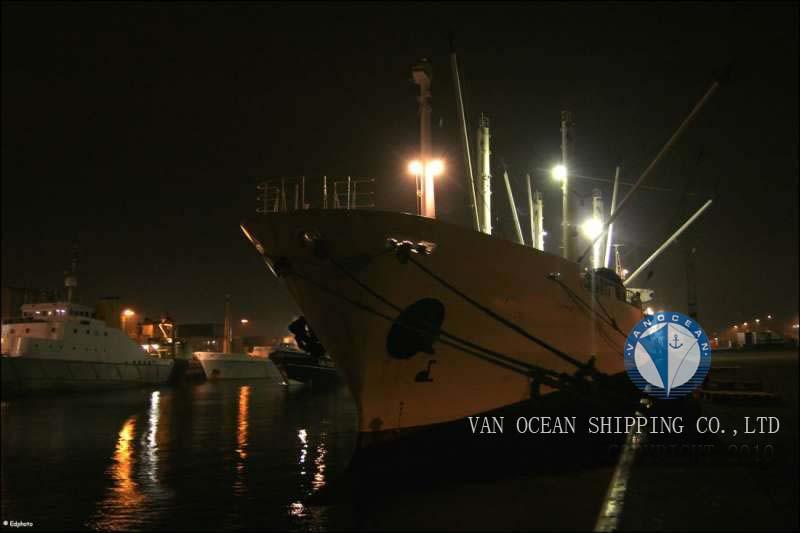

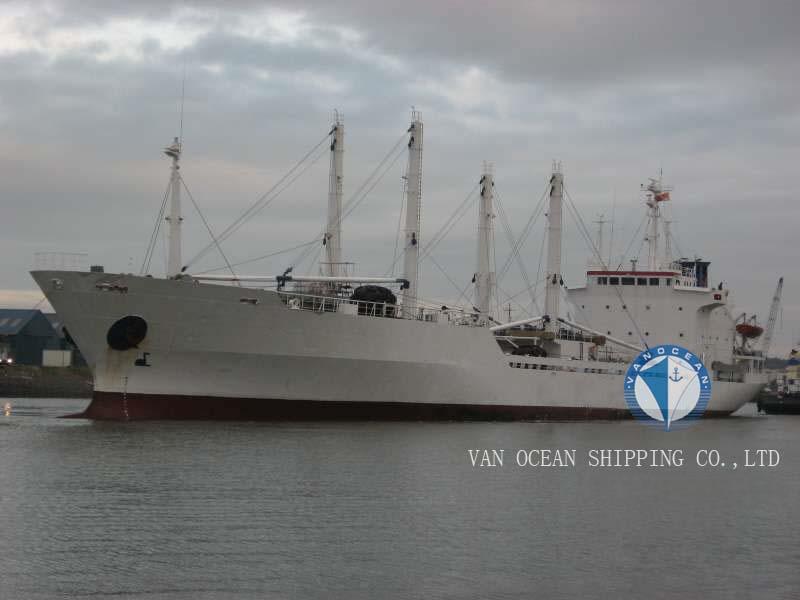

VESSEL NAME

REF381

TYPE

REEFER CARRIER

DEEP FREEZING OR NOT

NOT

FLAG

BAHAMAS

PORT OF REGISTRY

NASSAU

BUILT YEAR

1986

BUILT PLACE

KITANIHON ZOSEN, JAPAN

CLASSIFICATION

BV

CLASS NOTATION

I ✠Hull ✠Mach，✠REF-CARGO

SS

2025-06

DD

2025-06

LOA (M)

115

LBP (M)

106.38

BEAM (M)

16.8

DEPTH (M)

9.8

SUMMER DRAFT (M)

7.31

WINTER DRAFT (M)

7.16

TROPICAL DRAFT (M)

7.6

GT (MT)

4440

PANAMA GT (MT)

3837.08

SUEZ GT (MT)

3911.64

NT (MT)

2655

PANAMA NT (MT)

3837.08

SUEZ NT (MT)

3911.64

SUMMER DWT (MT)

5509

WINTER DWT (MT)

5284

TROPICAL DWT (MT)

5735

LDT (MT)

2756.72

DISPLACEMENT (MT)

8265.22

GEAR(S)

DERRICKS，6 x 4MT OR 3 x 4MT IN UNION PURCHASE

M/E(S)

MITSUBISHI 5UEC45LA 5440 BHP 145RPM

M/E POWER (KW)

4003

A/E(S)

YANMAR M 200 L-UT x 3

GENERATOR(S)

3 x 500KVA(400KW), 445V, 60HZ

SHAFT GENERATOR(S)

-

PROPELLER(S)

FPP

COOLING SYSTEM (COMPRESSOR)

-

SPEED/CONSUMPTIONS

BALLAST： FULL SPEED：16.5KTS，14.5MT IFO380 + 0.5MT MDO MINIMUM SPEED：14.5KTS，12.5MT IFO380 + 0.5MT MDO BANANA LADEN： FULL SPEED：16KTS, 16.5MT IFO380 + 0.5MT MDO MINIMUM SPEED：14KTS, 14.5MT IFO380 + 0.5MT MDO SUMMER LADEN（FROZEN COMMIDITES）： FULL SPEED：15.5KTS，16MT IFO380 + 0.5MT MDO MINIMUM SPEED：13.5KTS，14MT IFO380 + 0.5MT MDO

FUEL TYPE

IFO380

BUNKER CAPACITY (CBM)

1014

TANKS CAPACITY (CBM)

MDO: 79 MGO: 74

NUMBER OF CARGO HOLDS

3

HATCH NUMBER

3

HATCH TYPE

-

HATCH SIZE (M)

8 x 6M

HEIGHT OF HATCH COAMING (M)

-

COMPARTMENT(S)

9

DECK(S)

3

DECK HEIGHT (M)

MINIMUM 2.2 M

CARGO CAPACITY (CBFT)

238985

CARGO CAPACITY (CBM)

6768.2

FLOOR SPACE CAPACITY (SQM)

2684

GRATING/DECK STRENGTH

MAXIMUM 5MT（FORKLIFT TO BE EQUIPED WITH MINIMUM 4 AIRTYRES）

TEMPERATURE ZONE(S)

6, 1A/1BC/2A/2BC/3A/3BC

TEMPERATURE (℃)

-25/+15

TYPE OF VENT SYSTEM

VERTICAL

VENT (TIMES/HOUR)

90

AIR CHANGE (TIMES/HOUR)

4

PALLET(S)

2000

CONTAINER CAPACITY

4FEUS OR 4TEUS+2 FEUS （ON WEATHER DECK AND HATCHES）

REEFER PLUG(S)

6

SIDE DOOR(S)

-

FENDER(S)

-

ANCHOR CHAIN(S)

46mm

USDA CERTIFICATE

DUE

INSURANCE

-

CREW

25

ACCOMMODATION

-

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

-
