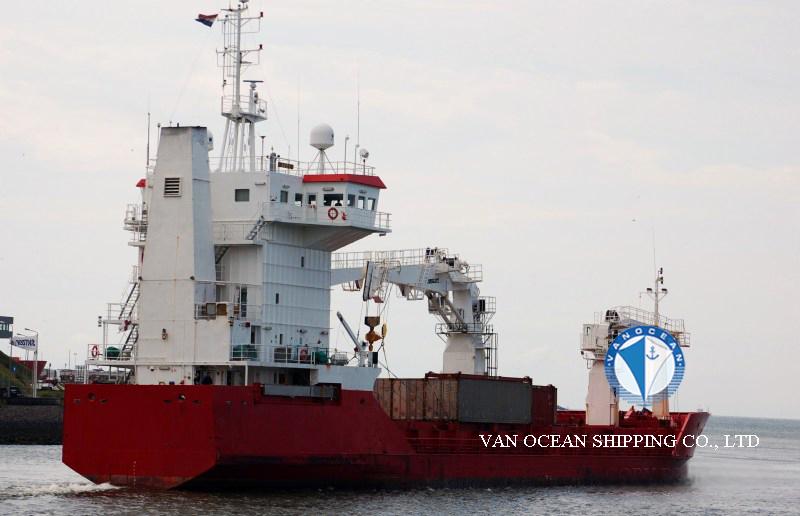

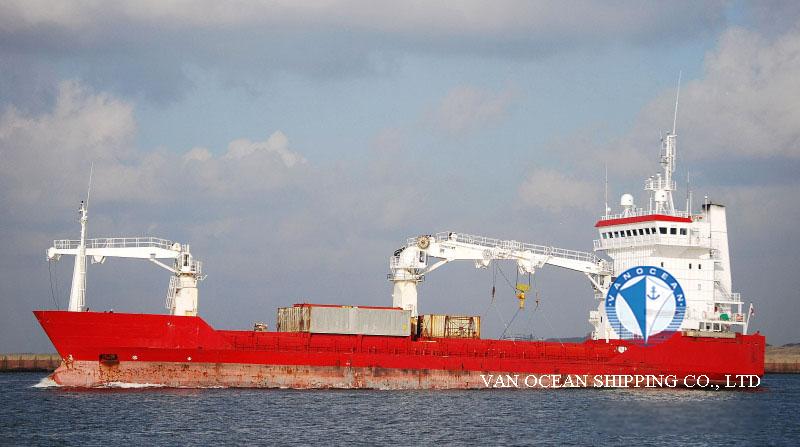

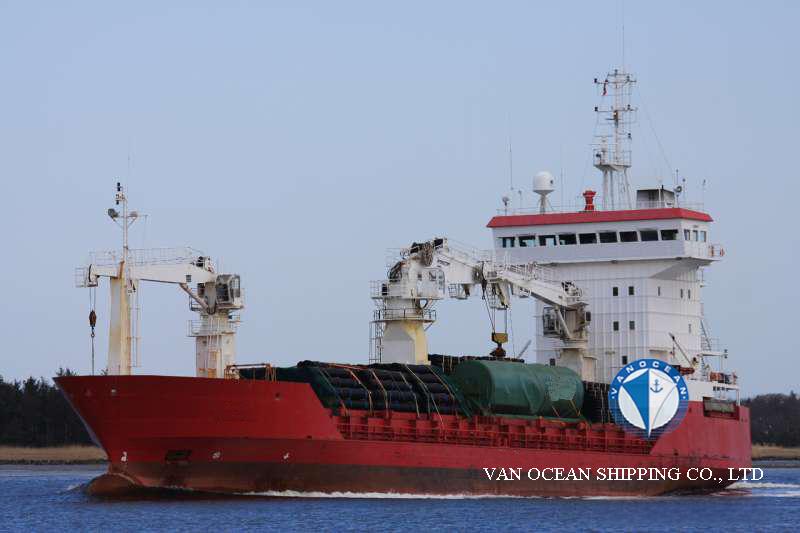

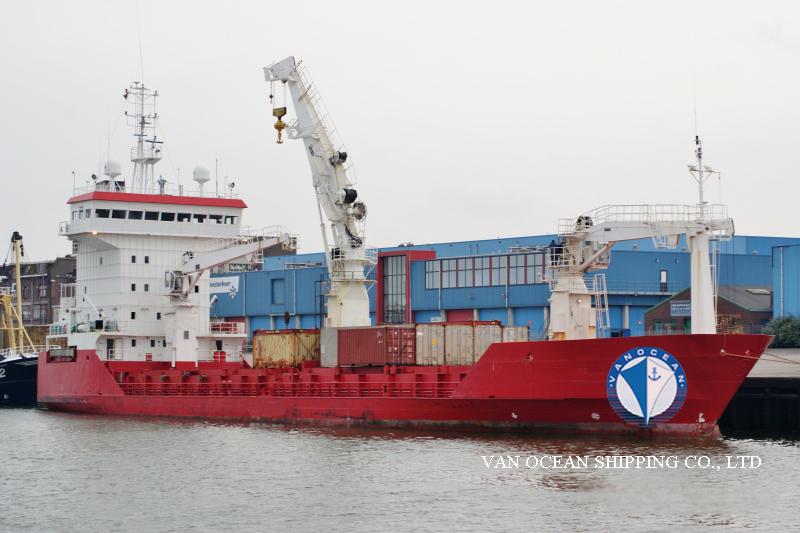

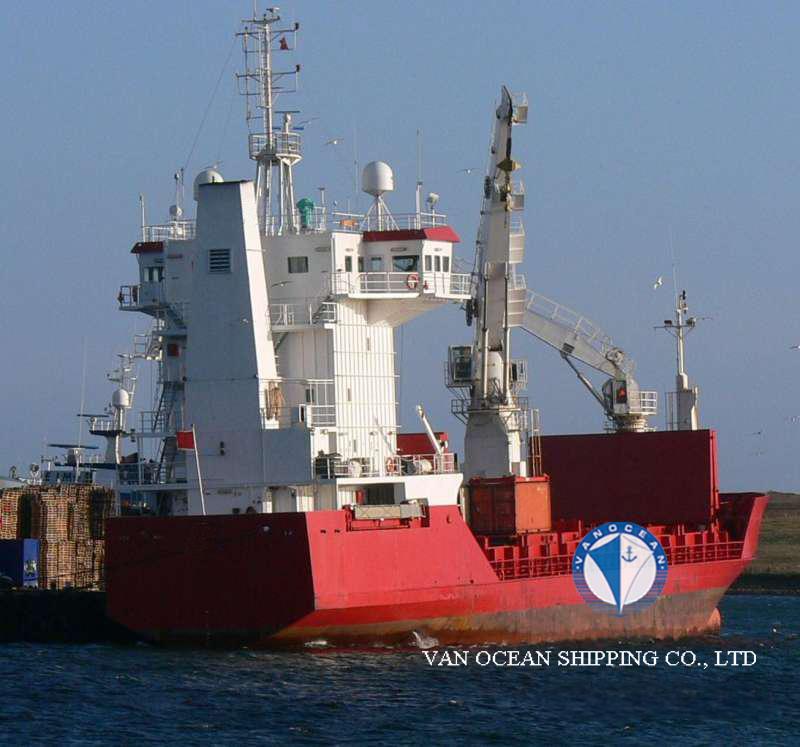

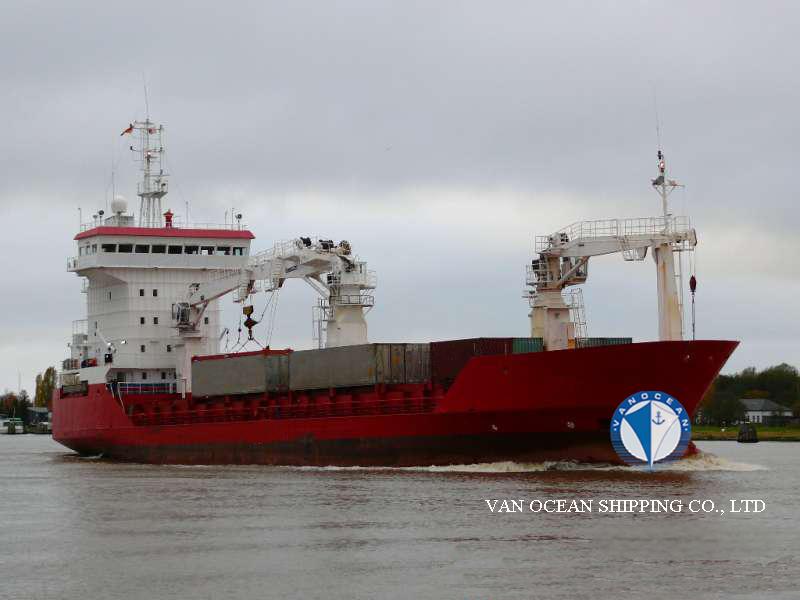

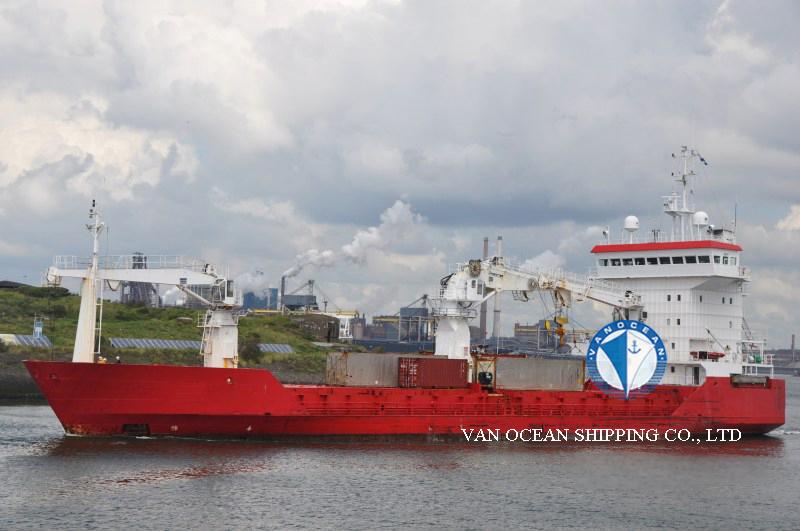

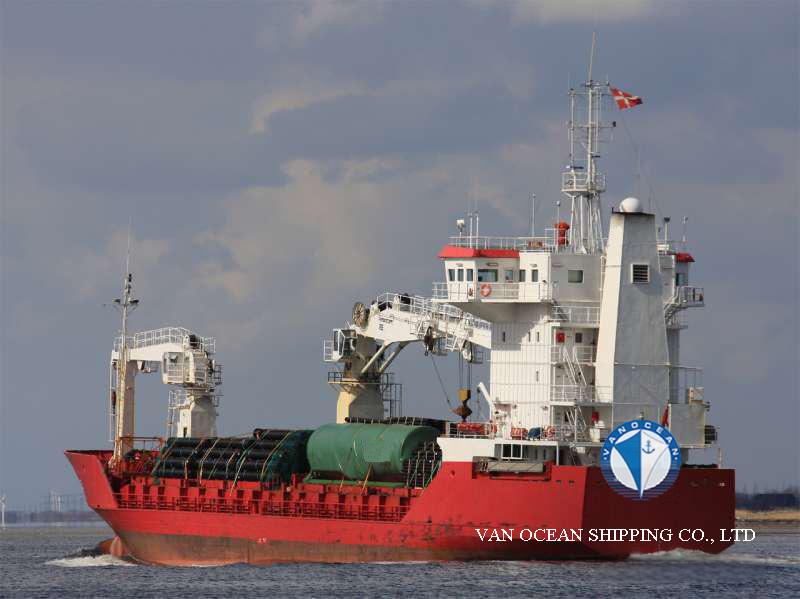

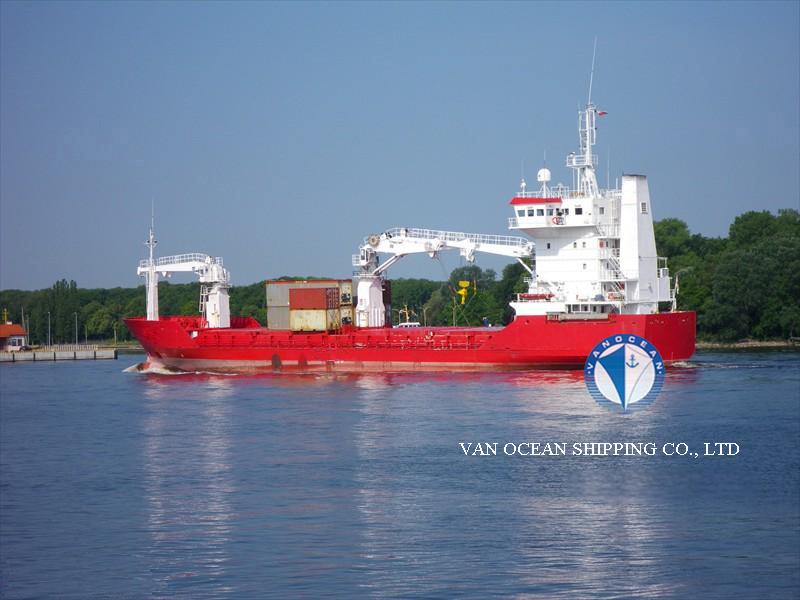

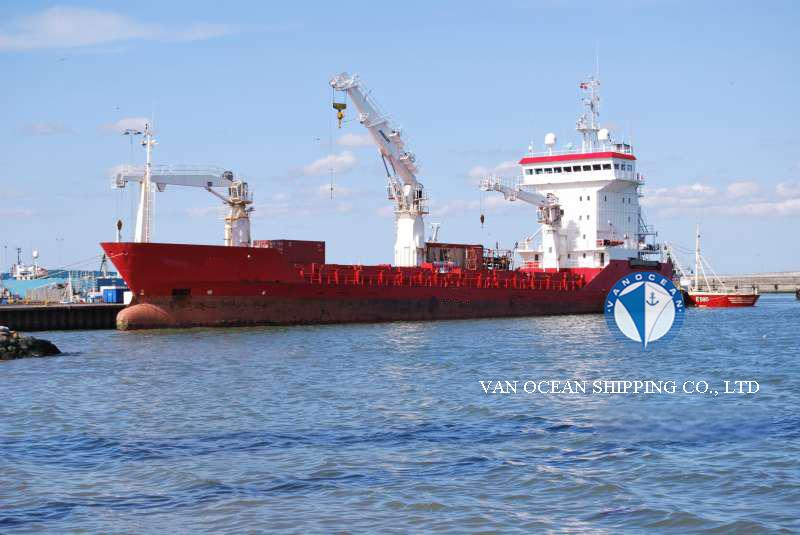

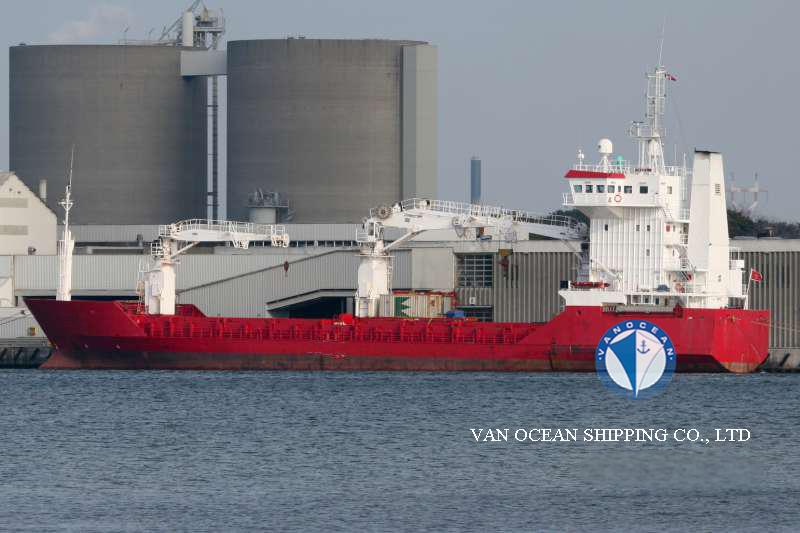

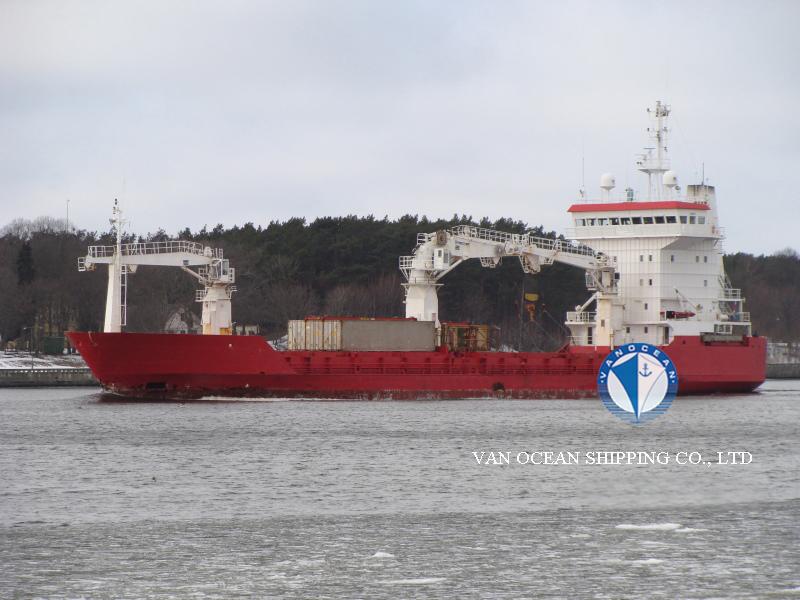

VESSEL NAME

REF022

TYPE

REEFER CARRIER

DEEP FREEZING OR NOT

NO

FLAG

CONGO

PORT OF REGISTRY

MALTA VALLETTA

BUILT YEAR

1989

BUILT PLACE

ORSKOV STAALSKIBSVERFT AS, DENMARK

CLASSIFICATION

BV

CLASS NOTATION

ICE B

SS

-

DD

-

LOA (M)

87.05

LBP (M)

80.7

BEAM (M)

14.59

DEPTH (M)

DEPTH TO 1ST DECK: 7.70; DEPTH TO 2ND DECK: 6.60; DEPTH TO 3RD DECK: 3.88

SUMMER DRAFT (M)

6.24

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

1599

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

1294

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

3223

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

LDT (MT)

-

DISPLACEMENT (MT)

-

GEAR(S)

CRANES 2×15MT MARITIME HYDRAULIC, TYPE MCVC 1610; CRANE 1×50MT MARITIME HYDRAULIC, TYPE MCVC 2398

M/E(S)

MAK 8MU453C 3260BHP 600RPM

M/E POWER (KW)

2400

A/E(S)

3×MERCEDES MTU-TYPE 12V183 AA51, 225 KW/1500 RPM

GENERATOR(S)

1×DEUTZ, TYPE F8L, 413F/MHC, 125 KVA/1500 RPM

SHAFT GENERATOR(S)

1×STAMFORD MHC 434 E, 255KVA

PROPELLER(S)

1 SOLID SCREW PROPELLER LB10

COOLING SYSTEM (COMPRESSOR)

SABROE, R22; DIRECT EXPANSION

SPEED/CONSUMPTIONS

13.8KTS ON 8.5MT IFO; CRUISING RANGE: 13800NM

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

354.1 CBM

TANKS CAPACITY (CBM)

WB: 1270.5 CBM , FW: 30.4 CBM

NUMBER OF CARGO HOLDS

3

HATCH NUMBER

6

HATCH TYPE

FOLDING TYPE

HATCH SIZE (M)

2×20.70×10, KVAERNER-FOLDING TYPE, 4 REEFER HATCHES, EACH 4.00×2.50; 2×20.845×10.01/7.40, FLUSH STEEL PONTOONS

HEIGHT OF HATCH COAMING (M)

-

COMPARTMENT(S)

6

DECK(S)

3

DECK HEIGHT (M)

7.7 M , 6.6 M , 3.88M

CARGO CAPACITY (CBFT)

129940

CARGO CAPACITY (CBM)

3680

FLOOR SPACE CAPACITY (SQM)

1170.15

GRATING/DECK STRENGTH

HATCH COVERS: 1ST DECK: 1.55MT/SQM; HATCH COVERS 2ND AND 3RD DECK: 2.2MT/SQM; TANKTOP: 2.5MT/SQM HATCH COVERS: 1ST DECK: 22MT/40MT FOR TEU/FEU; TANKTOP: 90MT/90MT FOR TEU/FEU

TEMPERATURE ZONE(S)

-

TEMPERATURE (℃)

-27（TROPIC）/-30（ATLANTIC）

TYPE OF VENT SYSTEM

AIR COOLERS, VERT

VENT (TIMES/HOUR)

80

AIR CHANGE (TIMES/HOUR)

4, COMPUTER OPERATED AND CONTROLLED TEMPS, LOGGING SYSTEM ACC, CO2 CONTROL OZONE PLANT

PALLET(S)

1170

CONTAINER CAPACITY

IN HOLD: 64 TEU; ON DECK: 76 TEU; TOTAL: 140 TEU

REEFER PLUG(S)

20PCS; -32 AMP

SIDE DOOR(S)

-

FENDER(S)

-

ANCHOR CHAIN(S)

-

USDA CERTIFICATE

YES

INSURANCE

-

CREW

-

ACCOMMODATION

-

INSPECTION

THE NORTH SEA

DELIVERY

THE NORTH SEA

PRICE

BUYERS OFFER

REMARK(S)

HULL MATERIAL: STEEL FREEBOARD: 1470 MM INSULATION MATERIAL: ROCK WOOL INSULATION LINING: ALUMINIUM MACHINERY AFT STEERING GEAR: TENFJORD; ANCHOR WINCH: STEEN; MOORING WINCH: STEEN; BOW THRUSTER: JASTRAM; STANDARD A, STANDARD C, SSB, VHF, DIRECTION FINDER, TELEX, RADARS (2), AUTOPILOT, SATNAV, ECHOSOUNDER, GYRO COMPASS, FASCIMILE, LOG
