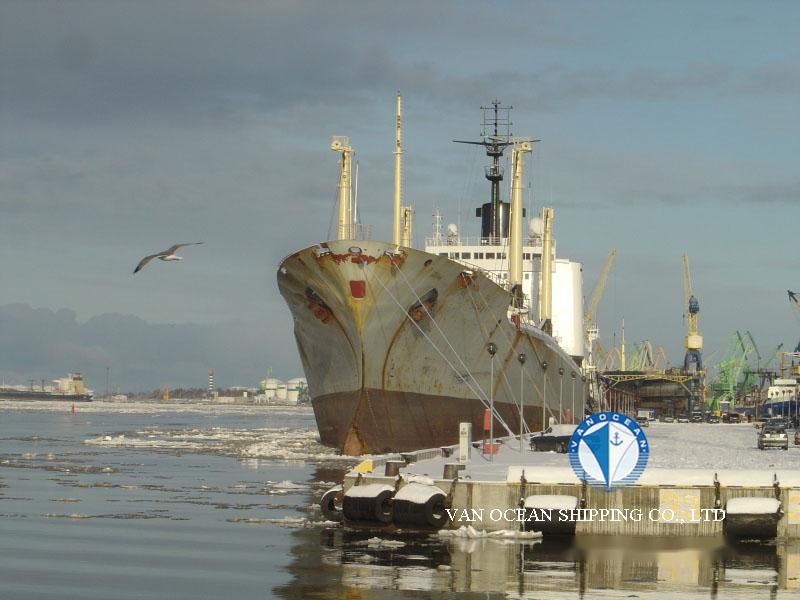

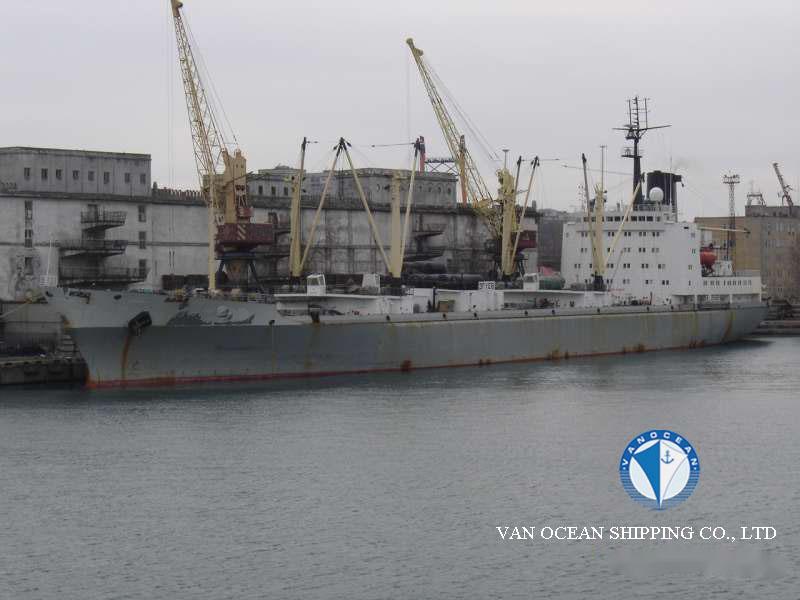

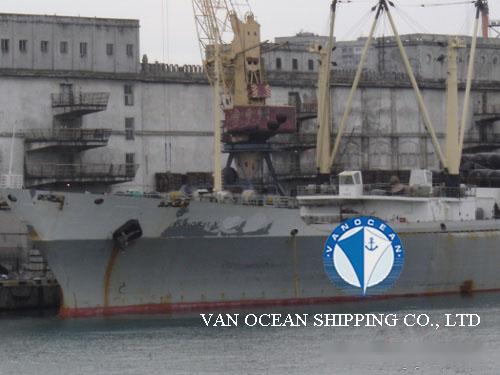

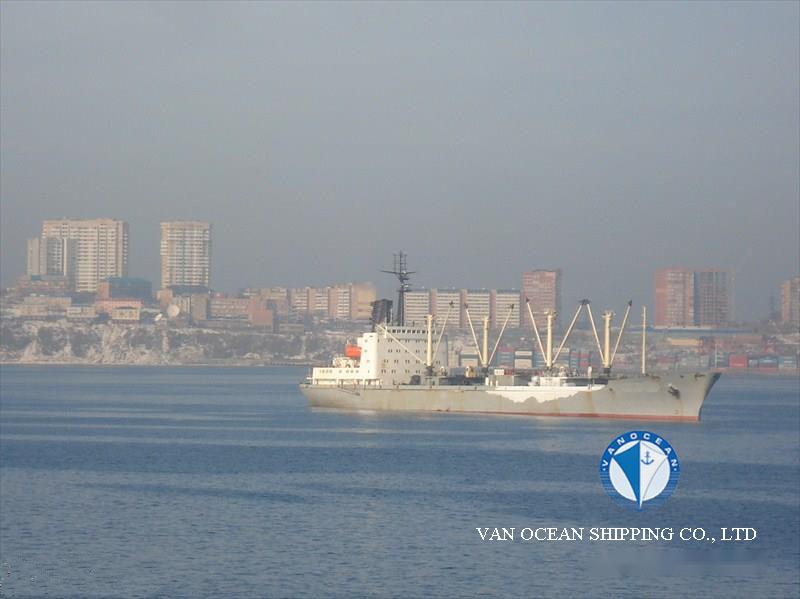

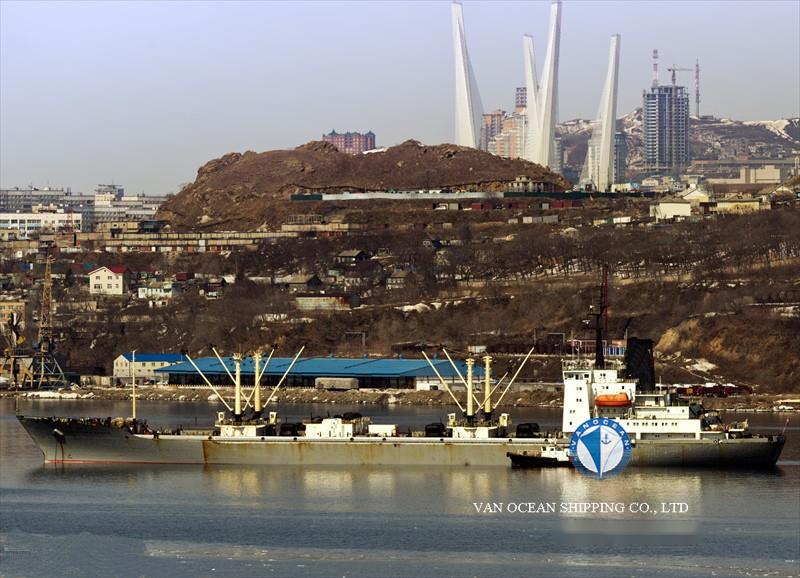

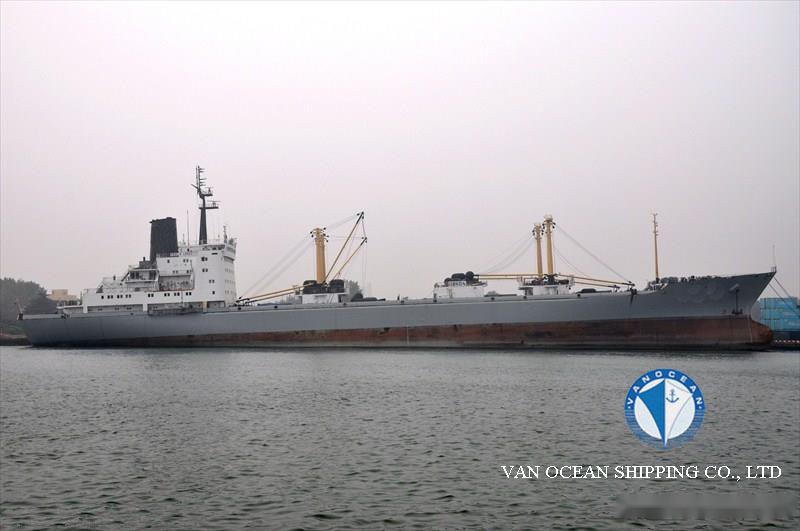

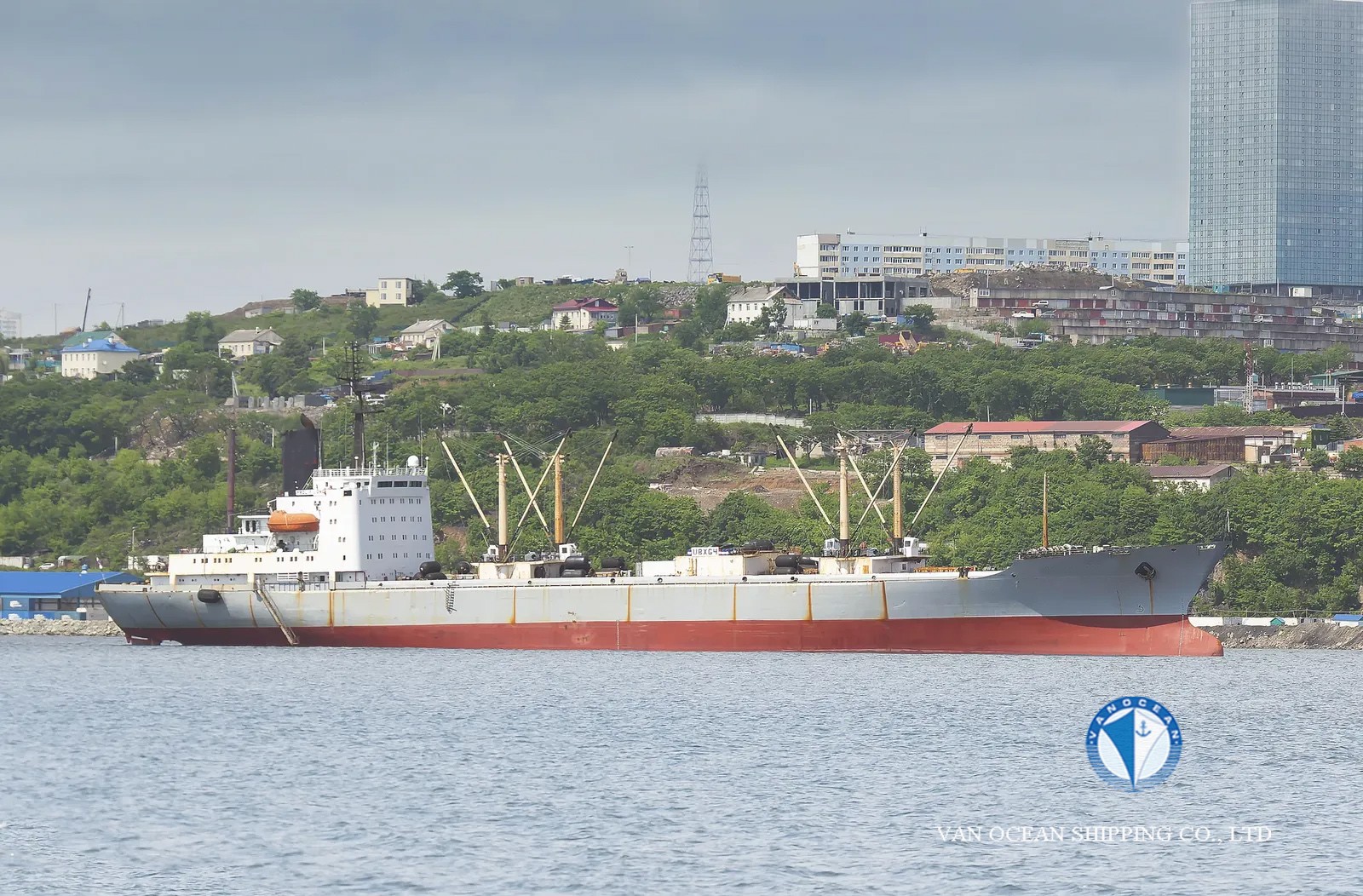

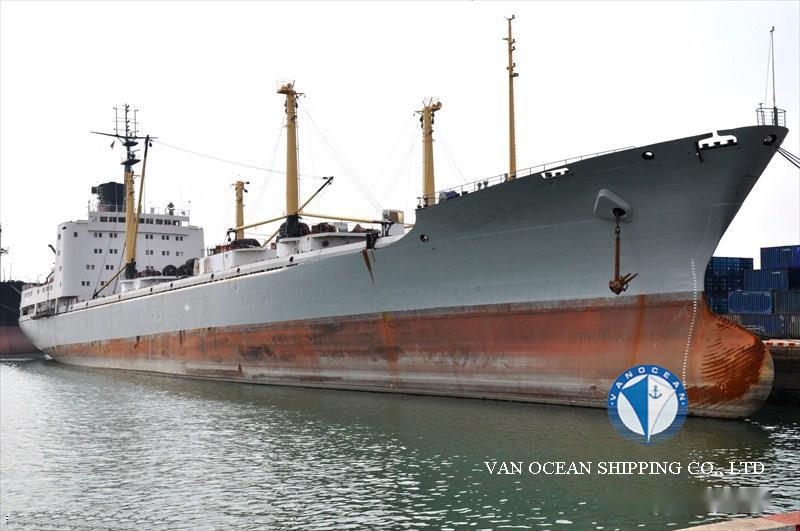

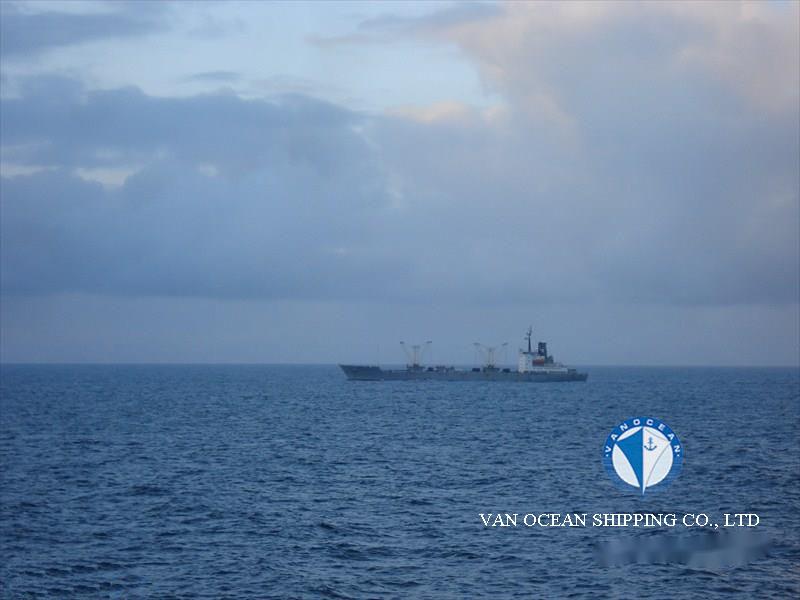

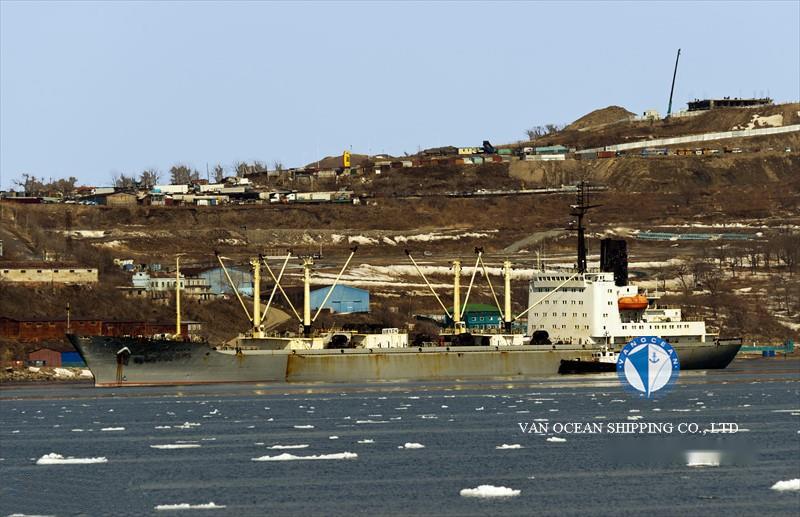

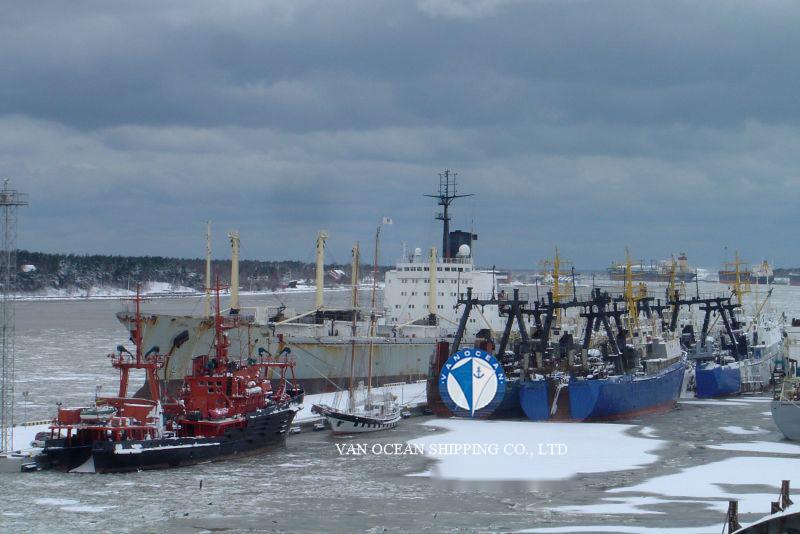

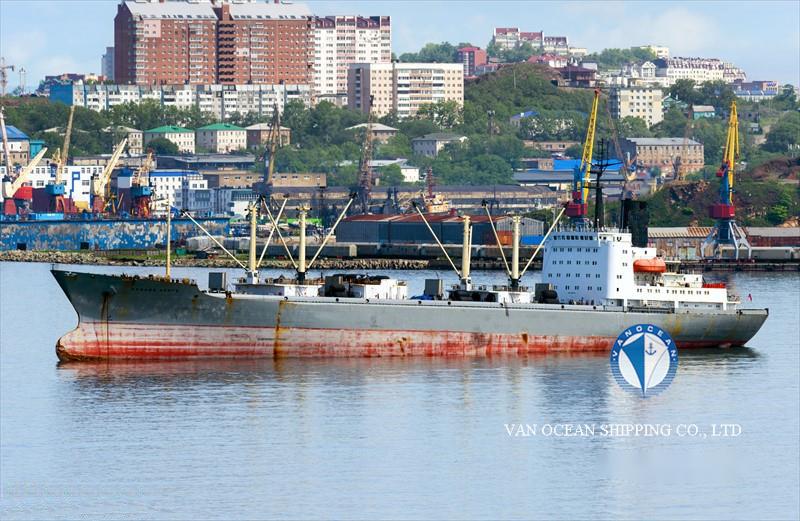

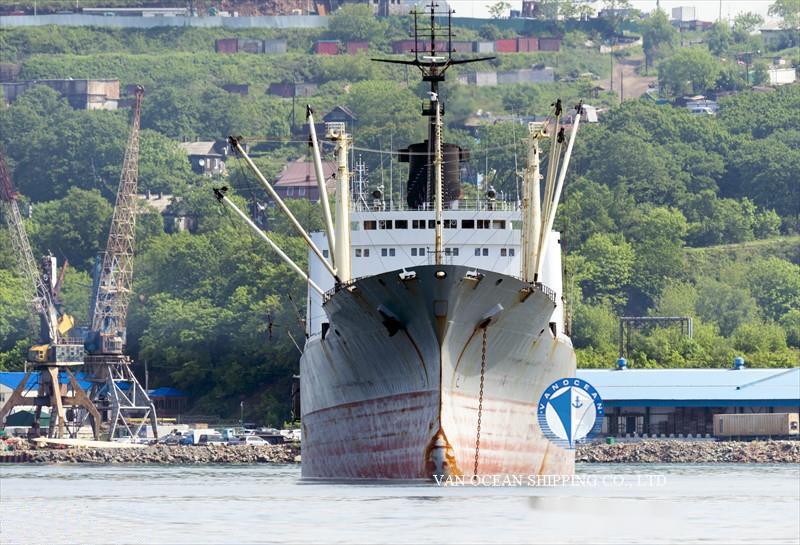

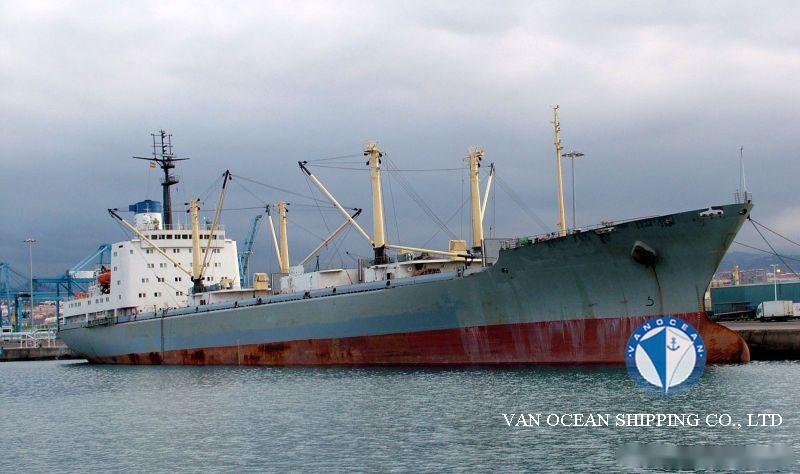

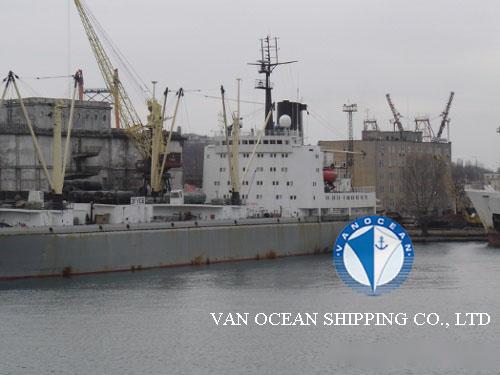

VESSEL NAME

REF373

TYPE

REEFER CARRIER

DEEP FREEZING OR NOT

NO

FLAG

RUSSIA

PORT OF REGISTRY

NAKHODKA

BUILT YEAR

1983

BUILT PLACE

UKRAINE

CLASSIFICATION

-

CLASS NOTATION

KM(*) L1[1] AUT2 REF(L1 AT D <= 8.1 M)

SS

-

DD

-

LOA (M)

172.1

LBP (M)

160

BEAM (M)

23.04

DEPTH (M)

13.7

SUMMER DRAFT (M)

9

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

13496

PANAMA GT (MT)

-

SUEZ GT (MT)

39979.19

NT (MT)

5851

PANAMA NT (MT)

10443

SUEZ NT (MT)

27075.87

SUMMER DWT (MT)

14197

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

LDT (MT)

-

DISPLACEMENT (MT)

22281

GEAR(S)

DERRICKS 8 x 5MT, OUTREACH 8M

M/E(S)

1x B&W 6DKRN 74/160-3 10600HP MADE BY USSR IN 1979

M/E POWER (KW)

7796

A/E(S)

-

GENERATOR(S)

4 x 630

SHAFT GENERATOR(S)

-

PROPELLER(S)

1 x FIXED PITCHED SOLID PROPELLER 4 BLADES

COOLING SYSTEM (COMPRESSOR)

-

SPEED/CONSUMPTIONS

BALLAST: ABT. 12.50KTS ON ABT. 21-22MT IFO180 RME 25 ISO 8217 LOADED: ABT. 11.50KTS ON ABT. 22-23MT IFO180 RME 25 ISO 8217 AE CONSUMPTION: AT SEA REEFER PLANT ON/OFF: ABT. 4.6-4.8MT-2 AE，5.4-5.6MT-3AE/3.4-3.6MT IFO30 IN PORT REEFER PLANT ON/OFF: ABT. 3.8-4.2/ 3.4MT IFO30 IN BOILBER WINTER/SUMMER: ABT. 3.0-4.0/0.8-2.5MT IFO30

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

IFO30: 4913; IFO180: 1302

TANKS CAPACITY (CBM)

FW: 826; MGO: 308; LO: 53

NUMBER OF CARGO HOLDS

4

HATCH NUMBER

4

HATCH TYPE

FOLDING TYPE

HATCH SIZE (M)

6.5 x 4.5

HEIGHT OF HATCH COAMING (M)

-

COMPARTMENT(S)

12

DECK(S)

-

DECK HEIGHT (M)

-

CARGO CAPACITY (CBFT)

539540

CARGO CAPACITY (CBM)

15269

FLOOR SPACE CAPACITY (SQM)

-

GRATING/DECK STRENGTH

MAX. DECK LOAD: TANKTOPS: 3MT/SQM HATCH COVER: 2MT/SQM TWEEN DECK: 1.56MT/SQM WATER DECK: 1.55MT/SQM

TEMPERATURE ZONE(S)

8，1A, 1BC, 2A, 2BC, 3A, 3BC, 4A, 4BC

TEMPERATURE (℃)

-28/-10

TYPE OF VENT SYSTEM

VERT

VENT (TIMES/HOUR)

35

AIR CHANGE (TIMES/HOUR)

-

PALLET(S)

2688

CONTAINER CAPACITY

-

REEFER PLUG(S)

-

SIDE DOOR(S)

-

FENDER(S)

-

ANCHOR CHAIN(S)

-

USDA CERTIFICATE

-

INSURANCE

-

CREW

28 RUSSIAN CREW

ACCOMMODATION

-

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

-
