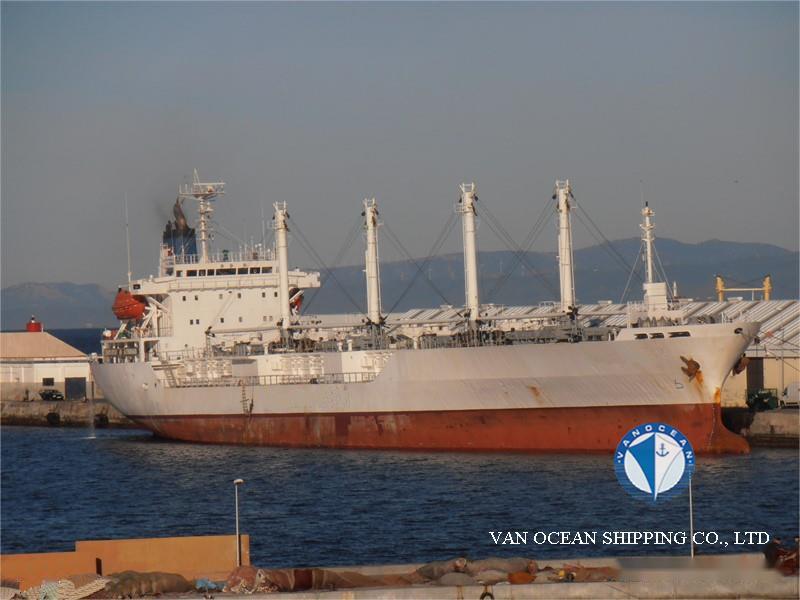

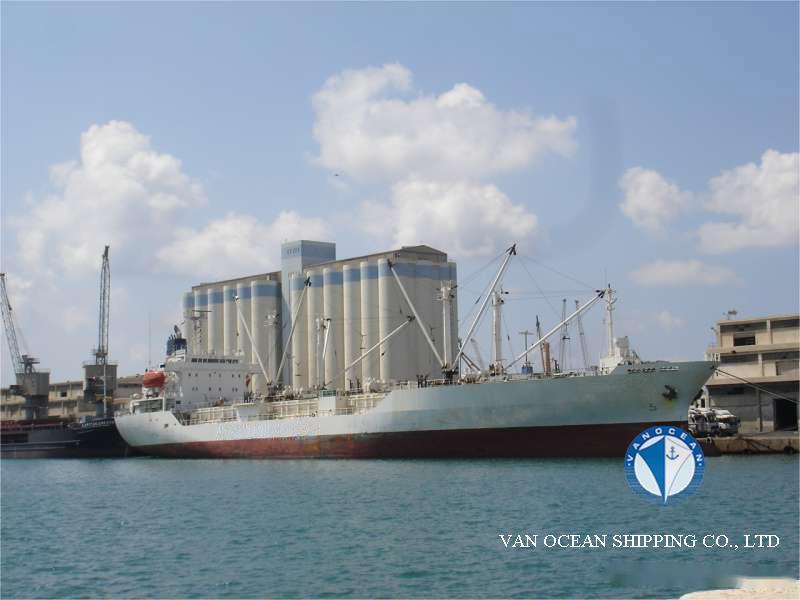

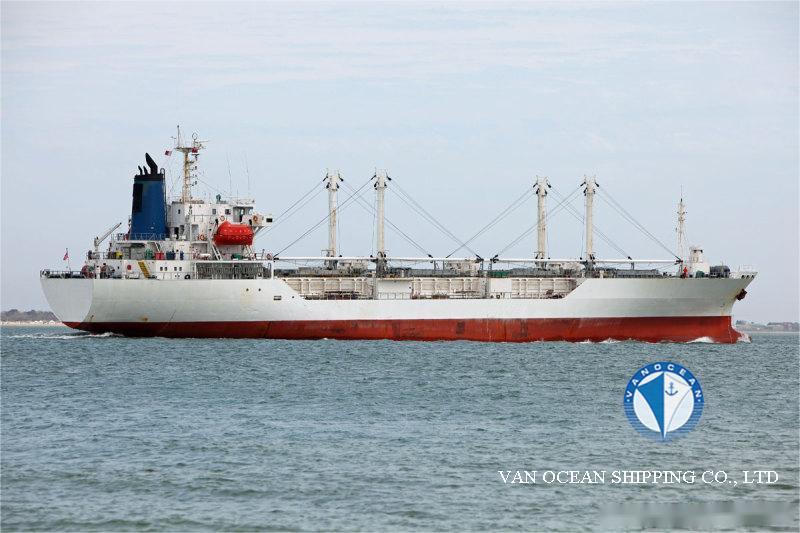

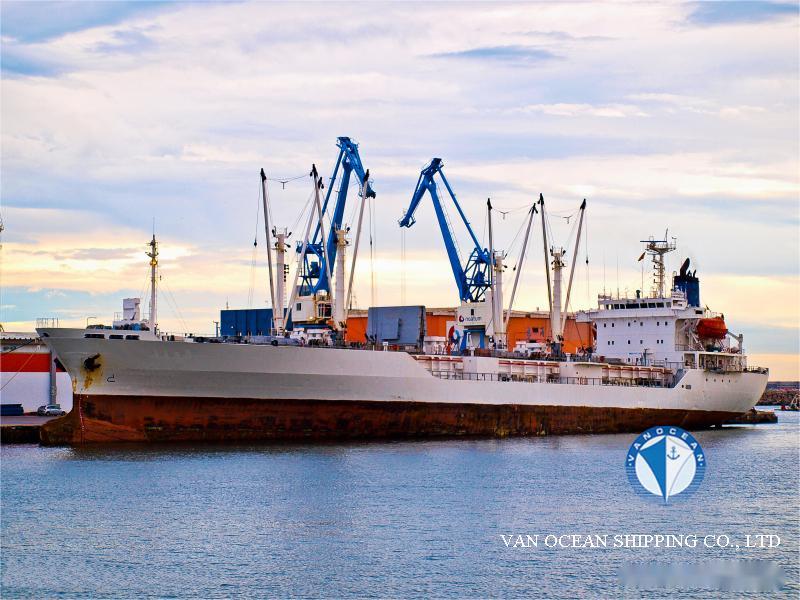

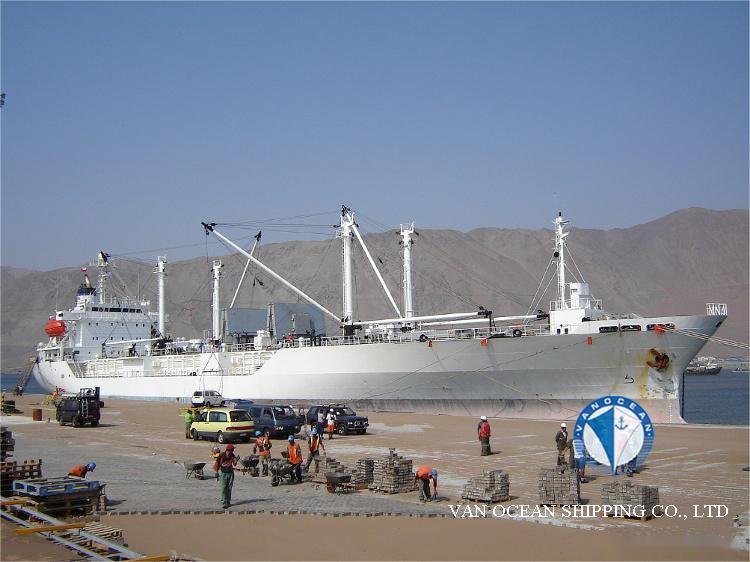

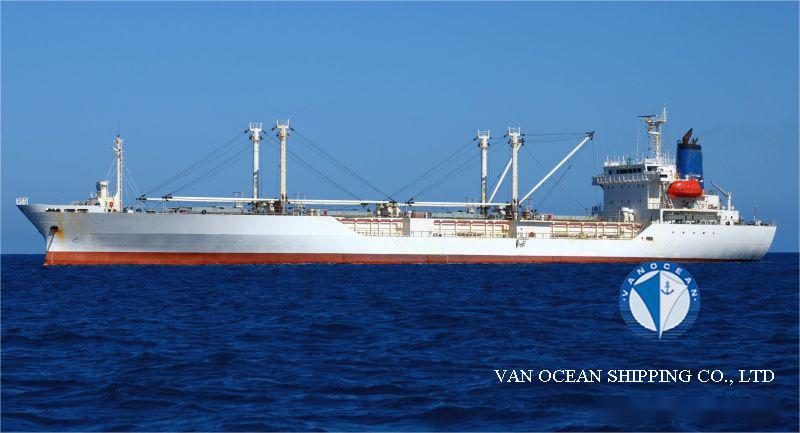

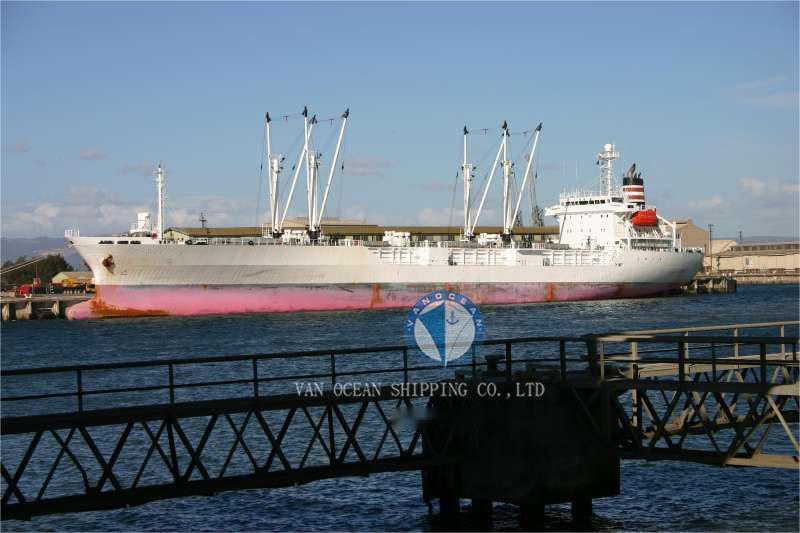

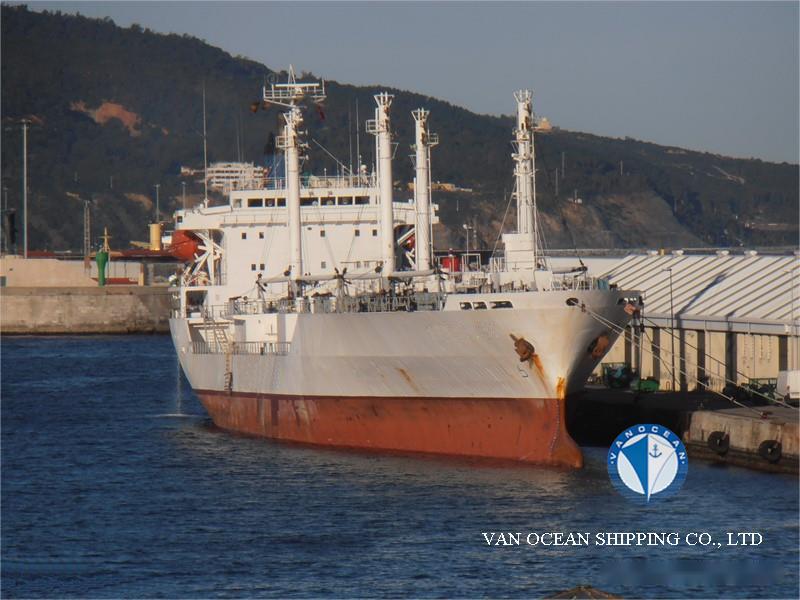

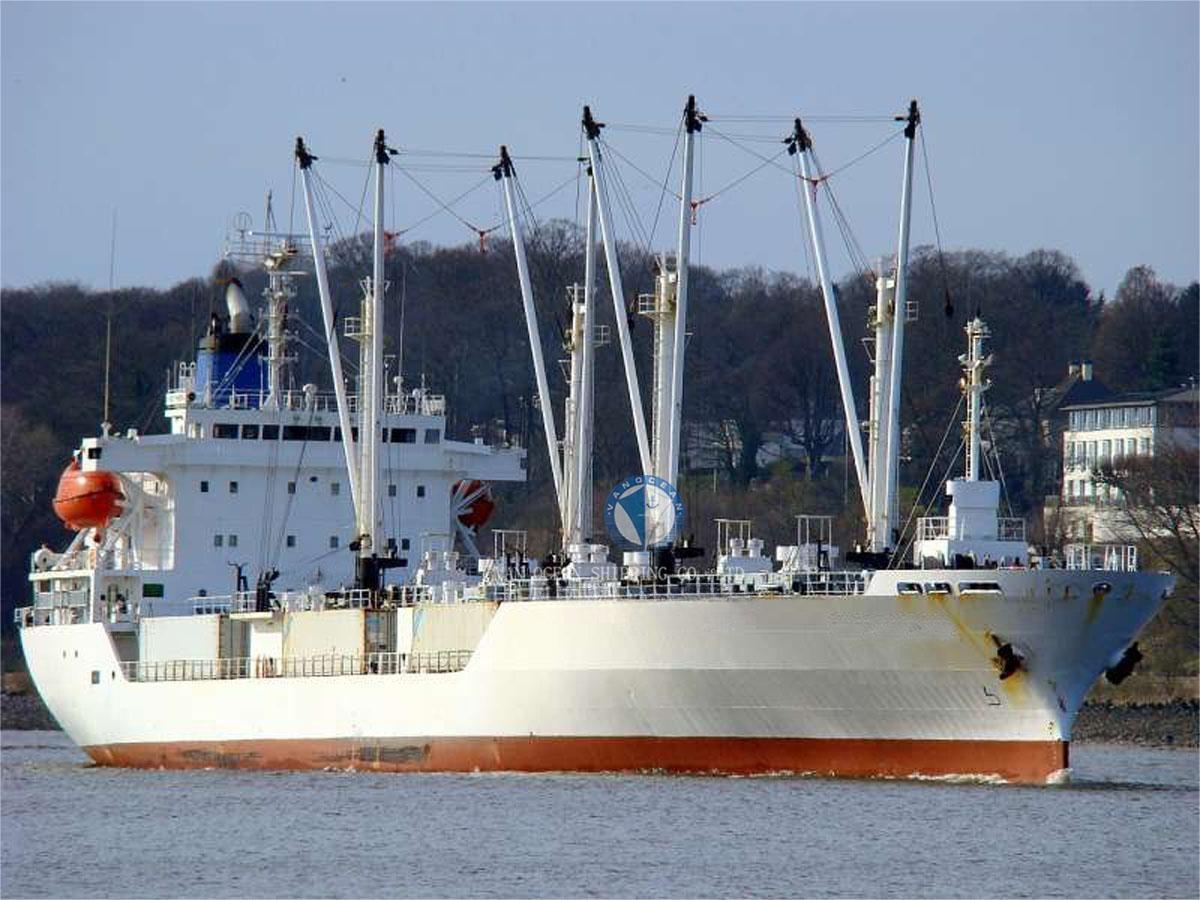

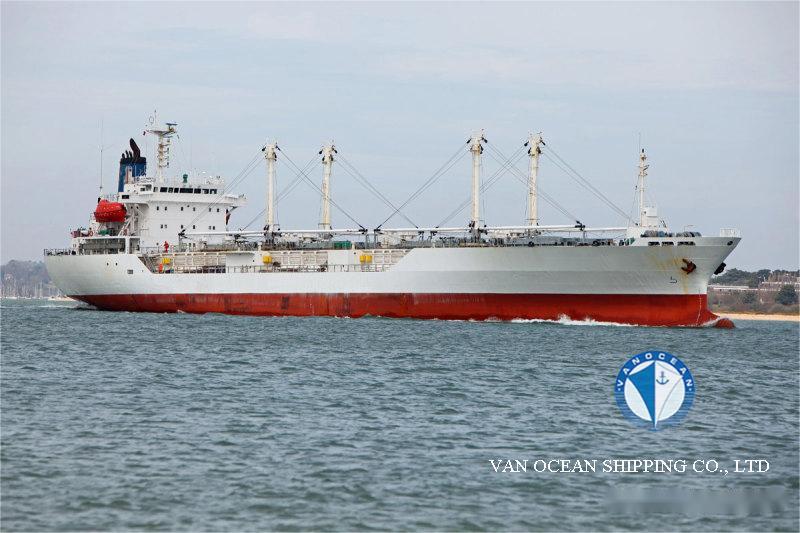

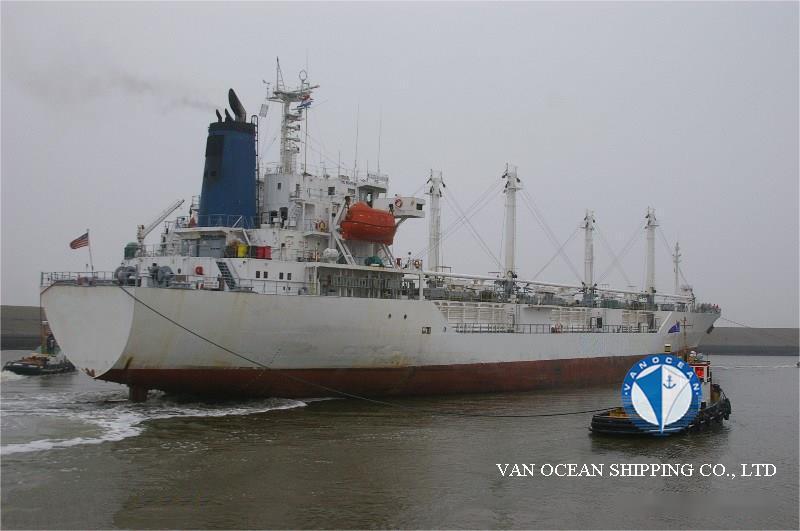

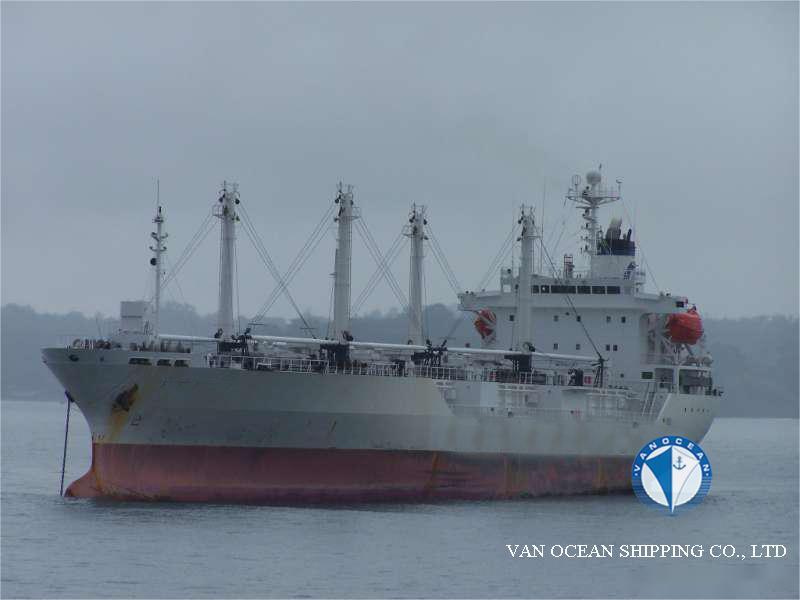

VESSEL NAME
REF539
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1993
BUILT PLACE
KOCHI JYUKO CO., JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship, Unrestricted navigation,
✠REF-CARGO , ICE , INWATERSURVEY
SS
2028-02
DD
2026-02
LOA (M)
134.02
LBP (M)
125
BEAM (M)
20.8
DEPTH (M)
10.17
SUMMER DRAFT (M)
7.57
WINTER DRAFT (M)
7.42
TROPICAL DRAFT (M)
7.73
GT (MT)
7313
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4808
PANAMA NT (MT)
6554
SUEZ NT (MT)
6491
SUMMER DWT (MT)
8044
WINTER DWT (MT)
7724
TROPICAL DWT (MT)
8367
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICK, 8 X 5MT, UP 4 X 3.5MT
M/E(S)
MITSUBISHI 2 S.A. 8-CYL. 9594HP @ 158 RPM
M/E POWER (KW)
7061
A/E(S)
-
GENERATOR(S)
1 - 60 kVA - 48 kW - 65 HP,3 - 625 kVA - 500 kW - 679 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
BANANA LADEN: 18.5 KTS
ME CONSUMPTION: 27.5MT IFO380 (RMG 380)
AE CONSUMPTION: 4.0MT IFO380 (RMG380)
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
991
TANKS CAPACITY (CBM)
MDO: 173
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
7.4 x 7.3; 7.4 x 4.9
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
≥2.2
CARGO CAPACITY (CBFT)
393100.8
CARGO CAPACITY (CBM)
11136
FLOOR SPACE CAPACITY (SQM)
4544
GRATING/DECK STRENGTH
MAX. 5MT INCL. CARGO (FORKLIFT TO BE EQUIPPED WITH MIN. 4 AIRTYRES)
TEMPERATURE ZONE(S)
8
1A, 1BC, 2AB, 2CD, 3AB, 3CD, 4AB, 4CD
TEMPERATURE (℃)
-30/+15
TYPE OF VENT SYSTEM
VERT
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
3400
CONTAINER CAPACITY
12 TEU OR 6 FEU ON DECK
REEFER PLUG(S)
12
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
OVERDUE
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
