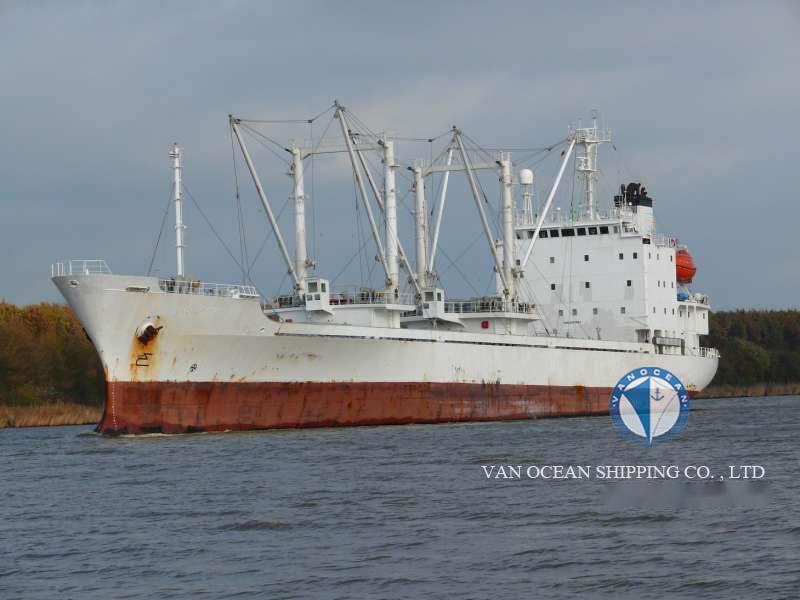

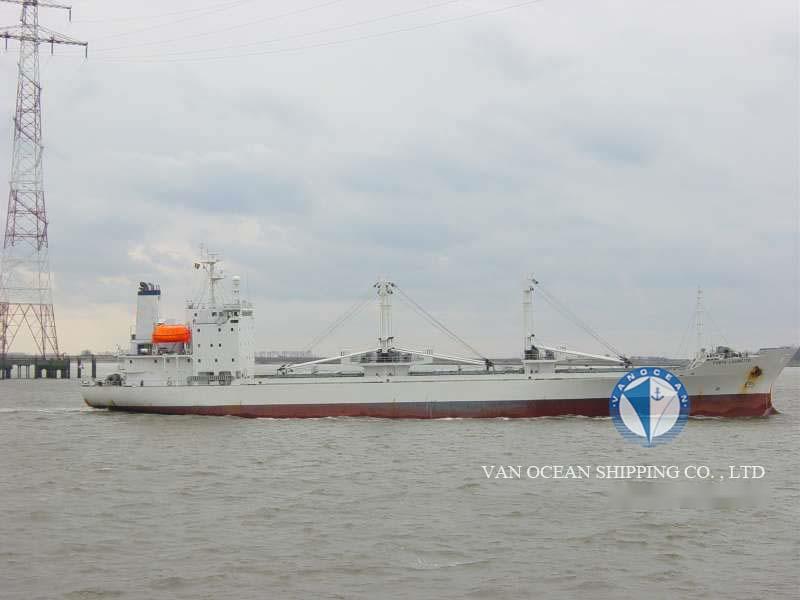

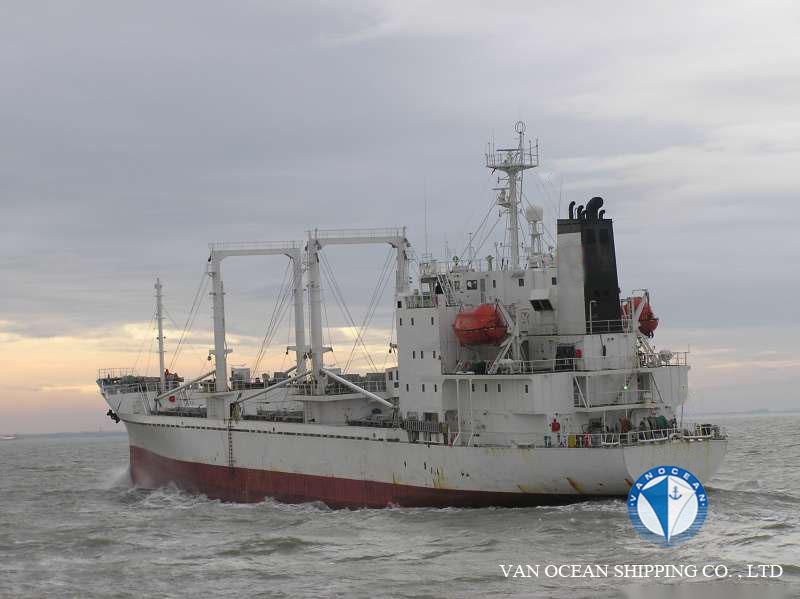

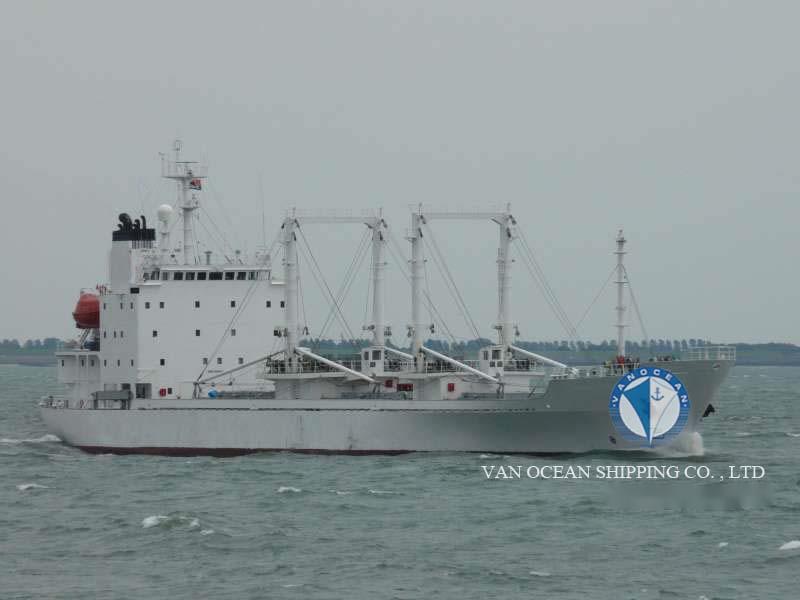

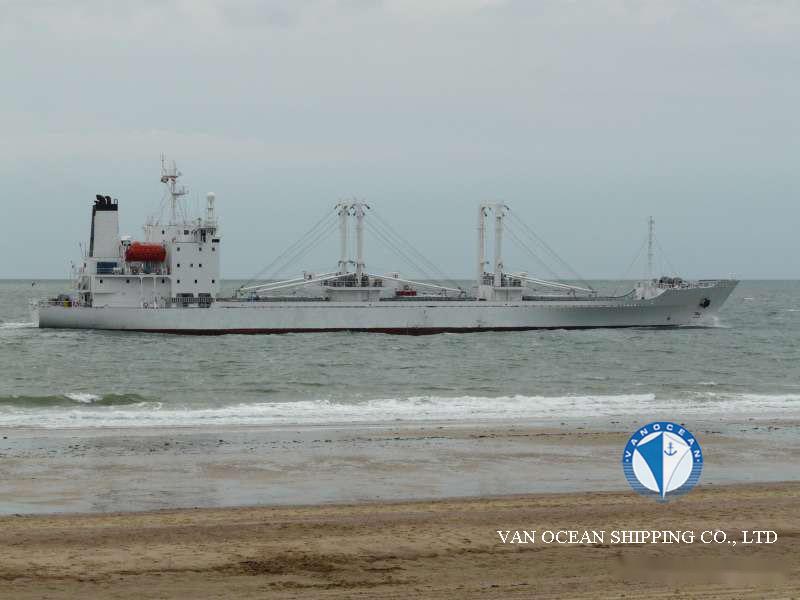

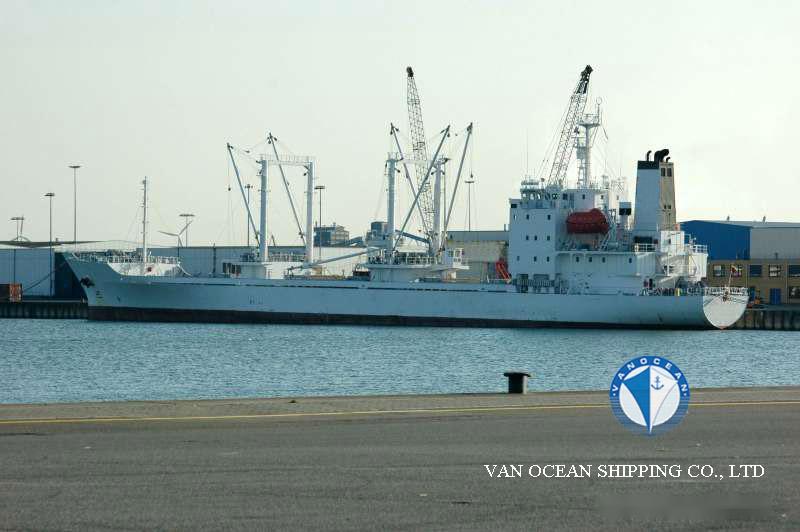

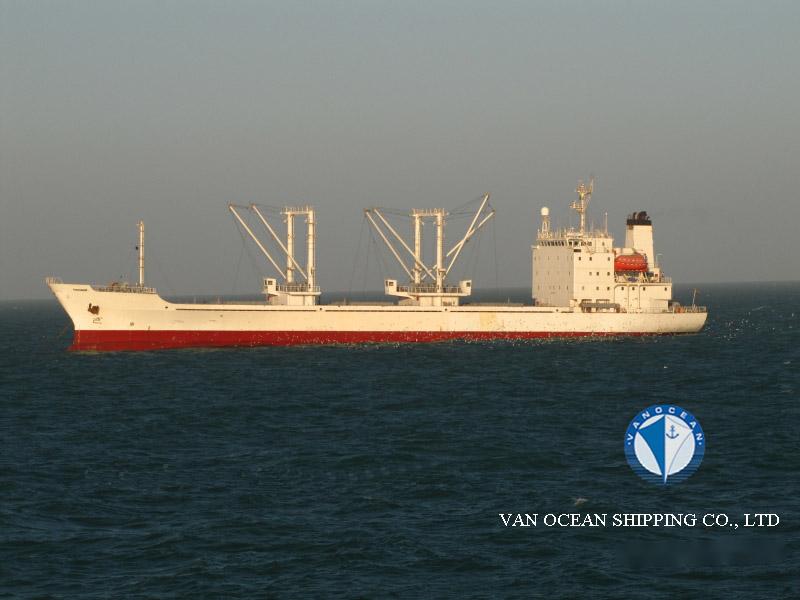

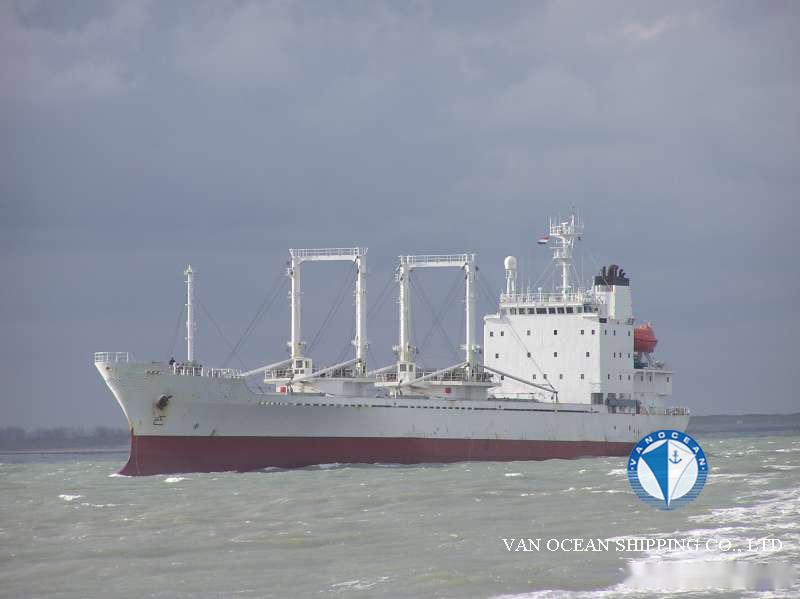

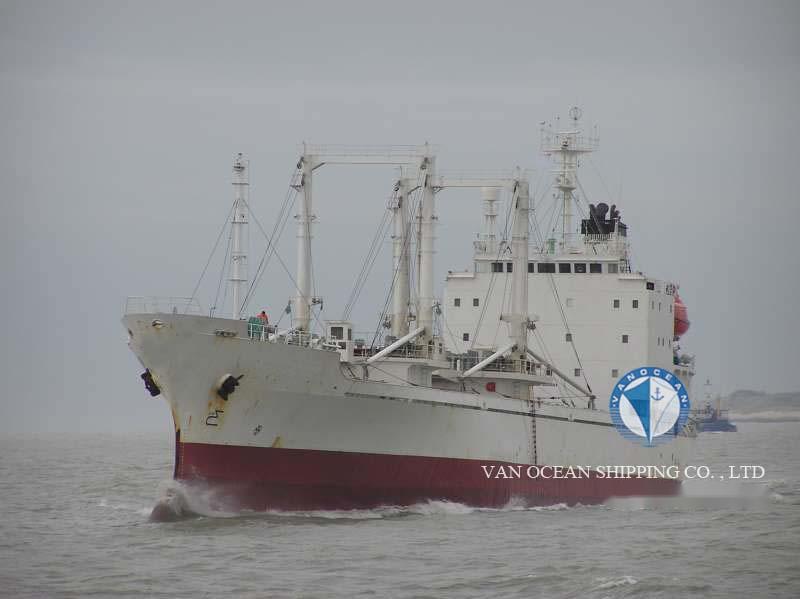

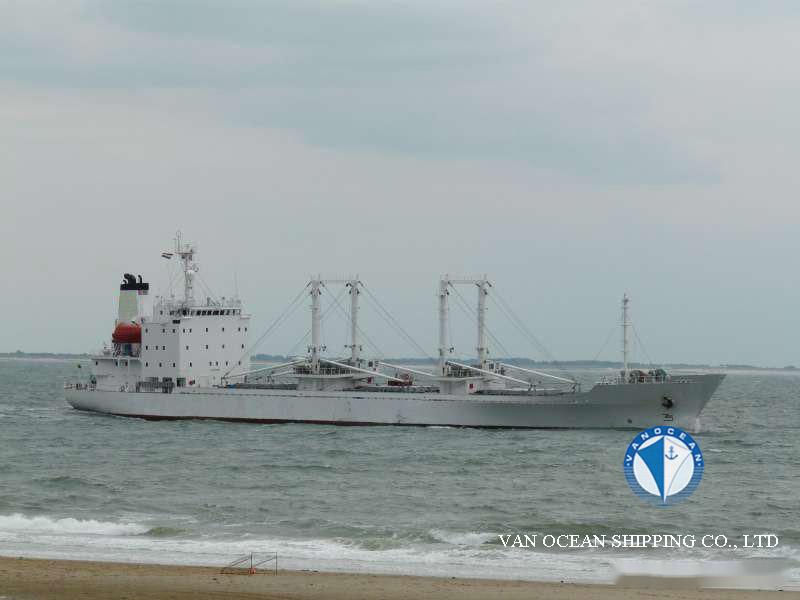

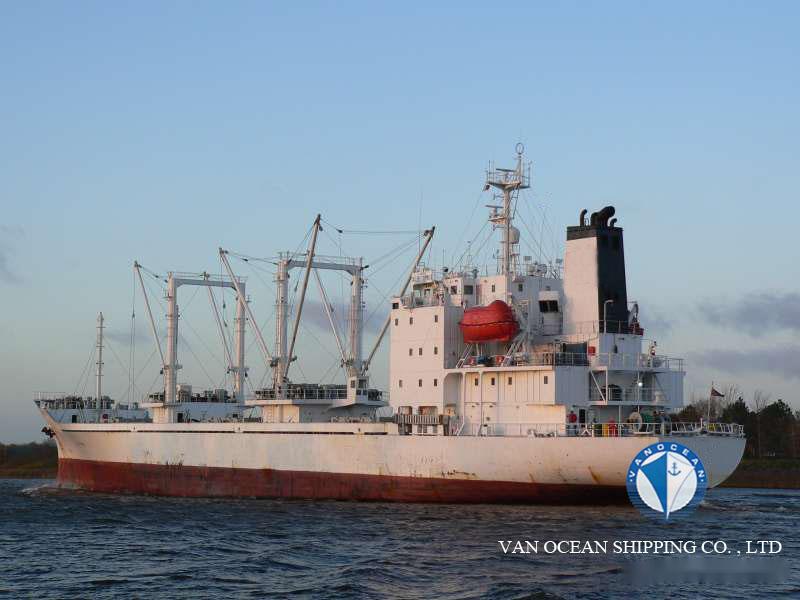

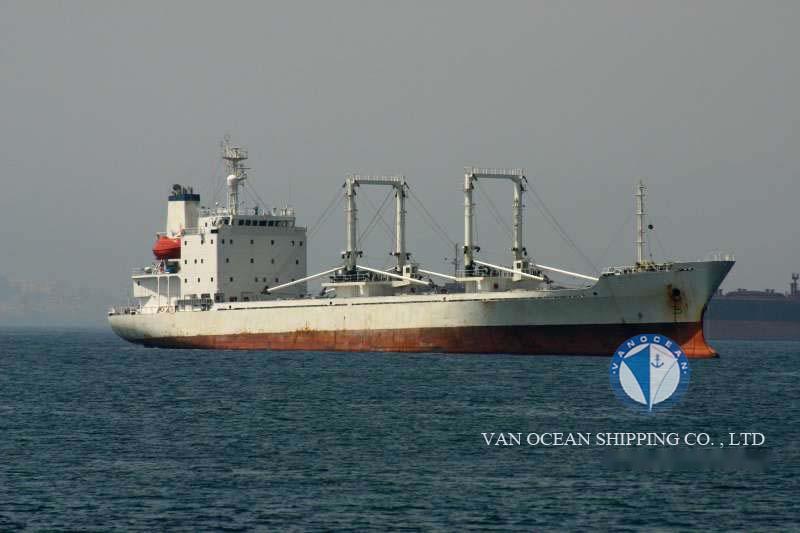

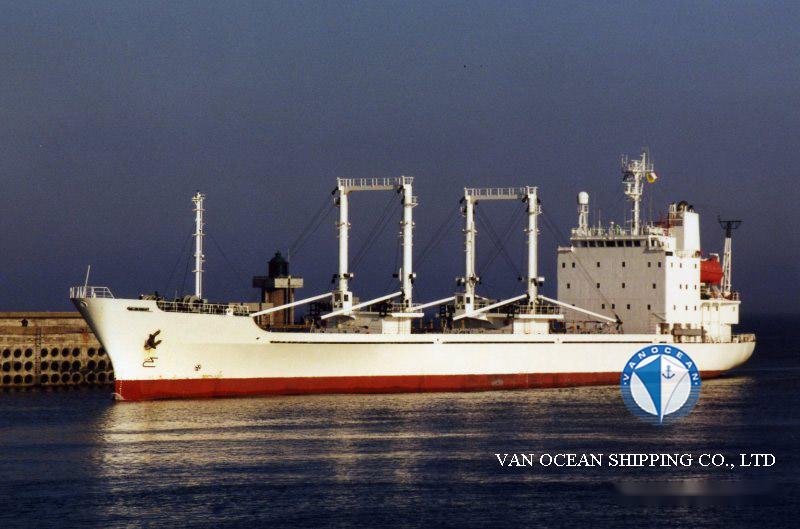

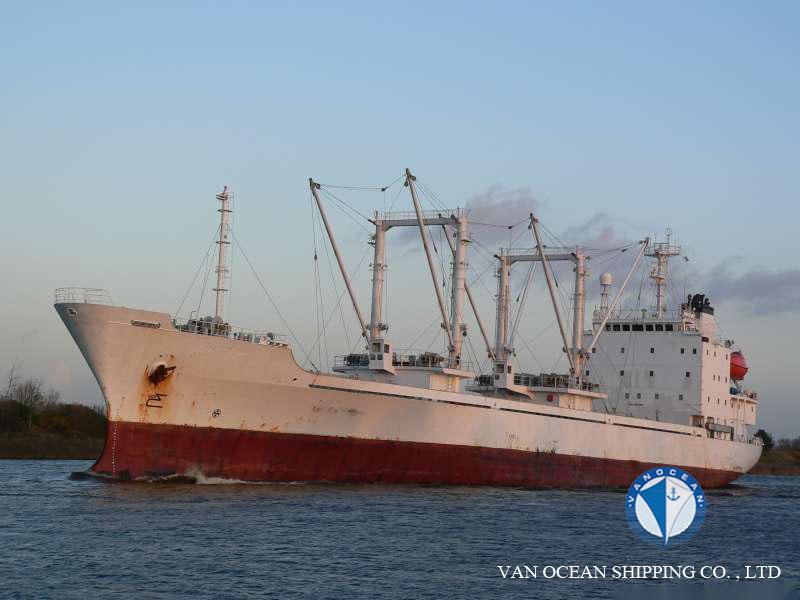

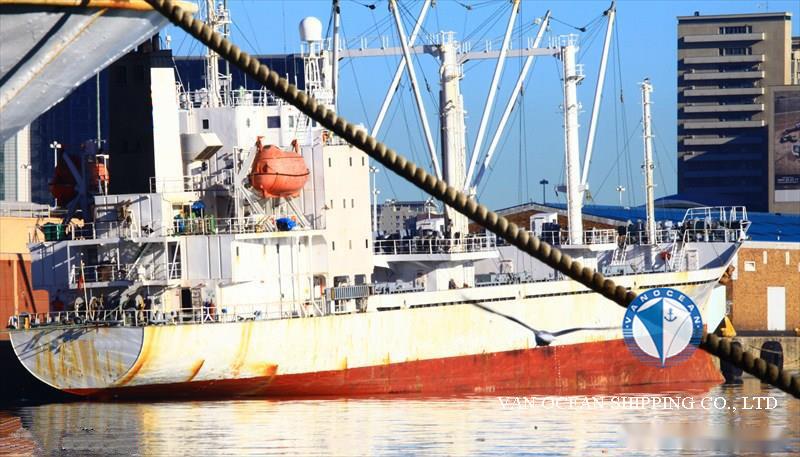

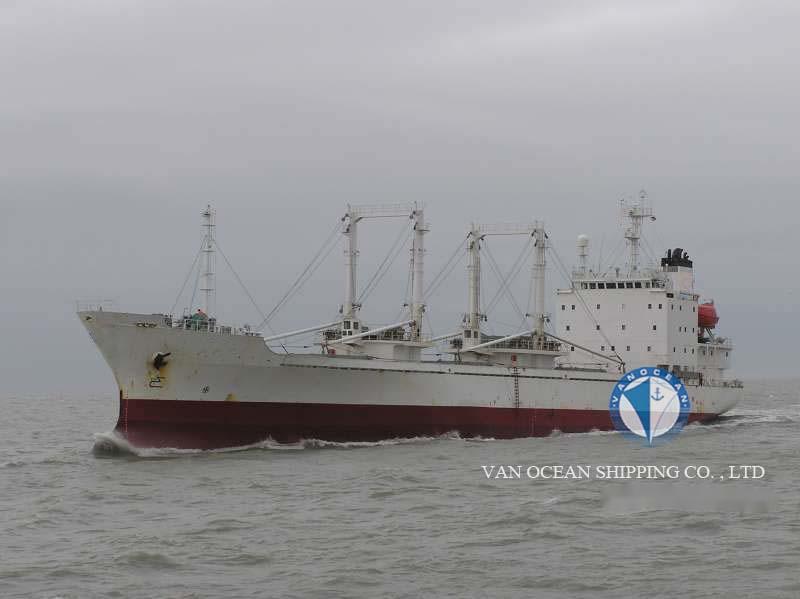

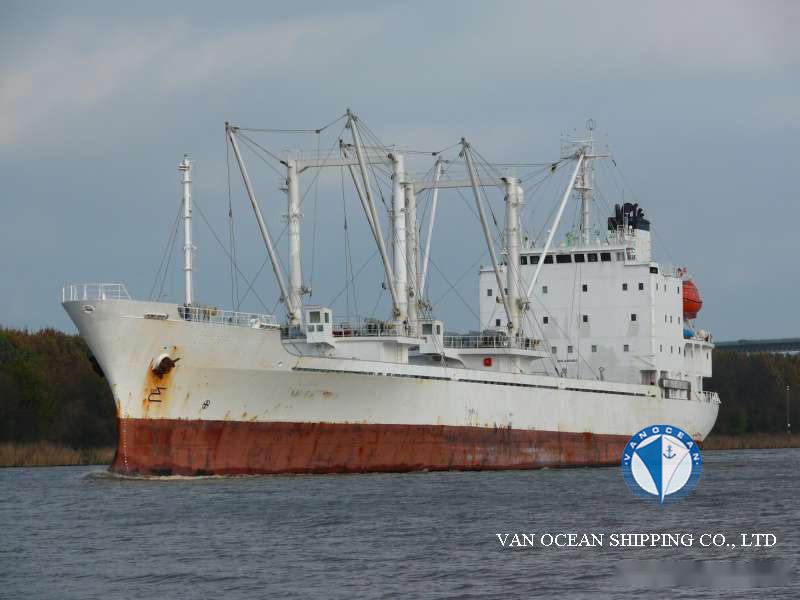

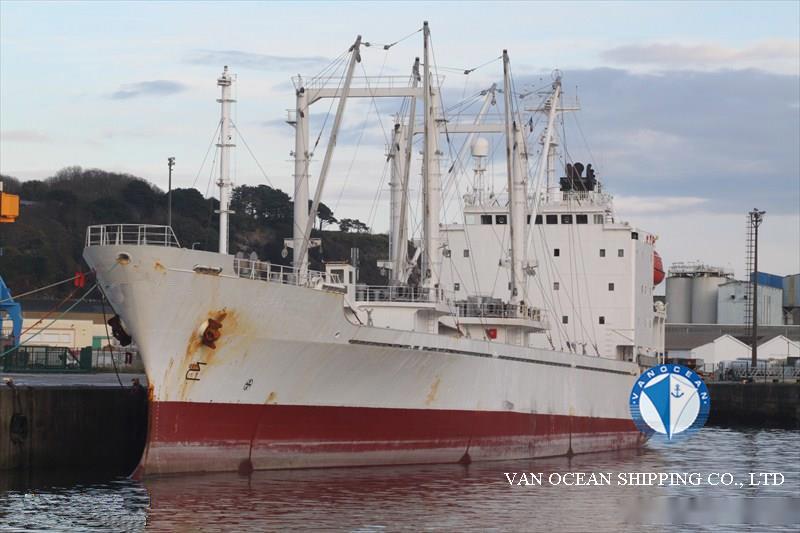

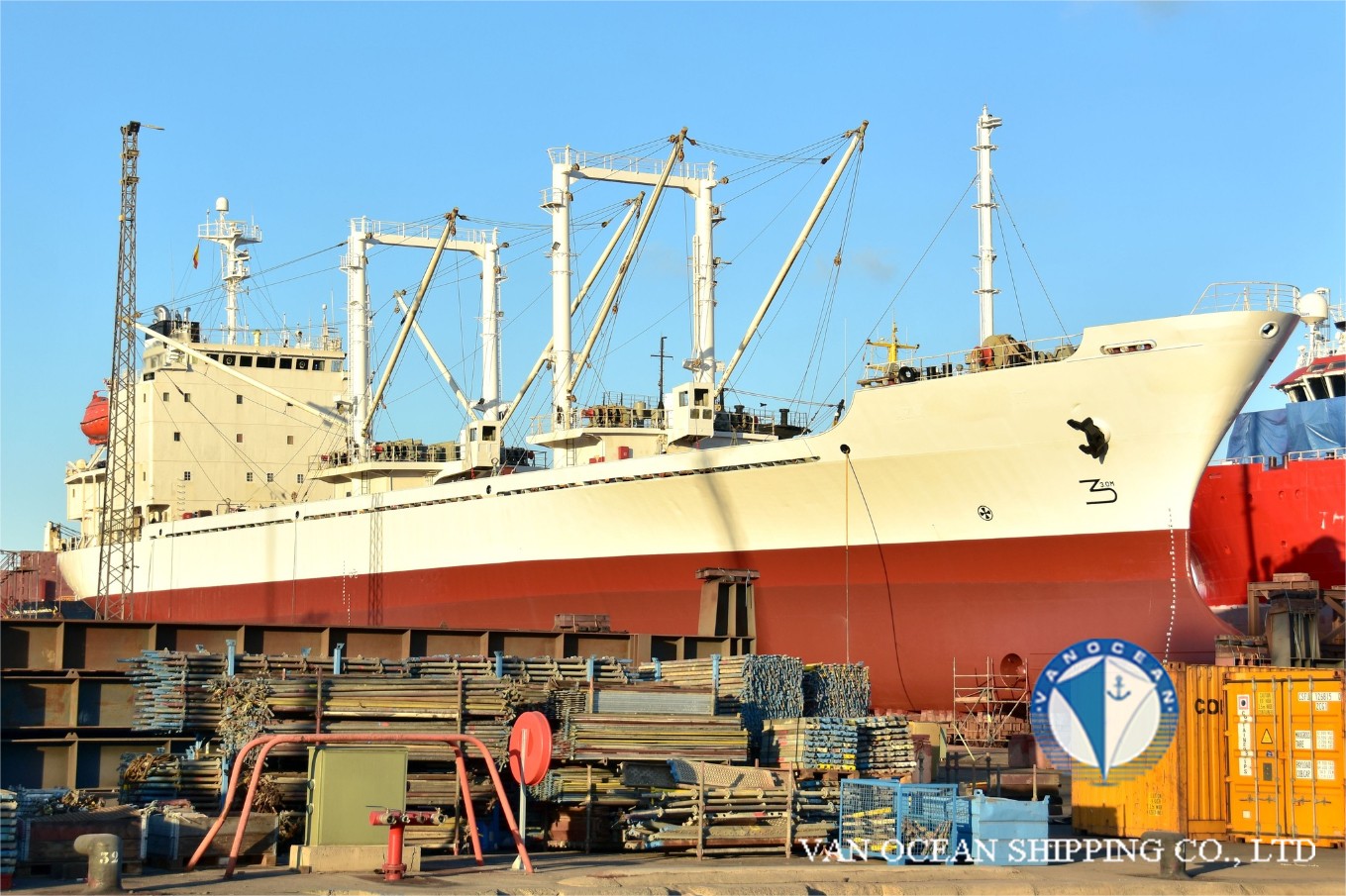

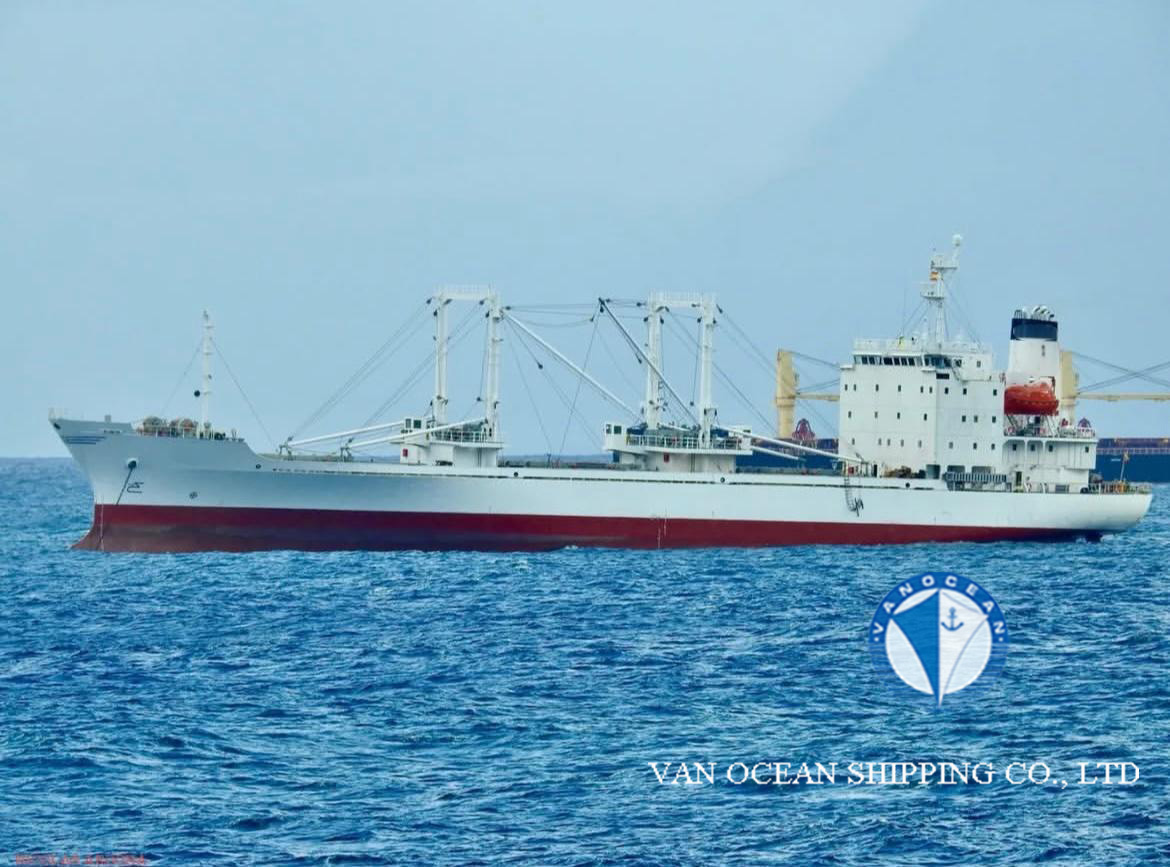

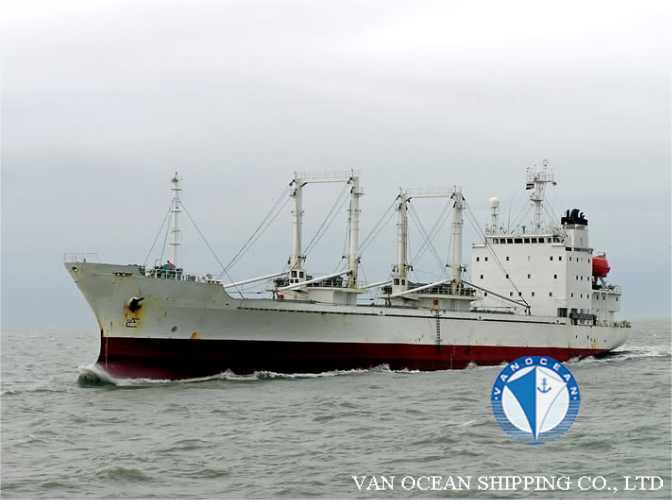

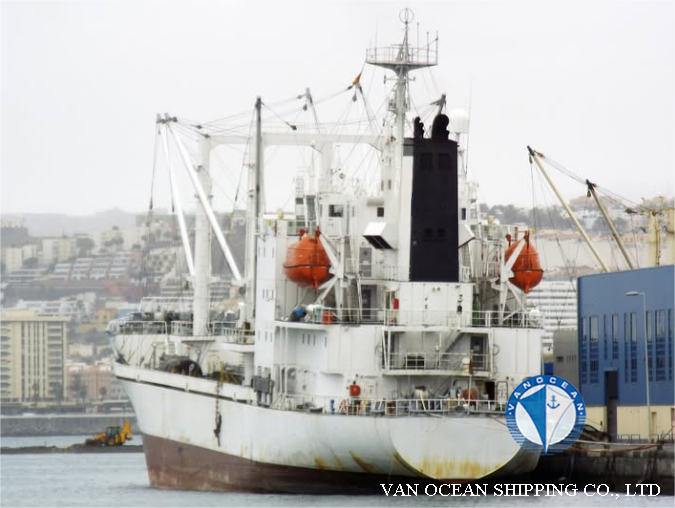

VESSEL NAME
REF564
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
LITHUANIA
PORT OF REGISTRY
KLAIPEDE
BUILT YEAR
1991
BUILT PLACE
KYOKUYO ZOSEN CHOFU, JAPAN
CLASSIFICATION
PRS
CLASS NOTATION
KM REEFER CARRIER, PRM, Ch
SS
2026-04
DD
2026-04
LOA (M)
120.7
LBP (M)
112.9
BEAM (M)
16.62
DEPTH (M)
10
SUMMER DRAFT (M)
6.91
WINTER DRAFT (M)
6.77
TROPICAL DRAFT (M)
7.06
GT (MT)
4587
PANAMA GT (MT)
5215.77
SUEZ GT (MT)
4927.48
NT (MT)
2283
PANAMA NT (MT)
3883.04
SUEZ NT (MT)
3715.49
SUMMER DWT (MT)
5065
WINTER DWT (MT)
4849
TROPICAL DWT (MT)
5283
LDT (MT)
2946
DISPLACEMENT (MT)
8011
GEAR(S)
DERRICKS, 6 x 5MT, UP 3 x 3MT
OUTREACH 6.5M
M/E(S)
MITSUBISHI 6UEC45LA 7199 BHP 158 RPM
M/E POWER (KW)
5372
A/E(S)
3 SETS DAIHATSU 6DL-20, 720 PS x 720 RPM
GENERATOR(S)
TAIYO 3 SETS 600 KVA x 450V x 60HZ
EMERGENCY MITSUI-DEUTZ, 40 PS x 1800 RPM
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP, KAMOME AEROFOIL 5 BLADED, DIAMETER 4400MM
COOLING SYSTEM (COMPRESSOR)
3 SETS F160SUD2-VE SCREW, 110KW @ 3600 RPM
SPEED/CONSUMPTIONS
BANANA: 16.5 ON 21.5 (380) + 0.2 MDO
LOAD: 16 ON 19.5
BALLAST: 17.5 ON 18.6
FUEL TYPE
IFO380, MDO
BUNKER CAPACITY (CBM)
IFO380:794
MDO: 91
TANKS CAPACITY (CBM)
FW 163.86
NUMBER OF CARGO HOLDS
3
HATCH NUMBER
3
HATCH TYPE
HYDRAULIC MOTOR DRIVEN
HATCH SIZE (M)
7.1 x 6.4
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
9
DECK(S)
3
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
236925
CARGO CAPACITY (CBM)
6709
FLOOR SPACE CAPACITY (SQM)
2549
GRATING/DECK STRENGTH
FORKLIFT: 5MT
TEMPERATURE ZONE(S)
6
TEMPERATURE (℃)
-25 /+12
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
90/45
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
1930
CONTAINER CAPACITY
20 FT, 9 ON HATCH COVERS
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
GRADE 2, 48MM, 495M
USDA CERTIFICATE
-
INSURANCE
-
CREW
18
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
FITTED WITH BOW THRUSTER
BECKER RUDDER
