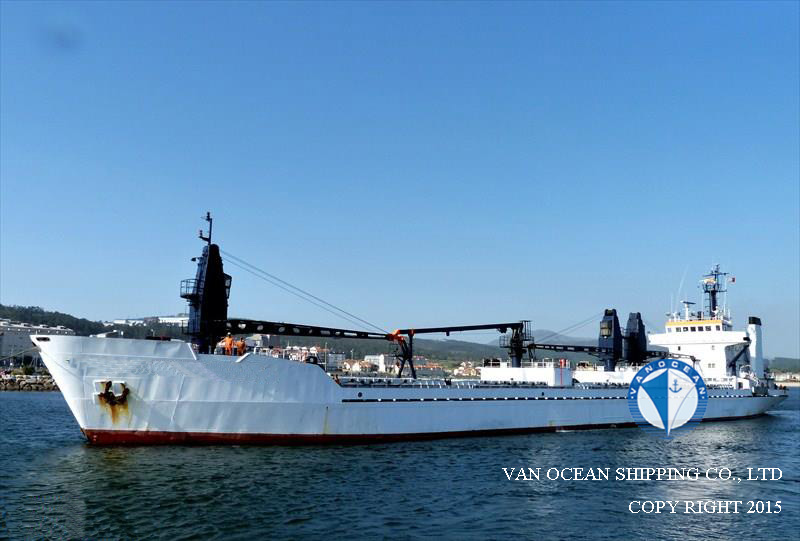

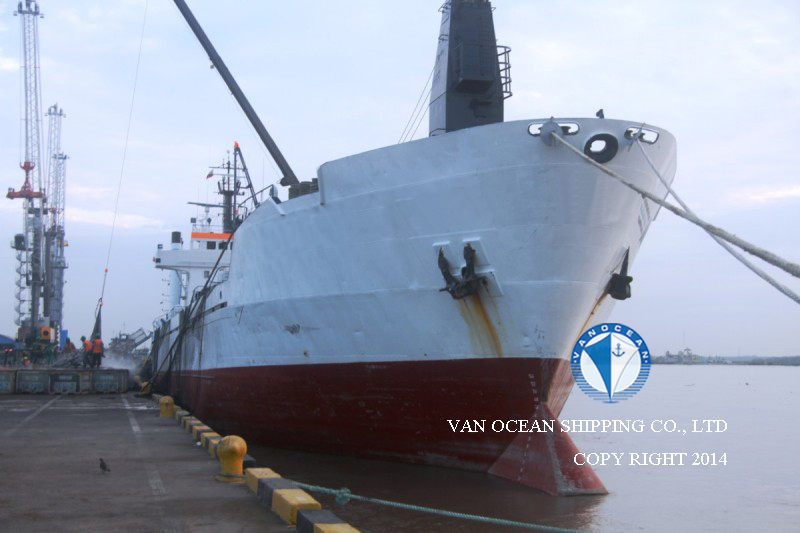

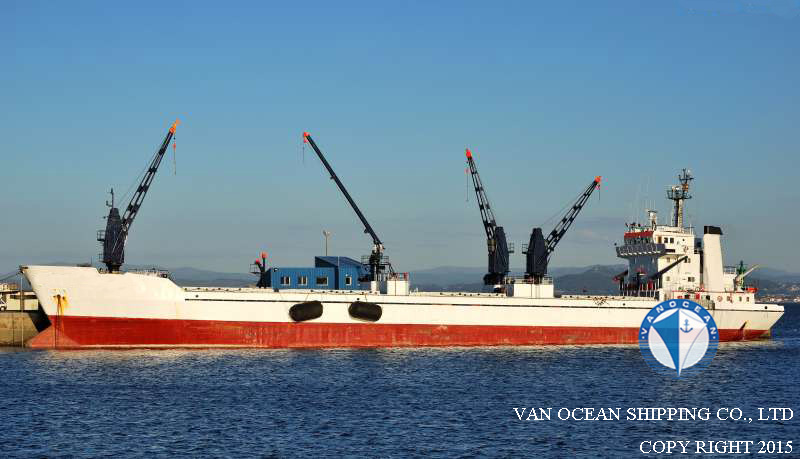

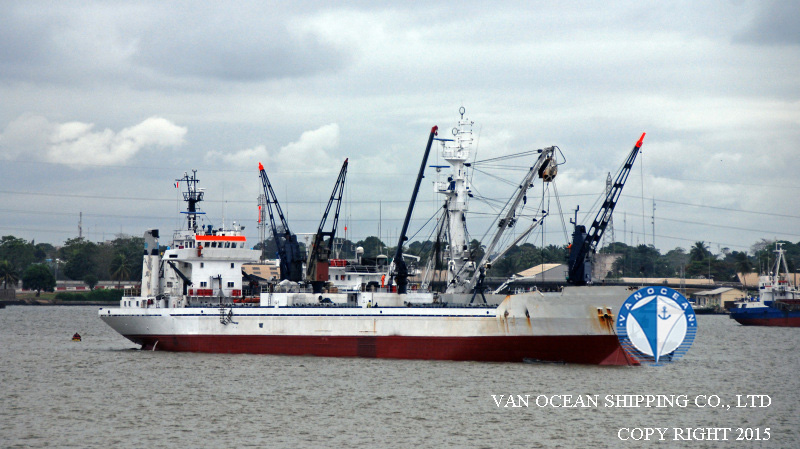

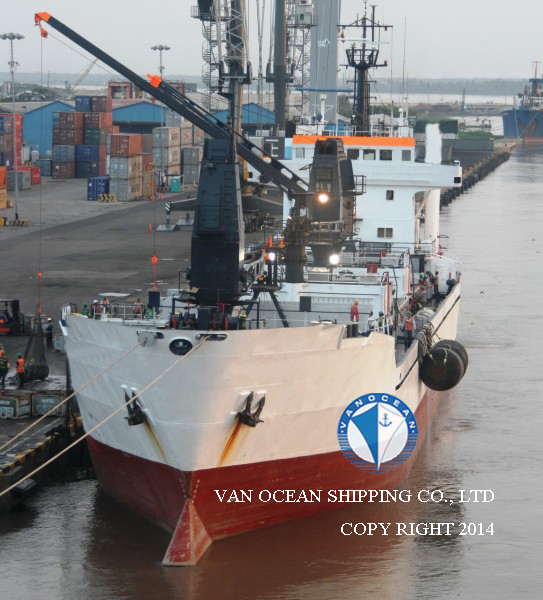

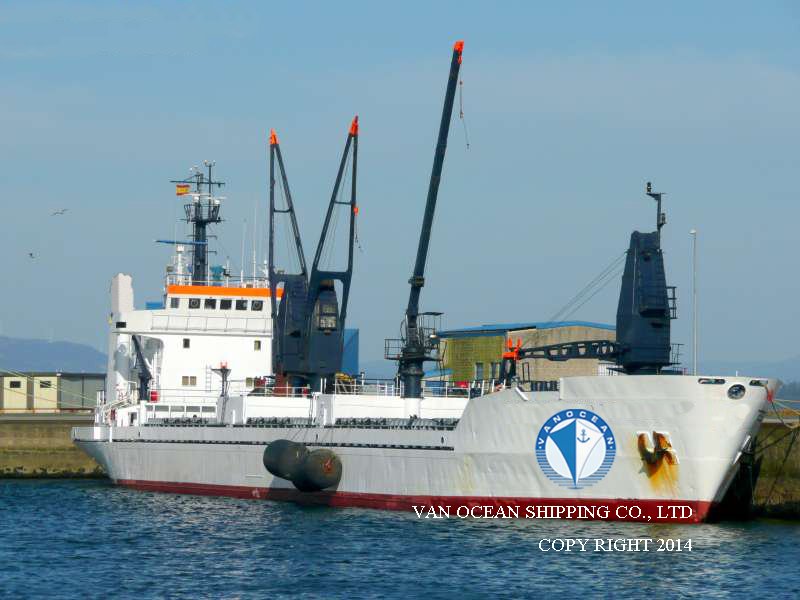

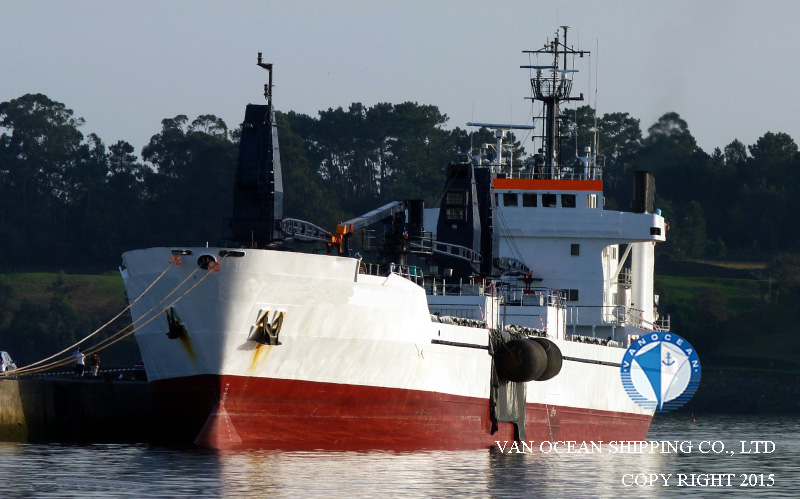

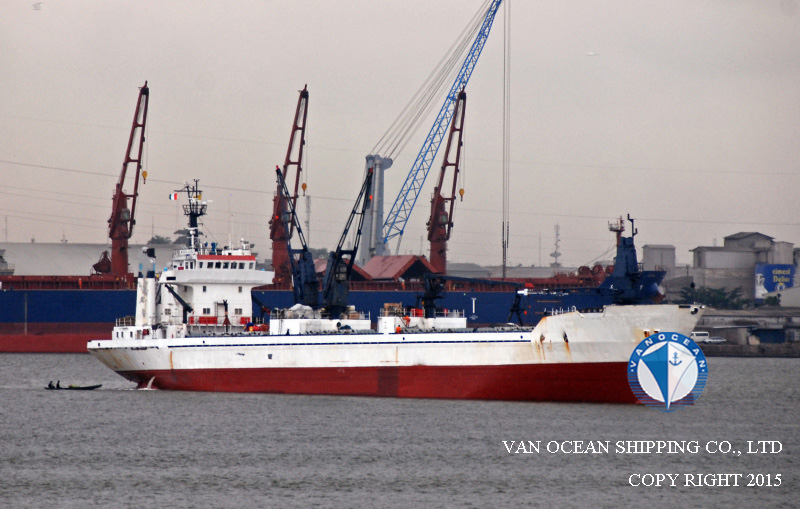

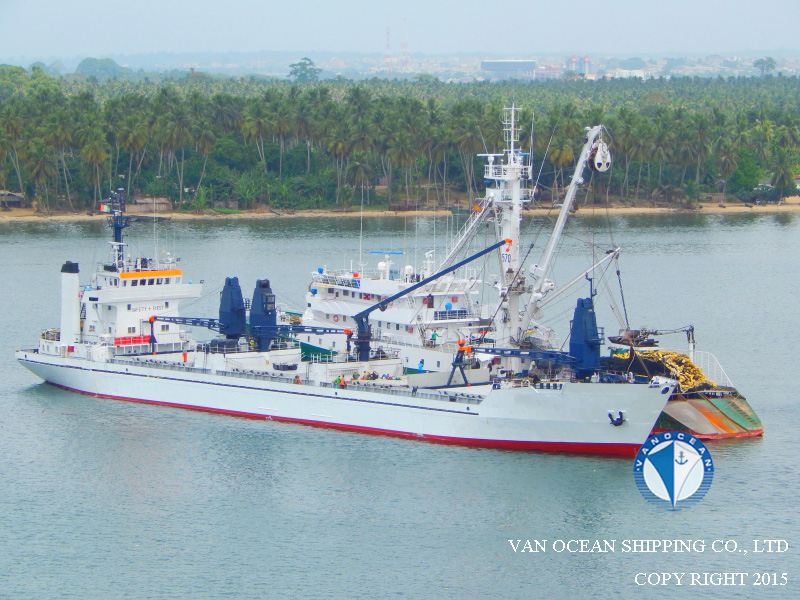

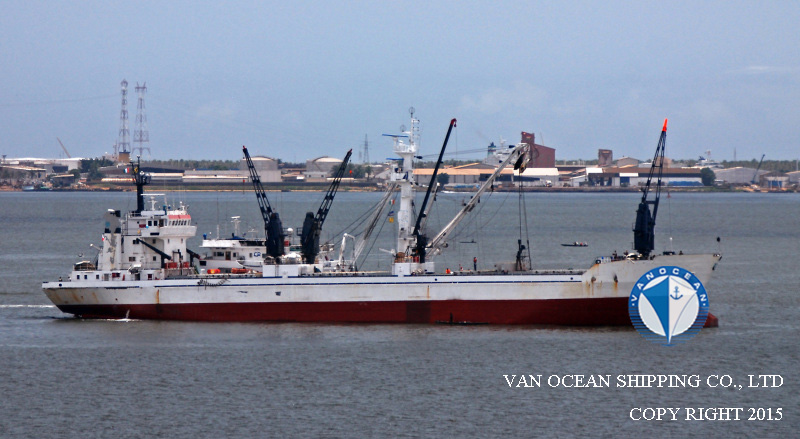

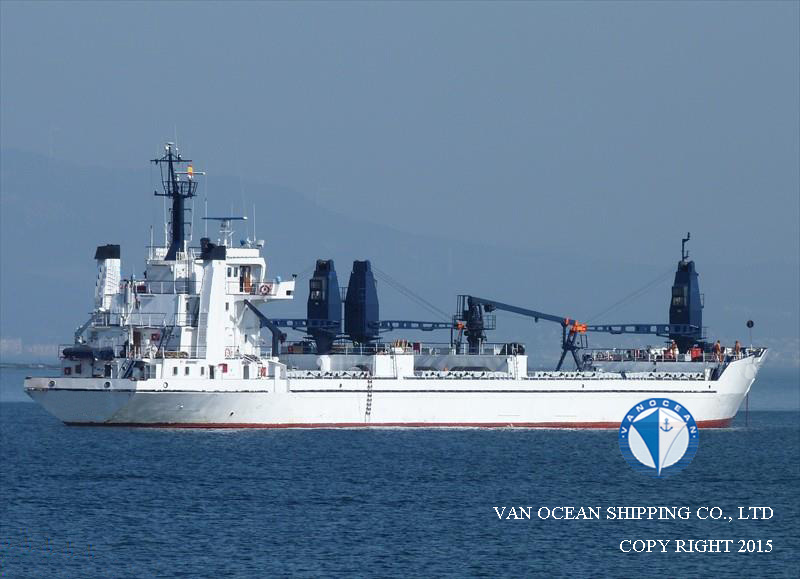

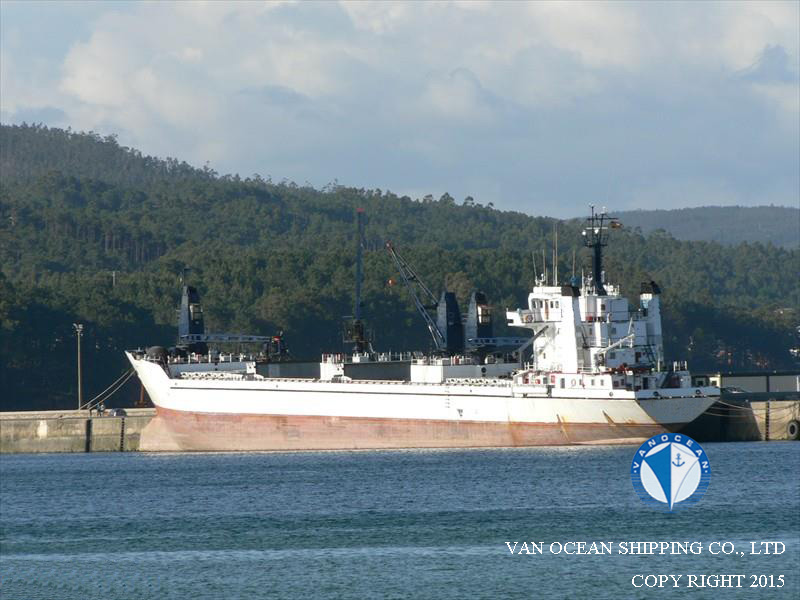

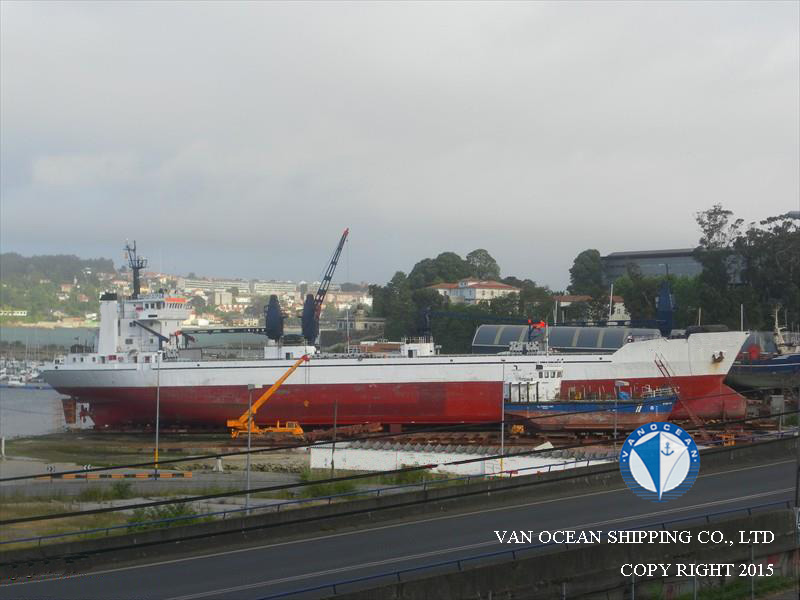

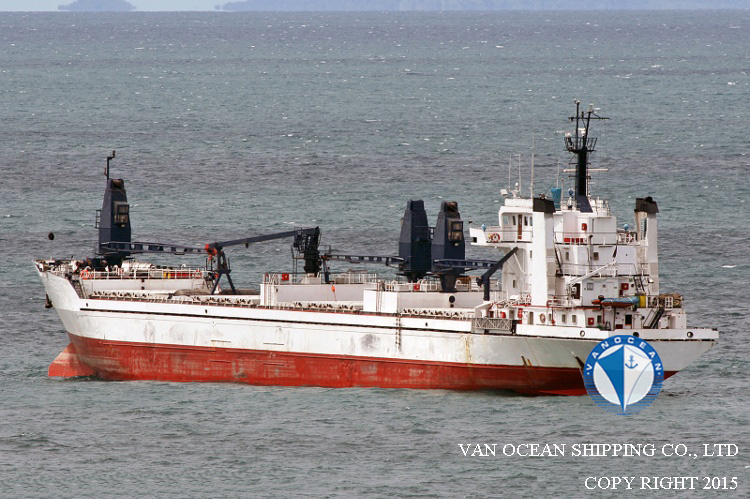

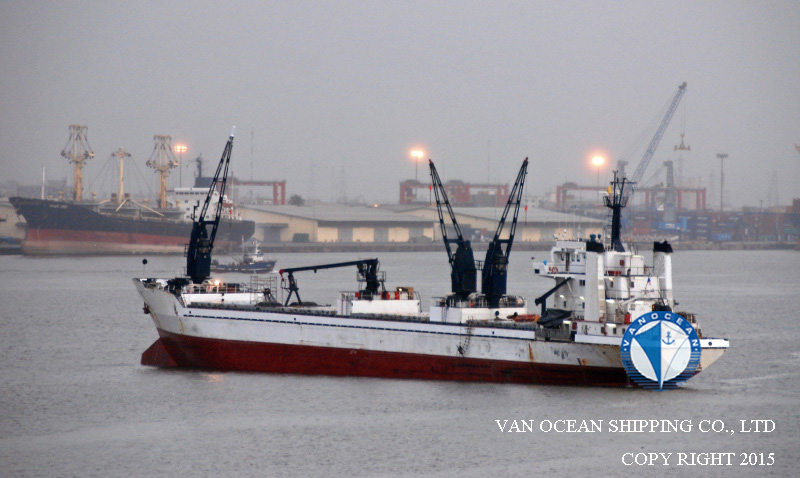

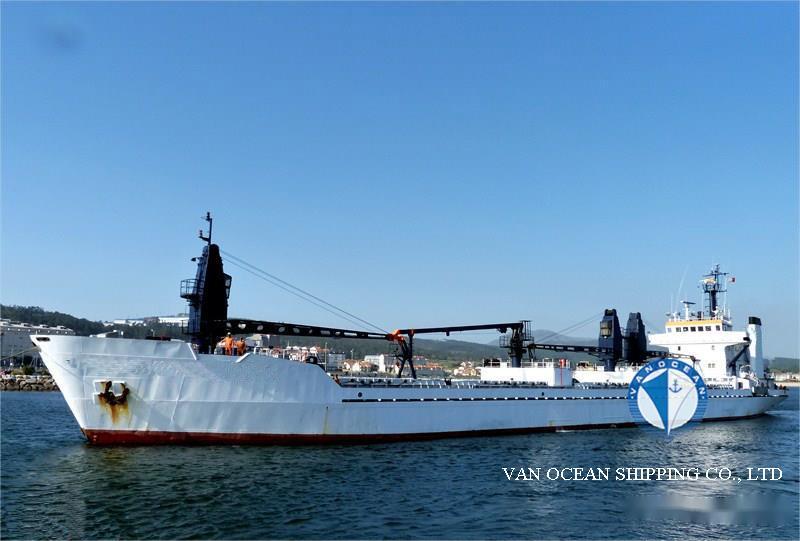

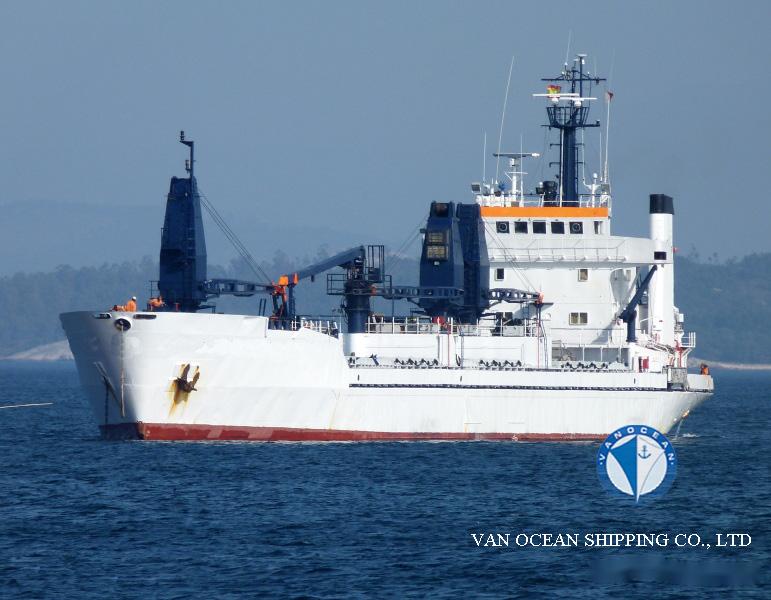

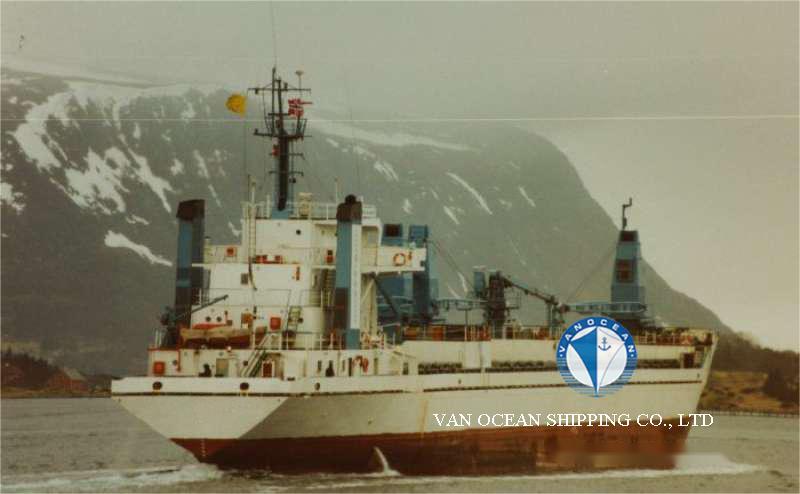

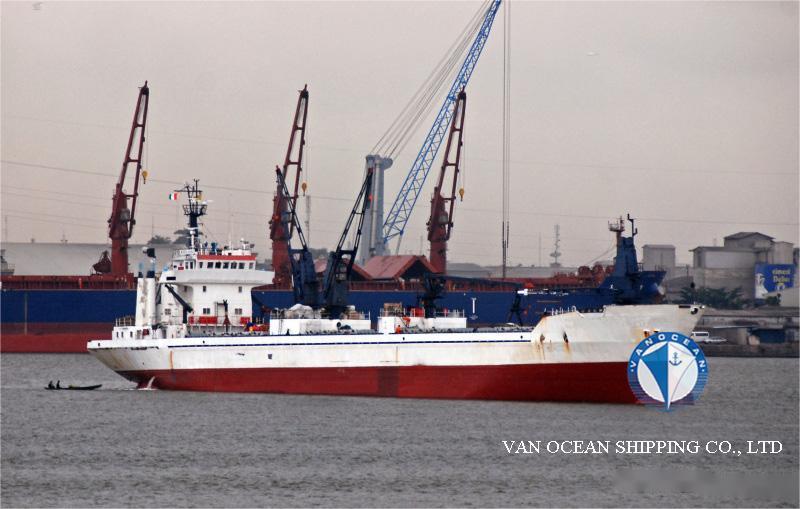

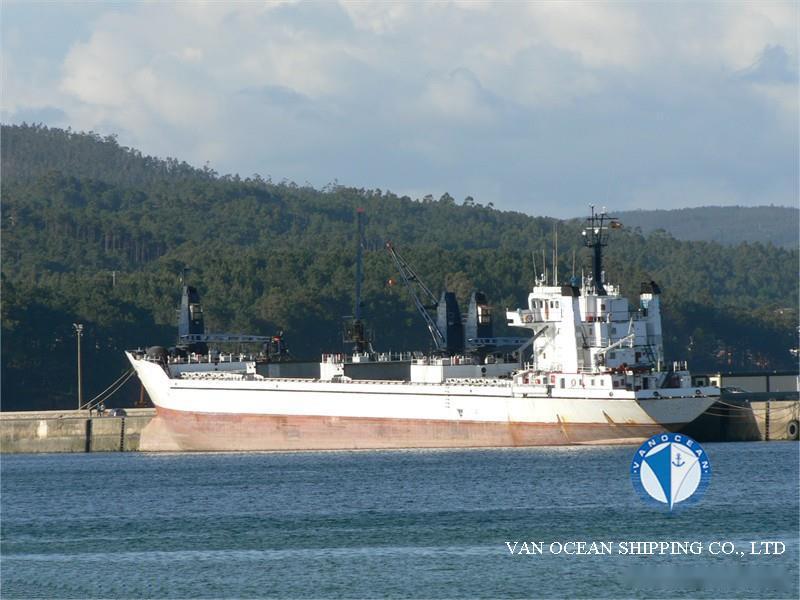

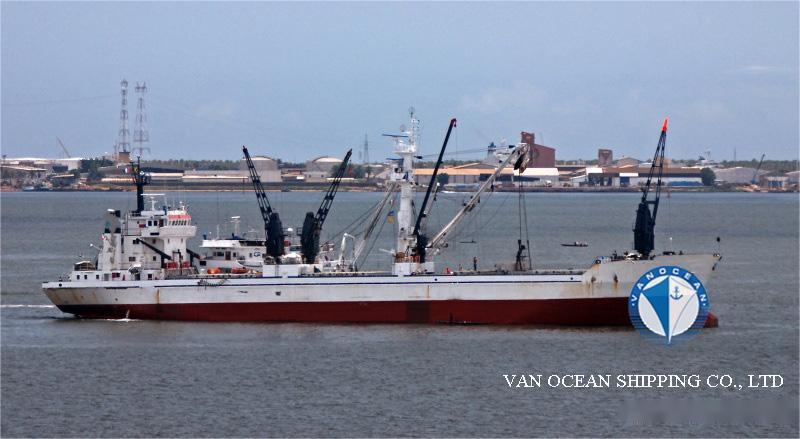

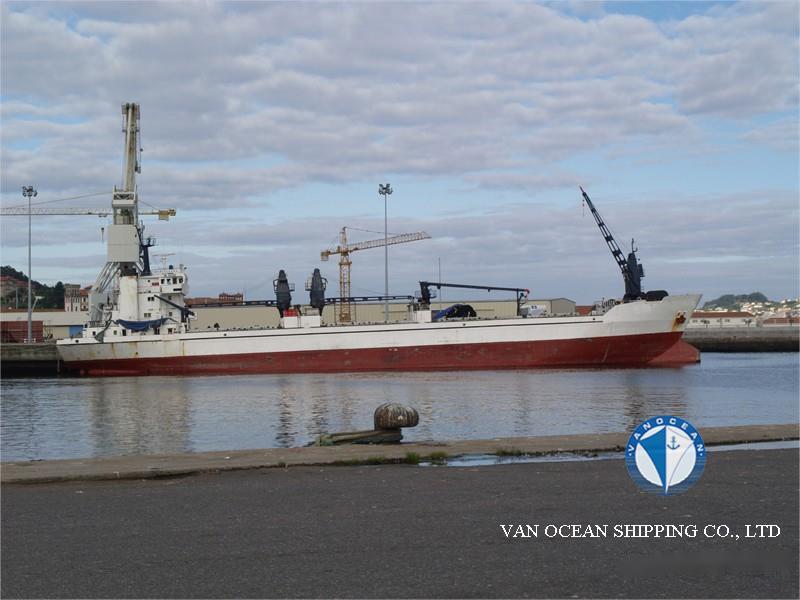

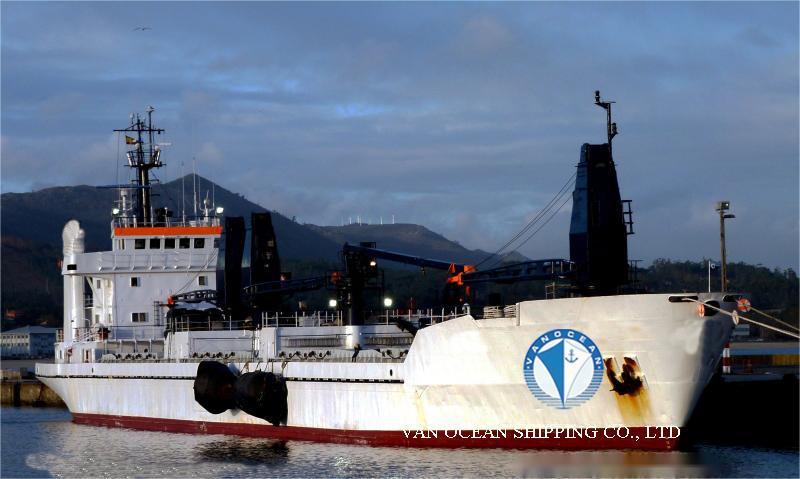

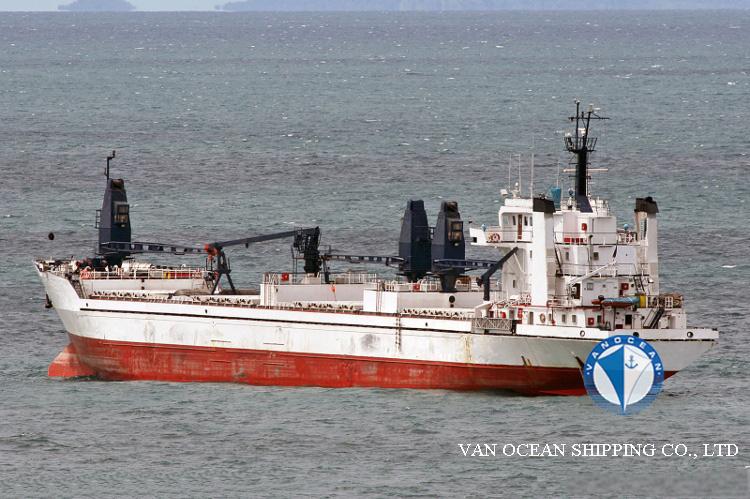

VESSEL NAME
REF652
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1977
BUILT PLACE
YVC YSSELWERF, NETHERLAND
CLASSIFICATION
LR
SS
2026-07
DD
2026-07
LOA (M)
96.95
LBP (M)
90.4
BEAM (M)
13.75
DEPTH (M)
7.7
SUMMER DRAFT (M)
5.124
WINTER DRAFT (M)
5.02
TROPICAL DRAFT (M)
5.22
GT (MT)
2695
PANAMA GT (MT)
2923
SUEZ GT (MT)
2787.86
NT (MT)
1395
PANAMA NT (MT)
2392
SUEZ NT (MT)
2297.77
SUMMER DWT (MT)
3429
WINTER DWT (MT)
3313
TROPICAL DWT (MT)
3529
LDT (MT)
1545
DISPLACEMENT (MT)
4974
GEAR(S)
CRANES, 3 x 3MT, 1 x 2.5MT
M/E(S)
MAK 8M453AK 2800 BHP 550 RPM
M/E POWER (KW)
2090
A/E(S)
CATERPILLAR D343PO 266HP @ 1500RPM
GENERATOR(S)
2 SETS HEEMAF 355VDT50NN4 380V, 250KVA @ 1500RPM
1 SET CATERPILLAR CAT00C18TLNB81567, 400/230V, 700KVA @1500RPM
SHAFT GENERATOR(S)
HEEMAF INS.F.IP.22 3ALT. ID375VDU60NN4, 380V, 450KVA@1500RPM
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
3 SETS GRASSO RC-411
SPEED/CONSUMPTIONS
13KTS AT 8MT/DAY
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
IFO 303MT
TANKS CAPACITY (CBM)
FW 42MT
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
#1 (8.71 x 5.89M) ; #2,3,4 (9.4 x 8.52M)
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
8
DECK(S)
2
DECK HEIGHT (M)
≥2.15M
CARGO CAPACITY (CBFT)
176722
CARGO CAPACITY (CBM)
5006
FLOOR SPACE CAPACITY (SQM)
1569
GRATING/DECK STRENGTH
FORKLIFT UP TO 3 MT
TEMPERATURE ZONE(S)
4
TEMPERATURE (℃)
-25/+12
TYPE OF VENT SYSTEM
VERT
VENT (TIMES/HOUR)
70
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
-
CONTAINER CAPACITY
20 TEU
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
14
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BWTS FITTED
