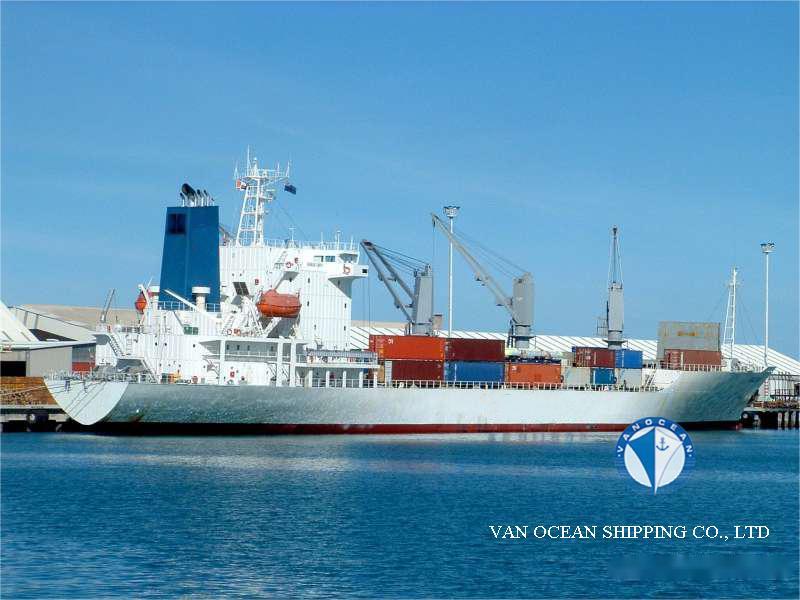

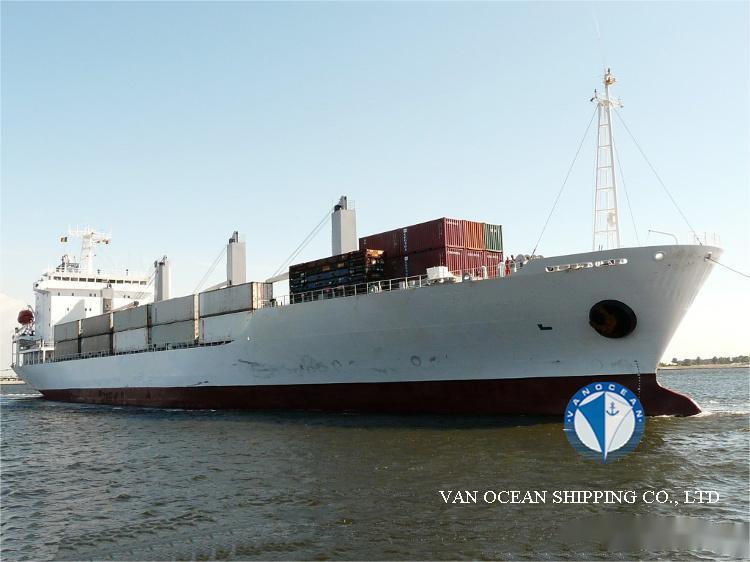

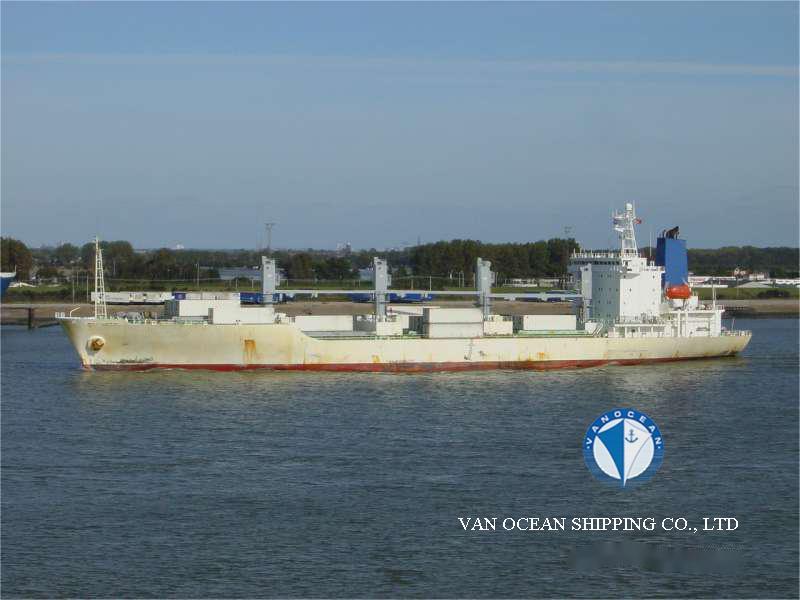

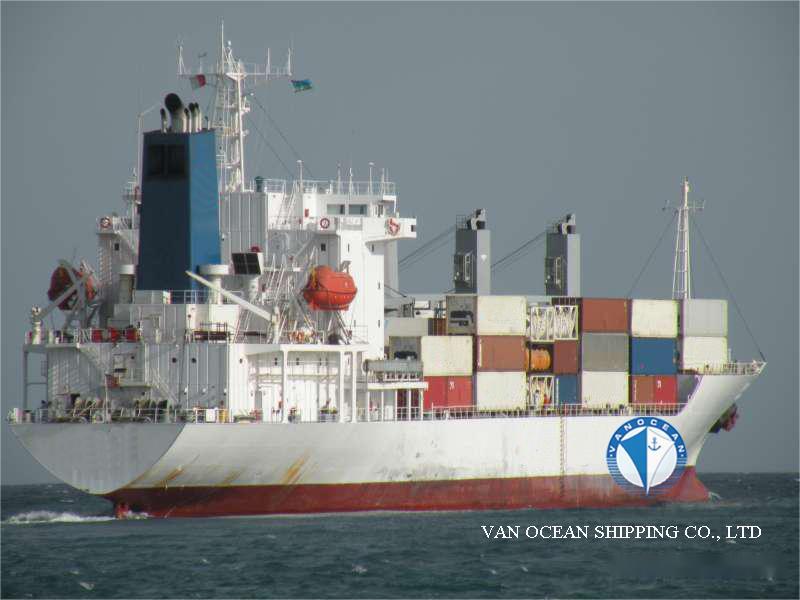

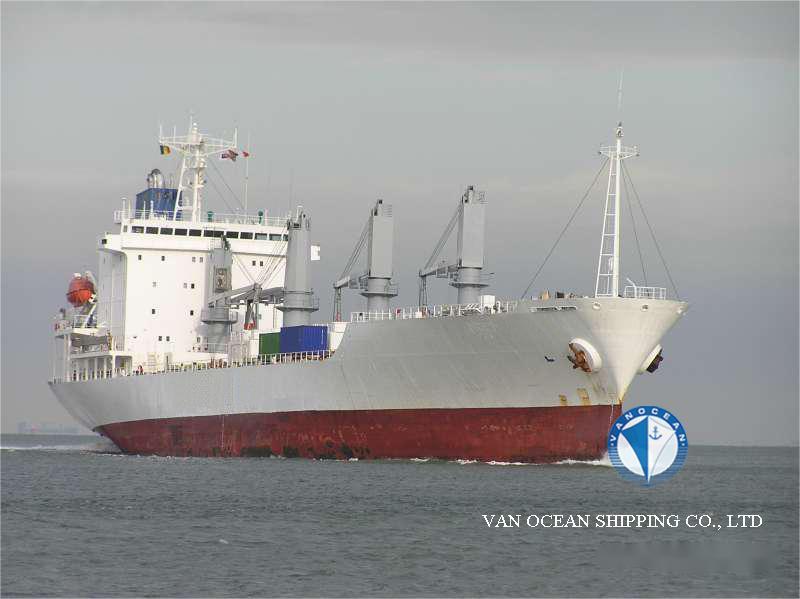

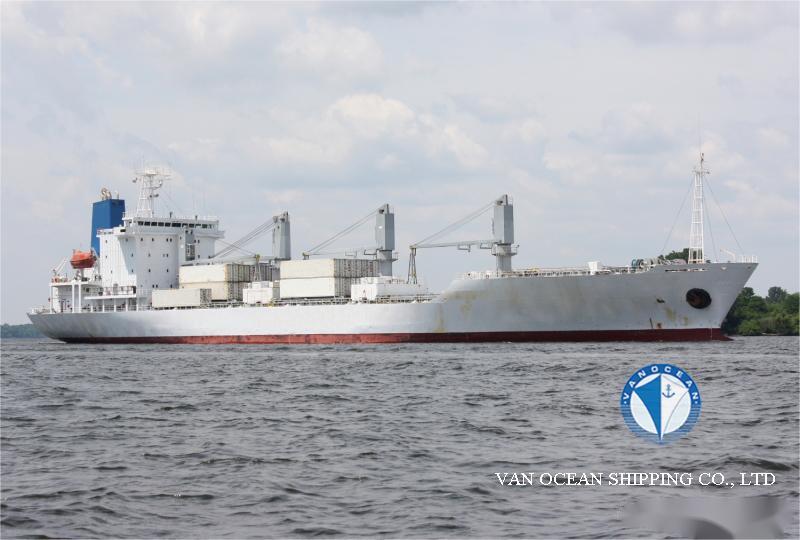

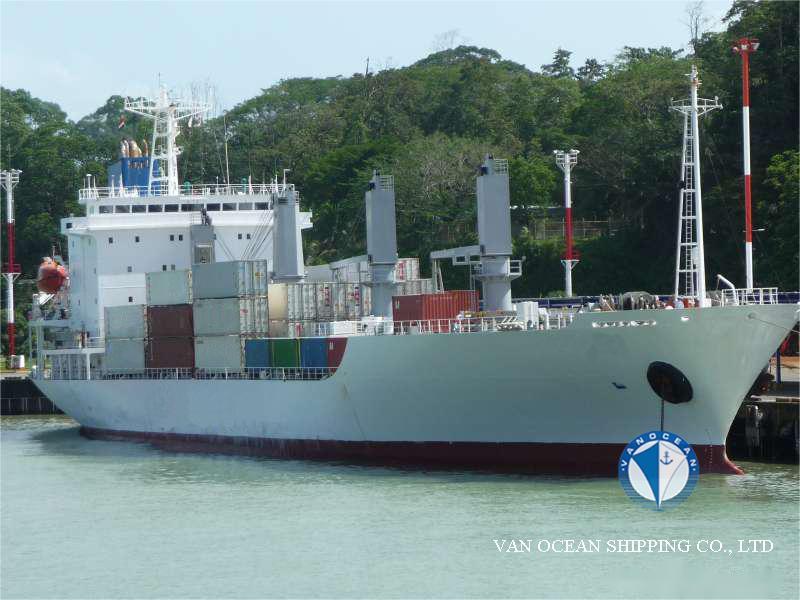

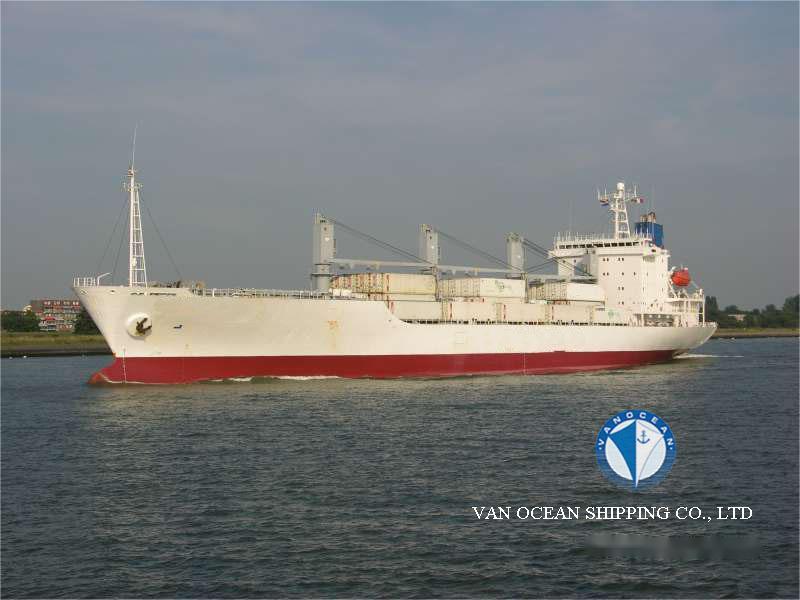

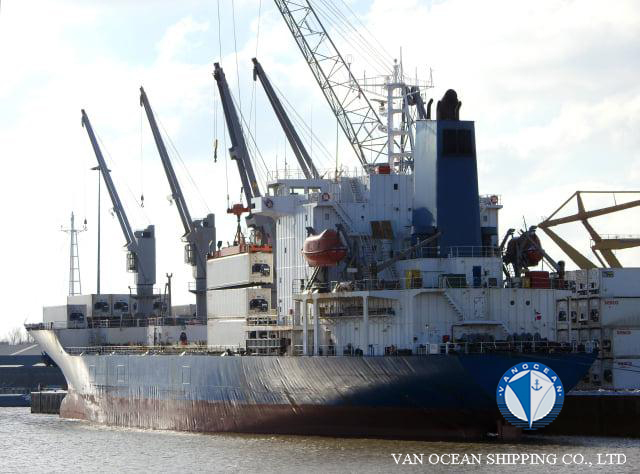

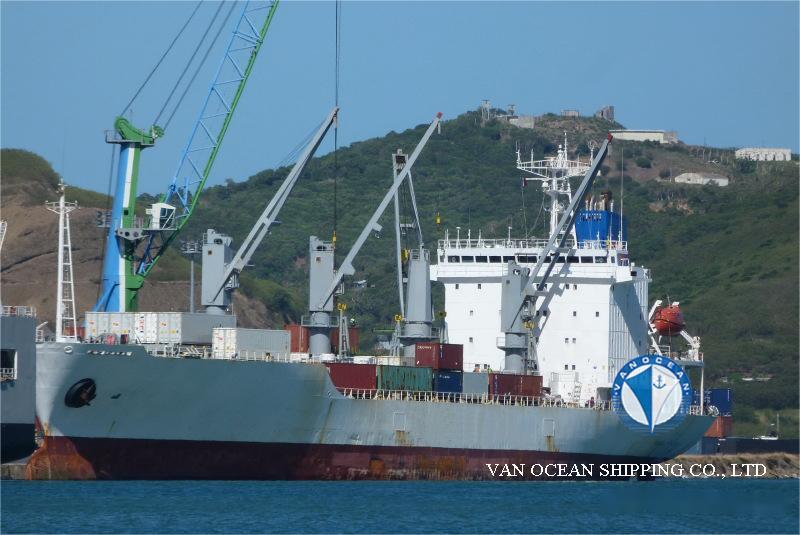

VESSEL NAME
REF670
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1992
BUILT PLACE
SHIKOKU DOCK., JAPAN
CLASSIFICATION
RINA
CLASS NOTATION
unrestricted navigation, C✠, ICE CLASS ID ✠REF-CARGO
SS
2025-09
DD
2025-09
LOA (M)
150.01
LBP (M)
141
BEAM (M)
22.5
DEPTH (M)
13.2
SUMMER DRAFT (M)
9.07
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
10402
PANAMA GT (MT)
11365.43
SUEZ GT (MT)
10930.57
NT (MT)
5265
PANAMA NT (MT)
8647
SUEZ NT (MT)
8797.6
SUMMER DWT (MT)
10621
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
6355
DISPLACEMENT (MT)
16958
GEAR(S)
ELECTRIC CRANES, 1 x 36 MT; 3 x 8 MT
M/E(S)
B&W 2S.A. 6CYL.15300 HP
M/E POWER (KW)
11253
A/E(S)
4 x DAIHATSU 6DBL-22 662KW
1 x MITSUI-DEUTZ 82KW
GENERATOR(S)
4 x NISHISHIBA ELECTRIC 610KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP, 5 BLADES
COOLING SYSTEM (COMPRESSOR)
4 SETS STAL SVK24EMK2, 396KW @ 3600RPM
SPEED/CONSUMPTIONS
21KTS AT 44MT/DAY
FUEL TYPE
IFO, MDO
BUNKER CAPACITY (CBM)
IFO 1620 CBM, MDO 73.1 CBM
TANKS CAPACITY (CBM)
FW 249.2 CBM
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
13.2 x 10.5
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
≥2.2m
CARGO CAPACITY (CBFT)
527422
CARGO CAPACITY (CBM)
14941
FLOOR SPACE CAPACITY (SQM)
5853
GRATING/DECK STRENGTH
SUITABLE FOR PNEUMATIC FORKLIFTS WITH ALL-UP WEIGHT OF 6 MT
TEMPERATURE ZONE(S)
8
1FC/AB, 2AB/CD, 3AB/CD, 4AB/CD
TEMPERATURE (℃)
-30/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
2
PALLET(S)
4600
CONTAINER CAPACITY
108 FEU
REEFER PLUG(S)
55 ON DECK (20FT AND/OR 40FT)
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
25
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
