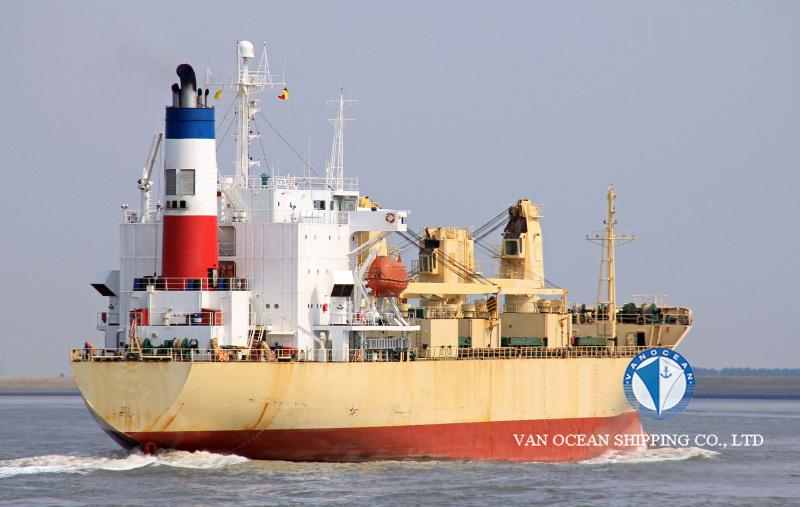

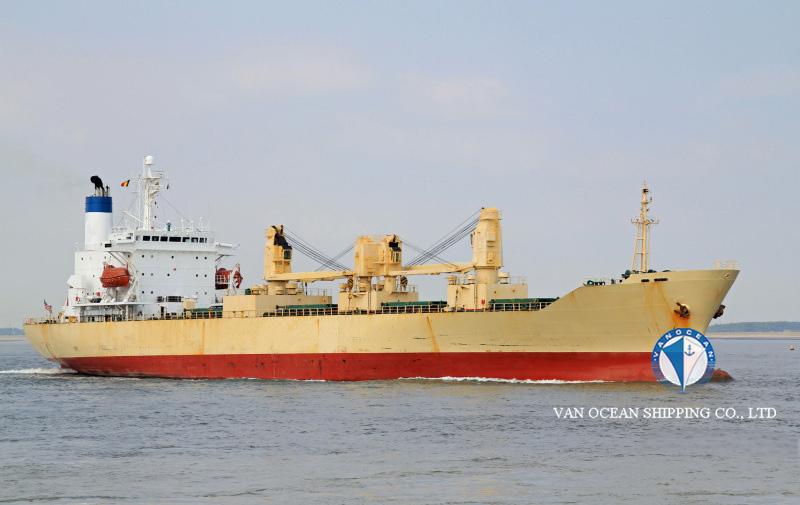

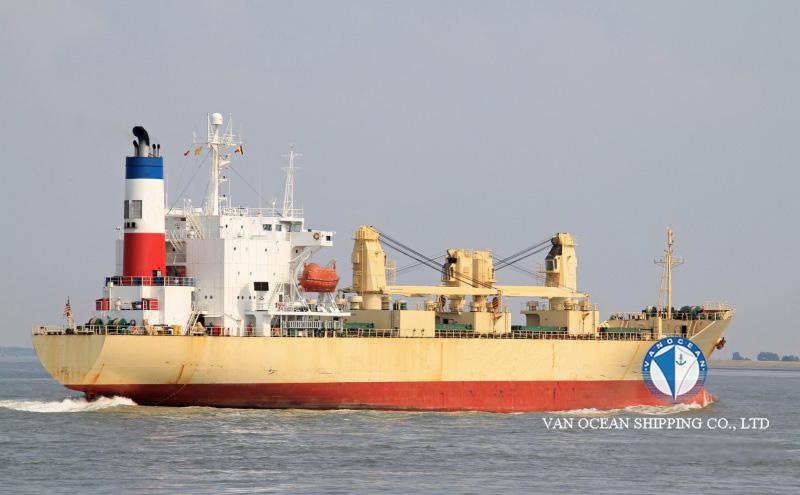

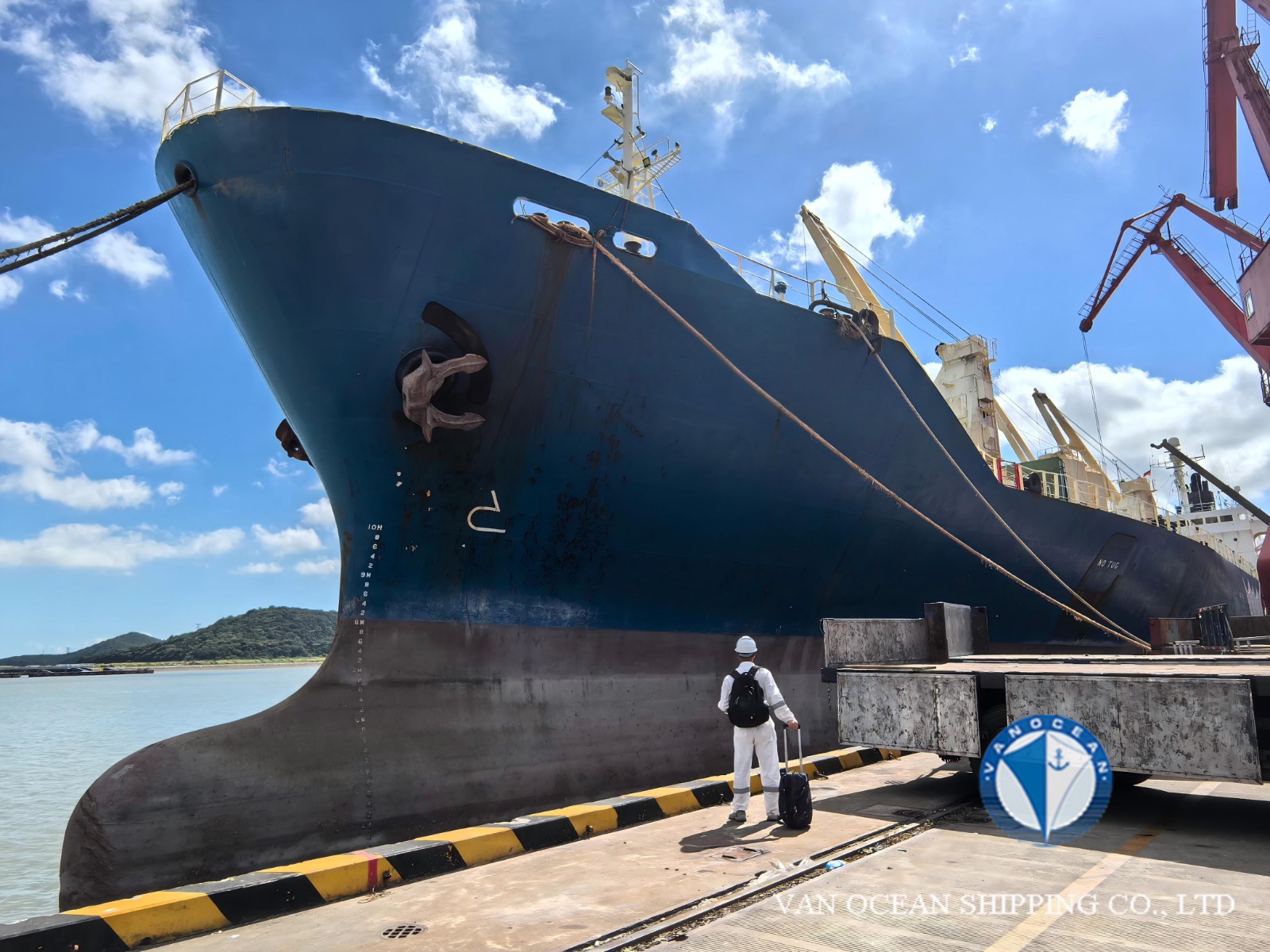

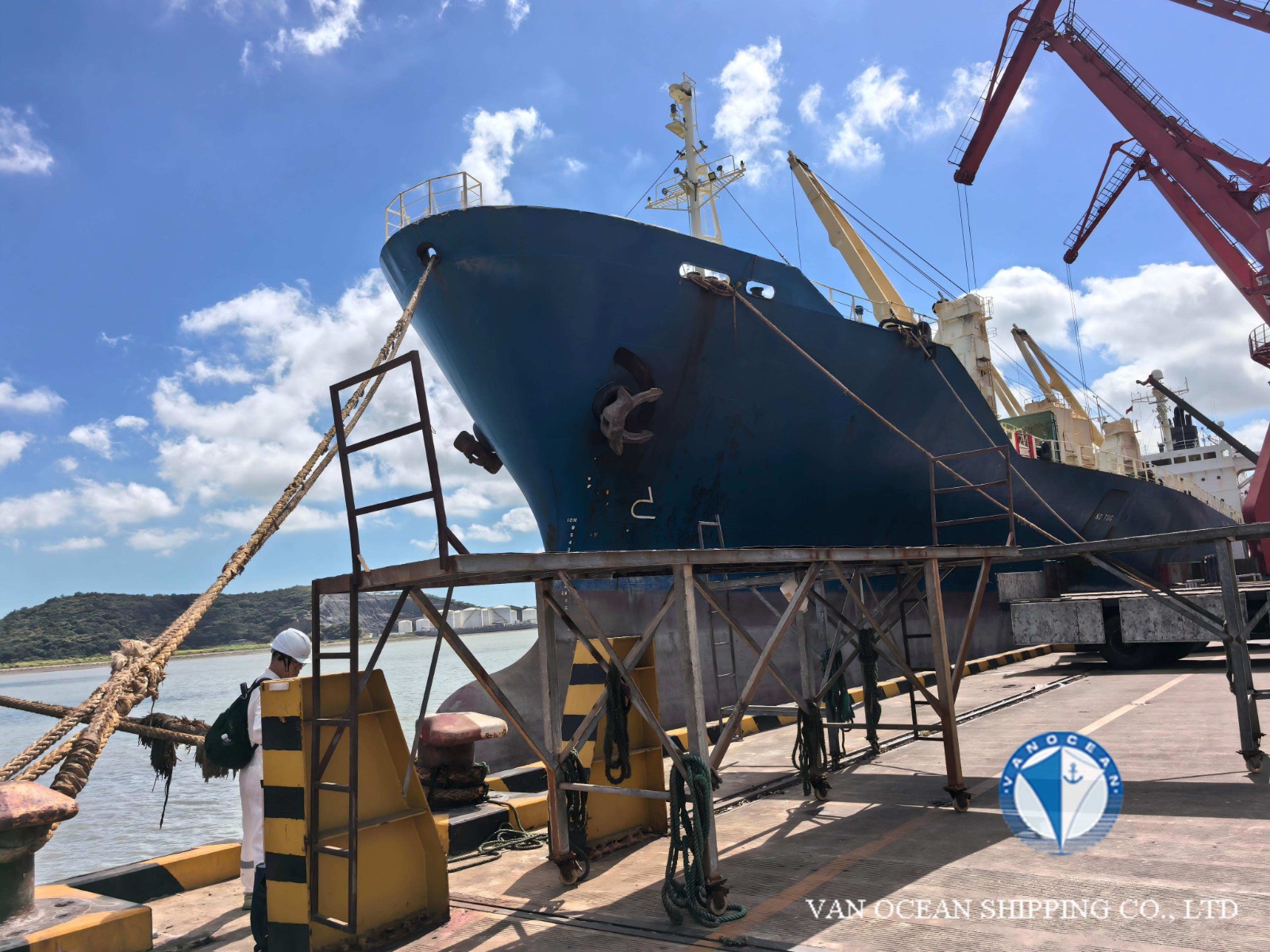

VESSEL NAME
REF720
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1990
BUILT PLACE
SHIN KURUSHIMA, JAPAN
CLASSIFICATION
ICS
CLASS NOTATION
-
SS
-
DD
-
LOA (M)
144.03
LBP (M)
-
BEAM (M)
21.61
DEPTH (M)
12.85
SUMMER DRAFT (M)
8.12
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
8818
PANAMA GT (MT)
9680
SUEZ GT (MT)
9473.37
NT (MT)
3810
PANAMA NT (MT)
7506
SUEZ NT (MT)
7529.92
SUMMER DWT (MT)
9683
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
4861
DISPLACEMENT (MT)
-
GEAR(S)

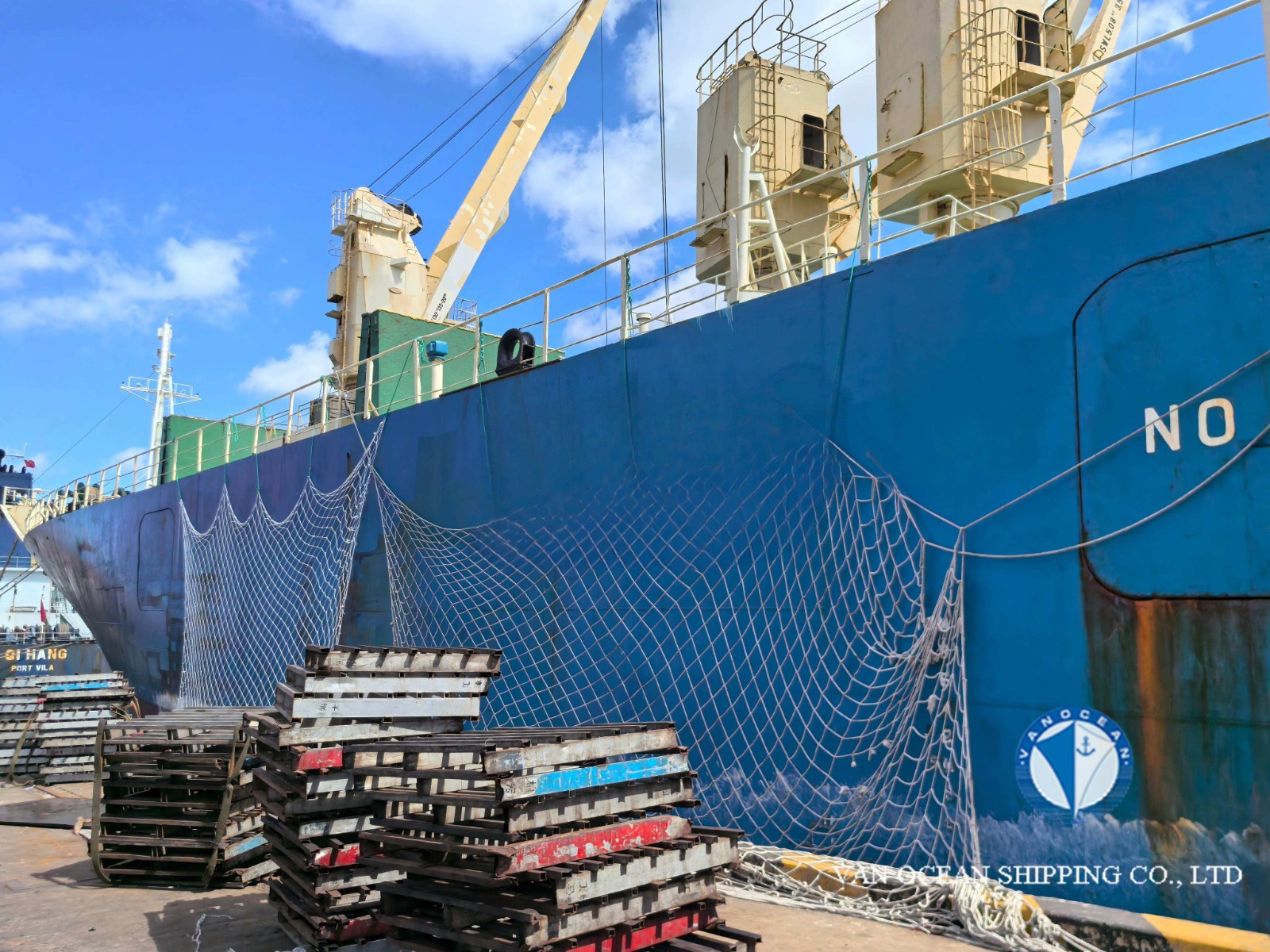

CRANE NO1&4：SWL:35MT，CAPACITY:30MT，OUT REACH：9.2M
CRANE NO2&3：SWL:5MT，CAPACITY:力5MT，OUT REACH：7.2M
M/E(S)
KOBE DIESEL 6UEC52LS
10880BHP(120RPM), 9180BHP(113.7RPM)
M/E POWER (KW)
7945(120RPM)
6753(113.7RPM)
A/E(S)
2 x YANMAR T240L-ET 1200PS, 720RPM
2 x YANMAR M200L-UN 600PS, 720RPM
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
5 BLADES, SOLID
COOLING SYSTEM (COMPRESSOR)
3 x MAYEKAWA F200SUD-VE 200KW 3550RP
SPEED/CONSUMPTIONS
FULL LADEN SPEED：17.6KTS（112RPM)，27.5MT
ECO LADEN SPEED：16.6KTS（105RPM)，22.4MT
FULL BALLAST SPEED：17.6KTS（112RPM)，25.8MT
ECO BALLAST SPEED：16.6KTS（105RPM)，20.6MT
CONS IN PORT：2.5-8.6MT/DAY
FUEL TYPE
-
BUNKER CAPACITY (CBM)
1275
TANKS CAPACITY (CBM)
BALLAST TANK：1725
MDO:92.2
LUB OIL：114.46
FRESH WATER：252.16
BILGE WATER：17.3
SLUDGE TANK：12.23
OTHER TANK：15.61
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
NO 1 HATCH COVER：7.3 x 6.0
NO 2，3，4 HATCH COVER：8.1 x 6.0
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
≥ 2.2
CARGO CAPACITY (CBFT)
454268
CARGO CAPACITY (CBM)
12869
FLOOR SPACE CAPACITY (SQM)
5174
GRATING/DECK STRENGTH
DECK:A,B,C：1.6MT/SQM
DECK:D：2.4MT/SQM
TEMPERATURE ZONE(S)
8
1A/BC, 2AB/CD, 3AB/CD, 4AB/CD
TEMPERATURE (℃)
-25 / +15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
-
CONTAINER CAPACITY
TEU:76
FEU:50
REEFER PLUG(S)
50
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
FITTED
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 3.0 MILLION
REMARK(S)
-
