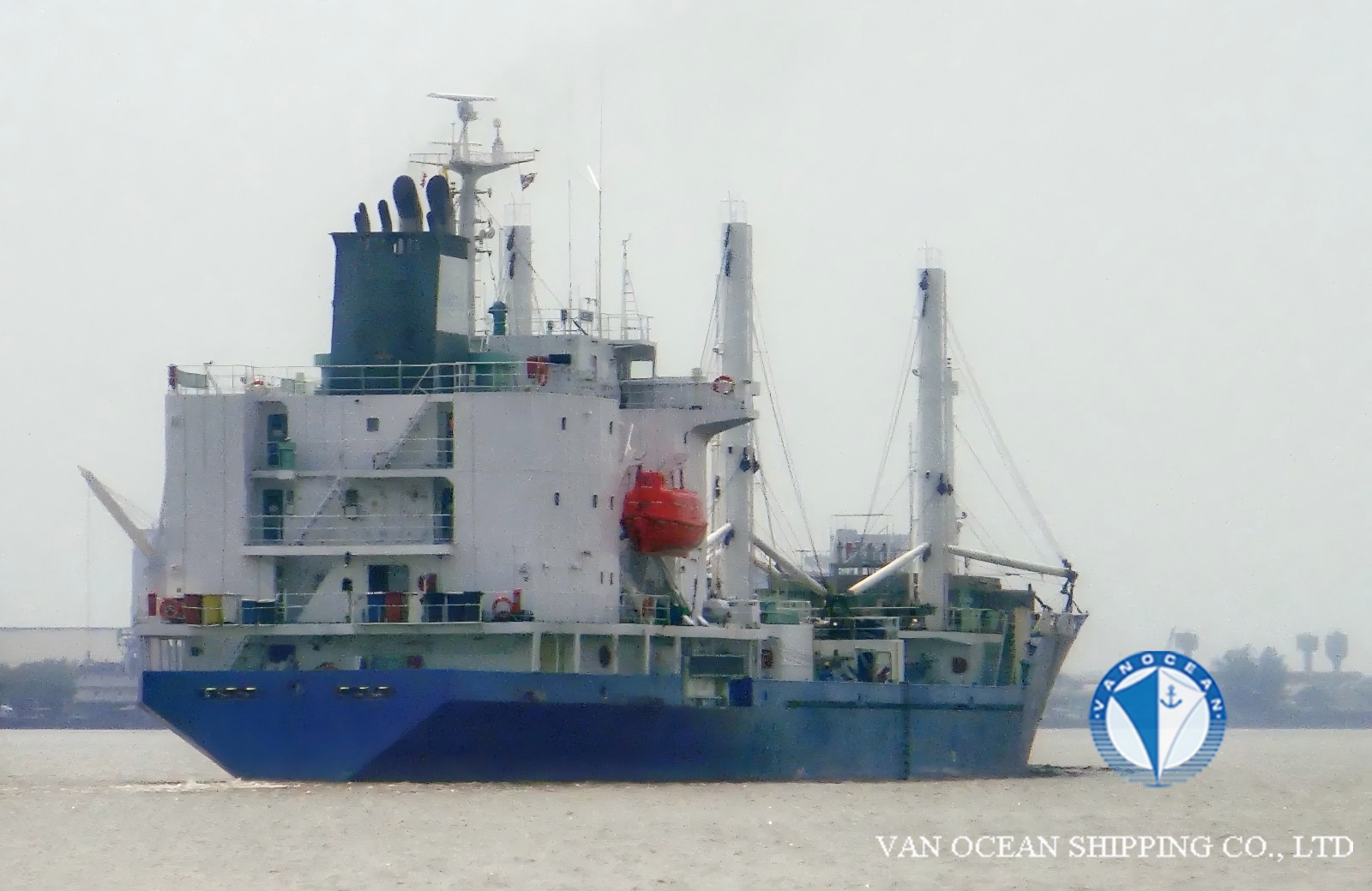

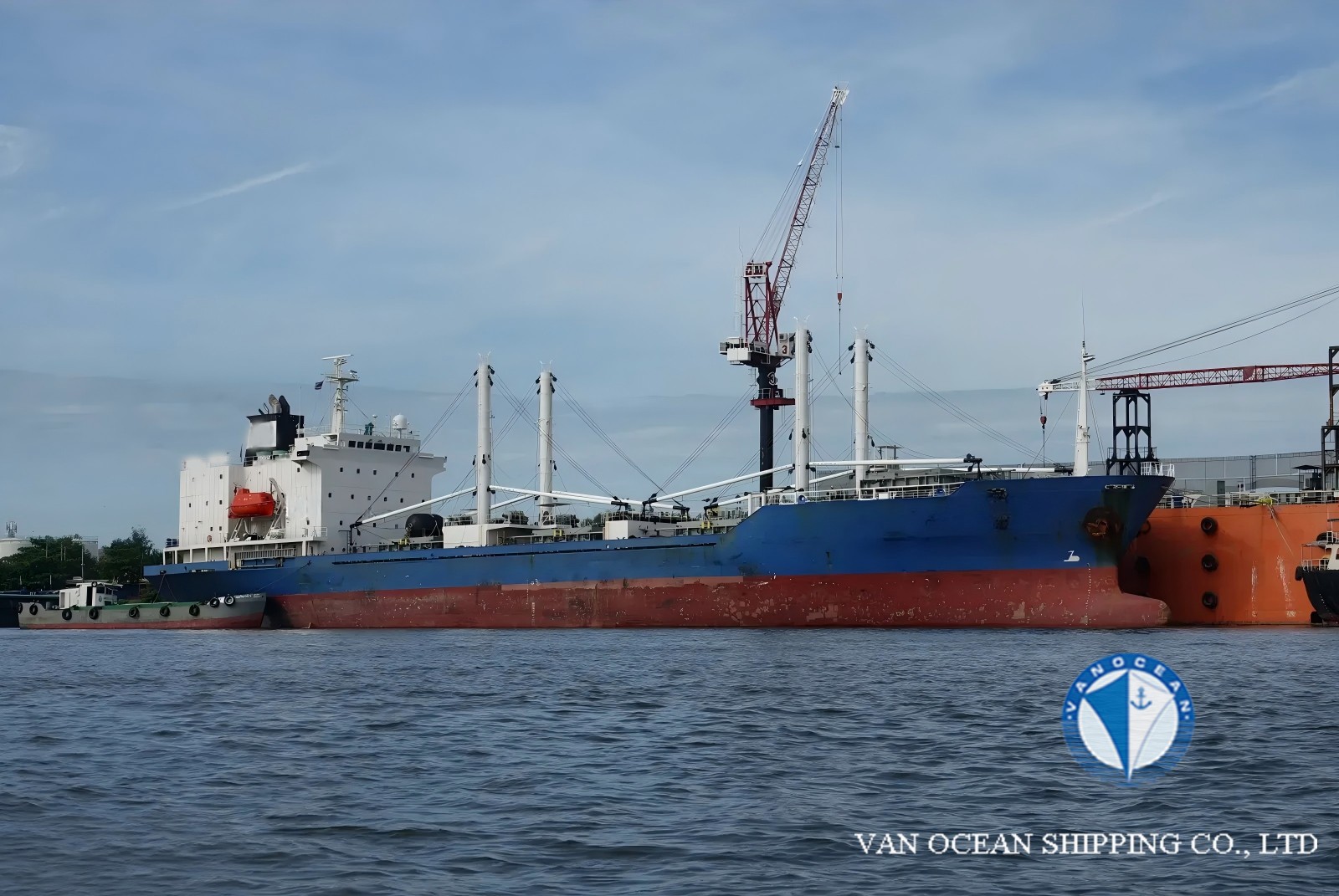

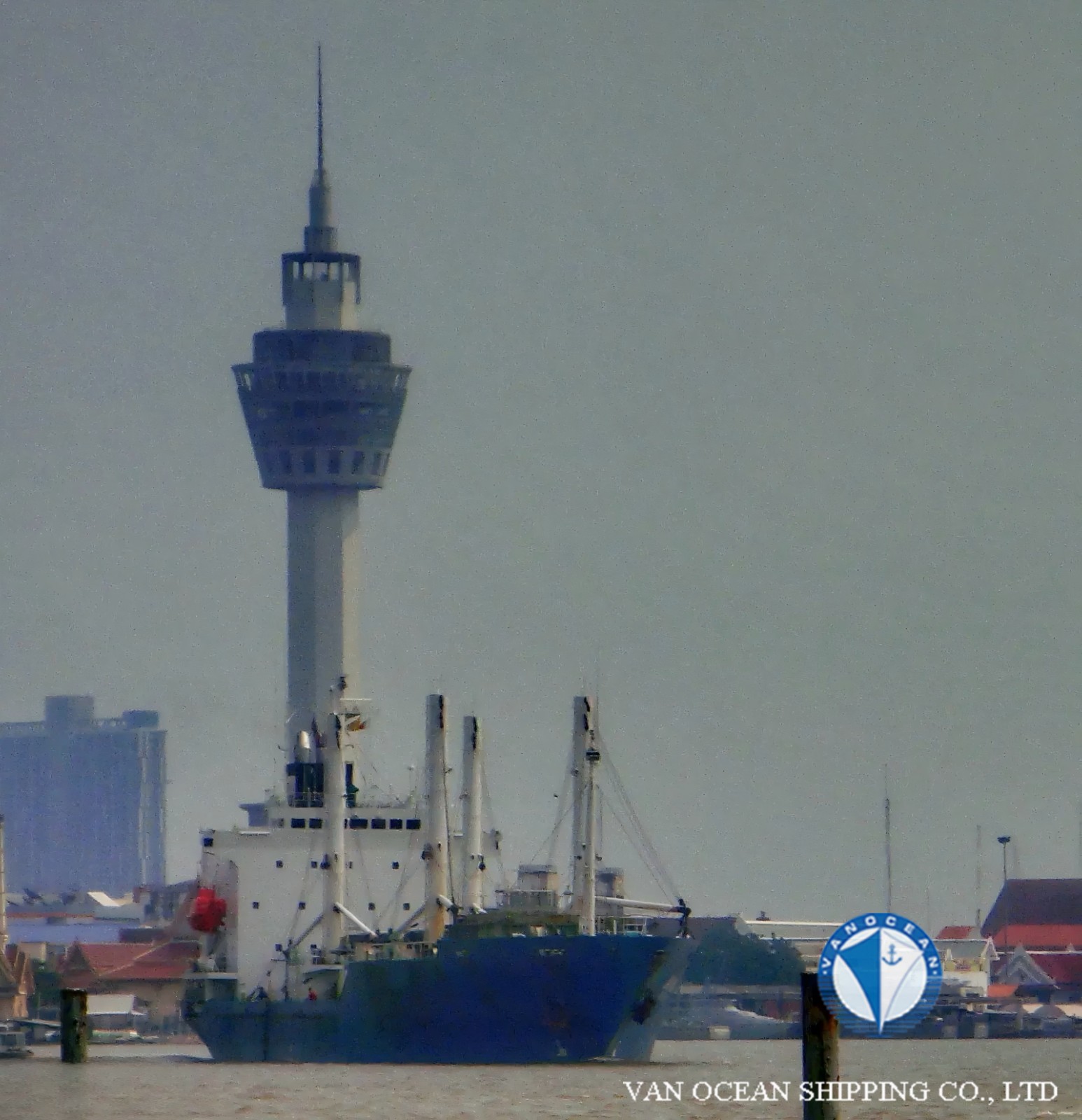

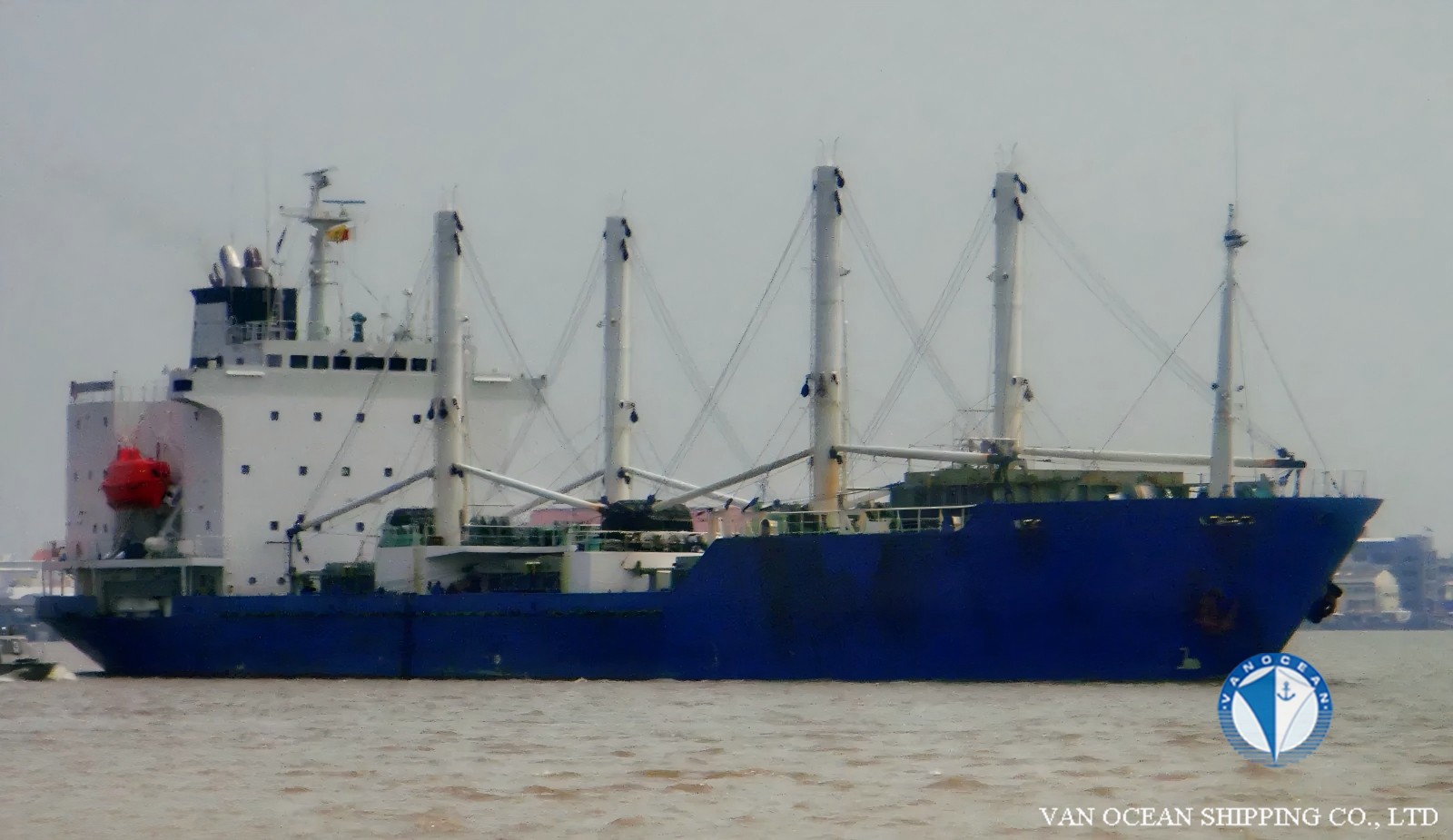

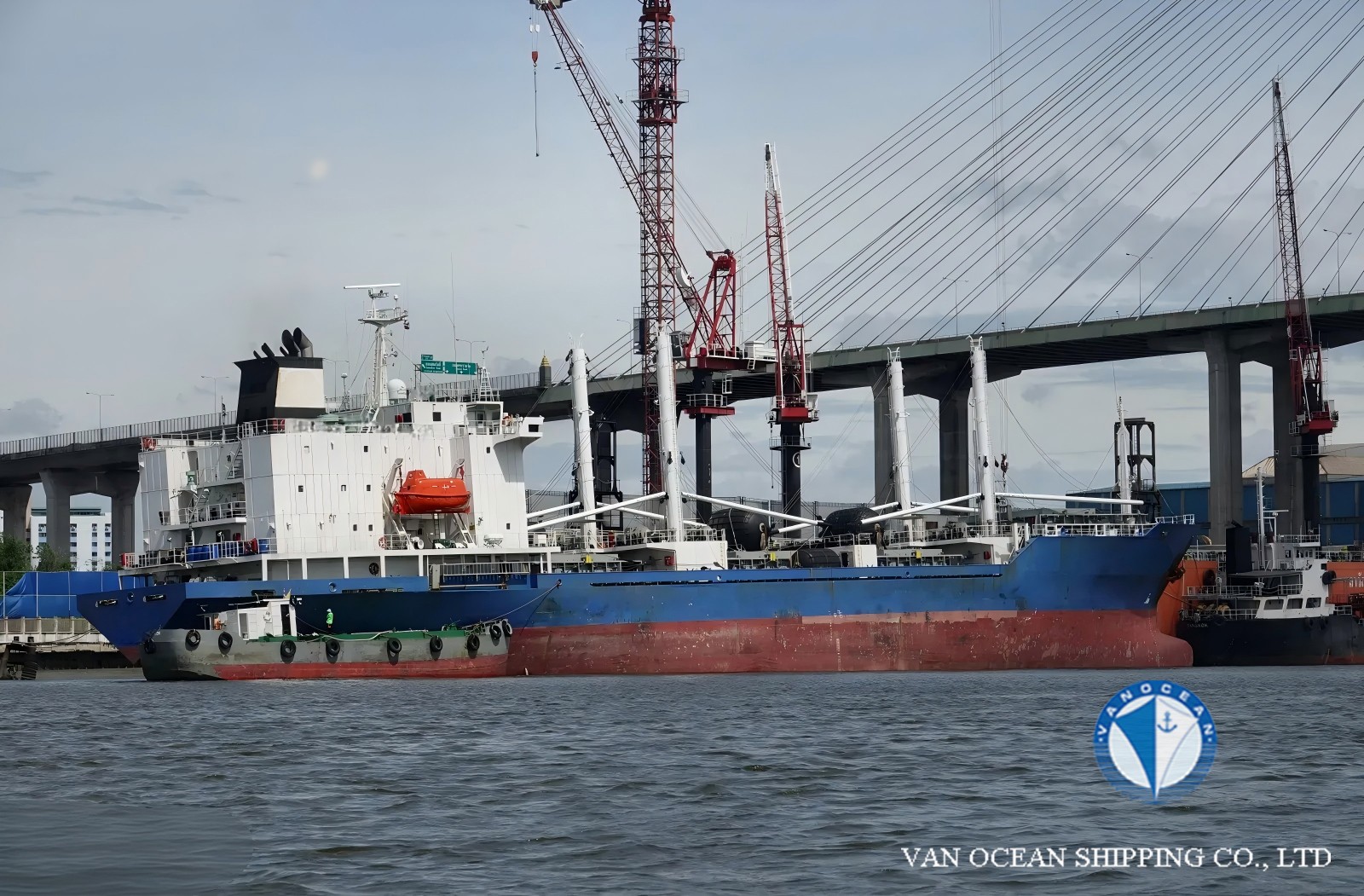

VESSEL NAME
REF508
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
KOREA
PORT OF REGISTRY
JEJU
BUILT YEAR
1992
BUILT PLACE
KITANIHON, JAPAN
CLASSIFICATION
KR
CLASS NOTATION
KRS1
REFRIGERATED CARGO CARRIER
CLEAN1 LG(F,P)
RMC
KRM1
SS
-
DD
-
LOA (M)
115
LBP (M)
106.38
BEAM (M)
17.8
DEPTH (M)
10.1
SUMMER DRAFT (M)
7.77
WINTER DRAFT (M)
7.6
TROPICAL DRAFT (M)
7.93
GT (MT)
5136
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3150
PANAMA NT (MT)
4338
SUEZ NT (MT)
4333
SUMMER DWT (MT)
6454.46
WINTER DWT (MT)
6241
TROPICAL DWT (MT)
6703.59
LDT (MT)
3298.09
DISPLACEMENT (MT)
9752.55
GEAR(S)
DERRICKS 8 x 5 MT OR 4 x 5.0 MT IN UNION PURCHASE
M/E(S)
AKASAKA 6UEC45LA, 6800PS @ 158RPM
M/E POWER (KW)
5001
A/E(S)
-
GENERATOR(S)
3 x AC 563KVA 445VOLT
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
BALLAST: 14.5KTS, 14.5MT IFO180 + 2.0MT LSMGO
LADEN: 13.5KTS, 15.5MT IFO180 + 3.5MT LSMGO
PORT: 3.0MT MGO
FUEL TYPE
IFO380 + MDO
BUNKER CAPACITY (CBM)
984
TANKS CAPACITY (CBM)
MGO: 138
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
-
DECK HEIGHT (M)
≥2.2
CARGO CAPACITY (CBFT)
271589
CARGO CAPACITY (CBM)
7694
FLOOR SPACE CAPACITY (SQM)
3076.73
GRATING/DECK STRENGTH
MAX ALLOWABLE WEIGHT OF FORKLIFT EQUIPED WITH MINIMUM 4 AIRTYRES (INCLUDING CARGOS) IS 5 MT
TEMPERATURE ZONE(S)
9, 1 UPDA/B/C, 2 UPDA/BC, 3 UPDA/BC, 4 UPDA/BC
TEMPERATURE (℃)
-30/15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
