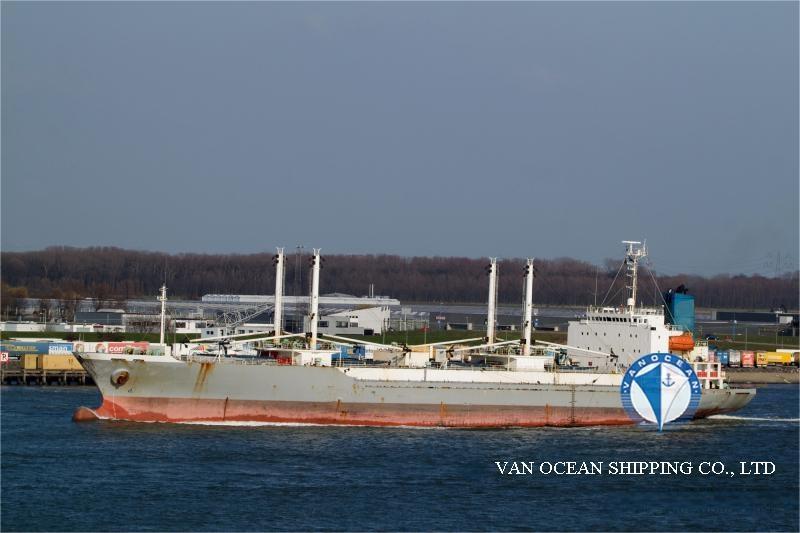

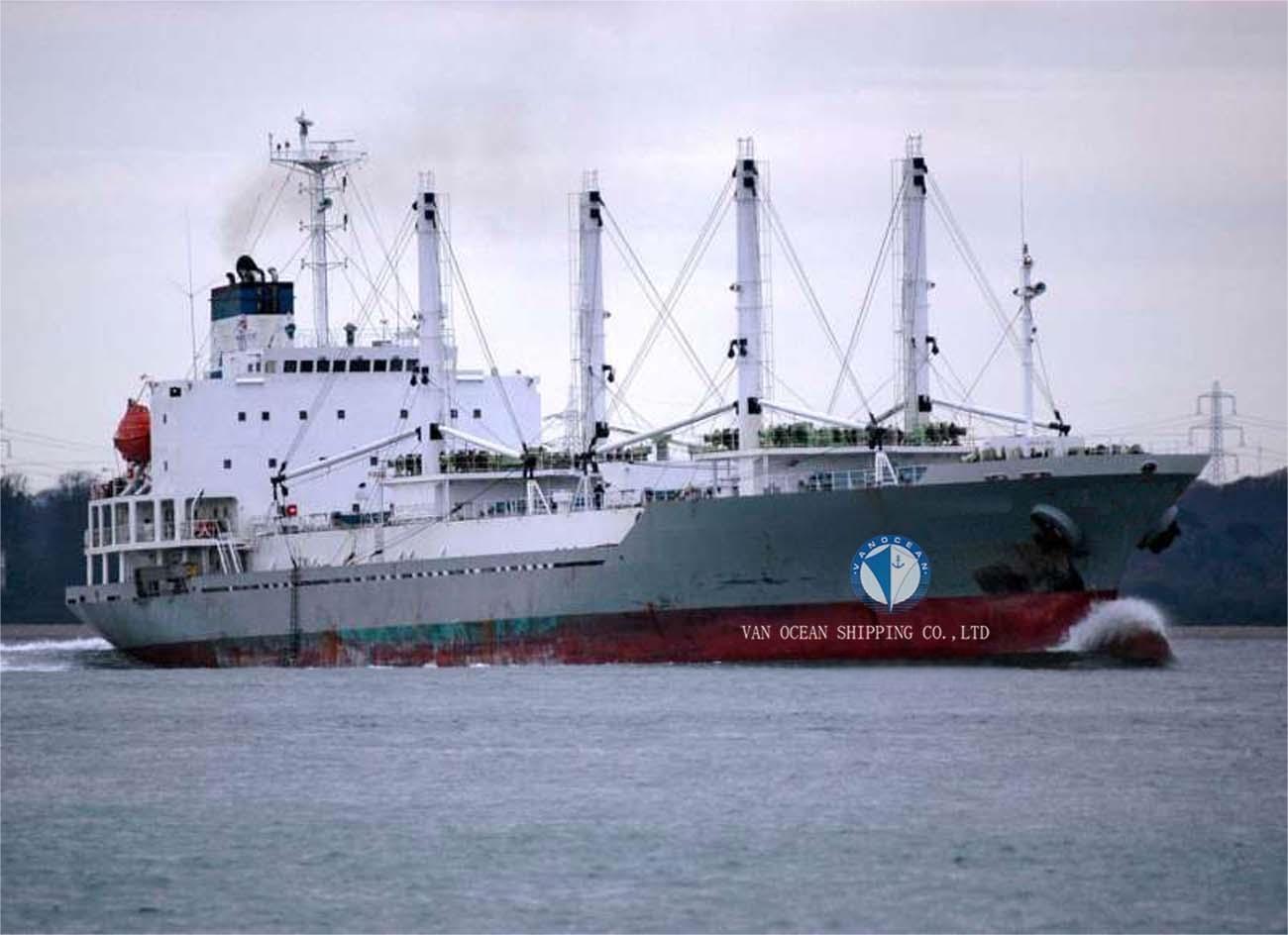

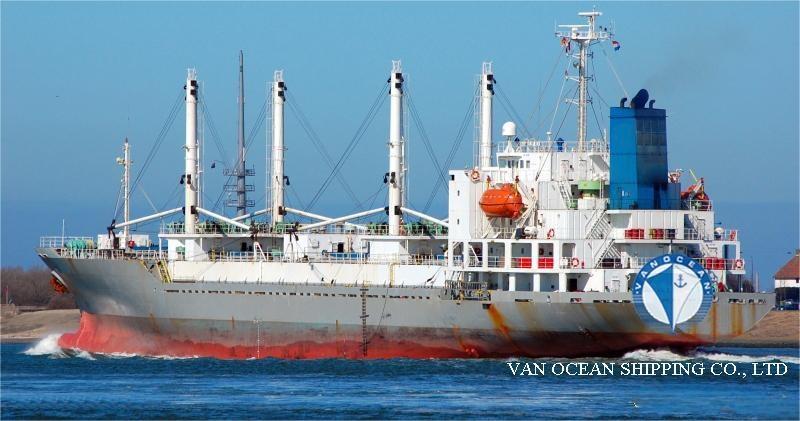

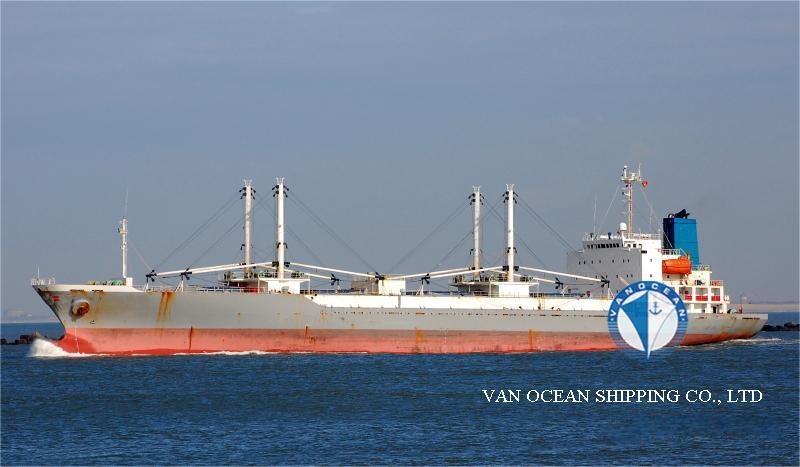

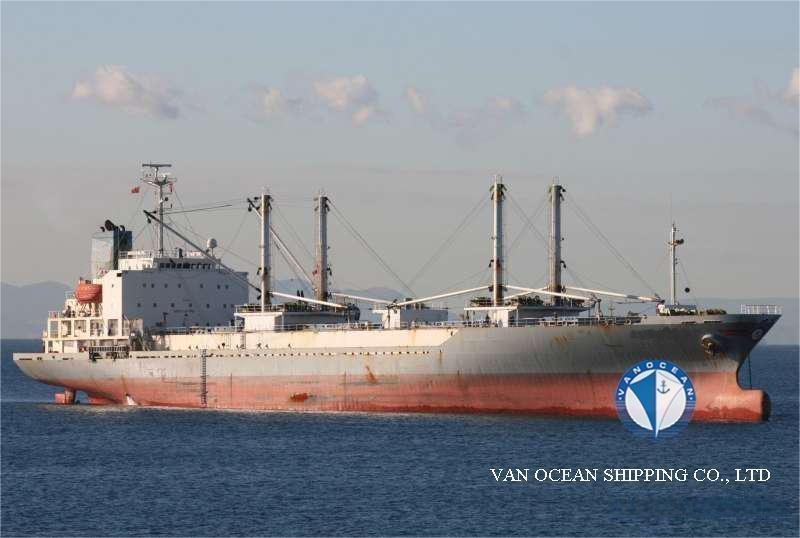

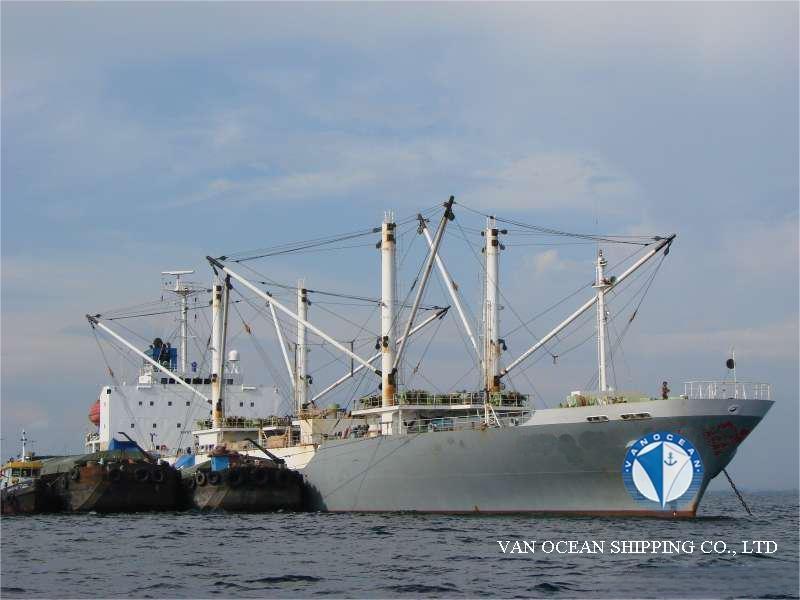

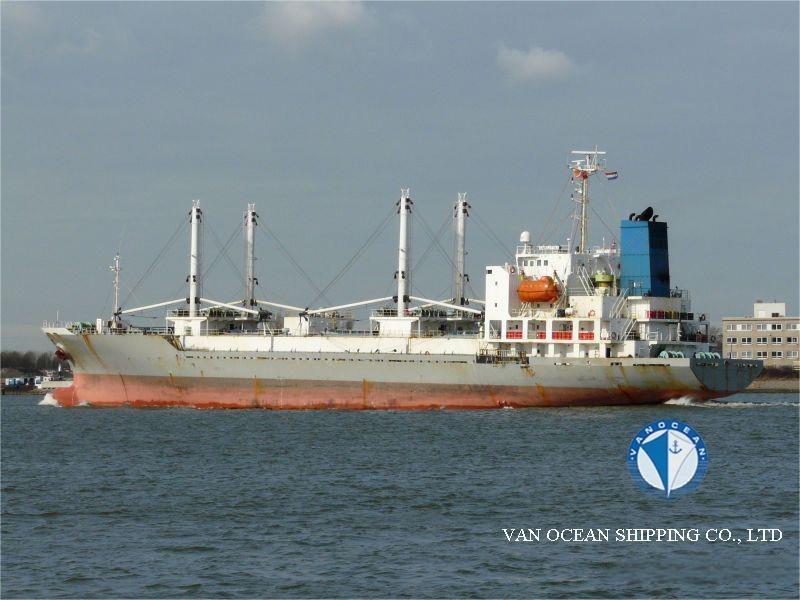

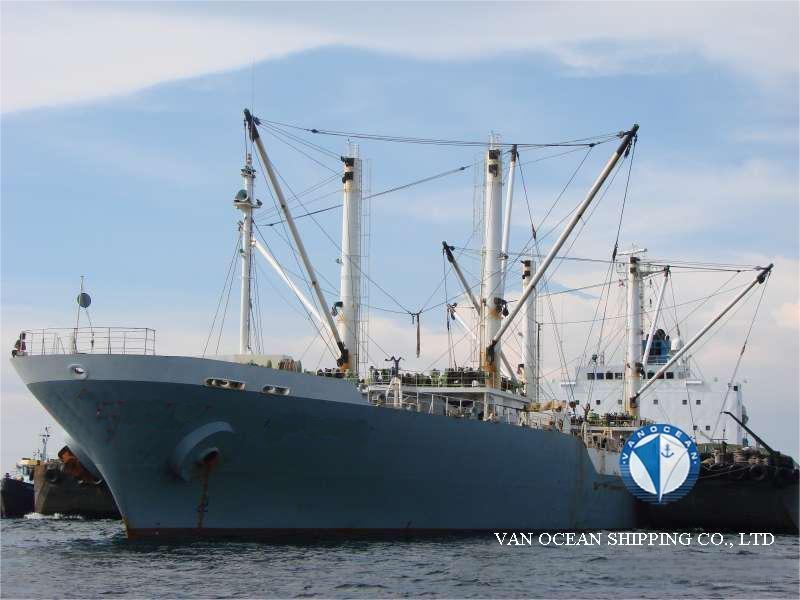

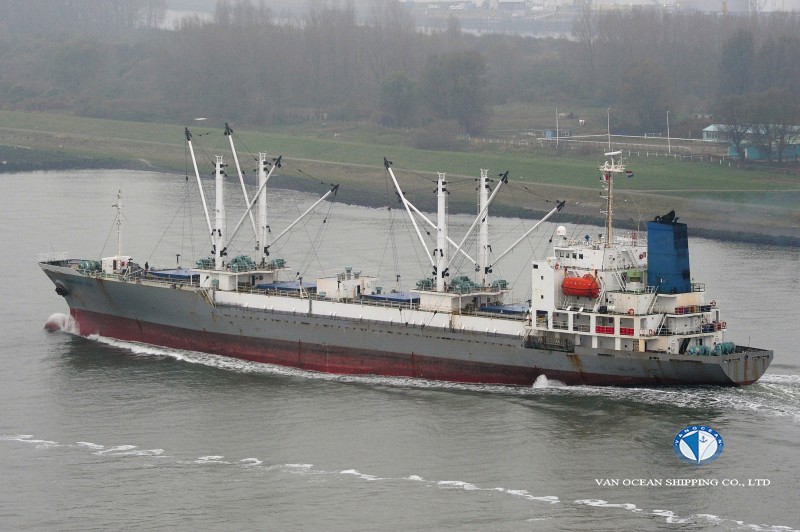

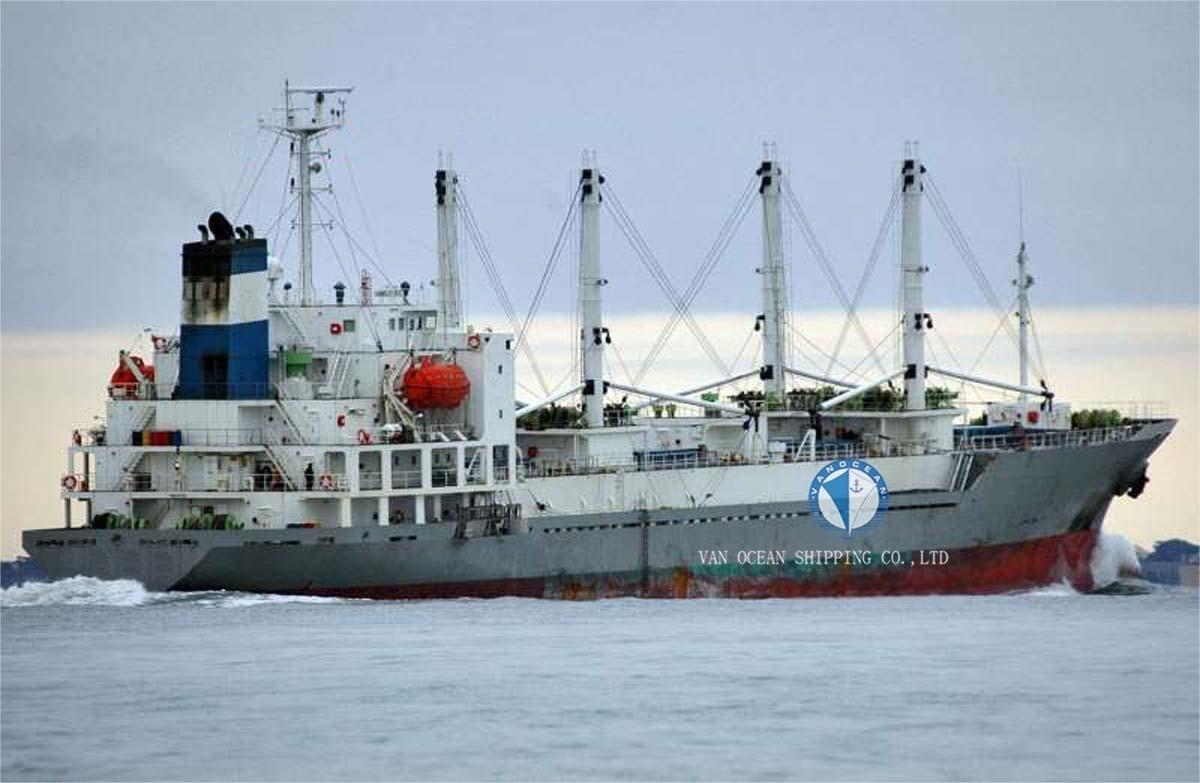

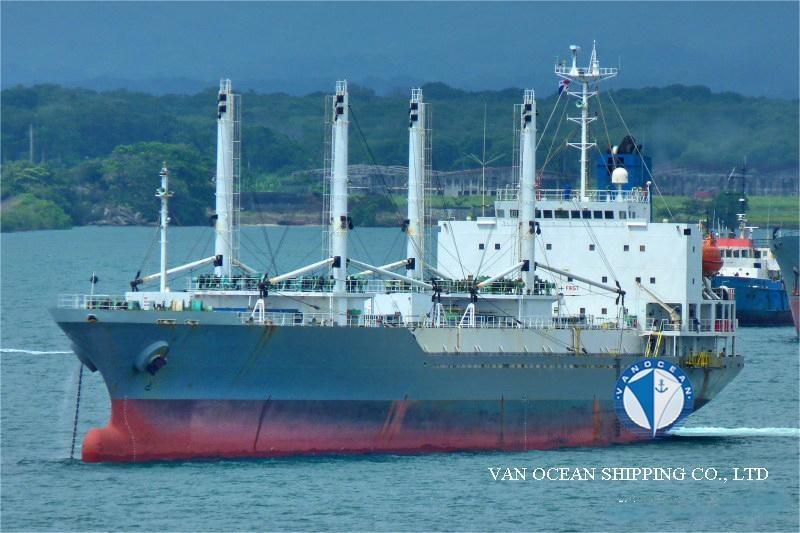

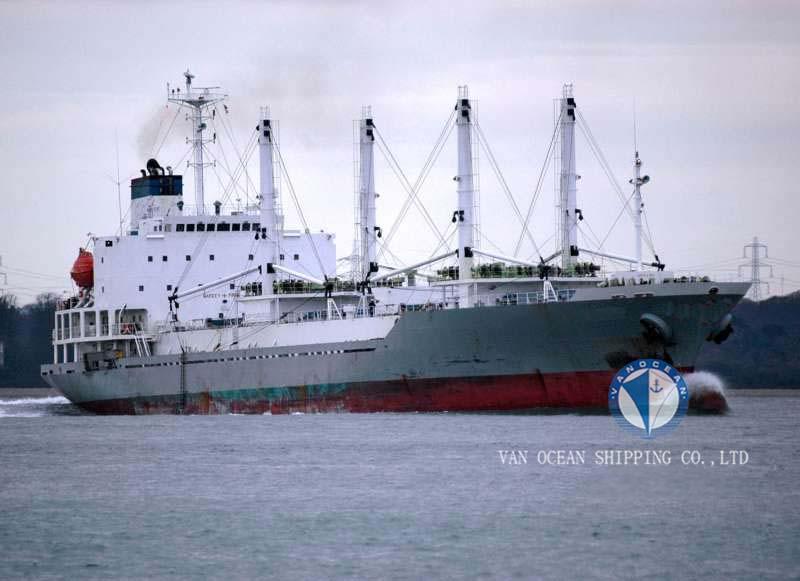

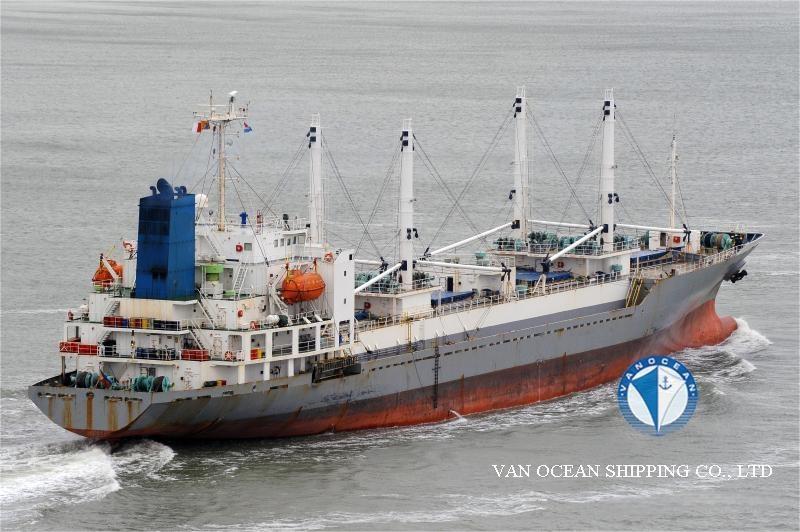

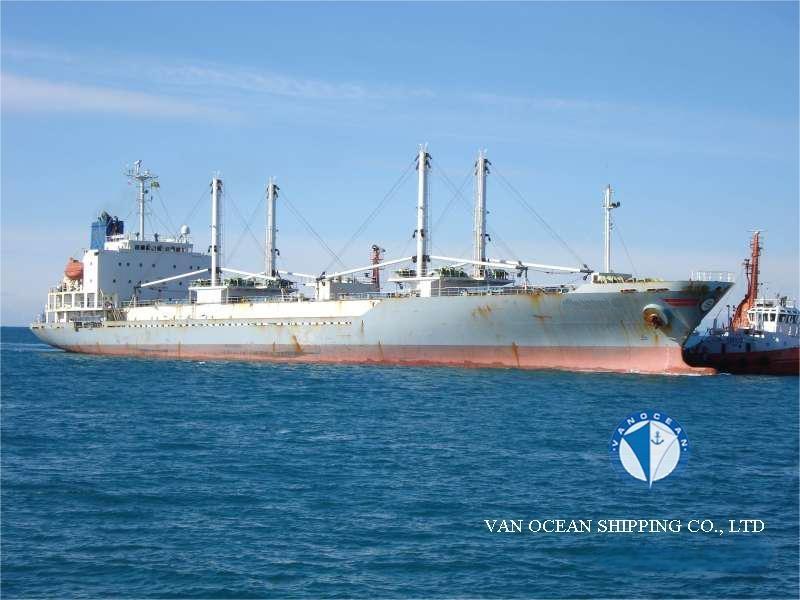

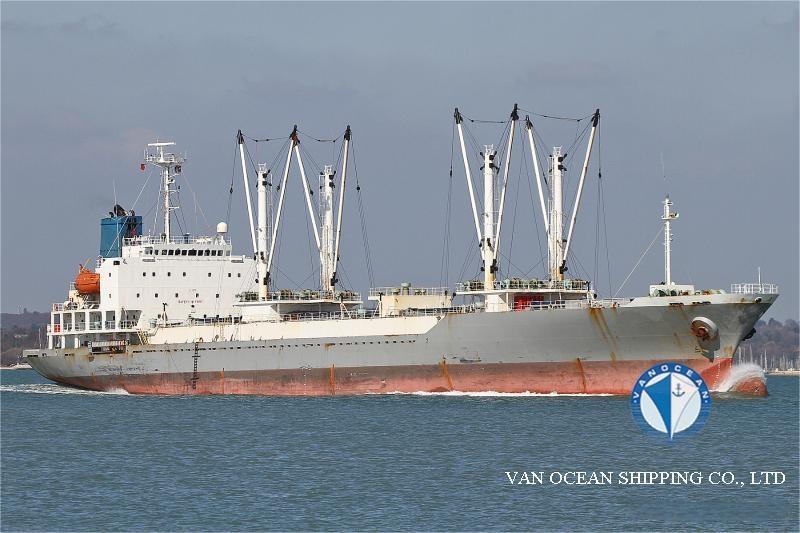

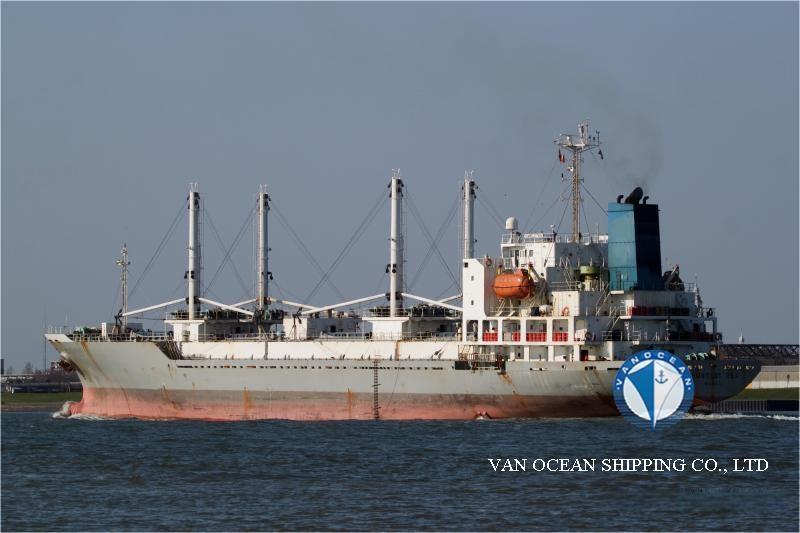

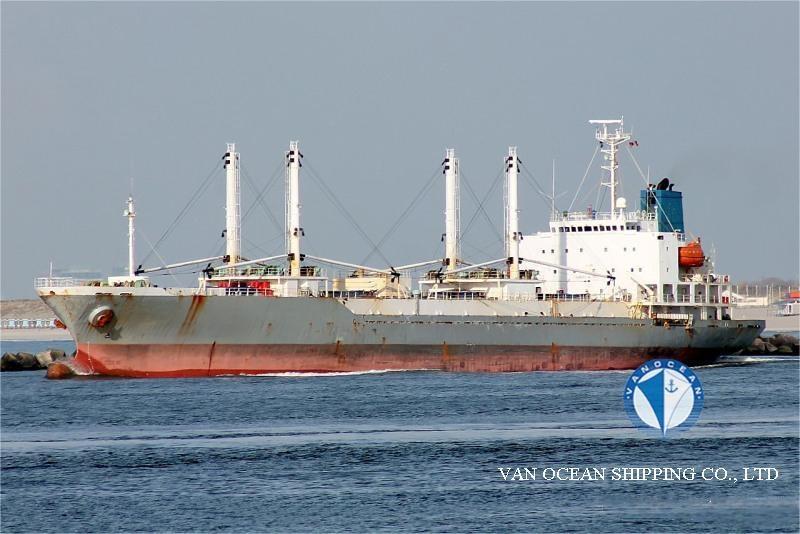

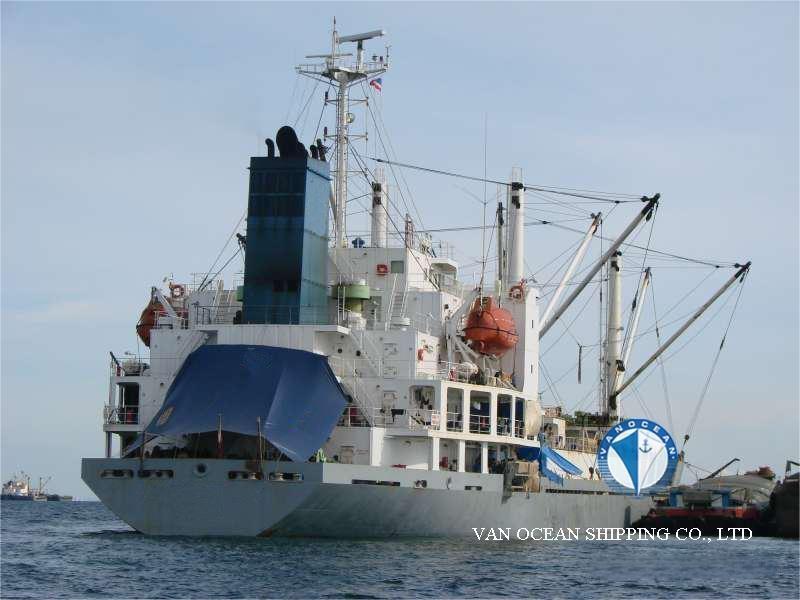

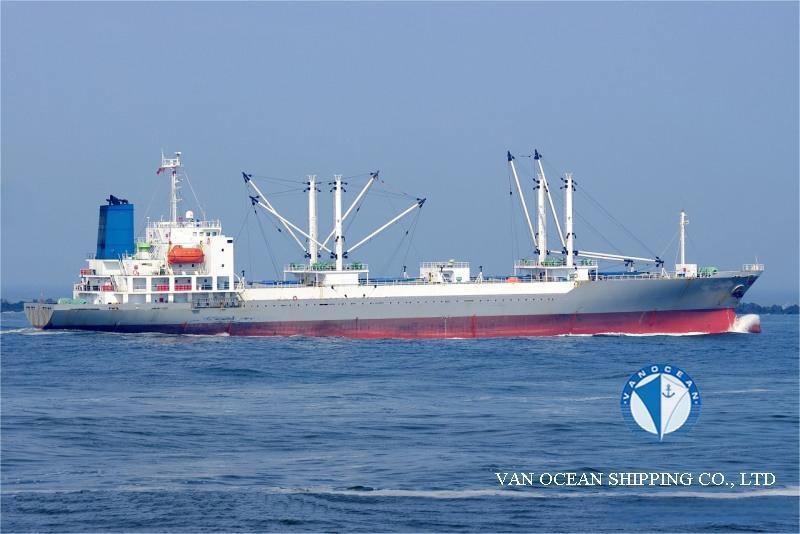

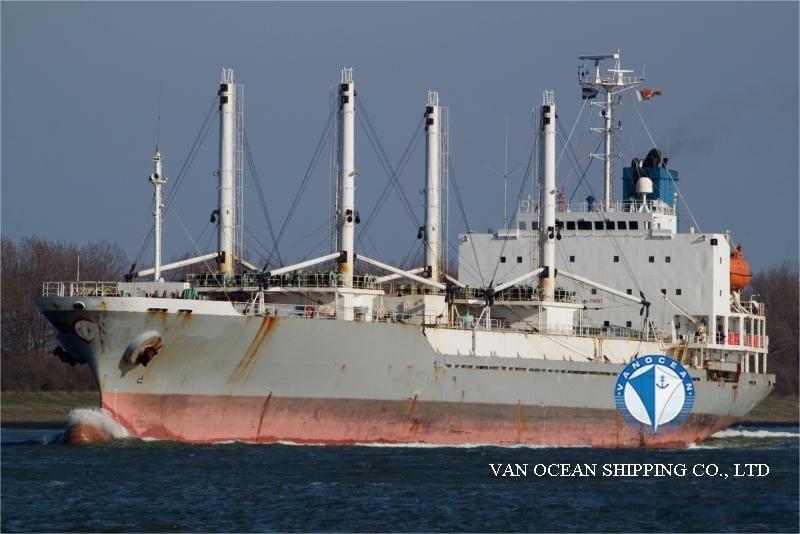

VESSEL NAME
REF528
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
MARSHALL ISLANDS
PORT OF REGISTRY
MAJURO
BUILT YEAR
1998
BUILT PLACE
USUKI SHIPYARD CO., LTD. JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship,
Special Service - carriage of vehicles
Unrestricted navigation, ✠REF-CARGO, 2(Ch 54 Q2)
SS
2028-06
DD
2026-04
LOA (M)
139
LBP (M)
130
BEAM (M)
20.6
DEPTH (M)
10.2
SUMMER DRAFT (M)
7.88
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
7637
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5133
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9010
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, SWL 8 x 5MT OR UP 4 x 5MT
M/E(S)
MITSUI MAN B&W 7S46 MC-C, 12496PS @ 129RPM
M/E POWER (KW)
9190
A/E(S)
DAIHATSU 6 DK 20, 3 x 600KW
GENERATOR(S)
3 - 750 kVA - 600 kW - 897 HP
1 - 60 kVA - 48 kW - 82 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
19.0KNOTS/33.5MT + 5MT IFO380 BANANA
18.5KNOTS/33.5MT + 4MT IFO380 FROZEN
20.0KNOTS/33.5MT + 2MT IFO380 BALLAST
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
1378.62 IFO, 74.27 MDO
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
7.30 x 7.30, 5.30 x 7.30
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
-
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
439741
CARGO CAPACITY (CBM)
12452
FLOOR SPACE CAPACITY (SQM)
4942
GRATING/DECK STRENGTH
WOODEN, MAX PERMISSIBLE LOAD: 1.7MT/SQM
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-30 /+30
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
100/45/22
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
3750
CONTAINER CAPACITY
12 TEU
REEFER PLUG(S)
12
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
REMOVABLE SIDE SHORINGS
