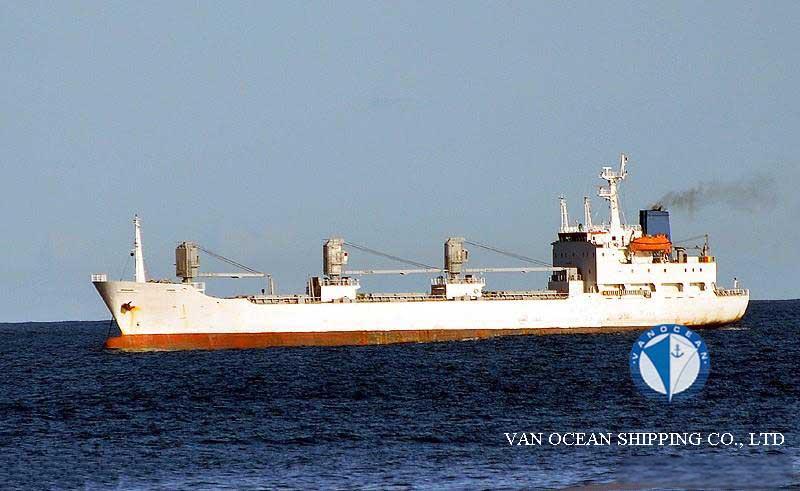

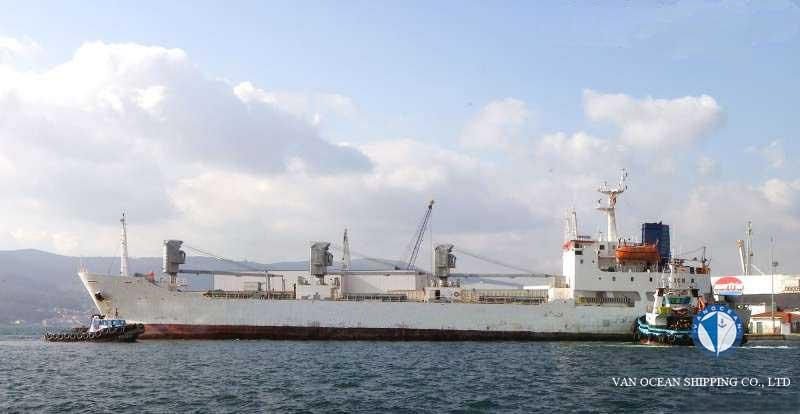

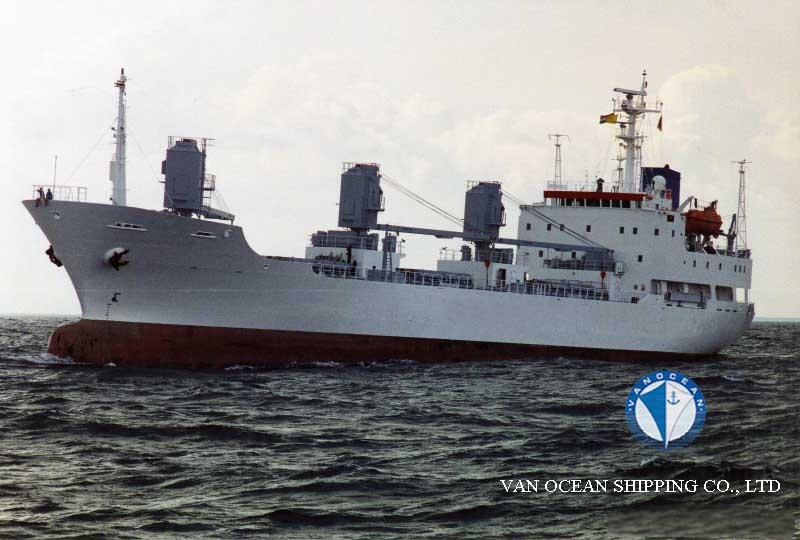

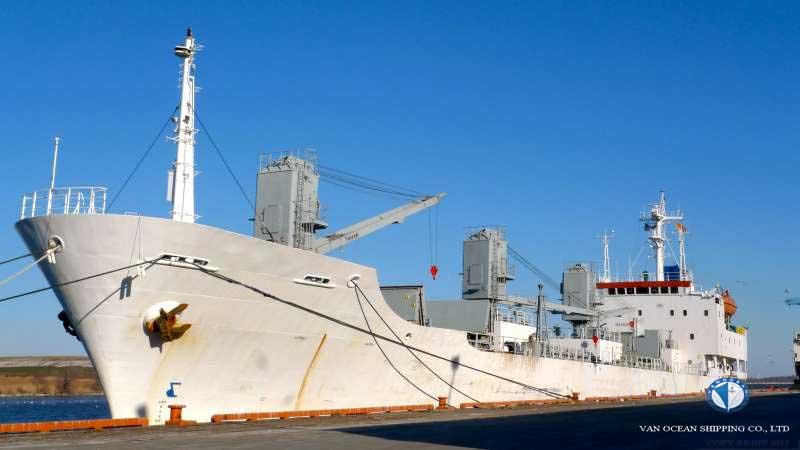

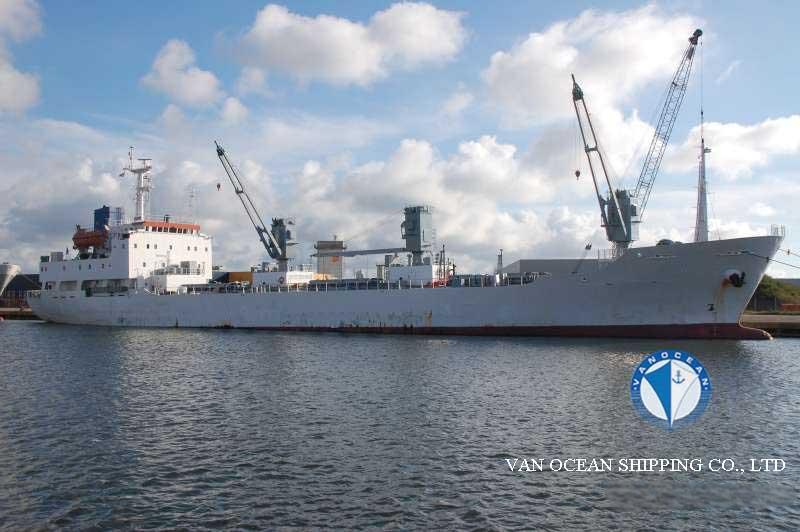

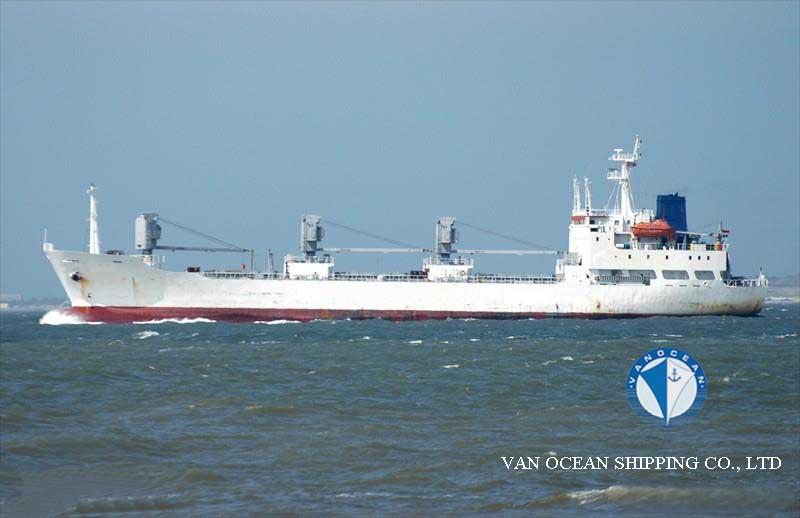

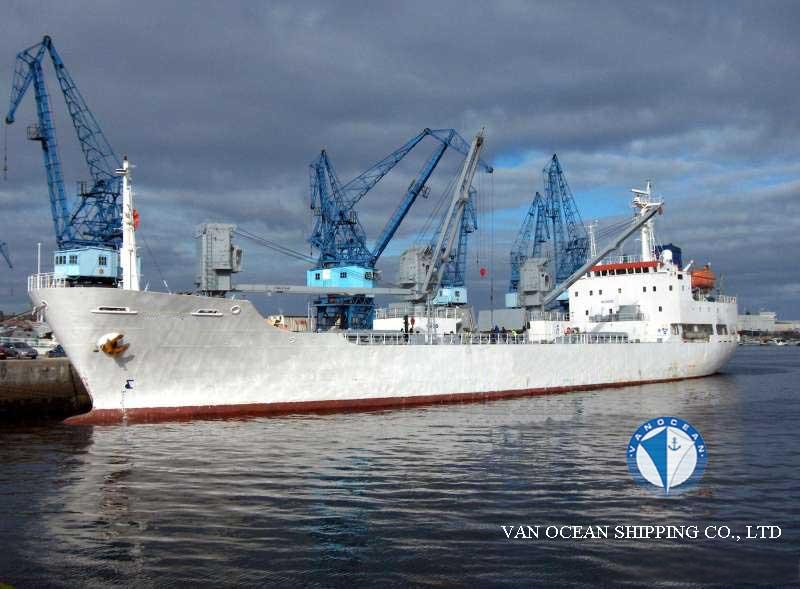

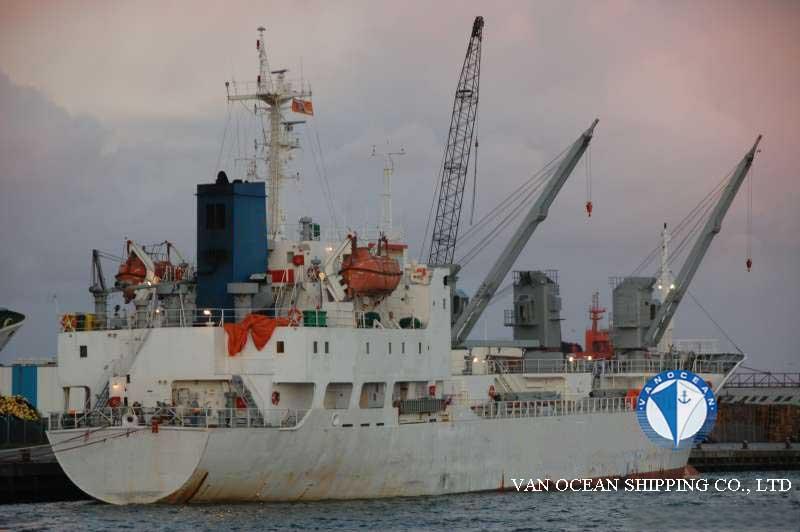

VESSEL NAME
REF102
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1985
BUILT PLACE
JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach,Refrigerated cargo ship,Unrestricted navigation, MON-SHAFT ,✠REF-CARGO
SS
2025-10
DD
2025-10
LOA (M)
107.96
LBP (M)
100.9
BEAM (M)
16
DEPTH (M)
9.8
SUMMER DRAFT (M)
6.21
WINTER DRAFT (M)
6.08
TROPICAL DRAFT (M)
6.34
GT (MT)
4202
PANAMA GT (MT)
3608.7
SUEZ GT (MT)
3504.03
NT (MT)
1261
PANAMA NT (MT)
1261
SUEZ NT (MT)
3504.03
SUMMER DWT (MT)
4278
WINTER DWT (MT)
4105
TROPICAL DWT (MT)
4450
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANE, 3 x 5.0 MT
M/E(S)
MAKITA-MITSUI B&W DE7L35MC 3500KW-200 RPM
M/E POWER (KW)
3500
A/E(S)
-
GENERATOR(S)
3 SETS 500 kVA - 400 kW - 600 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
13 KNOTS
FUEL TYPE
IFO，MDO
BUNKER CAPACITY (CBM)
795
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
3
HATCH NUMBER
3
HATCH TYPE
-
HATCH SIZE (M)
7.5 M x 5 M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
9
DECK(S)
3
DECK HEIGHT (M)
MINIUM 2.2 M
CARGO CAPACITY (CBFT)
190525
CARGO CAPACITY (CBM)
5396
FLOOR SPACE CAPACITY (SQM)
2213
GRATING/DECK STRENGTH
25 MT / FEU
TEMPERATURE ZONE(S)
6
TEMPERATURE (℃)
-25
TYPE OF VENT SYSTEM
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
CONTAINER CAPACITY
18 TEU
REEFER PLUG(S)
18
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
YES
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
DEMO + 10%
REMARK(S)
