REEFER S&P

HOME - REEFER S&P - REF957

PARTICULAR

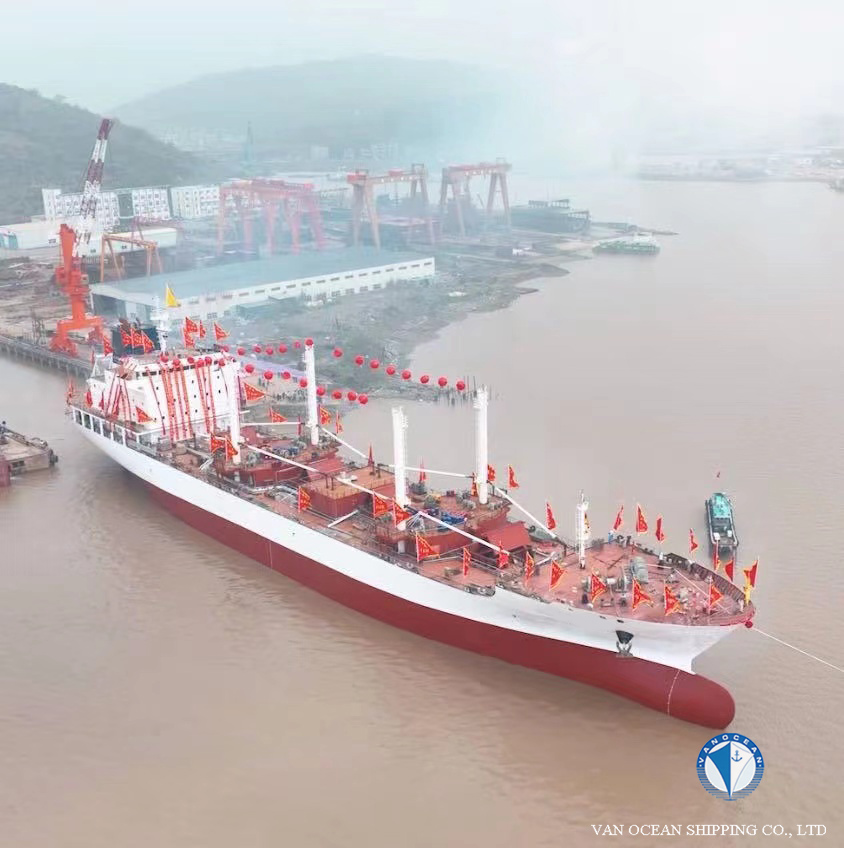

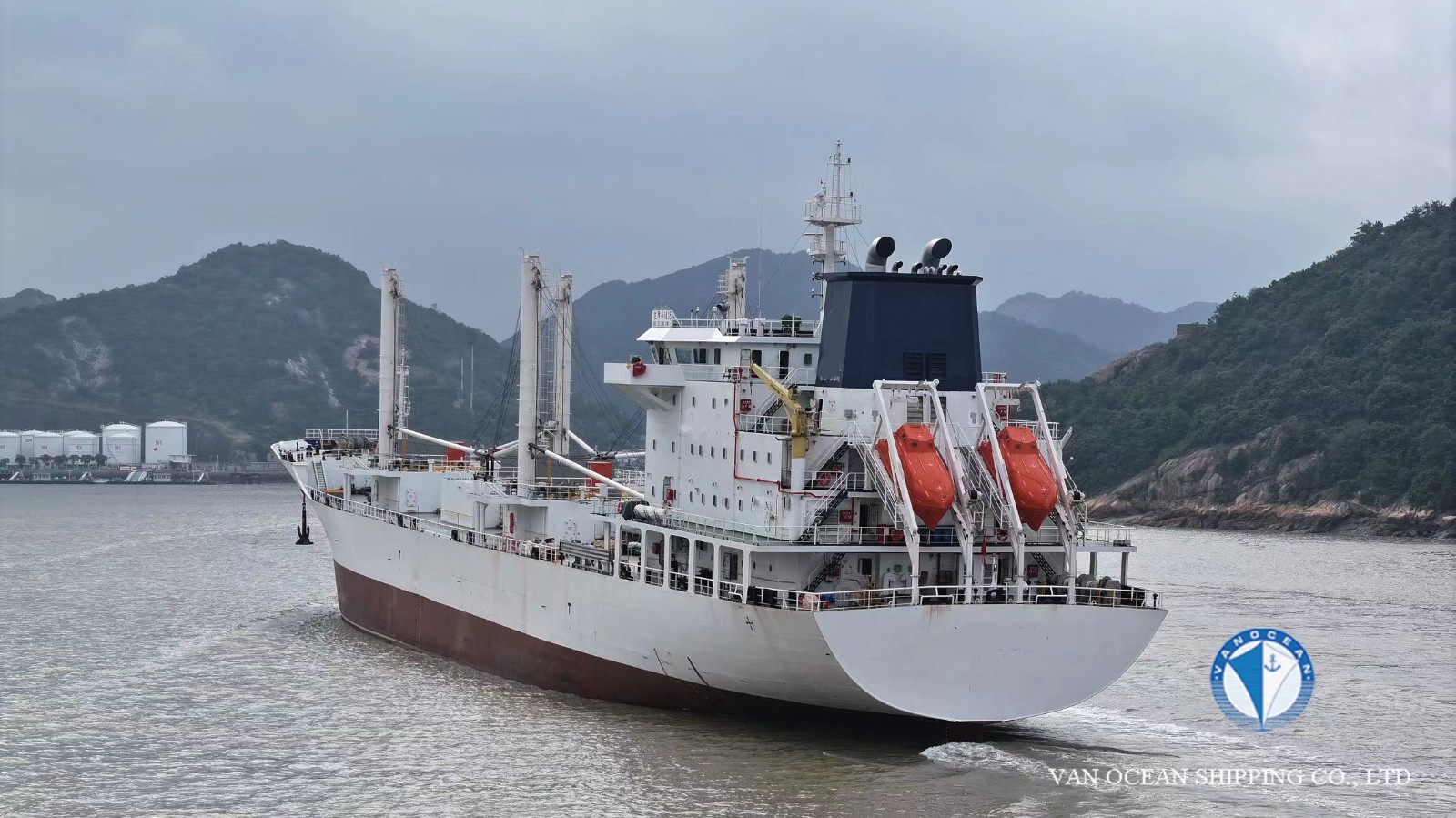

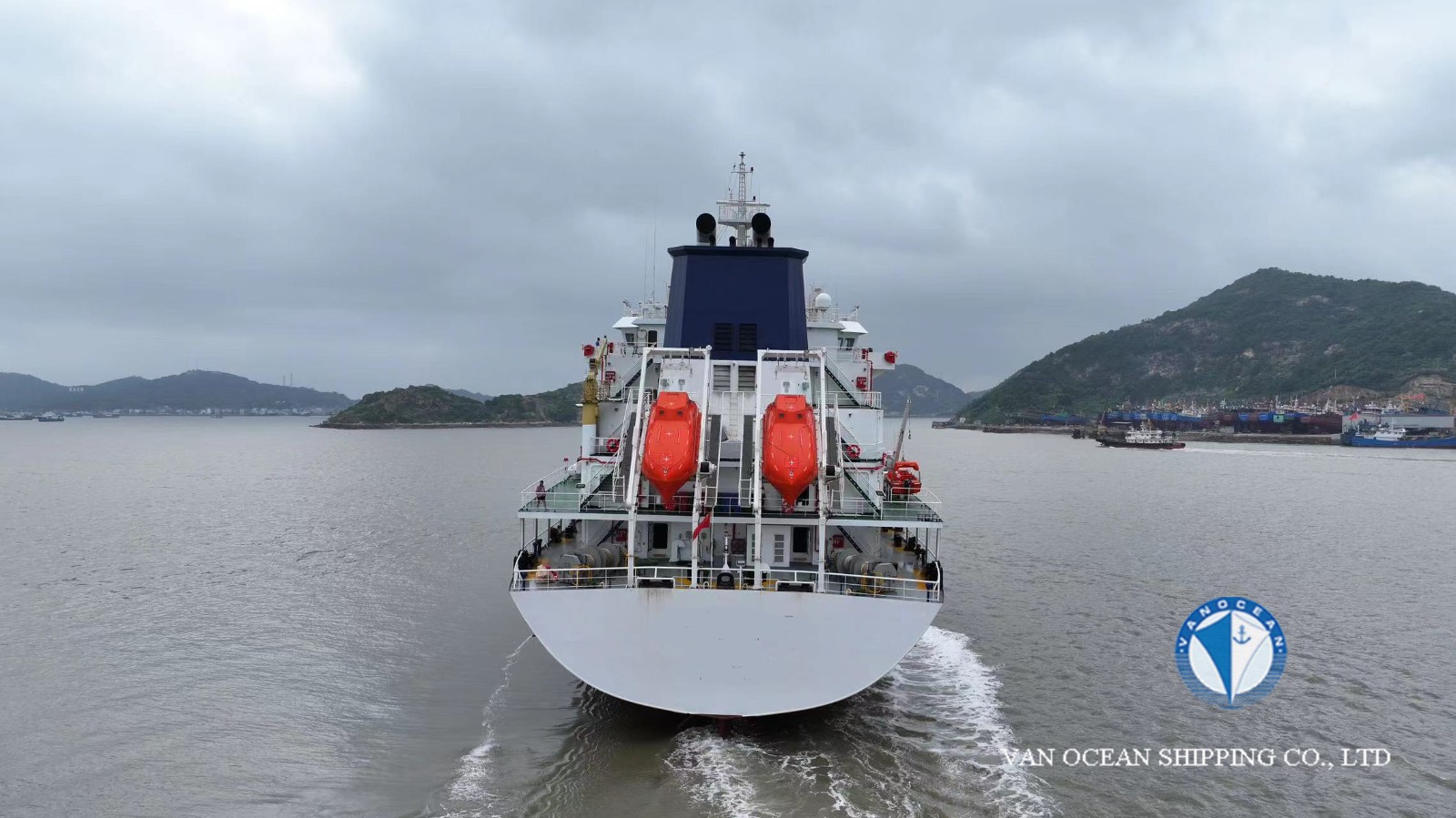

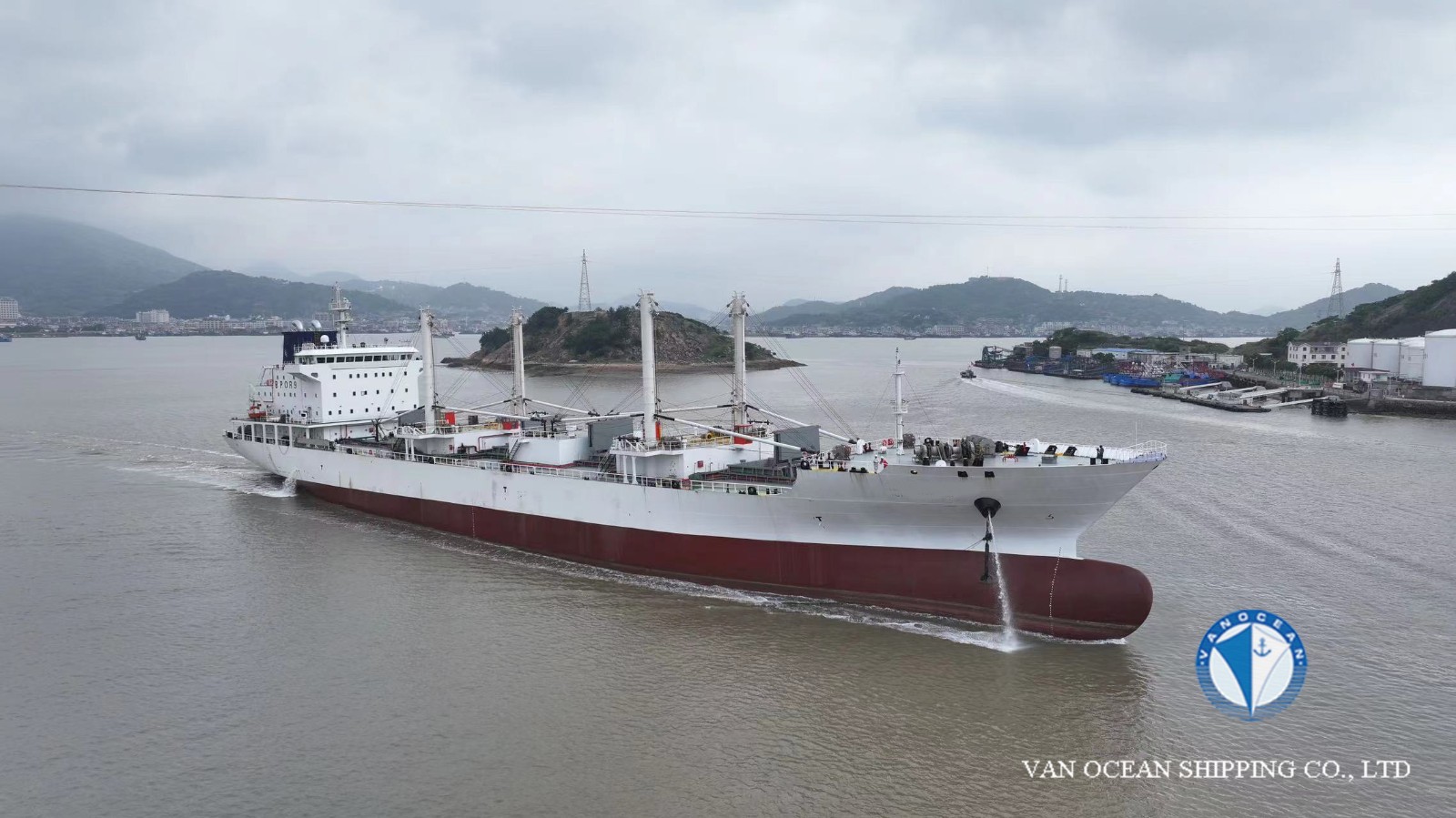

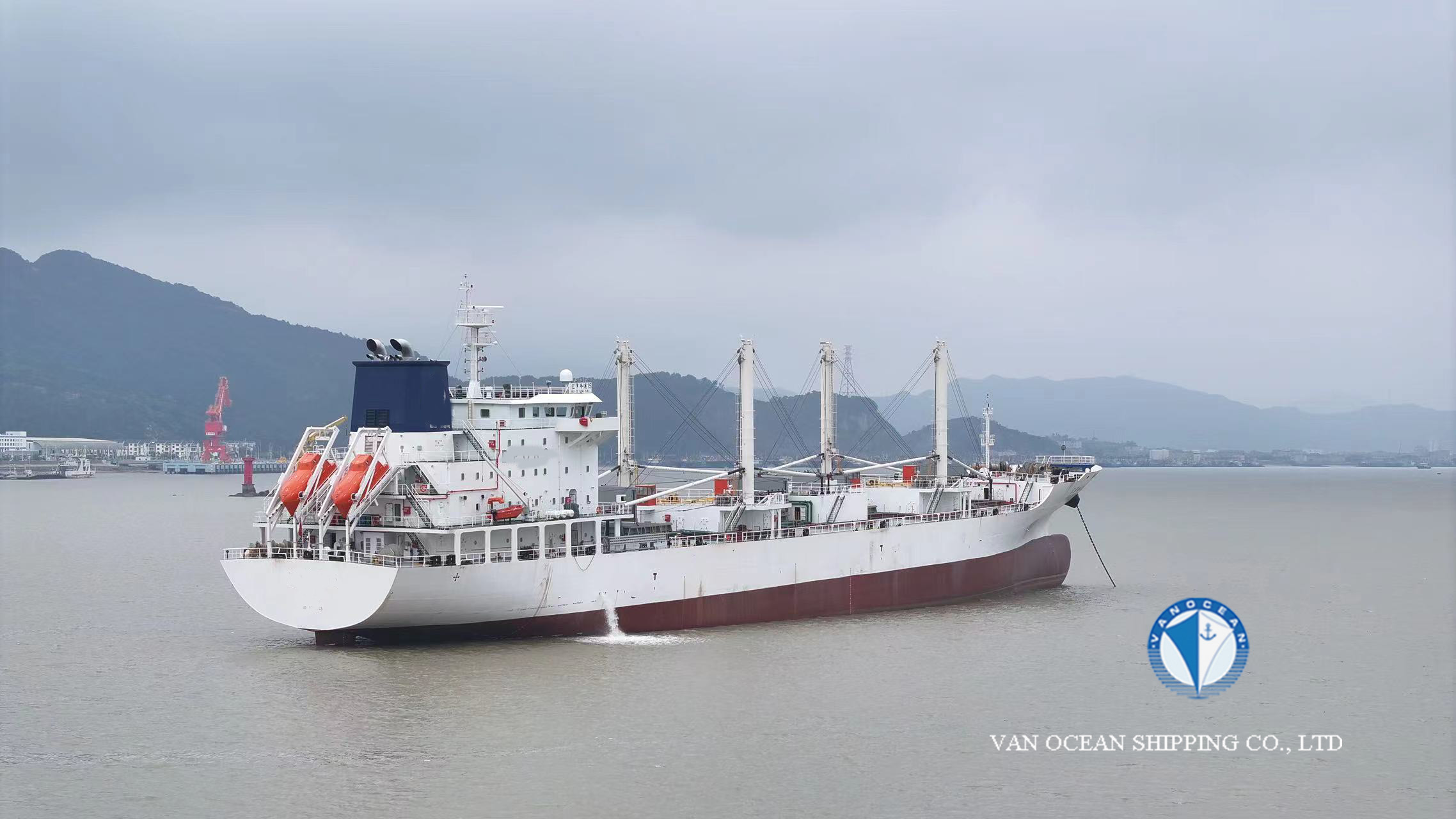

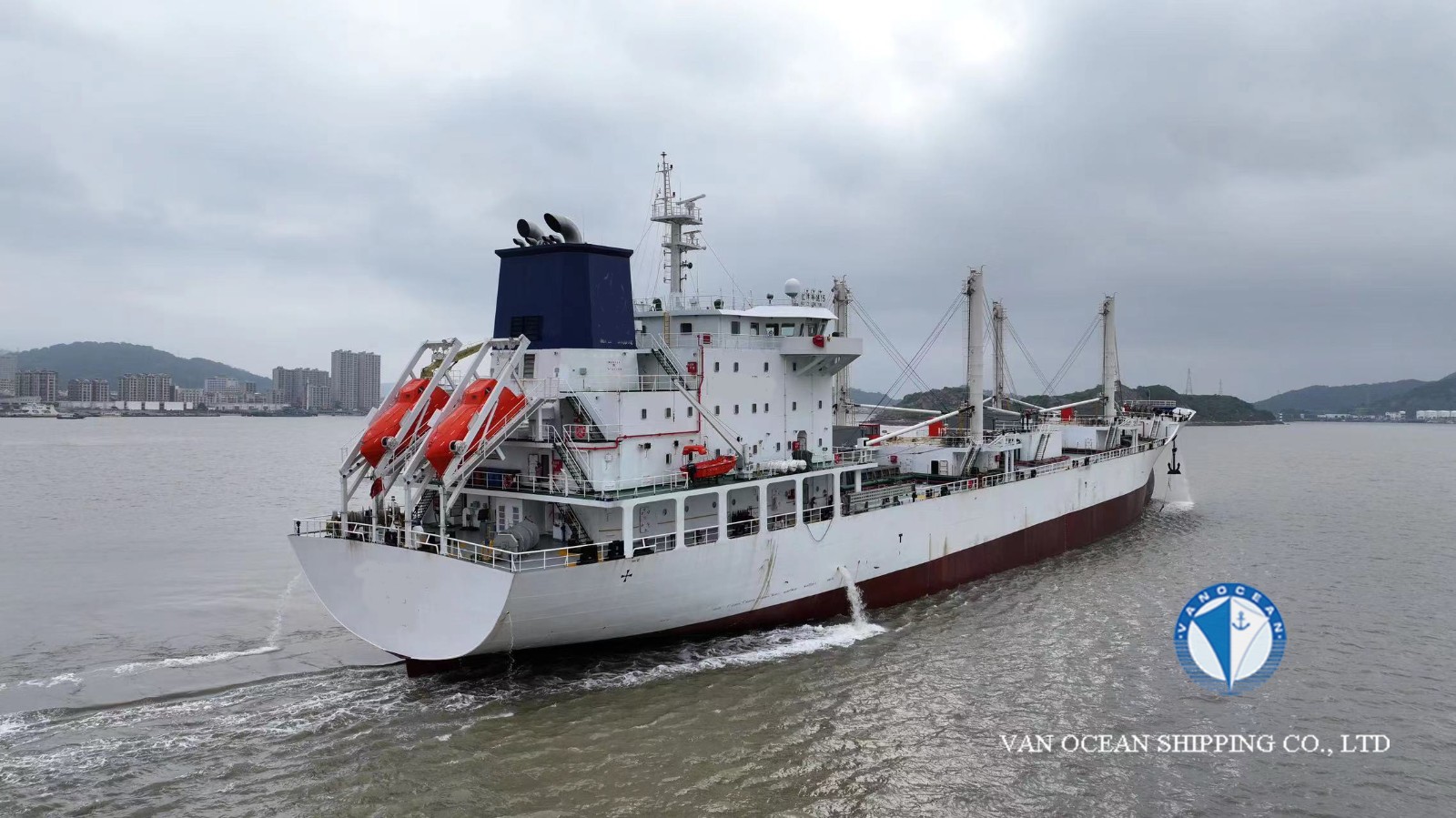

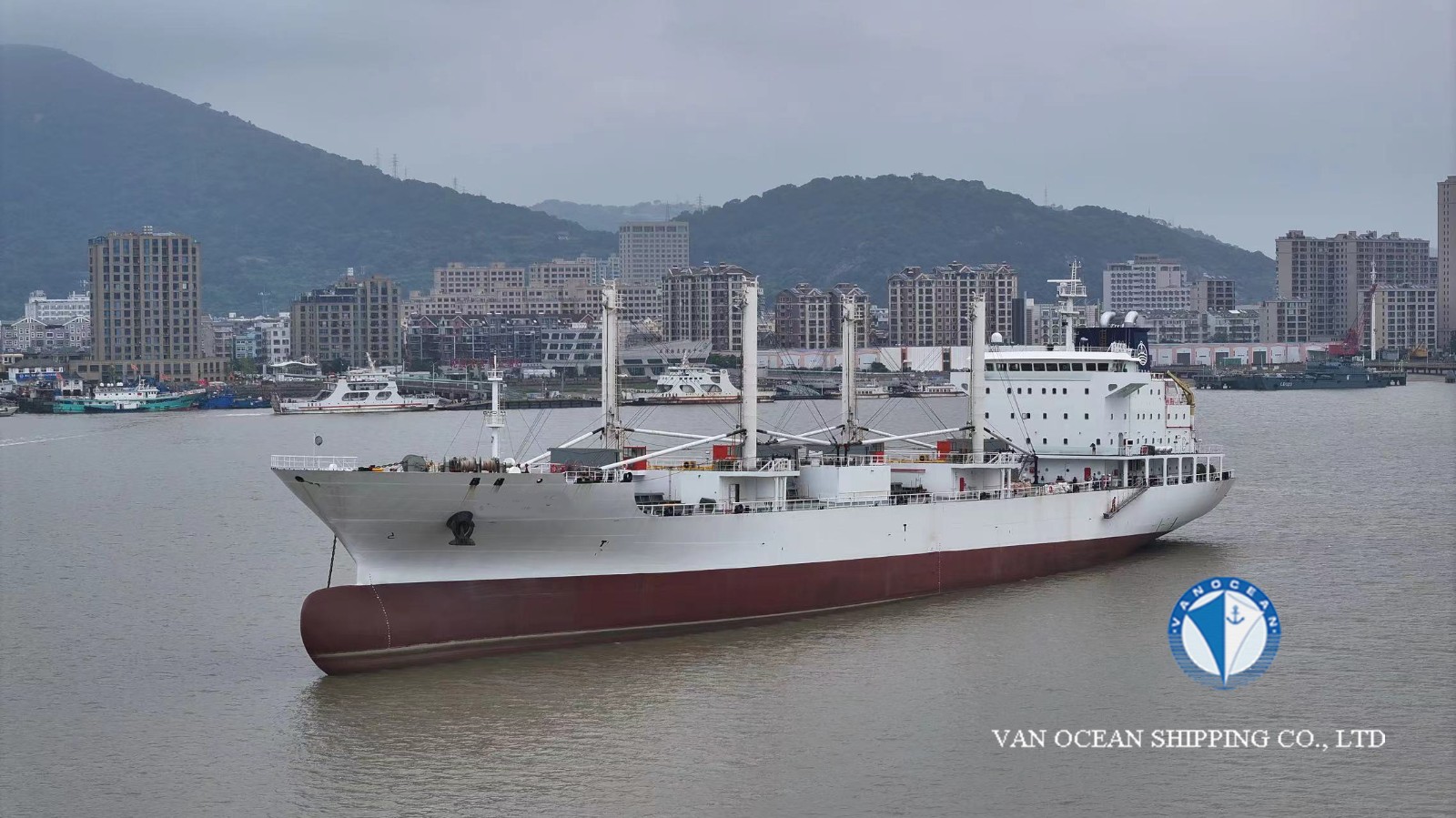

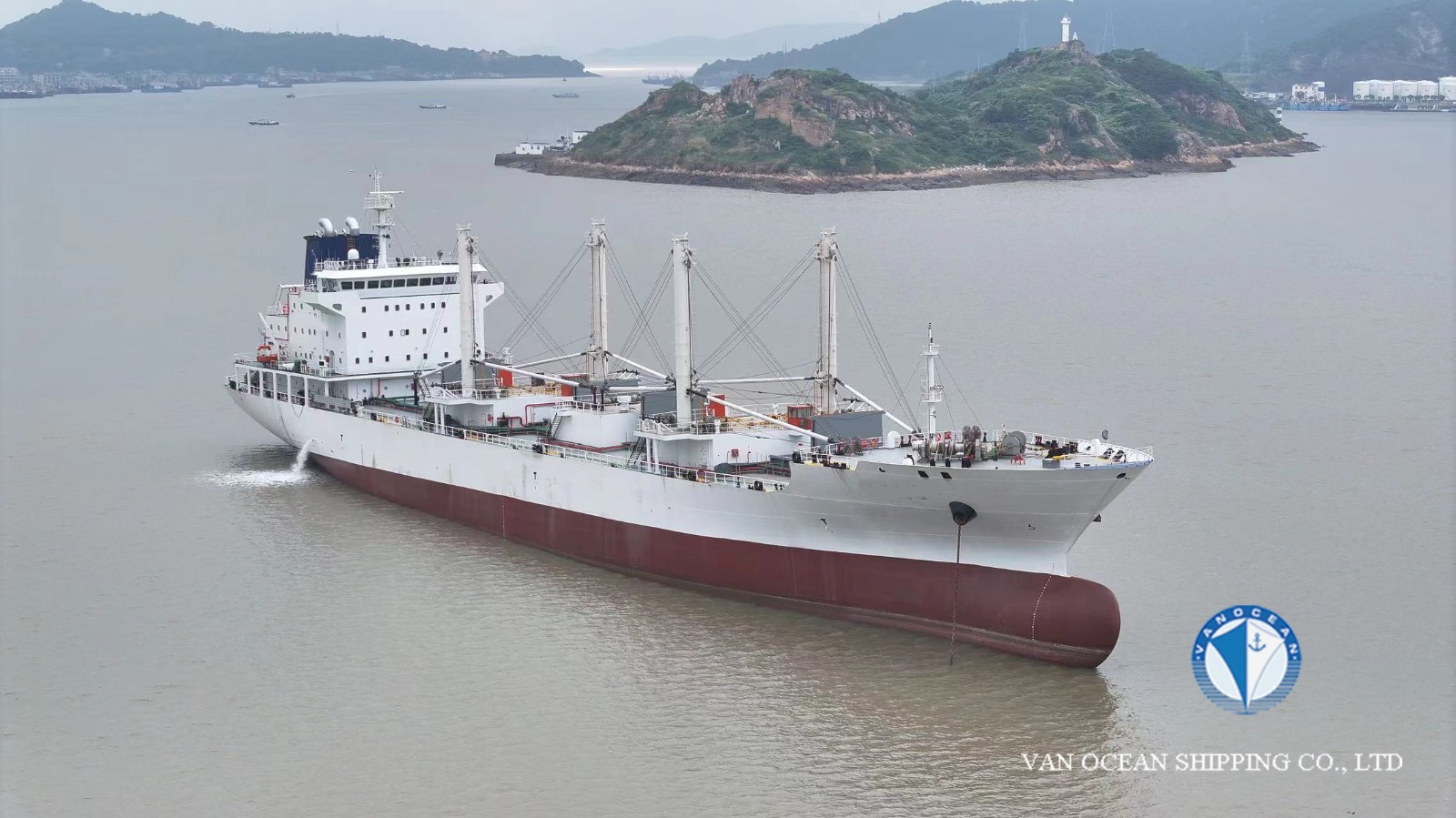

  • VESSEL NAME
  • REF957
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • CHINA
  • PORT OF REGISTRY
  • ZHOUSHAN
  • BUILT YEAR
  • 2024
  • BUILT PLACE
  • CHINA
  • CLASSIFICATION
  • CCS
  • CLASS NOTATION
  • CRS(NO.1、2、3、4 Hold -35℃, 35℃ Max.Sea Water);Ice Class B2 (dmax, f=9.40m, dmax, m=10.00m, dmax, a=10.60m, dmin, f=3.00m, dmin, m=4.50m, dmin, a=6.00m, PB=3389.6kW);PSPC(B)
  • SS
  • 2029-07
  • DD
  • 2029-07
  • LOA (M)
  • 157.8
  • LBP (M)
  • 145.9
  • BEAM (M)
  • 23.2
  • DEPTH (M)
  • 13.7
  • SUMMER DRAFT (M)
  • 9.1
  • WINTER DRAFT (M)
  • -
  • TROPICAL DRAFT (M)
  • -
  • GT (MT)
  • 13193
  • PANAMA GT (MT)
  • -
  • SUEZ GT (MT)
  • -
  • NT (MT)
  • 6495
  • PANAMA NT (MT)
  • -
  • SUEZ NT (MT)
  • -
  • SUMMER DWT (MT)
  • 12499
  • WINTER DWT (MT)
  • -
  • TROPICAL DWT (MT)
  • -
  • LDT (MT)
  • -
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • DERRICKS 8 x 5 MT
  • M/E(S)
  • STX-MAN B&W 6S50MC-C*1 9480KW, 127RPM
  • M/E POWER (KW)
  • 9480
  • A/E(S)
  • 1x 400 KW FC2 452-6SB42 3x 600 KW FC6 506-8SA42
  • GENERATOR(S)
  • -
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • -
  • COOLING SYSTEM (COMPRESSOR)
  • -
  • SPEED/CONSUMPTIONS
  • 18.2 KNOTS
  • FUEL TYPE
  • -
  • BUNKER CAPACITY (CBM)
  • -
  • TANKS CAPACITY (CBM)
  • -
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • -
  • HATCH SIZE (M)
  • 4*6.20 x 6.40; 1*1.4 x 0.8
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • DECK(S)
  • DECK HEIGHT (M)
  • -
  • CARGO CAPACITY (CBFT)
  • 698975
  • CARGO CAPACITY (CBM)
  • 19801
  • FLOOR SPACE CAPACITY (SQM)
  • GRATING/DECK STRENGTH
  • -
  • TEMPERATURE ZONE(S)
  • -35 ℃/+32℃
  • TEMPERATURE (℃)
  • -
  • TYPE OF VENT SYSTEM
  • VENT (TIMES/HOUR)
  • AIR CHANGE (TIMES/HOUR)
  • -
  • PALLET(S)
  • CONTAINER CAPACITY
  • REEFER PLUG(S)
  • SIDE DOOR(S)
  • -
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • -
  • INSURANCE
  • -
  • CREW
  • -
  • ACCOMMODATION
  • -
  • INSPECTION
  • DELIVERY
  • REMARK(S)
【BACK TO LIST】
