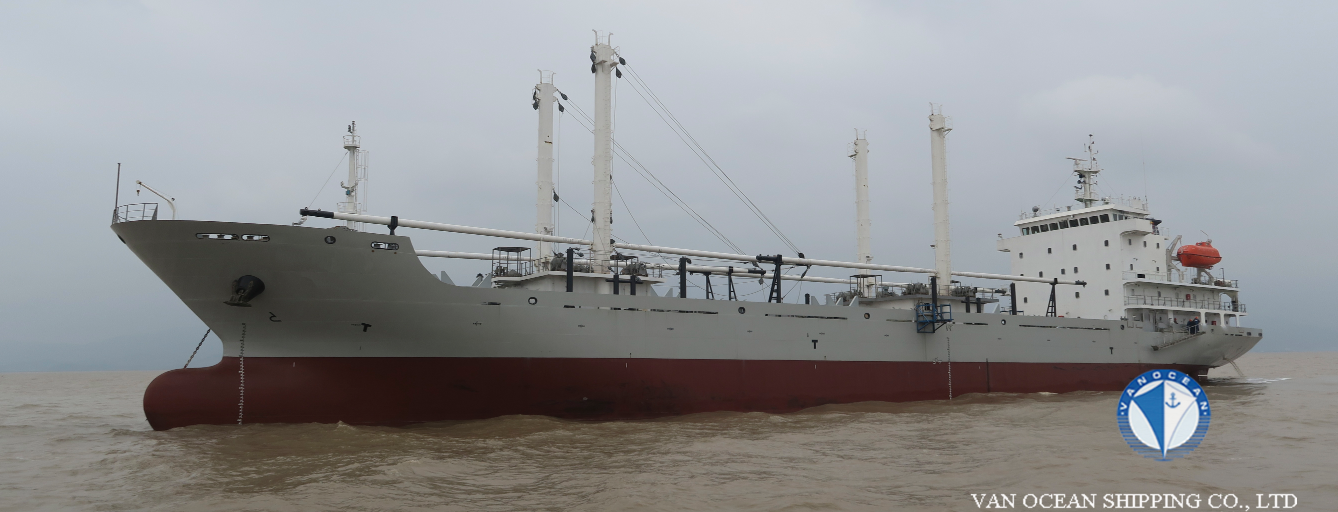

VESSEL NAME
REF923
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
CHINA
PORT OF REGISTRY
TAIZHOU
BUILT YEAR
2016
BUILT PLACE
CHINA
CLASSIFICATION
CCS
CLASS NOTATION
★CSA★CSM,Refrigerated Cargo Ship,FTP;Ice Class B;PSPC(B);CRS(Nos.1, 2, 3, 4 holds -25℃, Max. Sea Water Temperature 35℃);
SS
2026-02
DD
2026-02
LOA (M)
120.8
LBP (M)
110.8
BEAM (M)
18
DEPTH (M)
10.2
SUMMER DRAFT (M)
7
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
5784
PANAMA GT (MT)
4917
SUEZ GT (MT)
6301.64
NT (MT)
2645
PANAMA NT (MT)
4917
SUEZ NT (MT)
4898.18
SUMMER DWT (MT)
6862
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
3878.2
DISPLACEMENT (MT)
10710.3
GEAR(S)
DERRICKS, 4 x 5MT
M/E(S)
HANSHIN LH46LA, 4435HP/3309KW 220RPM
M/E POWER (KW)
3309
A/E(S)
WEICHAI DIESEL, 3 x 6210ZL, 6CYL, 500KW 750RPM
WEICHAI DIESEL, 1 x ZL170-D2, 6CYL, 300KW 1000RPM
EMERGENCY: WEICHAI DIESEL, 1 x WP6CD132-15, 132KW 1500RPM
GENERATOR(S)
3 SETS 1FC5 562-8TA42, 500KW, 400V
1 SET 1FC6 404-6SA42,300KW, 400V
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP, 4 BLADES, KAMOME PROPELLER CO., LTD., JAPAN
COOLING SYSTEM (COMPRESSOR)
COILED, R404
SCREW COMPRESSORS, BINGLUN, 4 x 132KW @2960RPM
SPEED/CONSUMPTIONS
13.5 KTS
FUEL TYPE
HFO, MDO
BUNKER CAPACITY (CBM)
HFO 610CBM, MDO 173.74CBM
TANKS CAPACITY (CBM)
FW 305.72CBM
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
SLIDING
HATCH SIZE (M)
4* 4.42×4.42 M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
12
DECK(S)
3
DECK HEIGHT (M)
≥2.60 M
CARGO CAPACITY (CBFT)
305280.4
CARGO CAPACITY (CBM)
8648.17
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-25/+35
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-

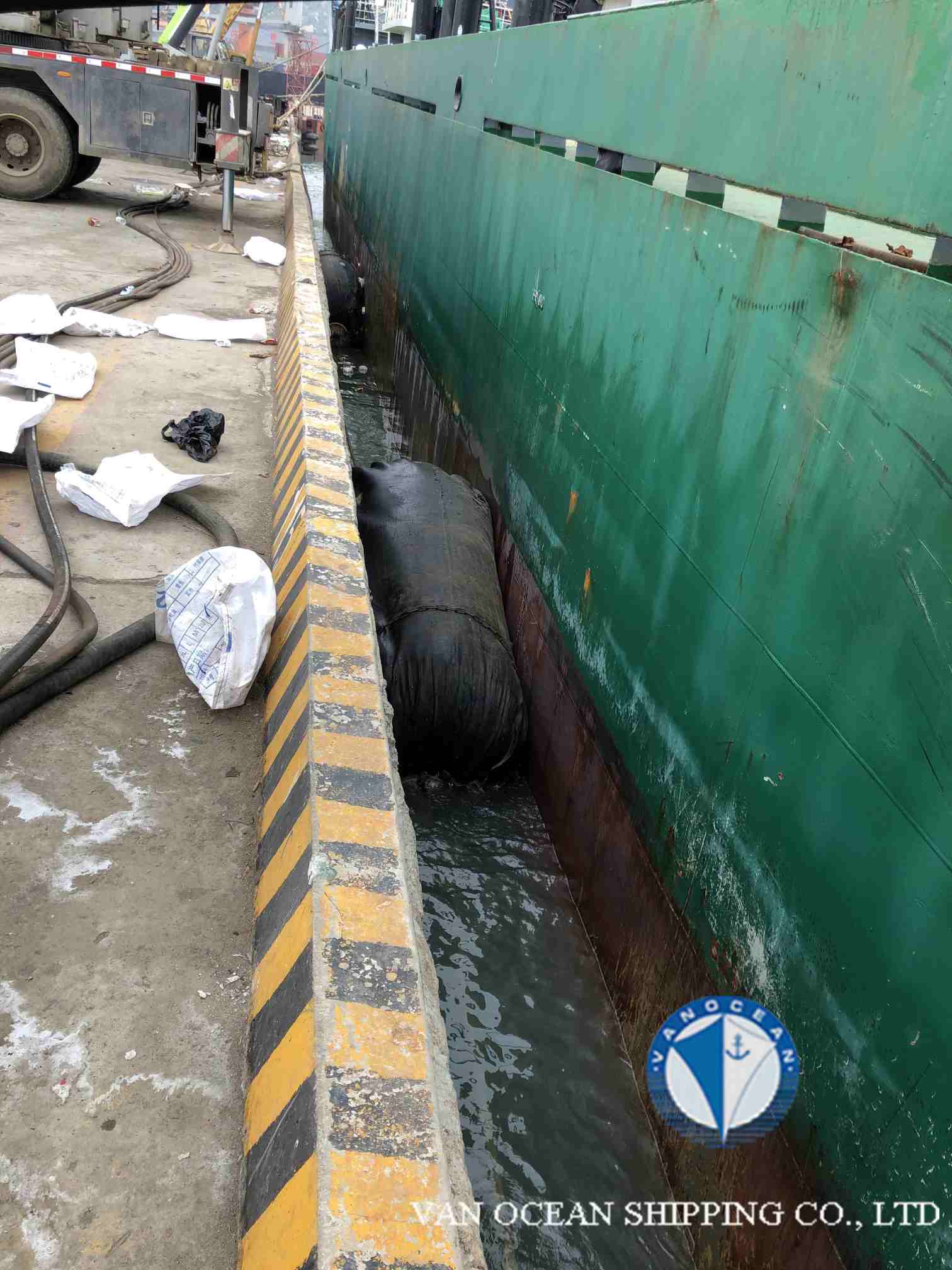

FENDER(S)
4

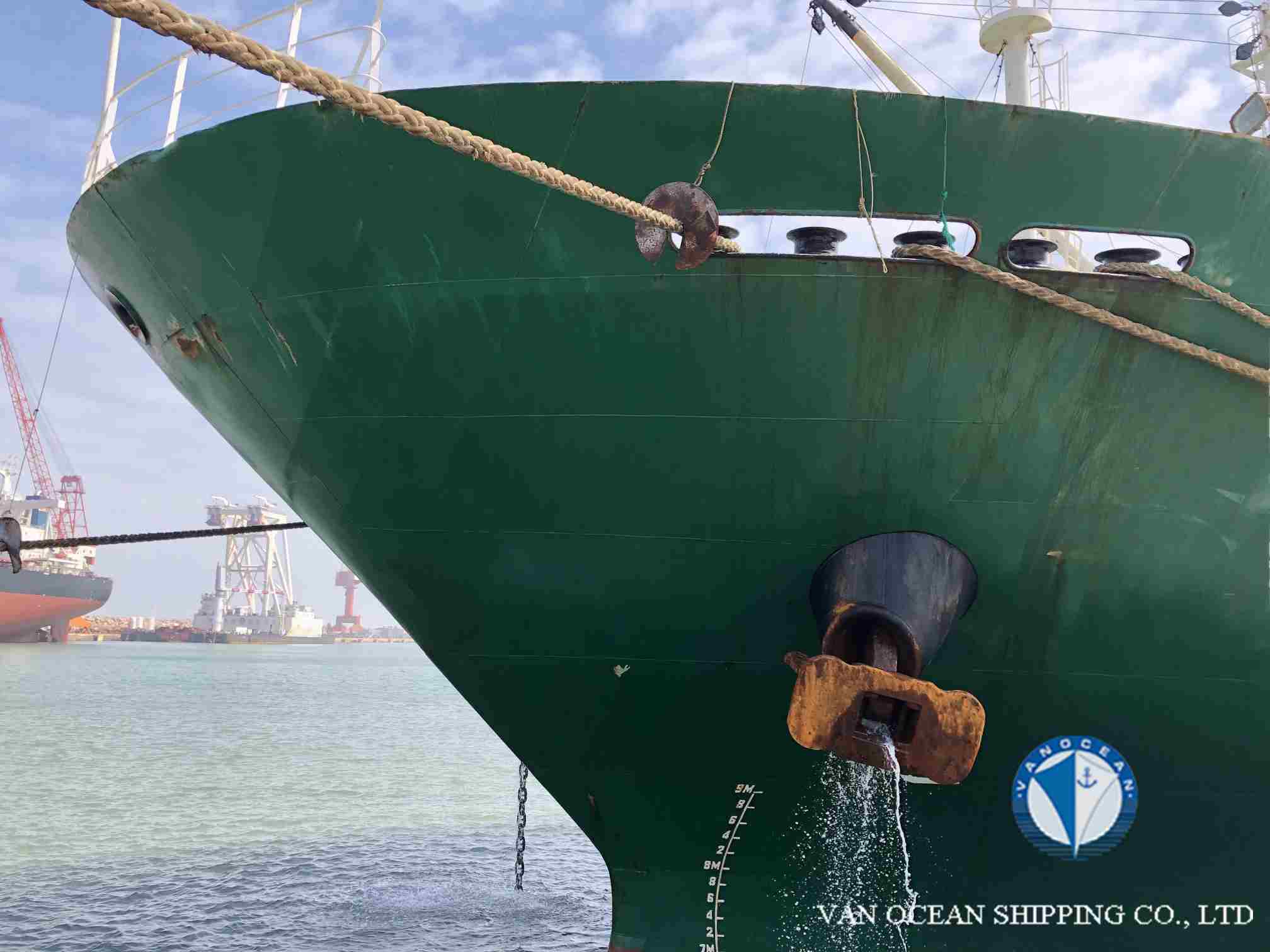

ANCHOR CHAIN(S)
DIAMETER 46MM
USDA CERTIFICATE
-
INSURANCE
-
CREW
34
ACCOMMODATION
-
INSPECTION
CHINA
DELIVERY
CHINA
PRICE
BUYERS OFFER
