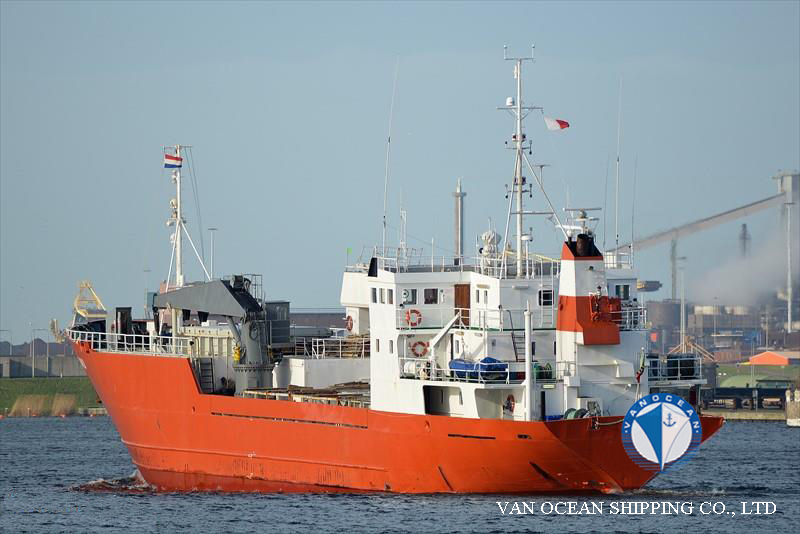

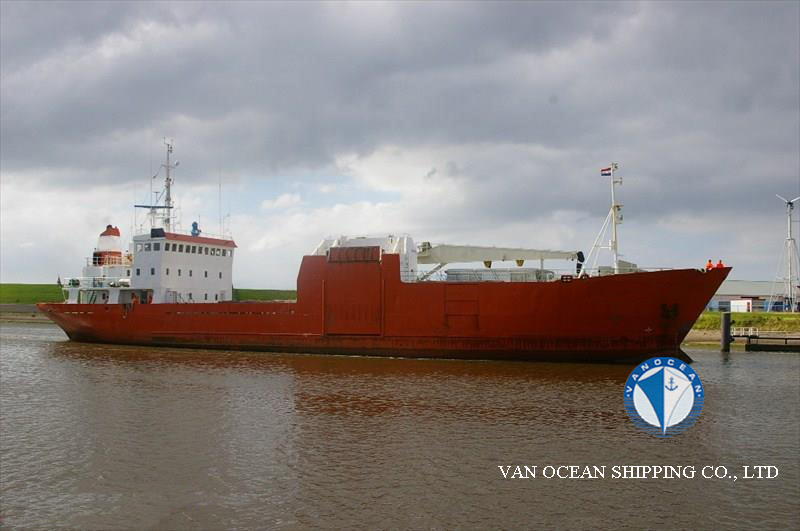

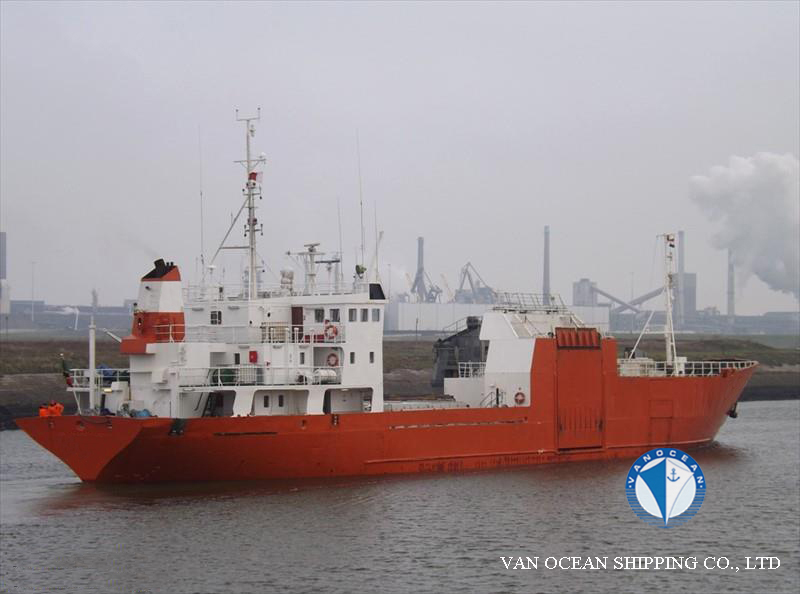

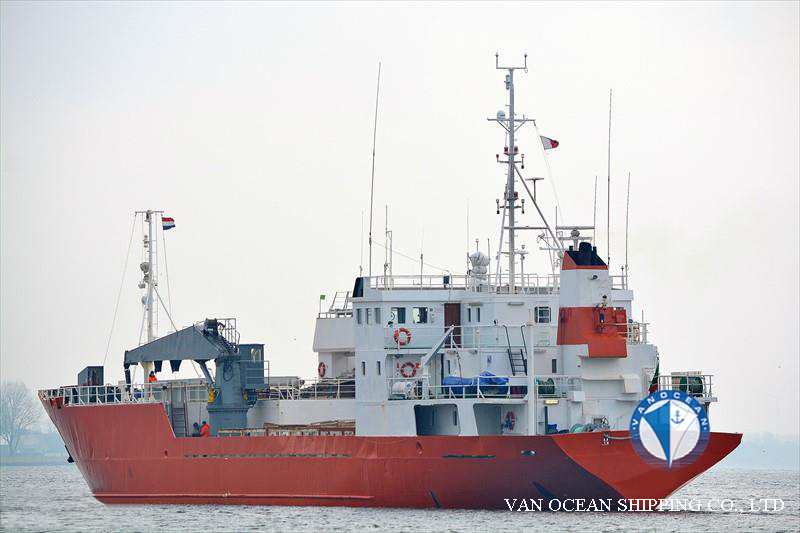

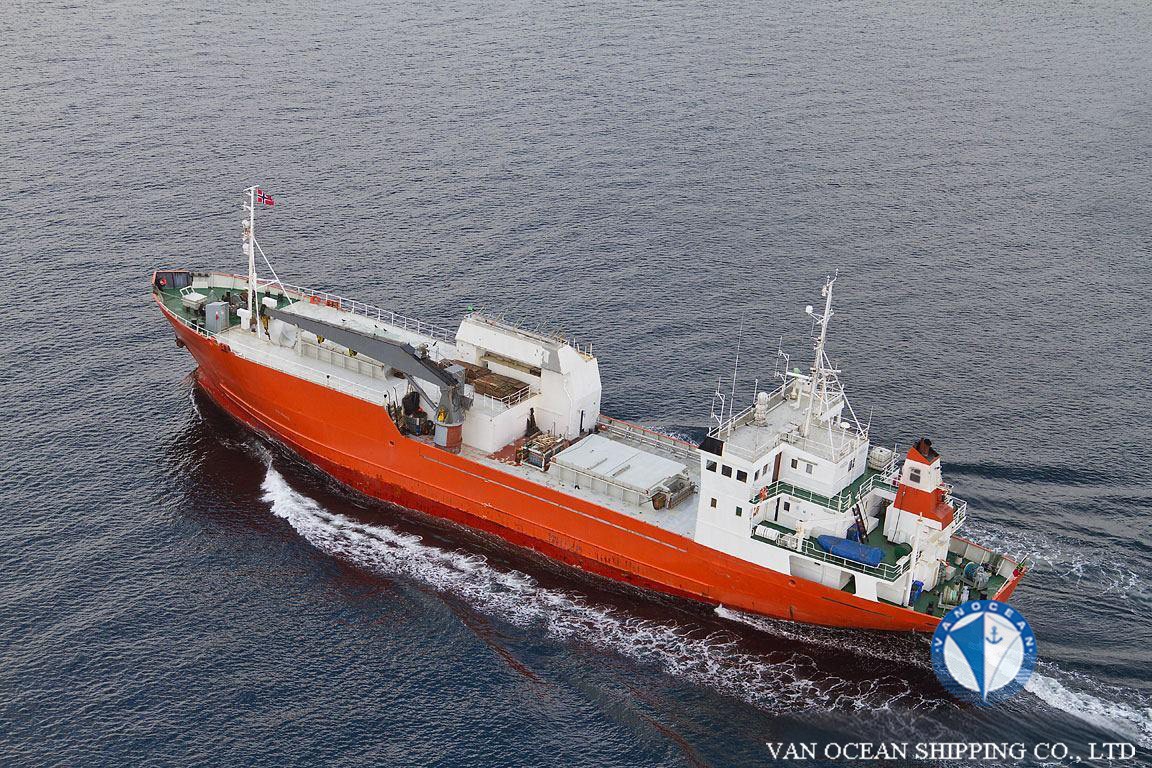

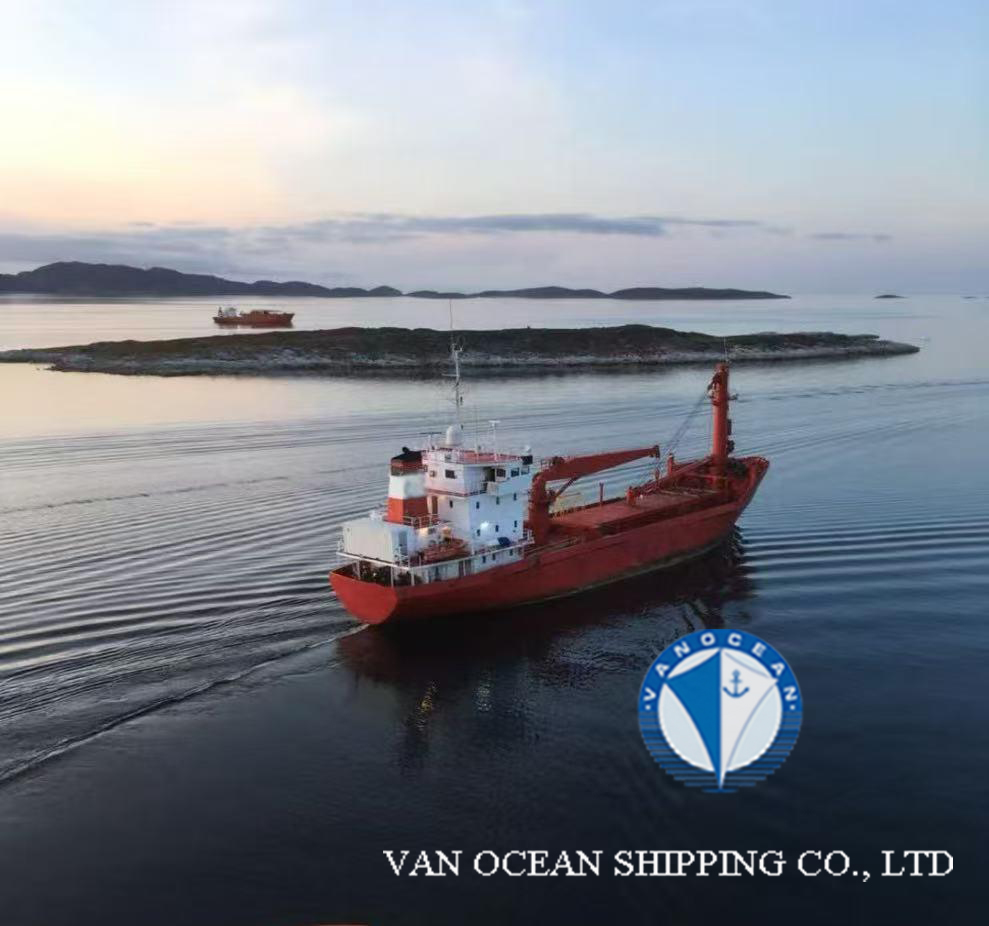

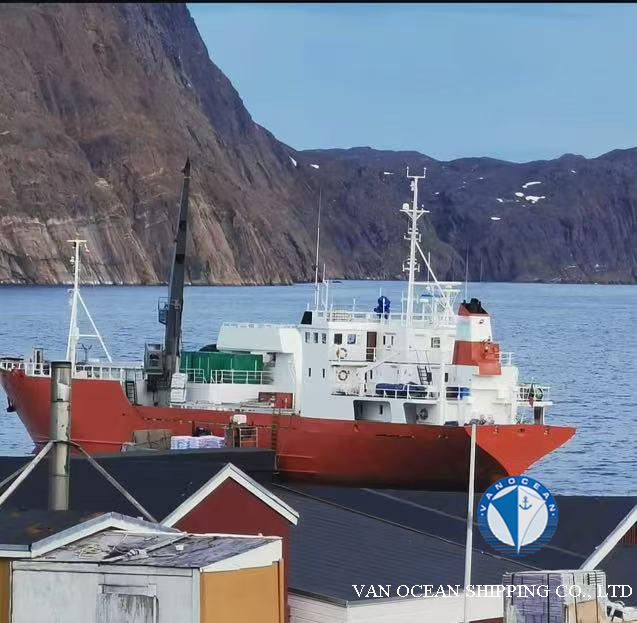

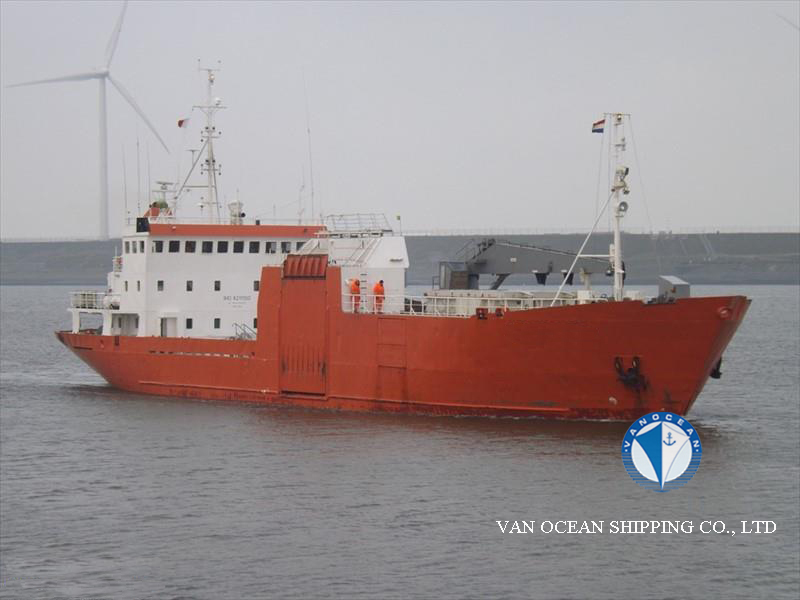

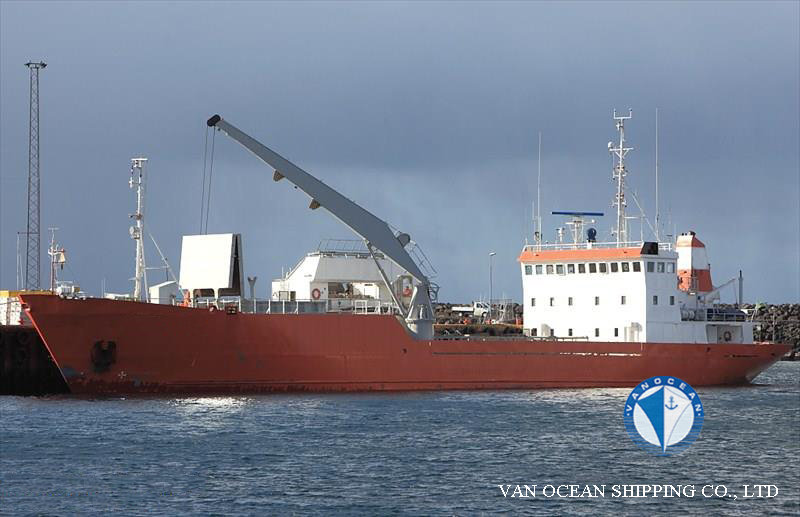

VESSEL NAME
REF911
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
GAMBIA
PORT OF REGISTRY
BANJUL
BUILT YEAR
1983
BUILT PLACE
FAROE ISLANDS
CLASSIFICATION
INSB CLASS
CLASS NOTATION
ICE CLASS 1B
SS
-
DD
-
LOA (M)
67.29
LBP (M)
60
BEAM (M)
12
DEPTH (M)
6.5
SUMMER DRAFT (M)
4.8
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
1313
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
559
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
1525
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
994.5
DISPLACEMENT (MT)
-
GEAR(S)
CRANE, 1 x 20MT, OUTREACH 17.4-8.7M
M/E(S)
NOHAB DIESEL F312V, 2400HP @750RPM
M/E POWER (KW)
1790
A/E(S)
2 SETS DAIMLER-BENZ OM404 184KW@1500RPM
1 SET DAIMLER-BENZ OM352 45KW@1500RPM
GENERATOR(S)
2 SETS STAMFORD MC 534B, 230KVA, 380V
1 SET STAMFORD MC344A, 55KVA, 380V
SHAFT GENERATOR(S)
AVK, DIDB 120 E/8, 380V, 490KVA
PROPELLER(S)
CPP, 4 BLADES, ULSTEIN PROPELLER A/S, NORWAY
COOLING SYSTEM (COMPRESSOR)
3 SETS SABROE SMC 108S 50KW COMPRESSORS, R22
SPEED/CONSUMPTIONS
10 KTS ON 4.5-5.0MT/DAY
IN PORT 0.55MT/DAY
FUEL TYPE
IFO, MDO
BUNKER CAPACITY (CBM)
IFO 165MT, MDO 54MT
TANKS CAPACITY (CBM)
FW 38CBM
NUMBER OF CARGO HOLDS
2
HATCH NUMBER
2
HATCH TYPE
HYDRAULIC
HATCH SIZE (M)
1 - 7.20 x 4.40 M
2 - 6.60 x 4.00 M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
5
DECK(S)
2
DECK HEIGHT (M)
≥2.10M
CARGO CAPACITY (CBFT)
72890
CARGO CAPACITY (CBM)
2065
FLOOR SPACE CAPACITY (SQM)
775
GRATING/DECK STRENGTH
3 FORKLIFTS/1.5 MT EACH
TEMPERATURE ZONE(S)
3
TEMPERATURE (℃)
-27 +12
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
3
AIR CHANGE (TIMES/HOUR)
90
PALLET(S)
580
CONTAINER CAPACITY
7 TEU ON DECK
REEFER PLUG(S)
-
SIDE DOOR(S)
1 x STARBOARD SIDE
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
11
ACCOMMODATION
-
INSPECTION
WEST AFRICA
DELIVERY
WEST AFRICA
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER, 300HP
