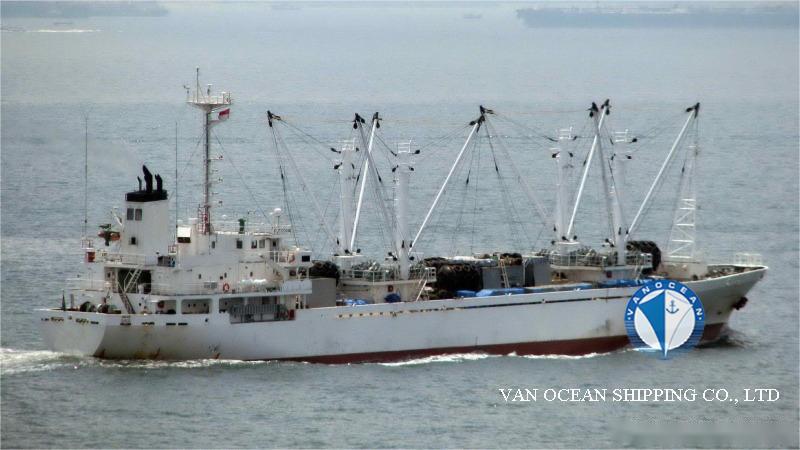

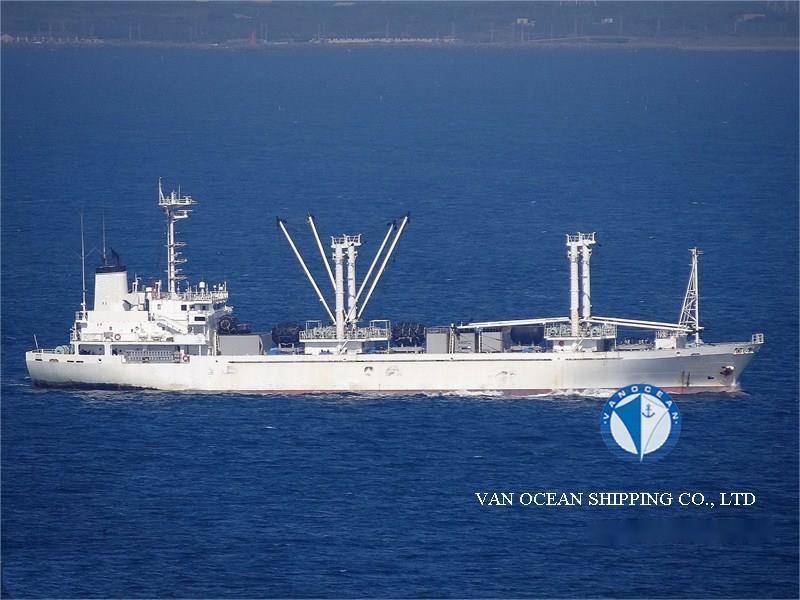

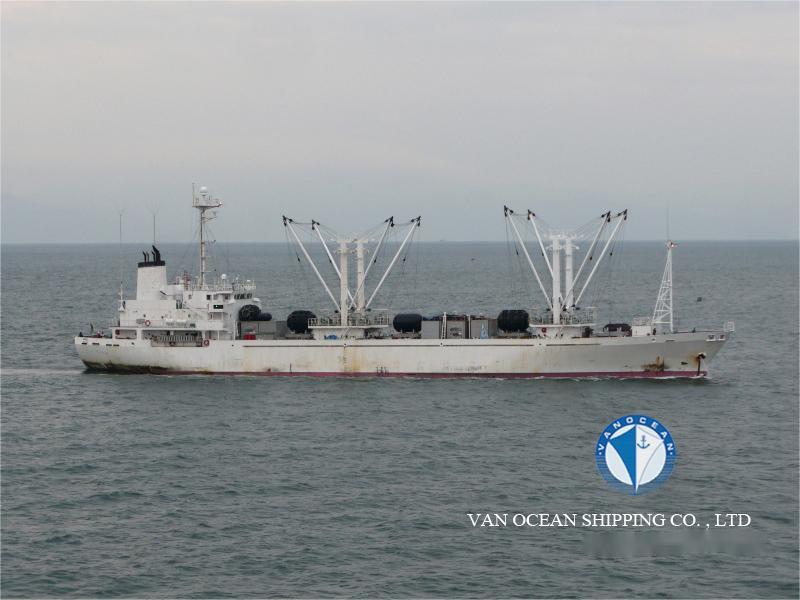

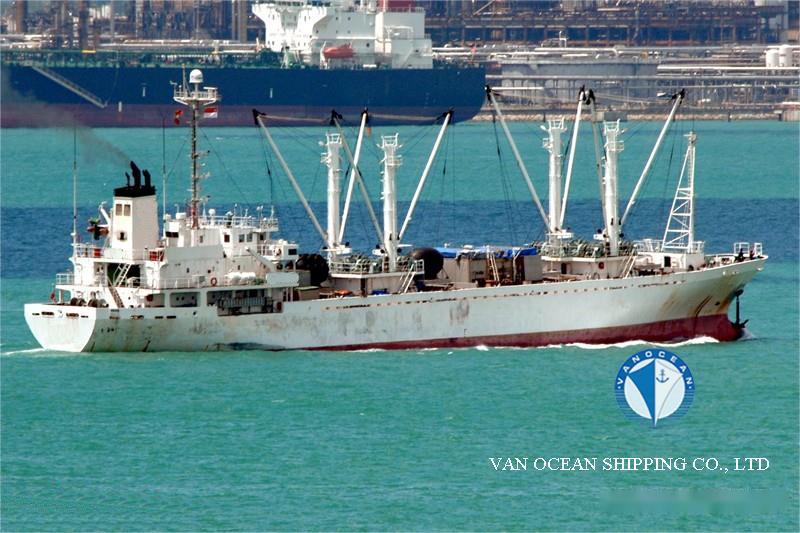

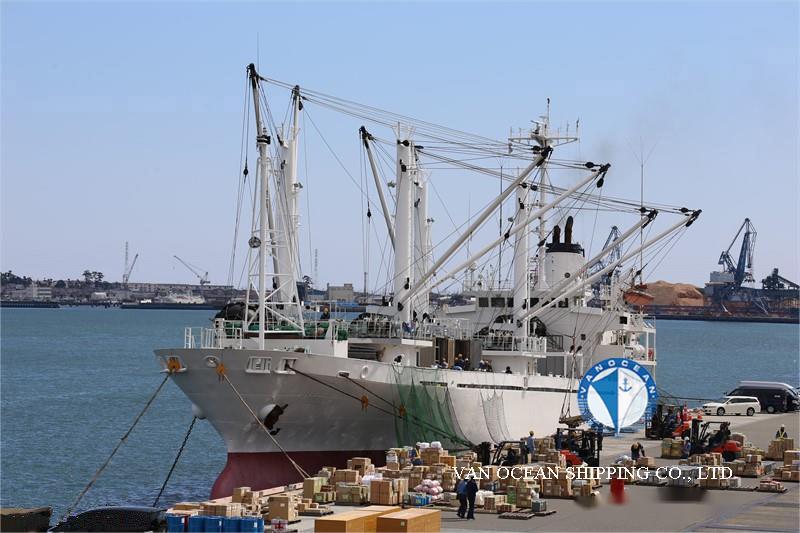

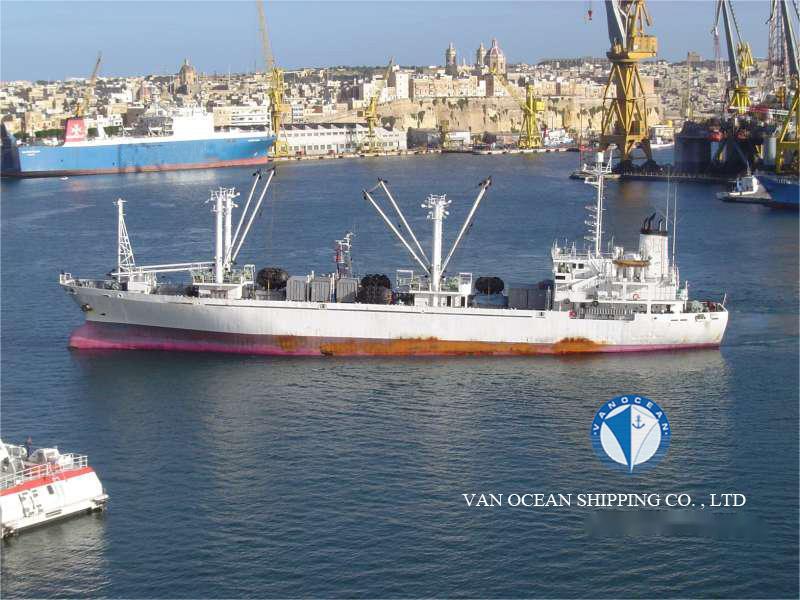

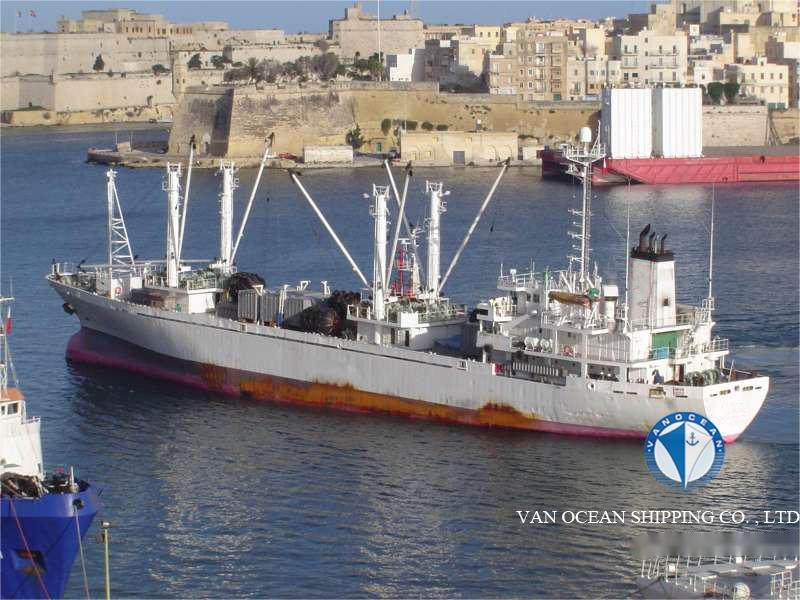

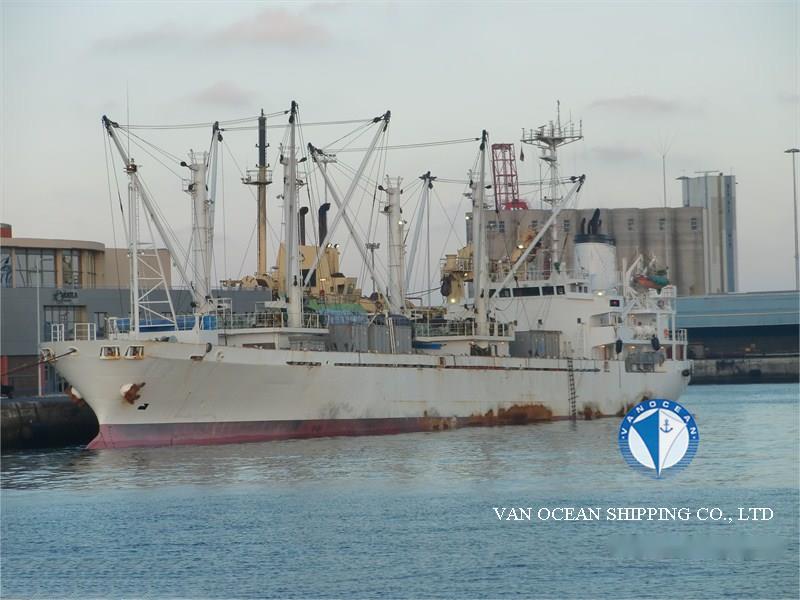

VESSEL NAME
REF594
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
YES
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1994
BUILT PLACE
JAPNA
CLASSIFICATION
NK
CLASS NOTATION
NS* MNS* RMC*(-50/32 for ACh), CHG, MPP, LSA, RCF, AFS
SS
2029-02
DD
2026-11
LOA (M)
88.94
LBP (M)
82.6
BEAM (M)
14.5
DEPTH (M)
8.6
SUMMER DRAFT (M)
4.96
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
2581
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
896
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
2357
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS: 8 x 3.5MT
M/E(S)
KAWASAKI-MAN-B&W 6S26MC/MCE 2000PS，212RPM 1471KW
M/E POWER (KW)
1471
A/E(S)
2 SETS YANMAR S185L-ST 600PS @ 900RPM
GENERATOR(S)
2 SETS SHINKO TVLI-GJ-685 485KVA x 445V x 60HZ x 3PI
SHAFT GENERATOR(S)
-
PROPELLER(S)
FIXED, 4 BLADES, DIA: 2900MM MATERIAL: KAIBC3(Ni-Al-BRONZE)
COOLING SYSTEM (COMPRESSOR)
GRID COIL
R-22 DIRECT
4 SETS VZL-62RM, 75KW @ 1180RPM
SPEED/CONSUMPTIONS
MAX:14.98 KTS
SERVICE SPEED:12.7 KTS
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
909
TANKS CAPACITY (CBM)
MDO: 530.21
FW:134.34
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
4 x 4
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
8
DECK(S)
2
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
142310
CARGO CAPACITY (CBM)
4029.73
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-55
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
22
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
