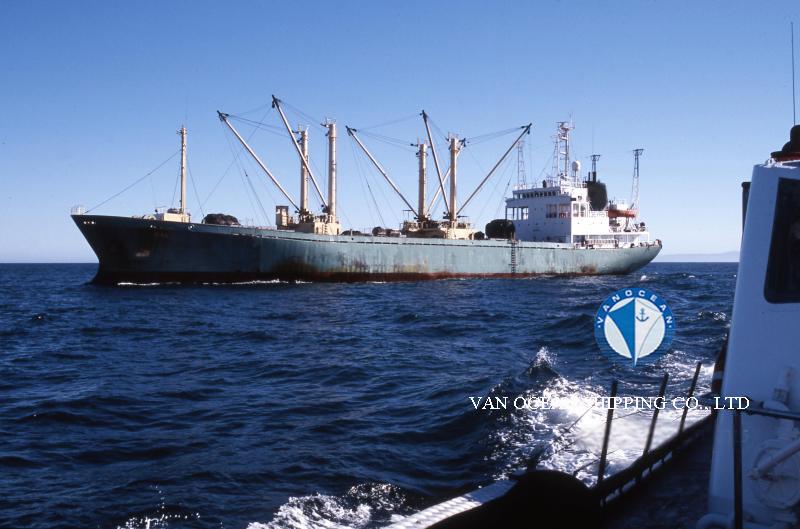

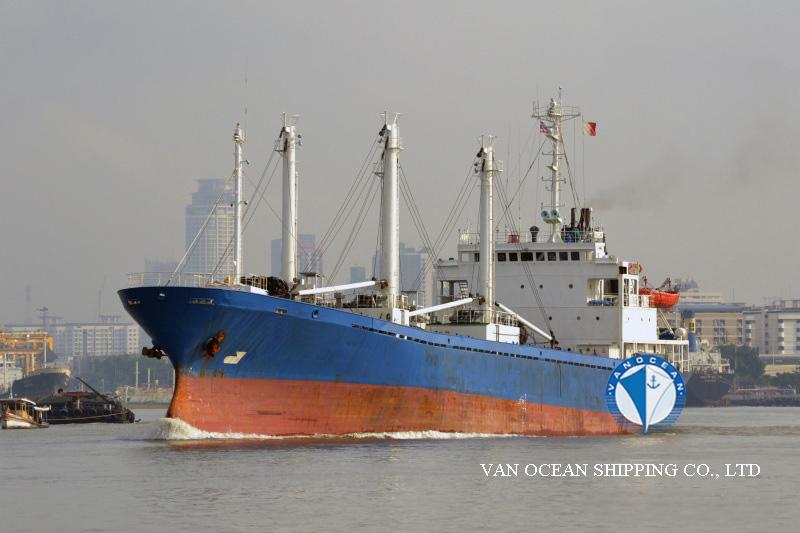

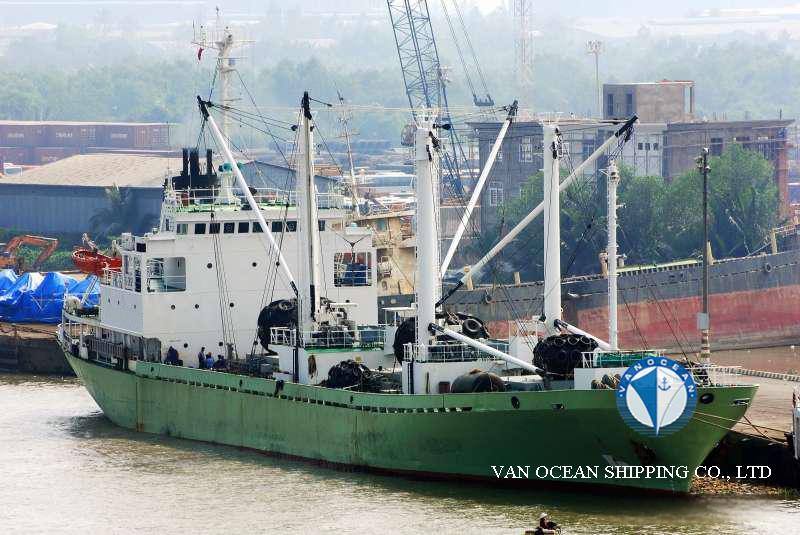

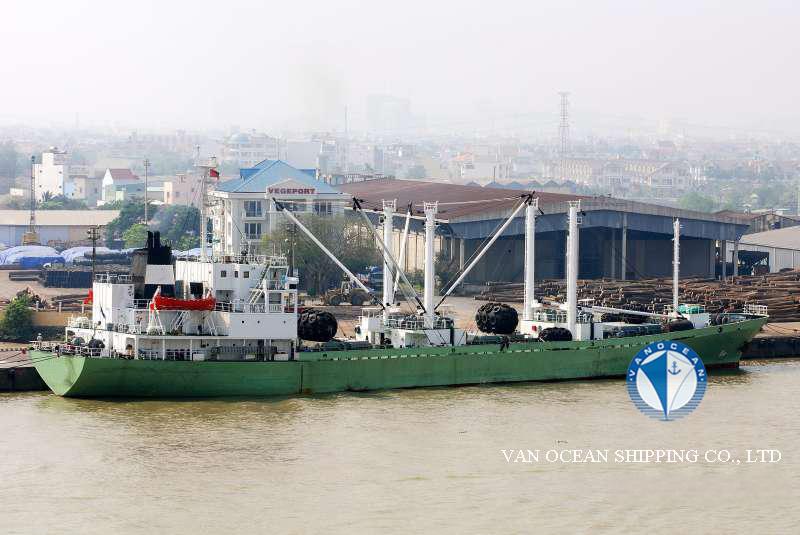

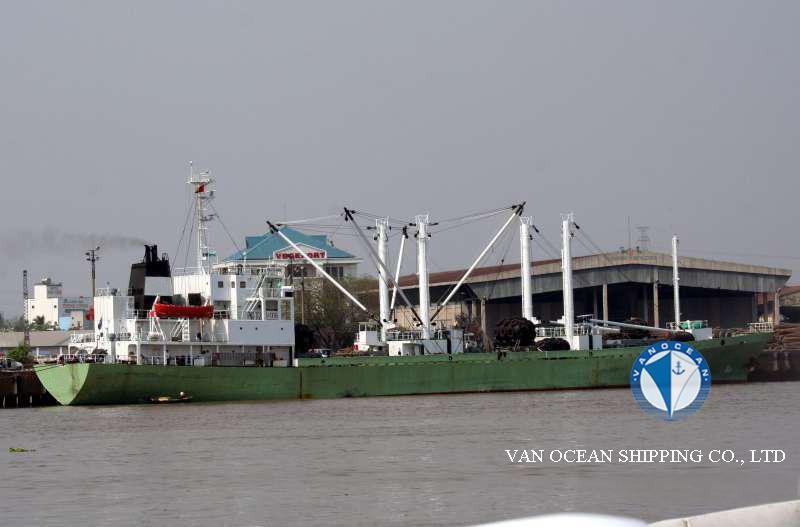

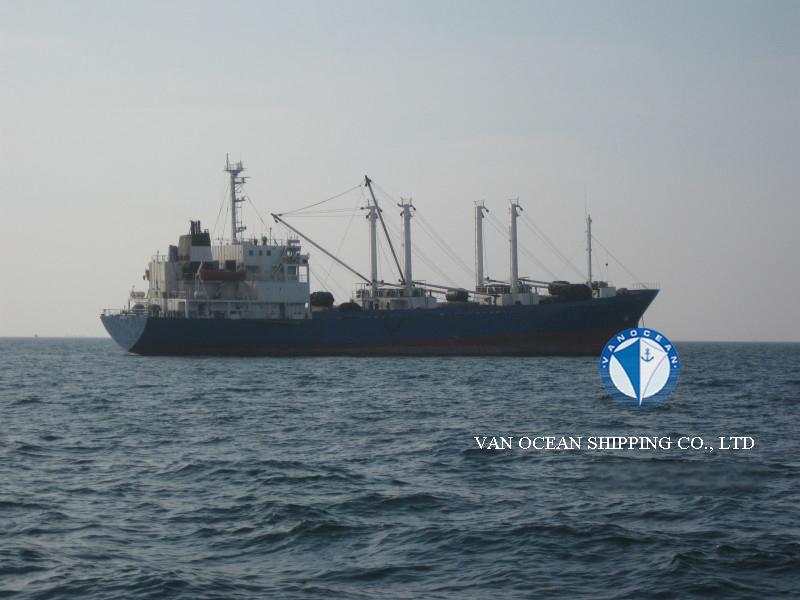

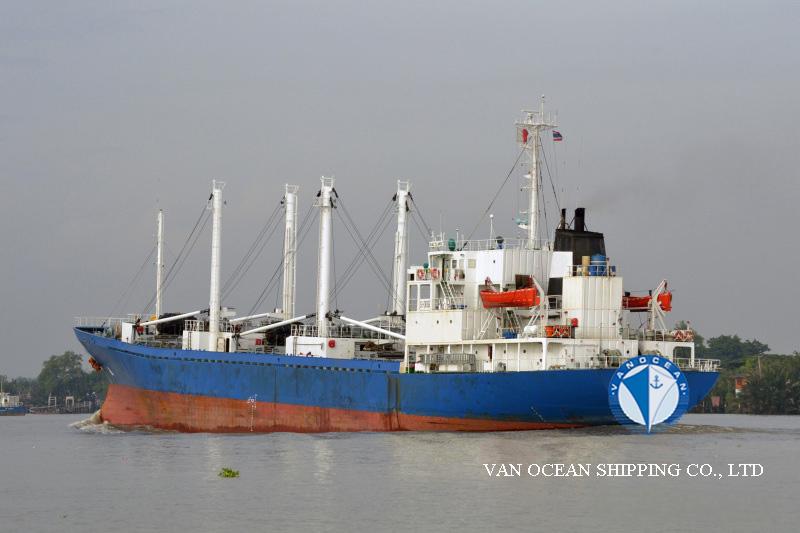

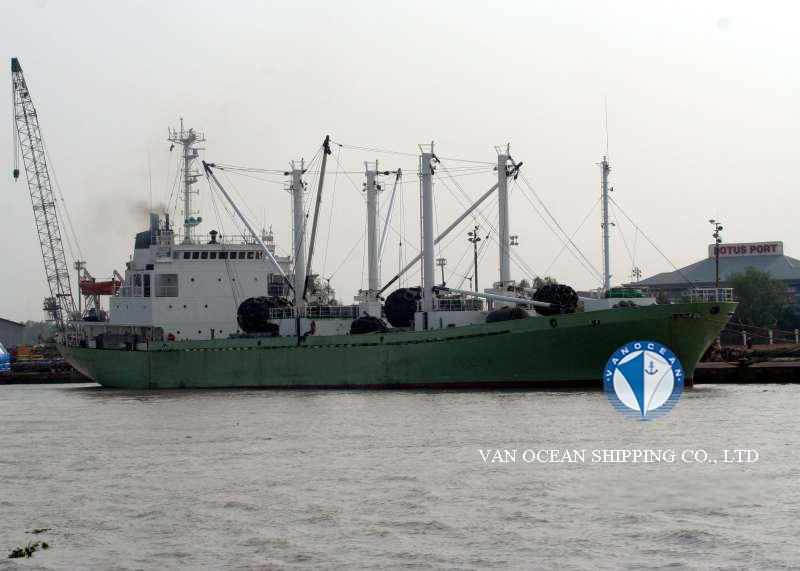

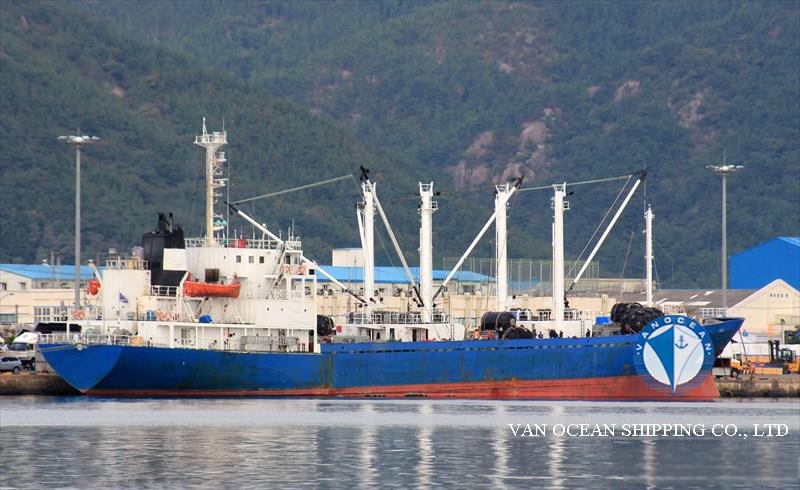

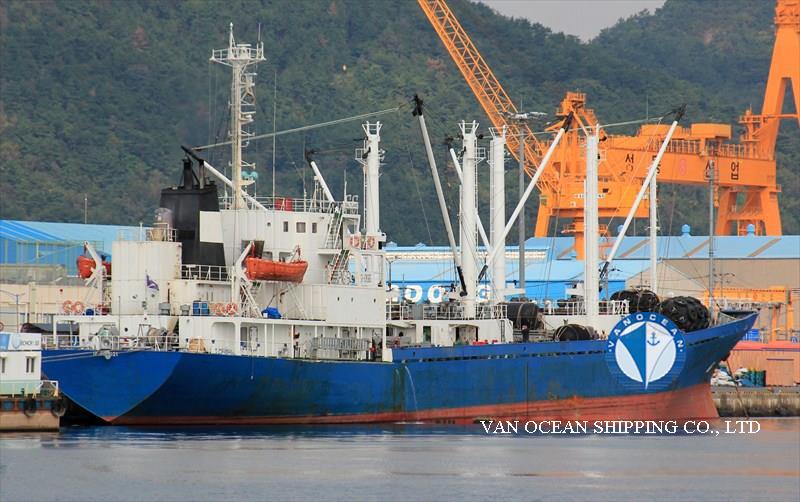

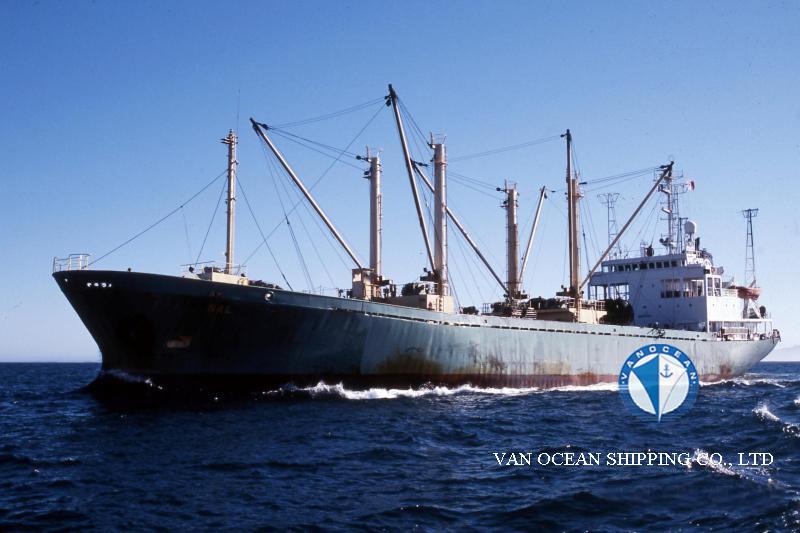

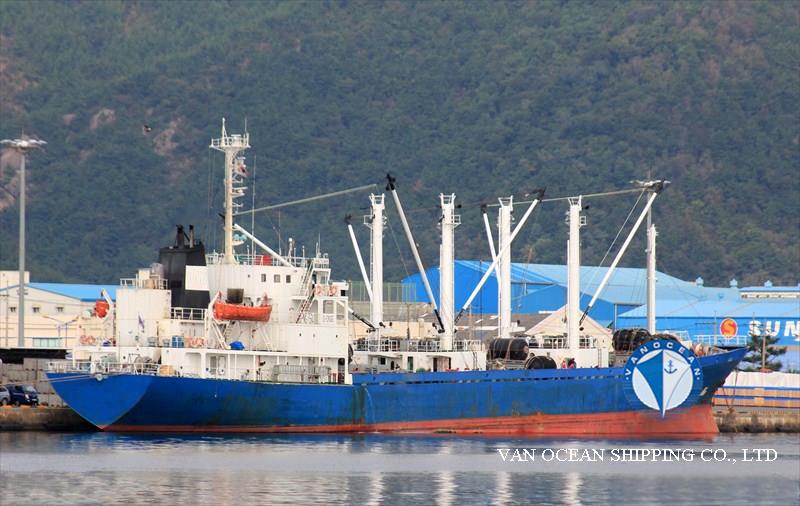

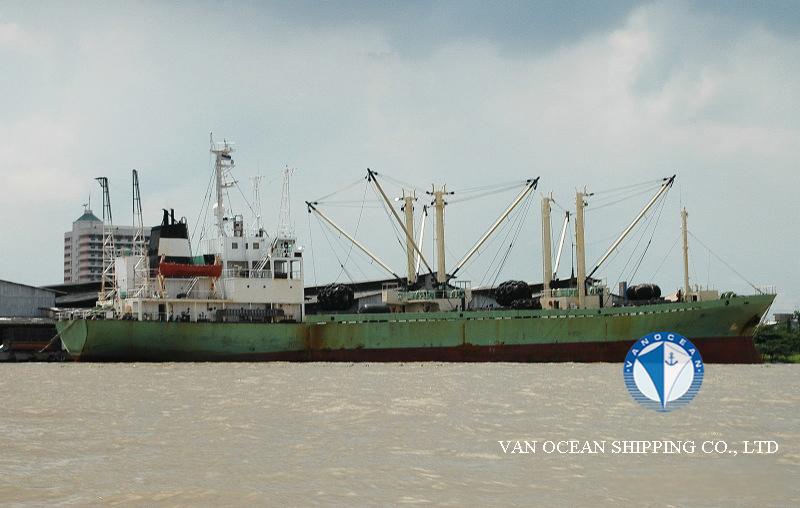

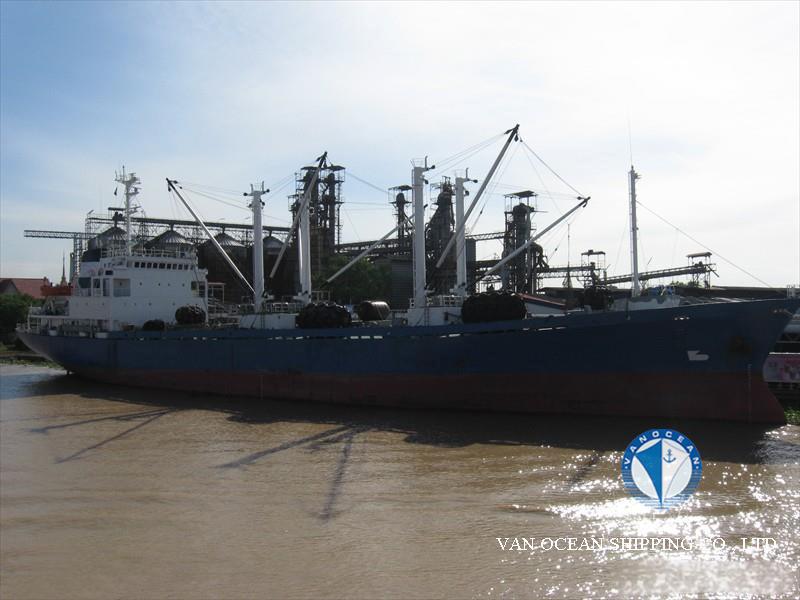

VESSEL NAME
REF040
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
KOREA
PORT OF REGISTRY
JEJU
BUILT YEAR
1986
BUILT PLACE
BUILDER EIHO, KOCHI, JAPAN
CLASSIFICATION
KR
CLASS NOTATION
KRS1,REFRIGERATED CARGO CARRIER,CLEAN1 LG,RMC,KRM1
SS
2030-01
DD
2026-01
LOA (M)
96.78
LBP (M)
90.16
BEAM (M)
16.2
DEPTH (M)
9.5
SUMMER DRAFT (M)
6.524
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
6.66
GT (MT)
3437
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1751
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
4269
WINTER DWT (MT)
-
TROPICAL DWT (MT)
4428
LDT (MT)
2121.8
DISPLACEMENT (MT)
6390
GEAR(S)
DERRICKS 6 x 3MT (UP 3MT)
M/E(S)
MITSUBISHI 6UEC37LA 4050 BHP AT 207RPM
M/E POWER (KW)
2978
A/E(S)
1 x DYNAMO MET 42SC
2 x YANMAR M200AL-ST 830PS 900RPM
GENERATOR(S)
2 x TAIYO FE45D-8 700KVA VTR161-1,450V
SHAFT GENERATOR(S)
-
PROPELLER(S)
325mm
COOLING SYSTEM (COMPRESSOR)
3 x MAYEKAWA MYCOM-F160S SCREW R22
SPEED/CONSUMPTIONS
LADEN: 13.5KTS ON 15MT(IFO 180)
BALLAST: 14 KTS ON 12MT(IFO180) + 1MT MDO
MAX:16 KTS
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
595.24
TANKS CAPACITY (CBM)
MDO: 141.30
FW:244.40
BW: 273.62
NUMBER OF CARGO HOLDS
3
HATCH NUMBER
3
HATCH TYPE
-
HATCH SIZE (M)
5 x 5 M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
9
DECK(S)
2
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
182395
CARGO CAPACITY (CBM)
5167
FLOOR SPACE CAPACITY (SQM)
2082
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-18 & AJUSTABLE
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
1500
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
40mm
USDA CERTIFICATE
-
INSURANCE
North of England
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
AUX BOILER SASEBO, S.V.C 1000/600, 7KG/CBM
