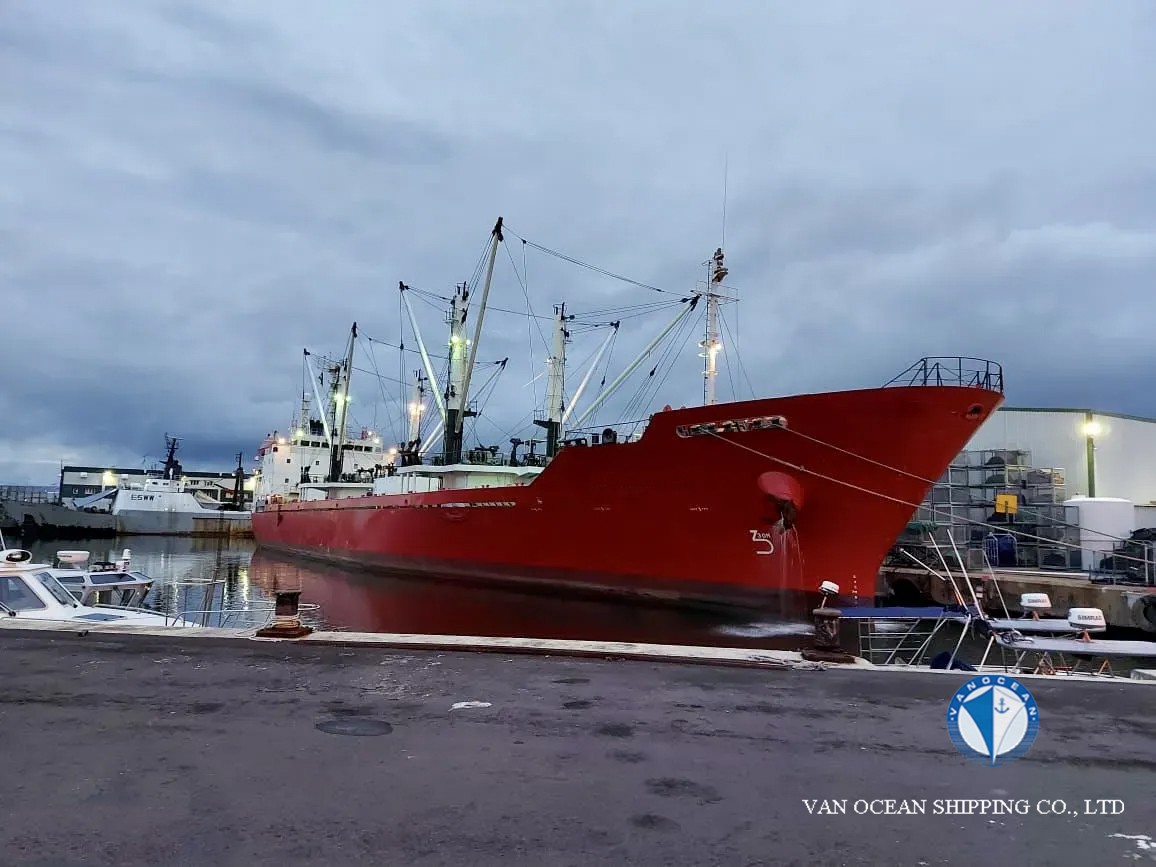

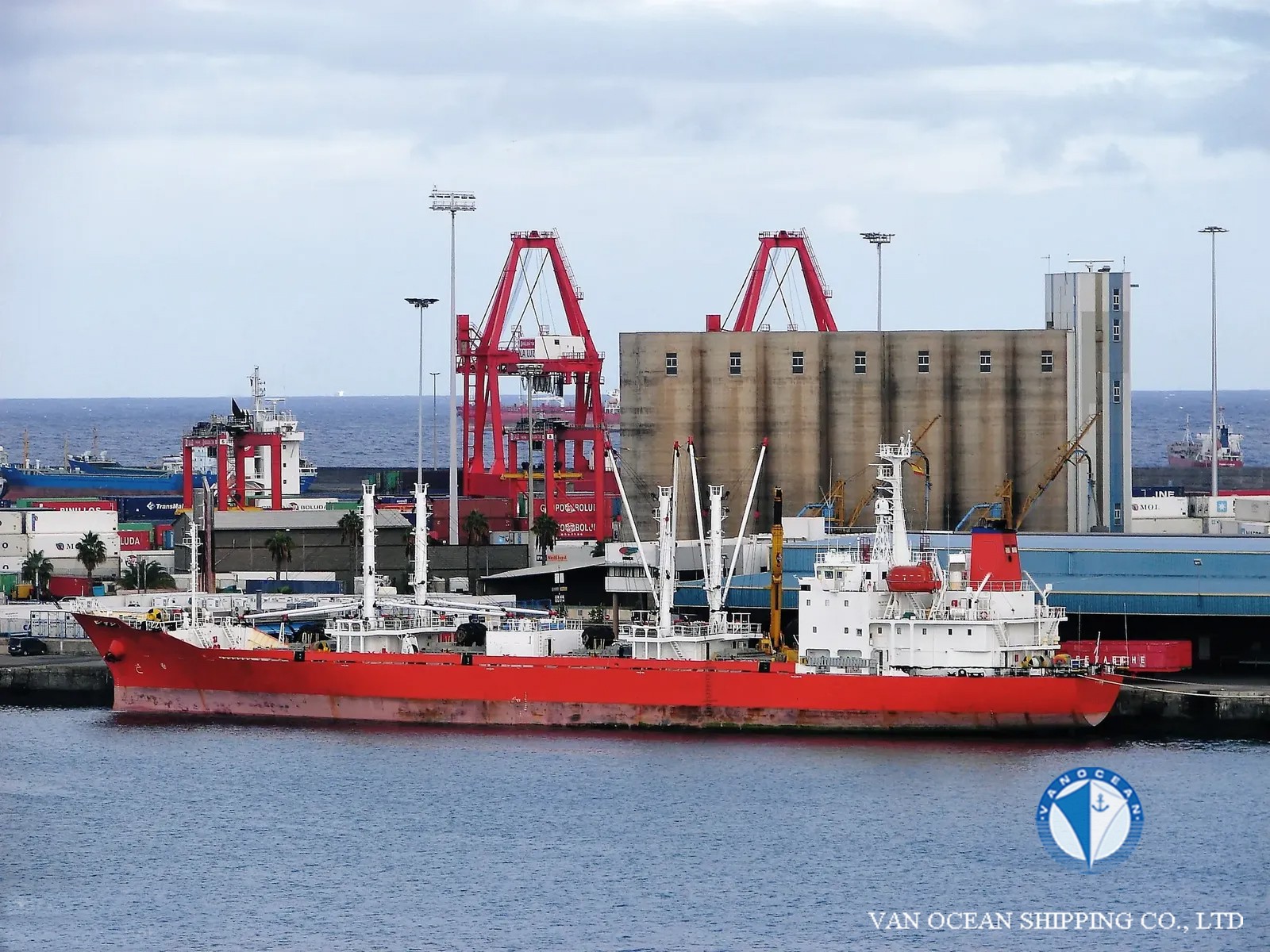

VESSEL NAME
REF200
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
YES
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1997
BUILT PLACE
KYOKUYO S/YARD, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS* MNS* RMC*(-50/32 EQF FOR ACH), CHG, MPP, LSA, RCF, AFS
SS
2027-06
DD
2025-07
LOA (M)
120.75
LBP (M)
112.9
BEAM (M)
16.6
DEPTH (M)
10
SUMMER DRAFT (M)
6.914
WINTER DRAFT (M)
6.77
TROPICAL DRAFT (M)
7.058
GT (MT)
4490
PANAMA GT (MT)
-
SUEZ GT (MT)
4839.58
NT (MT)
2125
PANAMA NT (MT)
3832
SUEZ NT (MT)
3690.4
SUMMER DWT (MT)
5061
WINTER DWT (MT)
4886
TROPICAL DWT (MT)
5321
LDT (MT)
2874
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 6 x 5 MT
M/E(S)
MAKITA, B&W, 6L35MC 4070 BHP@193RPM / 3660BHP@186RPM
M/E POWER (KW)
2993
A/E(S)
3 AC 1810 KVA
GENERATOR(S)
2
SHAFT GENERATOR(S)
NONE
PROPELLER(S)
4 SOLID KEYLESS BLADES
COOLING SYSTEM (COMPRESSOR)
R-22 DIRECT EXPANSION
SPEED/CONSUMPTIONS
BALLAST FULL: 14KTS, 13MT IFO380
LADEN FULL: 13.5KTS, 14MT IFO380
PORT IDLE: 2MT IFO380 + 0.1MT MGO
PORT WORK: 3MT IFO380 + 0.1MT MGO
VSL IS BURNING MGO WHEN REQUIRED
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1373
TANKS CAPACITY (CBM)
FW:202
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
4.65 x 4.35
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
9
DECK(S)
3
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
202790
CARGO CAPACITY (CBM)
5745
FLOOR SPACE CAPACITY (SQM)
2335
GRATING/DECK STRENGTH
WOODEN, MAX 5MT FORKLIFT INCLUDING CARGO (ALWAYS USING STEEL PLATES)
TEMPERATURE ZONE(S)
6
TEMPERATURE (℃)
-60 /+12
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
4
AIR CHANGE (TIMES/HOUR)
90
PALLET(S)
1875
CONTAINER CAPACITY
1 TEU
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
West of England
CREW
-
ACCOMMODATION
-
INSPECTION
SOUTH AFRICA
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER FITTED
