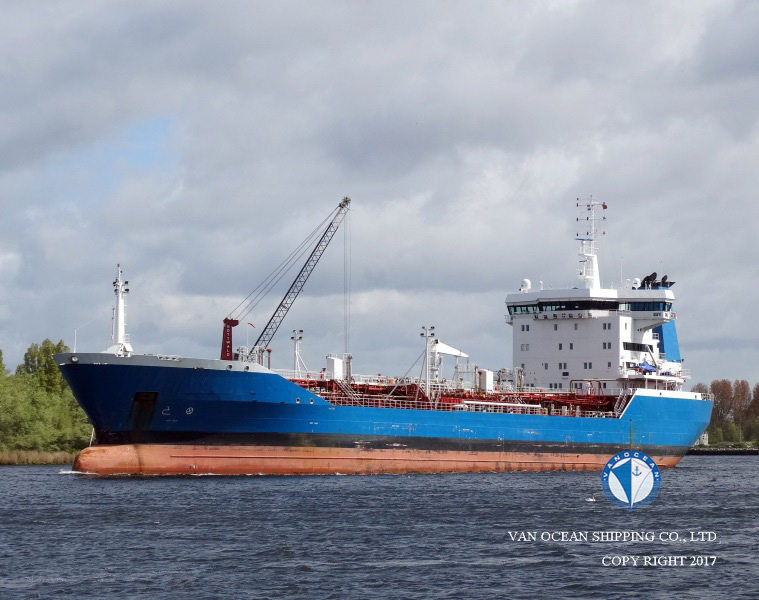

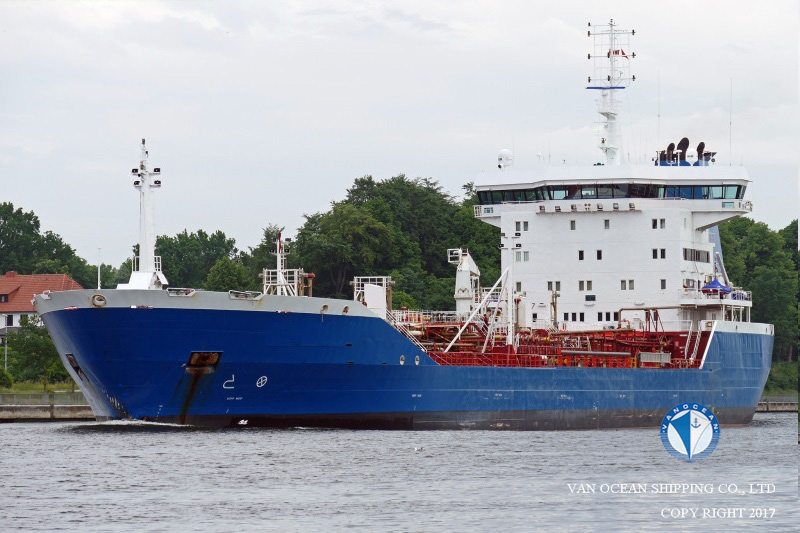

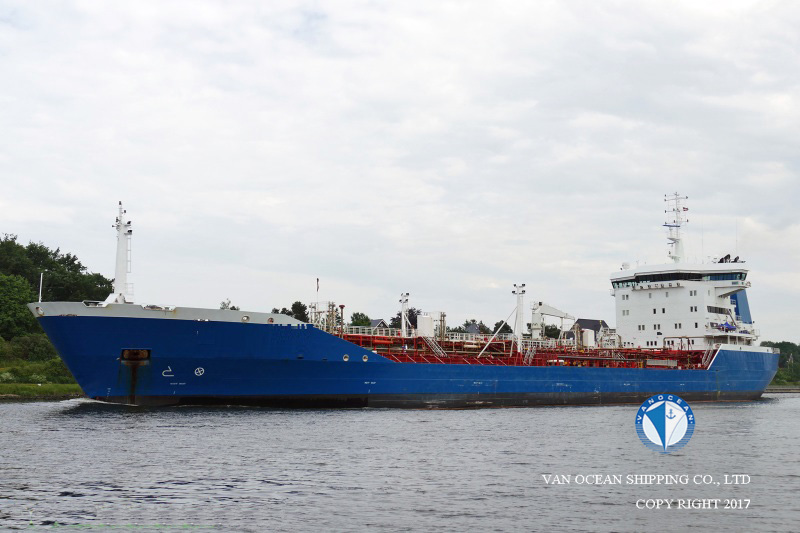

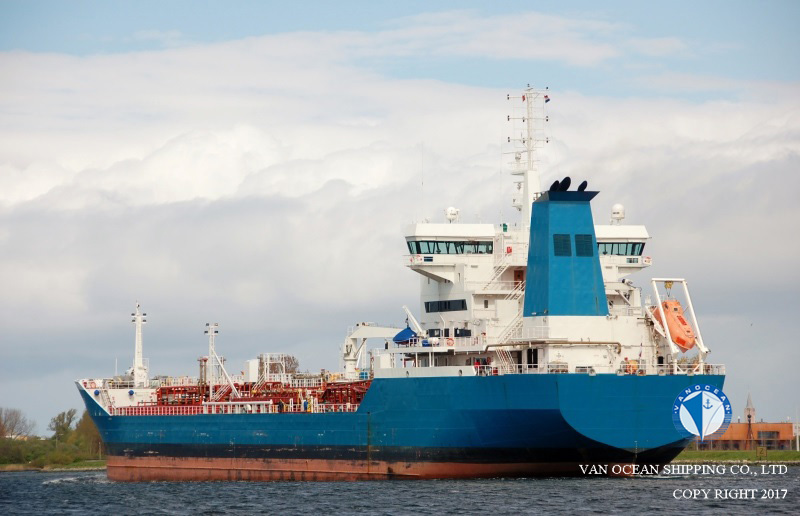

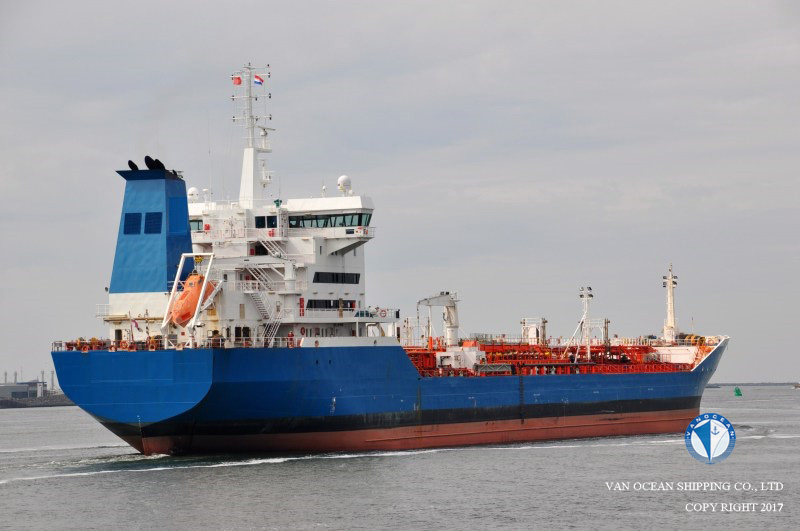

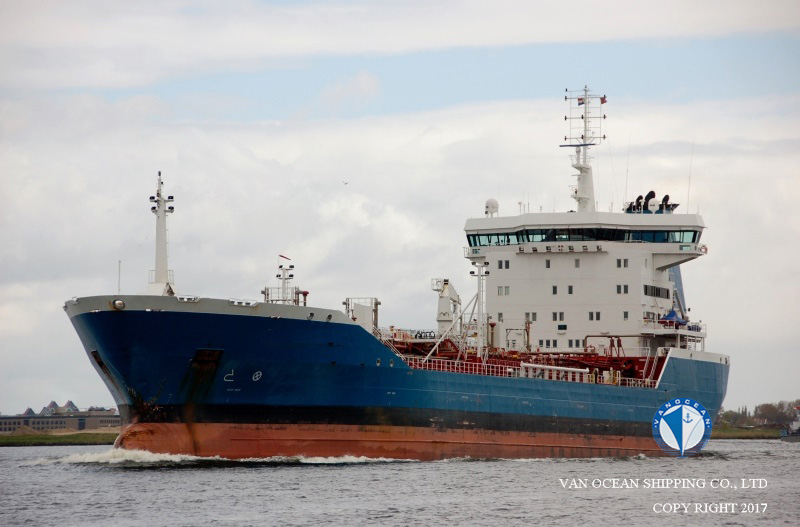

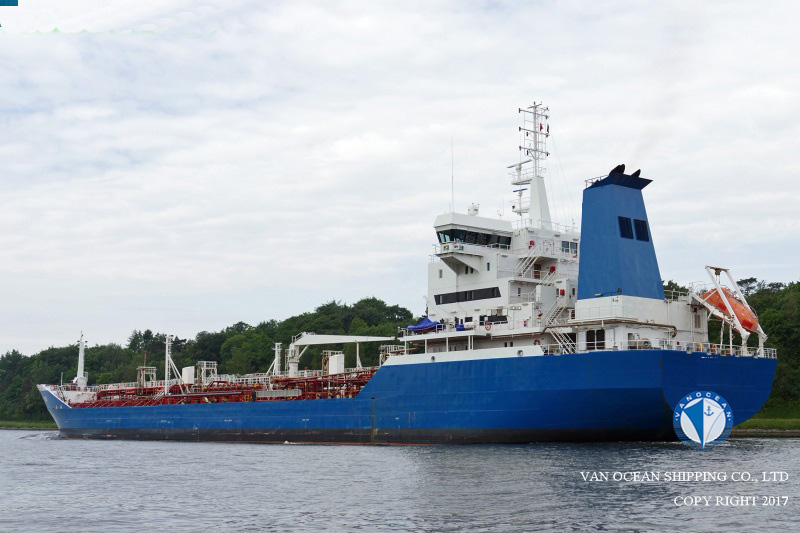

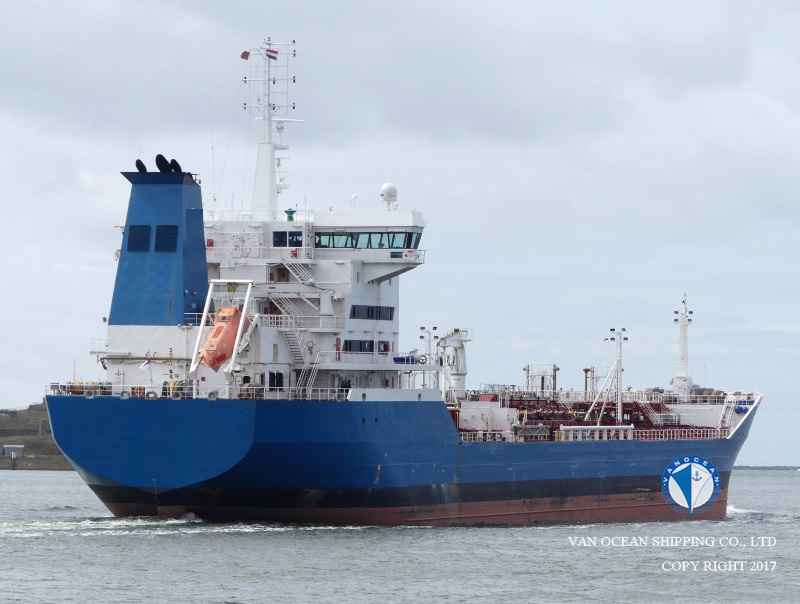

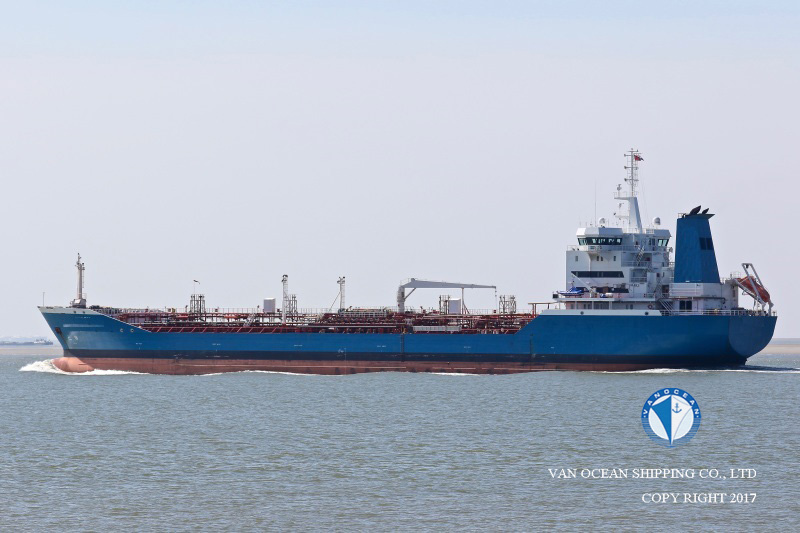

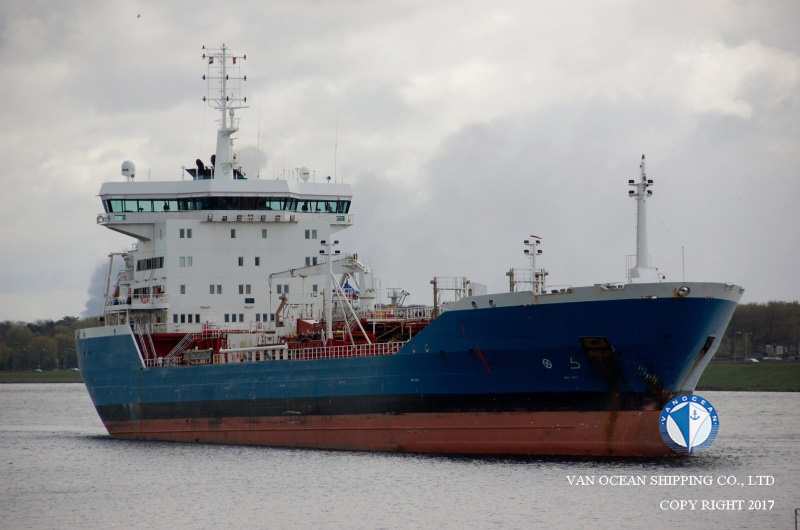

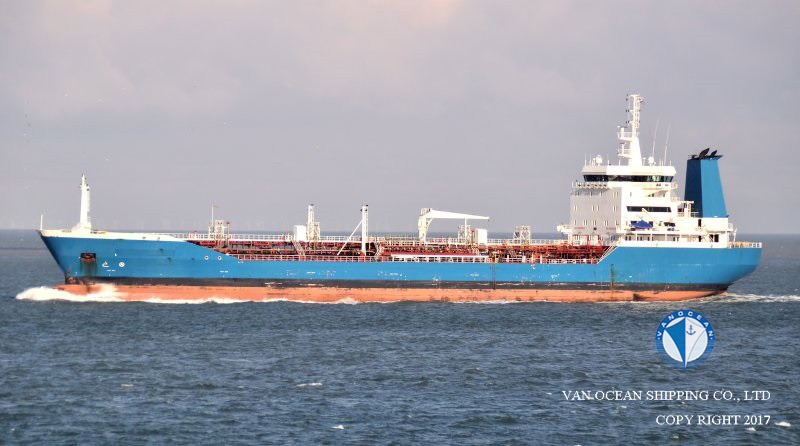

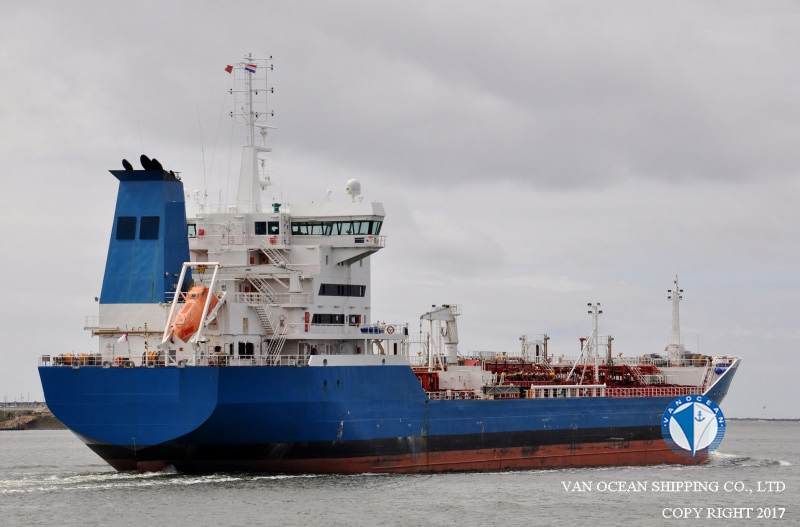

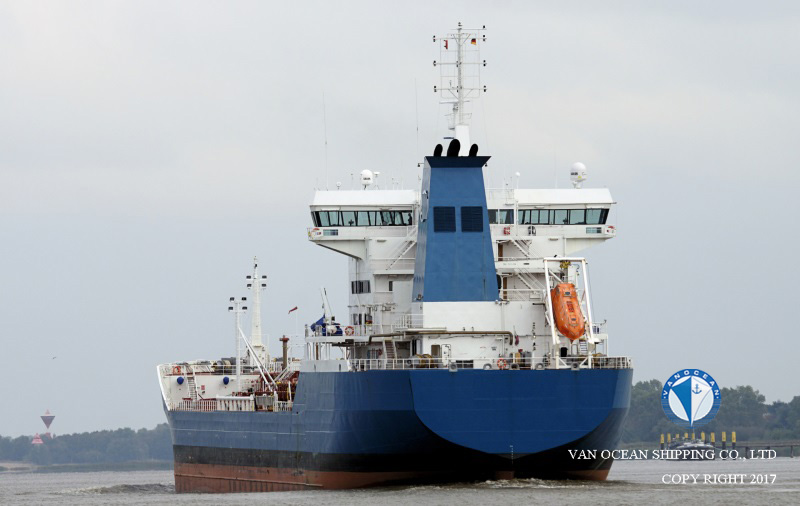

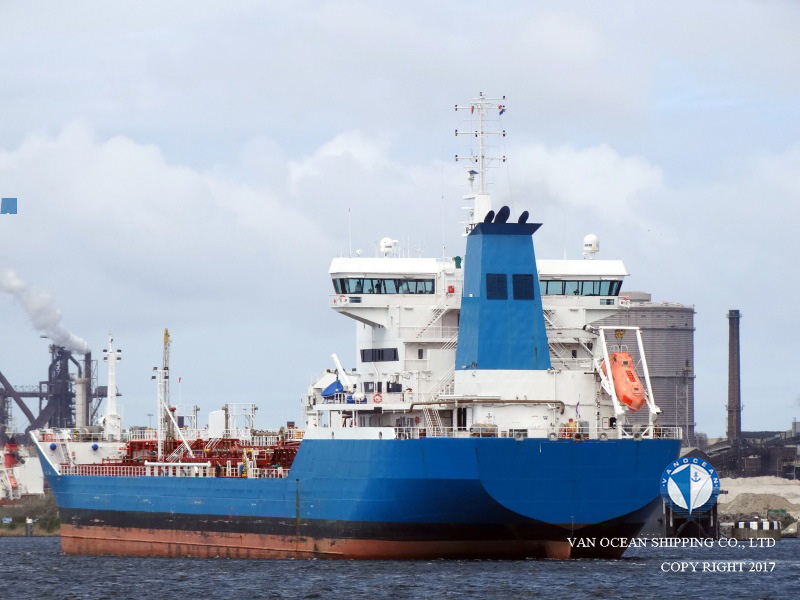

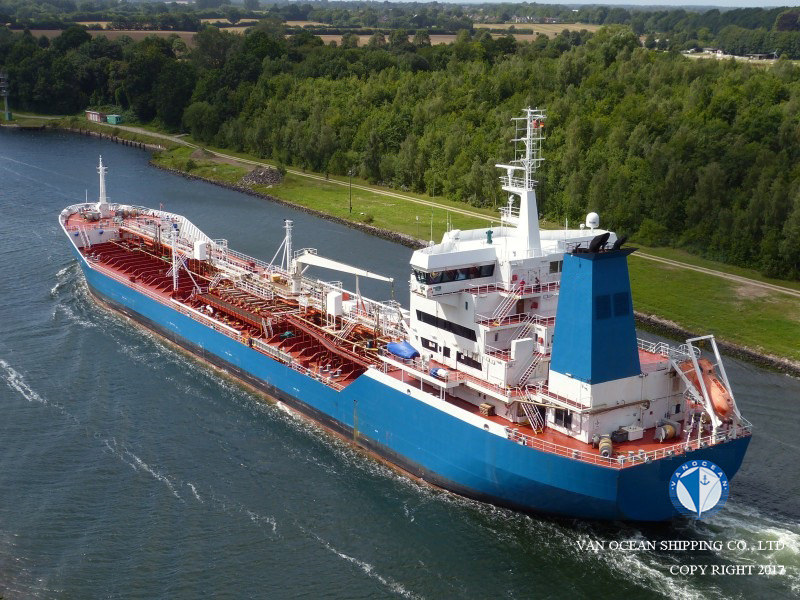

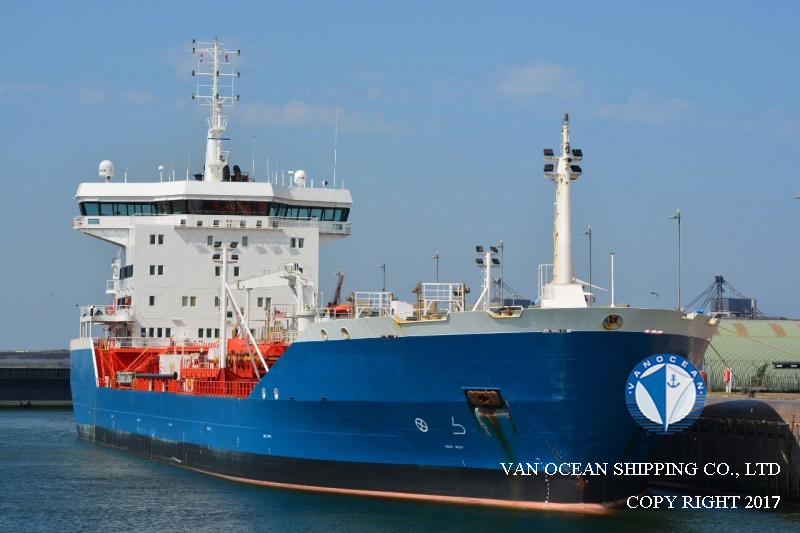

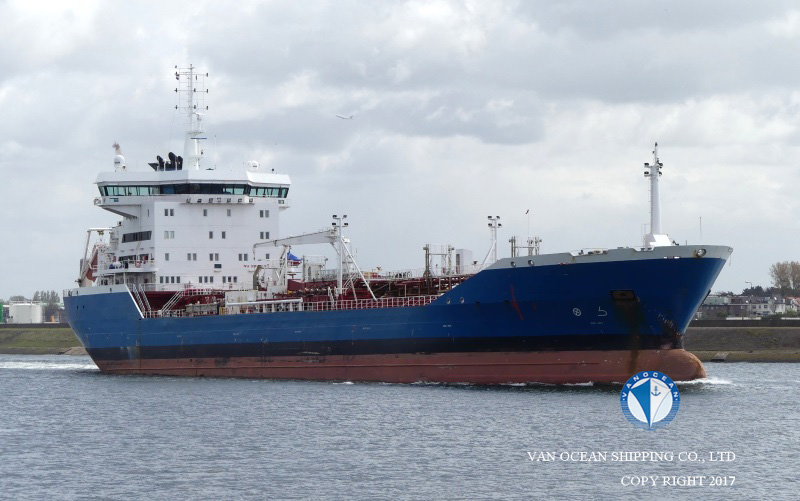

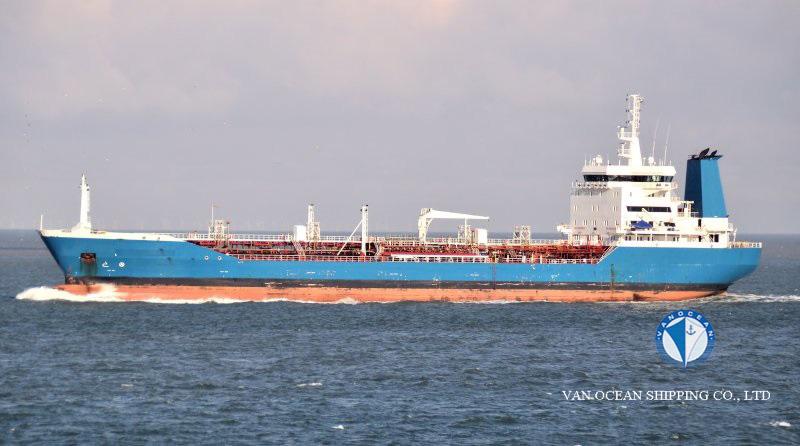

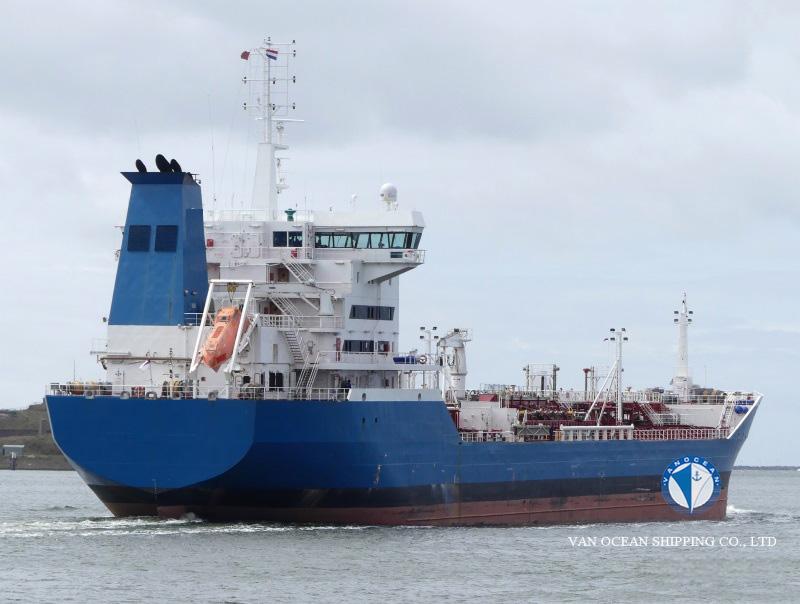

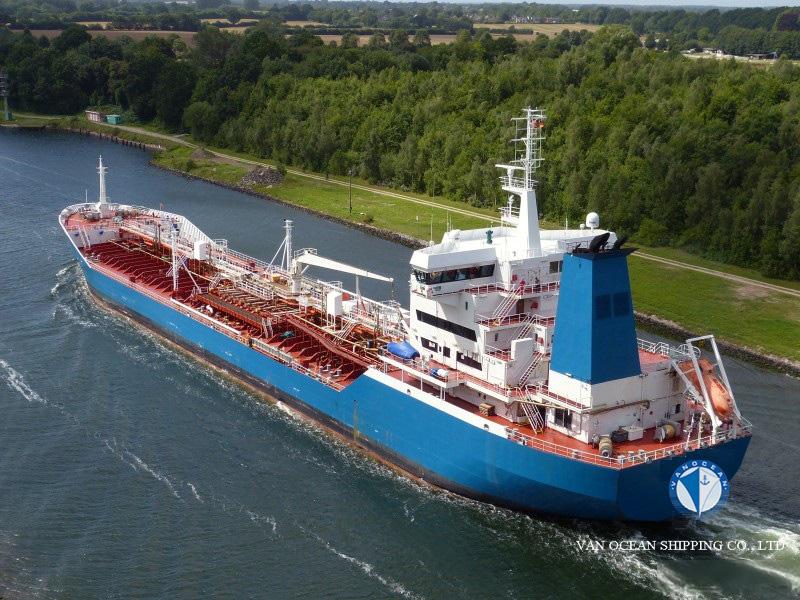

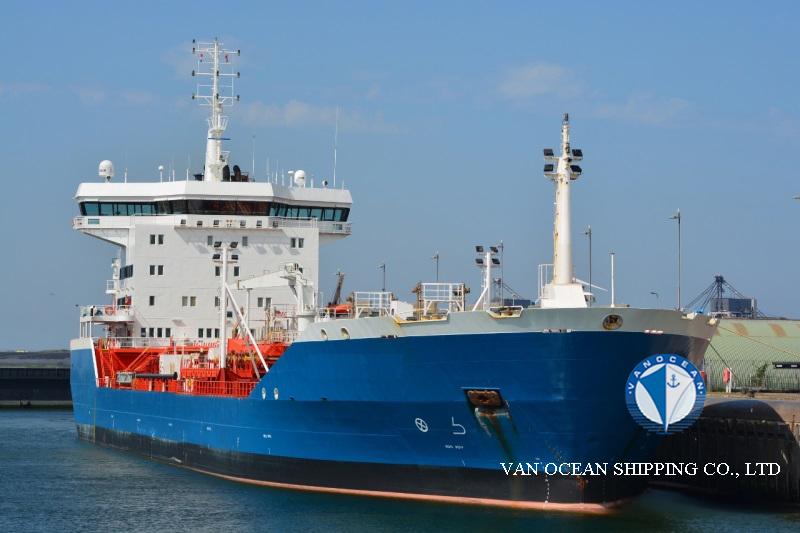

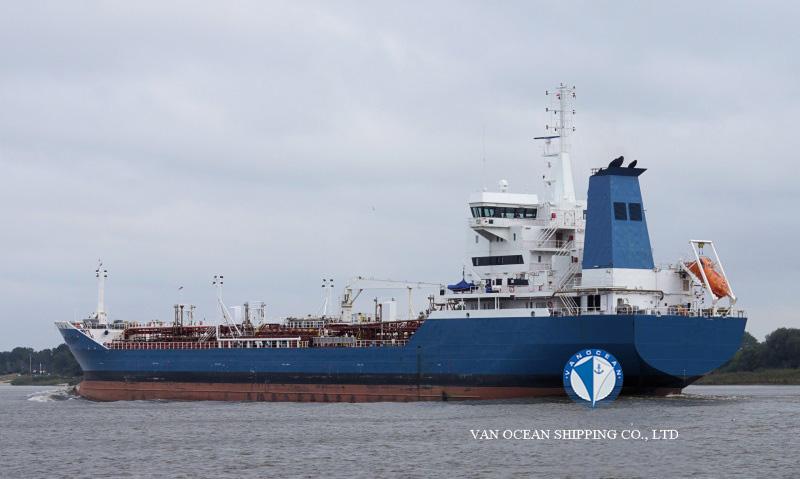

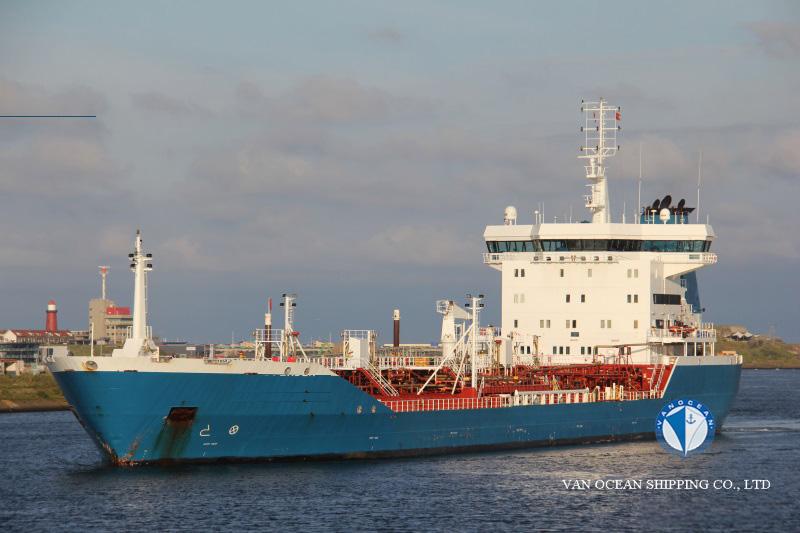

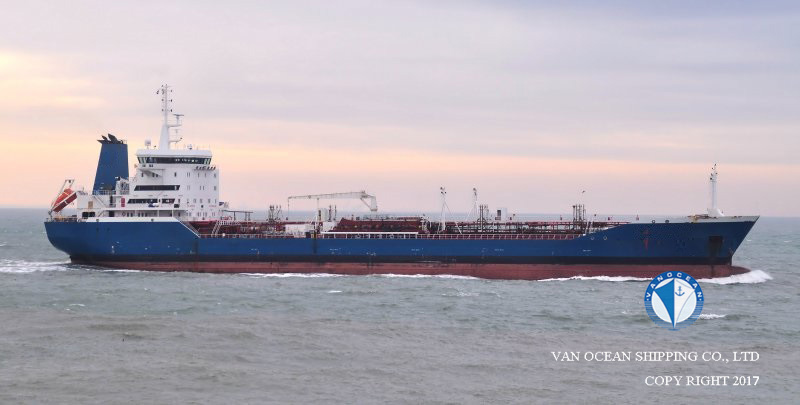

VESSEL NAME
TNK294
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL /DOUBLE BOTTOM
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
2003
BUILT PLACE
FACTORIA VULCANO VIGO S.A., SPAIN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Oil tanker ESP,Chemical tanker ESP, Unrestricted navigation, ✠AUT-UMS , ✠SYS-NEQ-1 , MON-SHAFT , ICE CLASS IA , INWATERSURVEY , IG
SS
2028-06
DD
2027-02
LOA (M)
144.05
LBP (M)
134.55
BEAM (M)
23
DEPTH (M)
12.4
SUMMER DRAFT (M)
9.5
WINTER DRAFT (M)
9.3
TROPICAL DRAFT (M)
9.7
GT (MT)
11377
PANAMA GT (MT)
-
SUEZ GT (MT)
12153.64
NT (MT)
5600
PANAMA NT (MT)
9576
SUEZ NT (MT)
-
SUMMER DWT (MT)
18736
WINTER DWT (MT)
18131
TROPICAL DWT (MT)
19274
DISPLACEMENT (MT)
24326
LDT (MT)
5590
GEAR(S)
CRANE: 1 x 5MT, CENTRE 5M OUTREACH

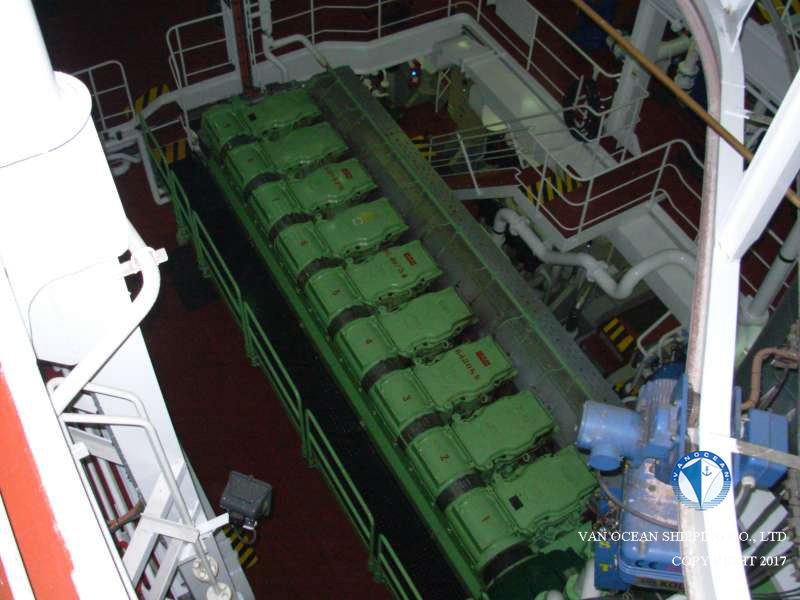

M/E(S)
MAN-B&W 9L40/54, 8810BHP
M/E POWER (KW)
6480
A/E(S)
-
GENERATOR(S)
4 x 488KW
SHAFT GENERATOR(S)
1 SET
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
14.72 KTS ON 22MT
FUEL TYPE
IFO 180
BUNKER CAPACITY (CBM)
556
TANKS CAPACITY (CBM)
2 x SLOP TANKS 571.83CBM TOTAL
MGO:109
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
657809
CARGO CAPACITY98% (CBM)
18634.82
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
12 x 280 CBM/HR
2 x 80 CBM/HR
1 x 75 CBM/HR
1 x 70 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER 771BHP
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
SBT
